Sharman SM30SWI 20A Switch Mode Power Supply 13.8V DC, 30A Peak

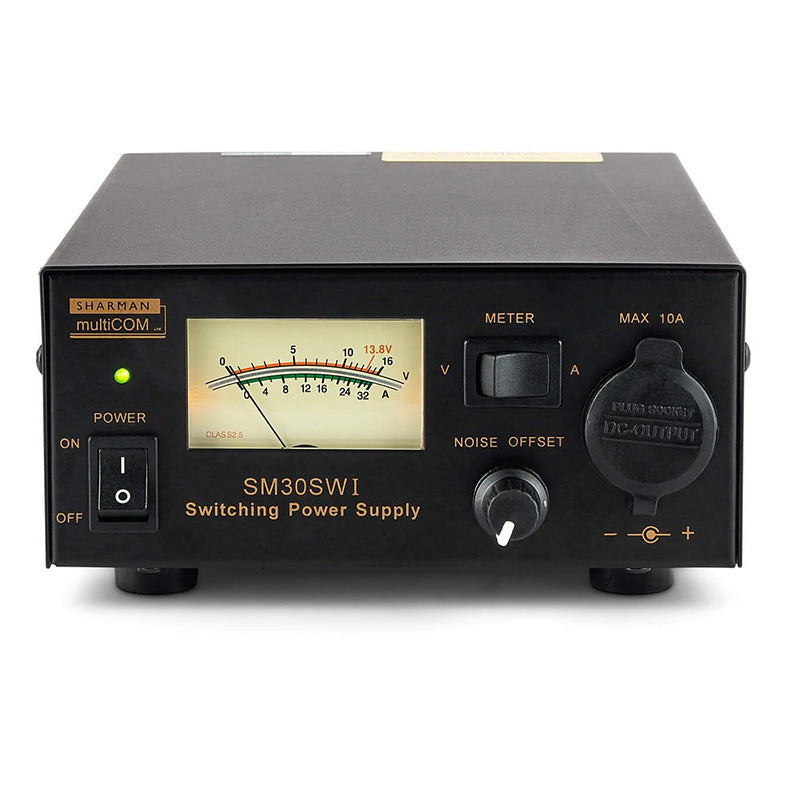

The Sharman SM30SWI is a compact switch-mode DC power supply designed for amateur radio, CB radio and other compatible 13.8V communications equipment. It provides a fixed 13.8V DC output with up to 20A continuous current and 30A peak current.

An illuminated analogue meter can display either voltage or current, while the front-panel Noise Offset control can be adjusted to help move switching noise away from the operating frequency. A front accessory socket provides a convenient output for compatible 12V equipment up to 10A.

Features

• Compact switch-mode DC power supply
• Fixed 13.8V DC output
• 20A continuous output current
• 30A maximum peak output current
• Illuminated analogue volt and amp meter
• Switchable voltage/current meter display
• Front 10A accessory socket
• Noise Offset control for reducing switching interference
• Rear DC output terminals
• Rear-mounted cooling fan
• Short-circuit protection
• Overload protection
• Robust metal casing with rubber feet

Technical Specifications

• Manufacturer: Sharman
• Model: SM30SWI
• Power Supply Type: Switch mode
• Input Voltage: 220-230V AC, 50-60Hz
• Output Voltage: 13.8V DC fixed
• Continuous Output Current: 20A
• Maximum Peak Current: 30A
• Voltage Regulation: Less than 2%
• Ripple & Noise: 80mVp-p at rated load
• Front Accessory Socket: Up to 10A
• Dimensions: 150 x 75 x 195mm excluding protrusions
• Weight: Approx. 1.64kg including cable

Compatibility

Suitable for compatible radio and communications equipment requiring a regulated 13.8V DC supply with a continuous current requirement of no more than 20A. Always check the equipment manufacturer's voltage and current requirements before connection.
