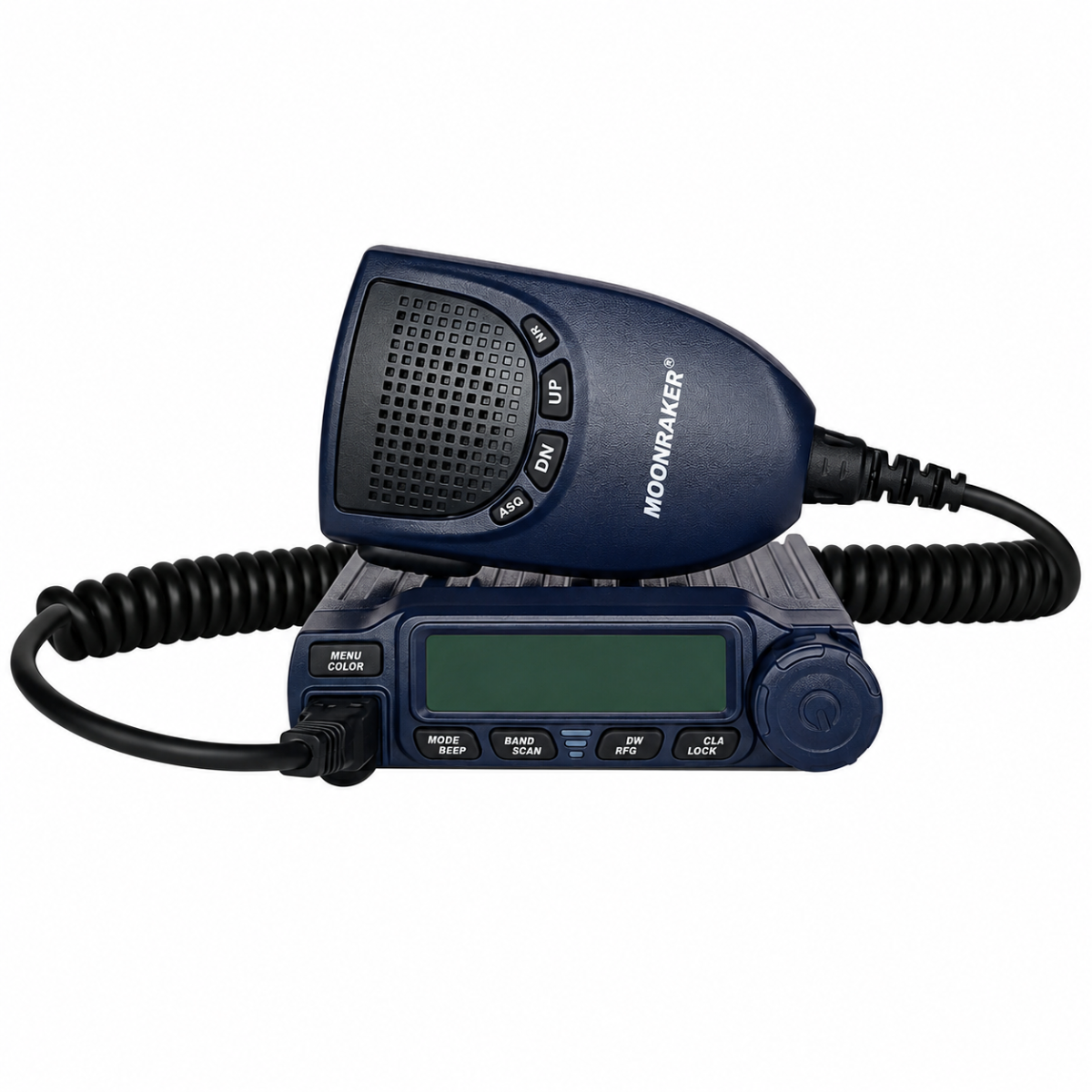

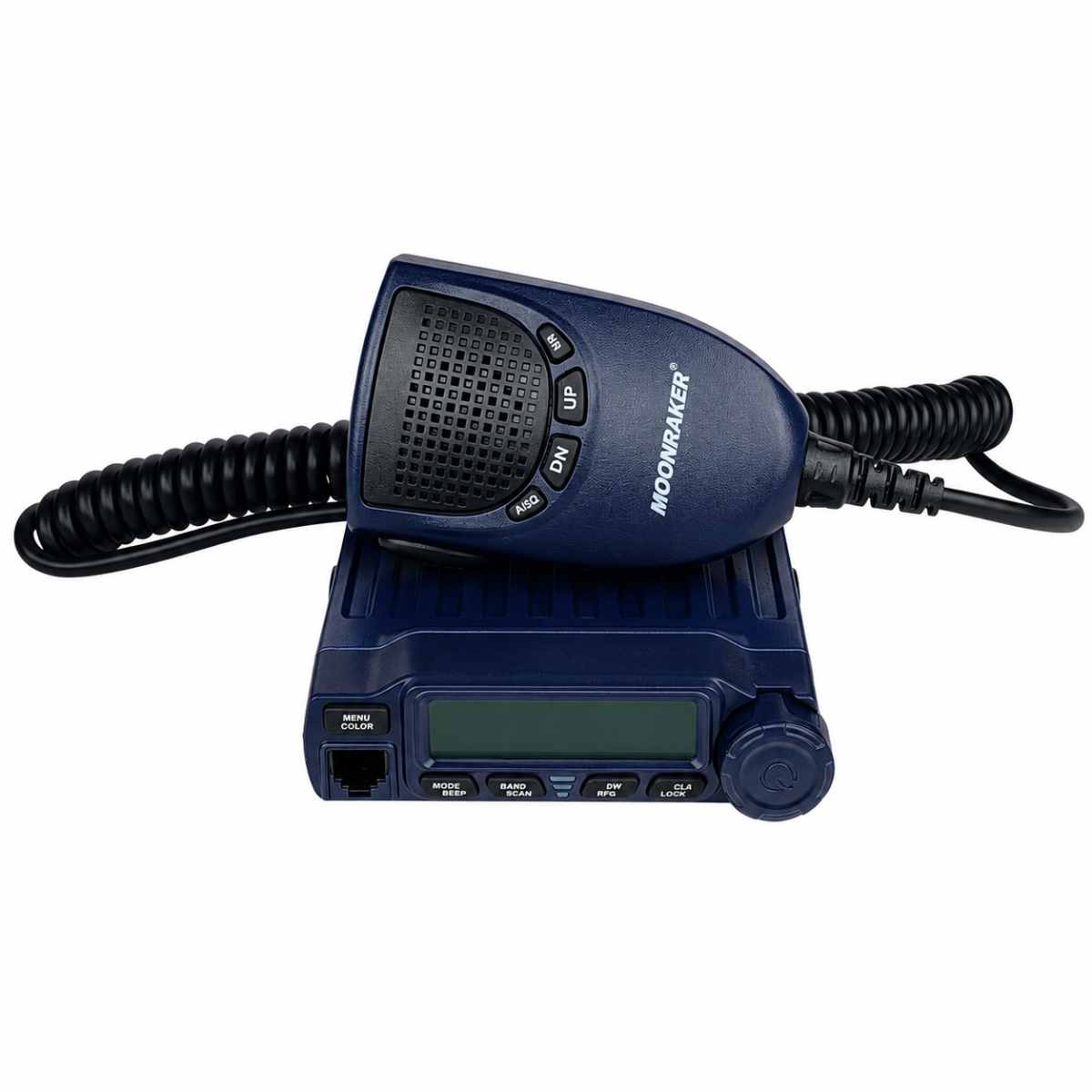

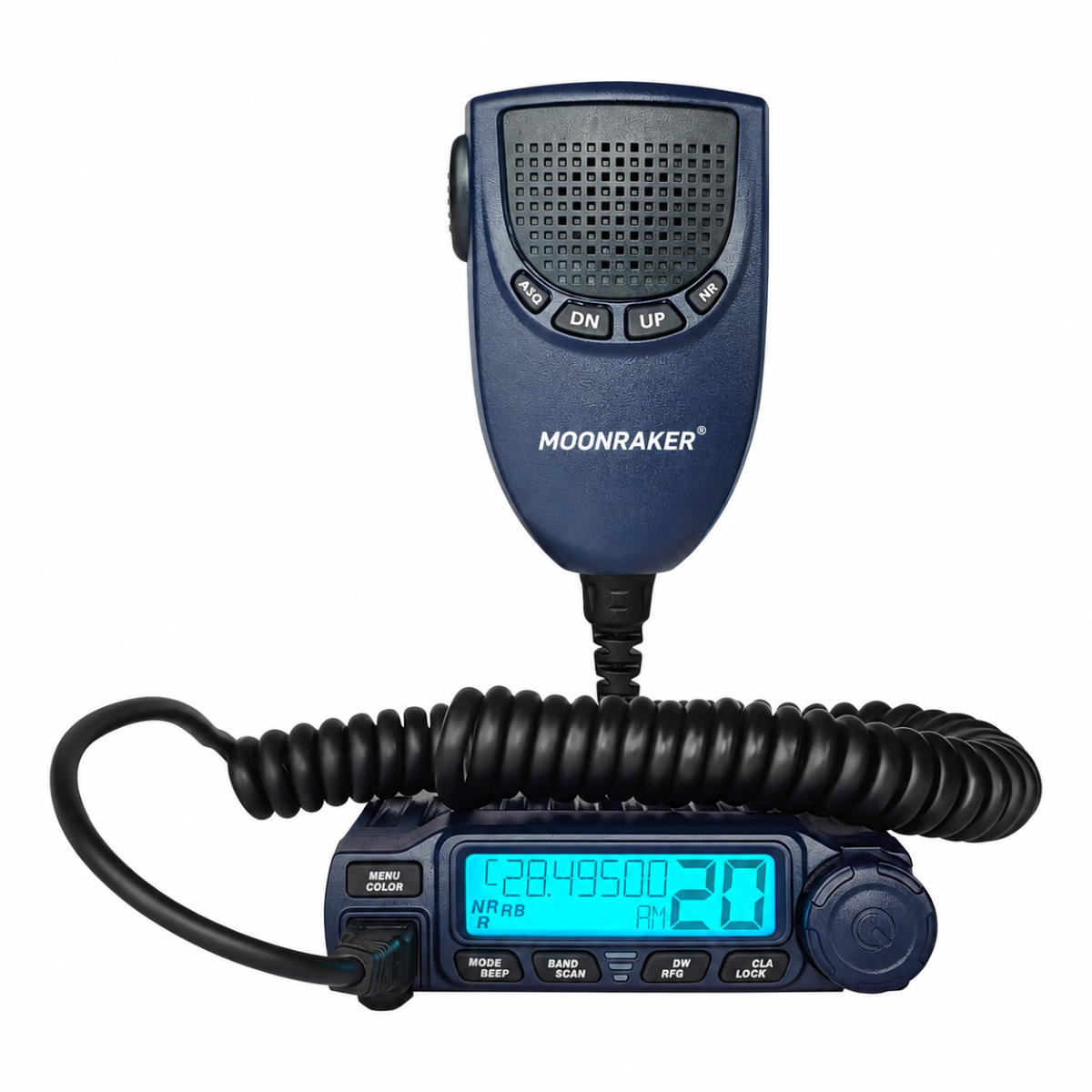

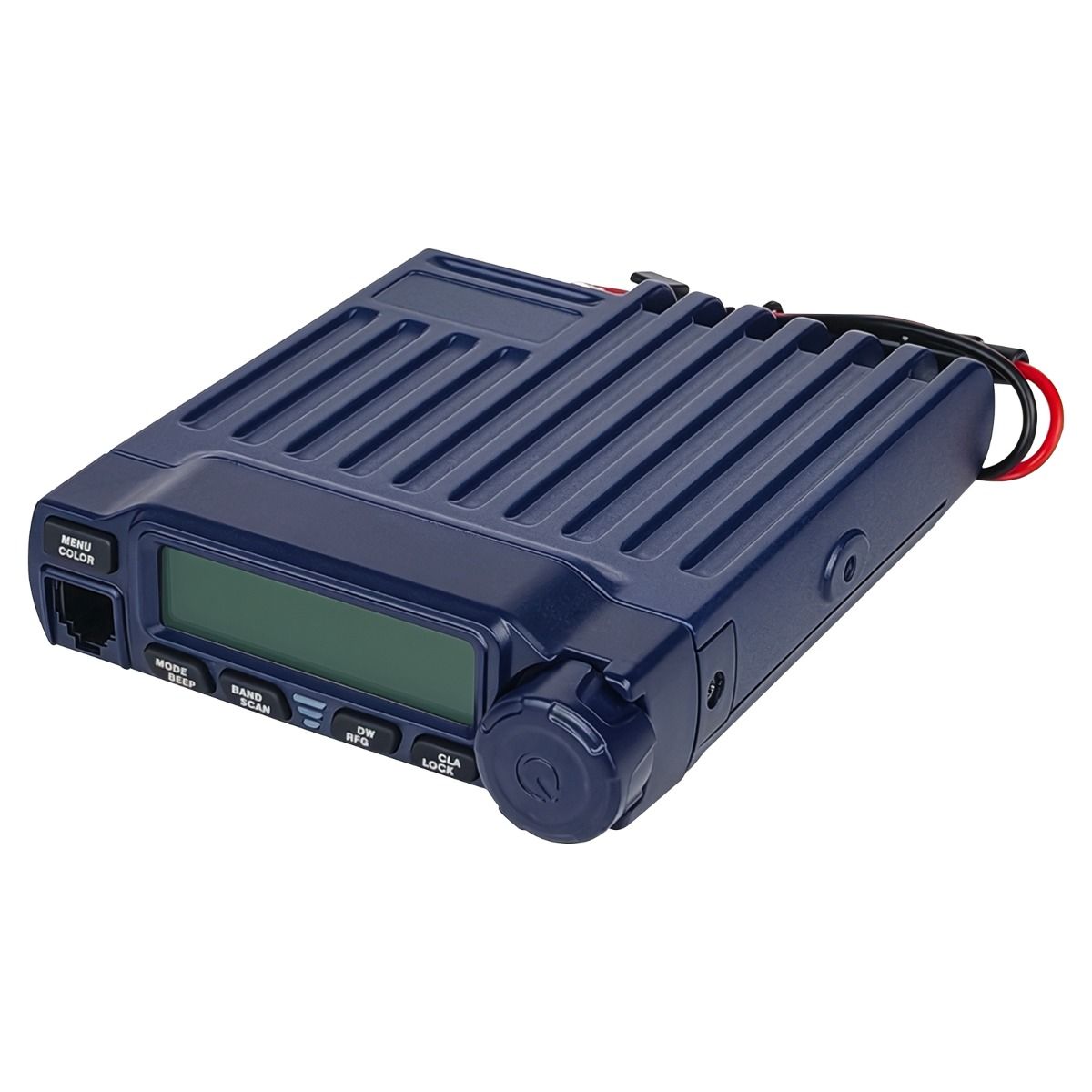

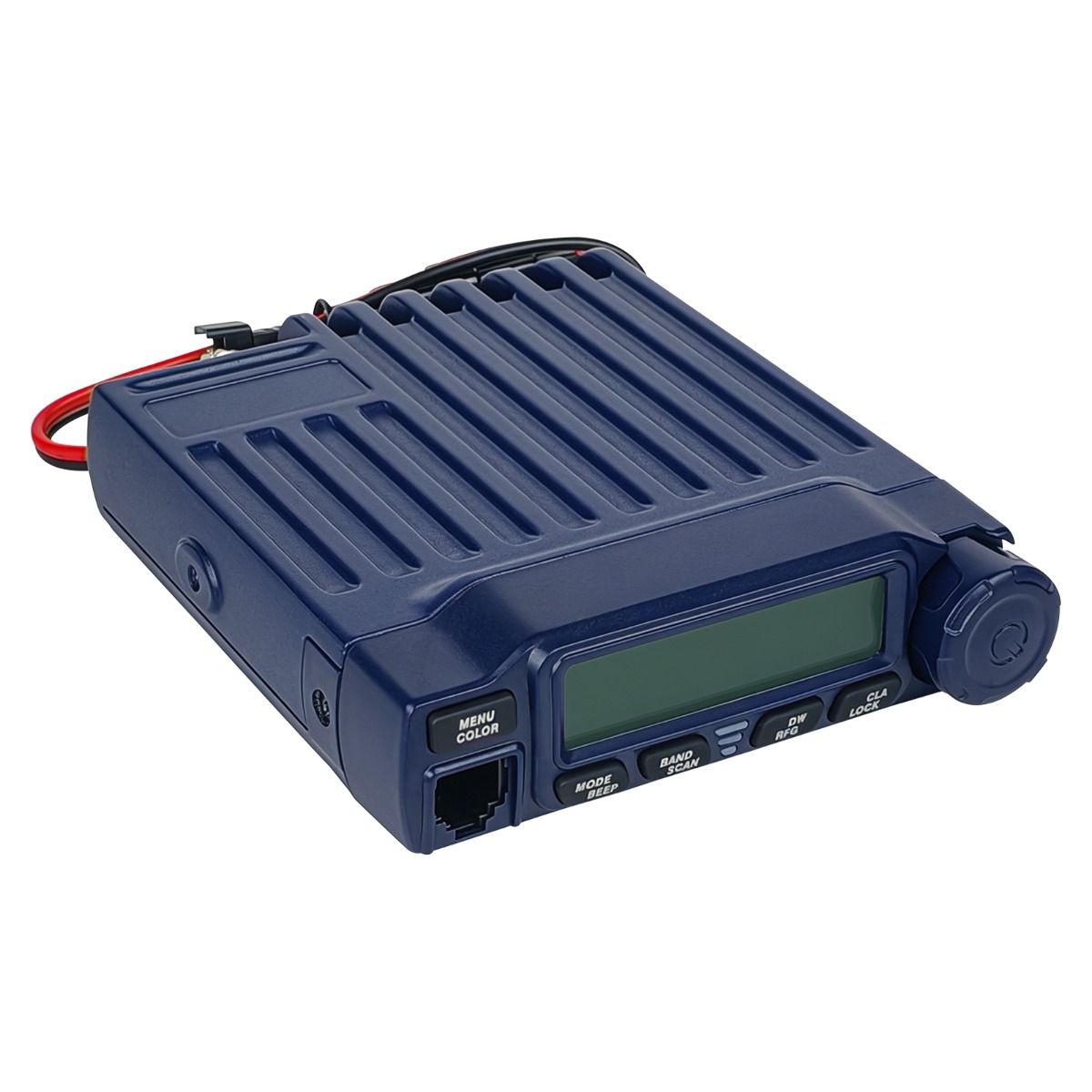

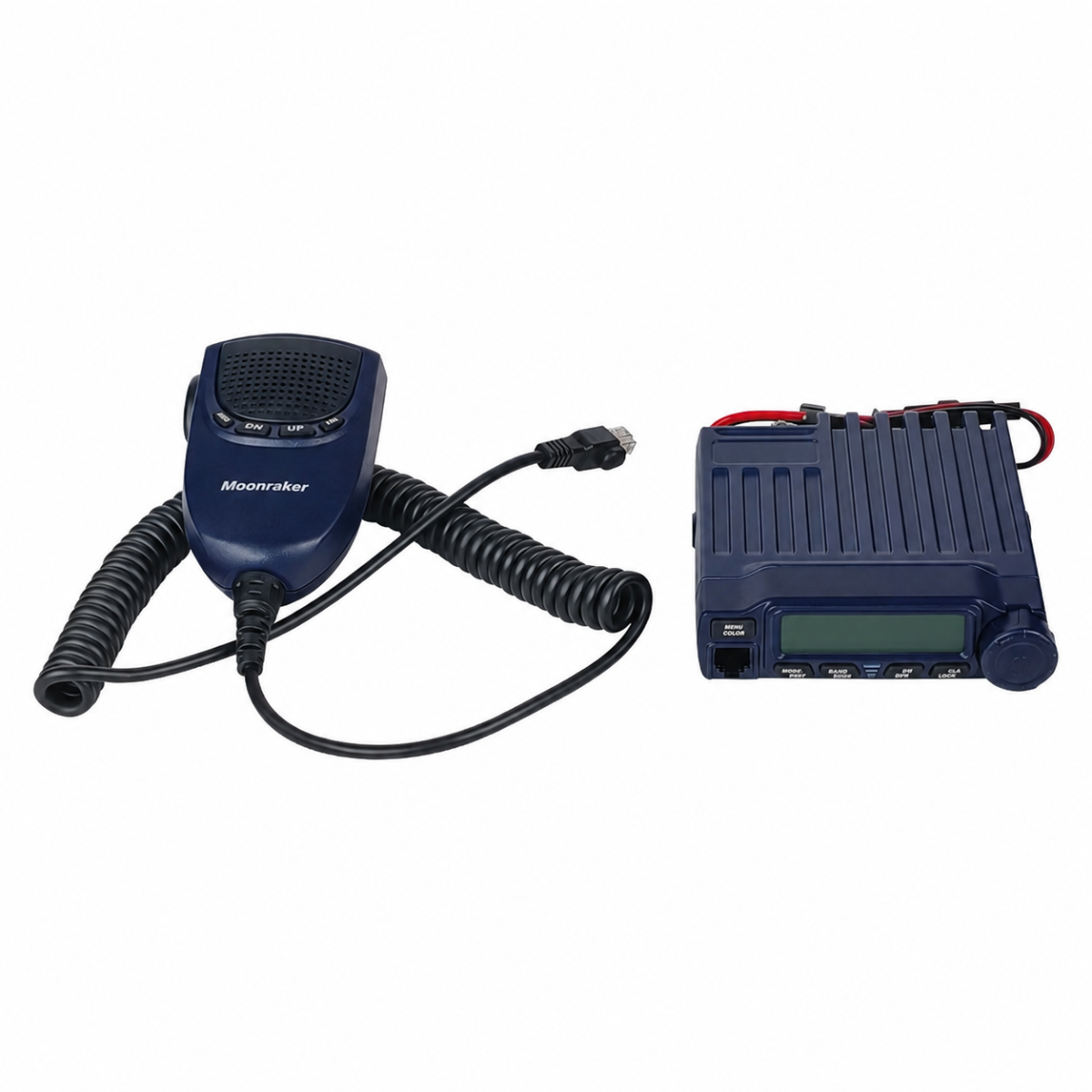

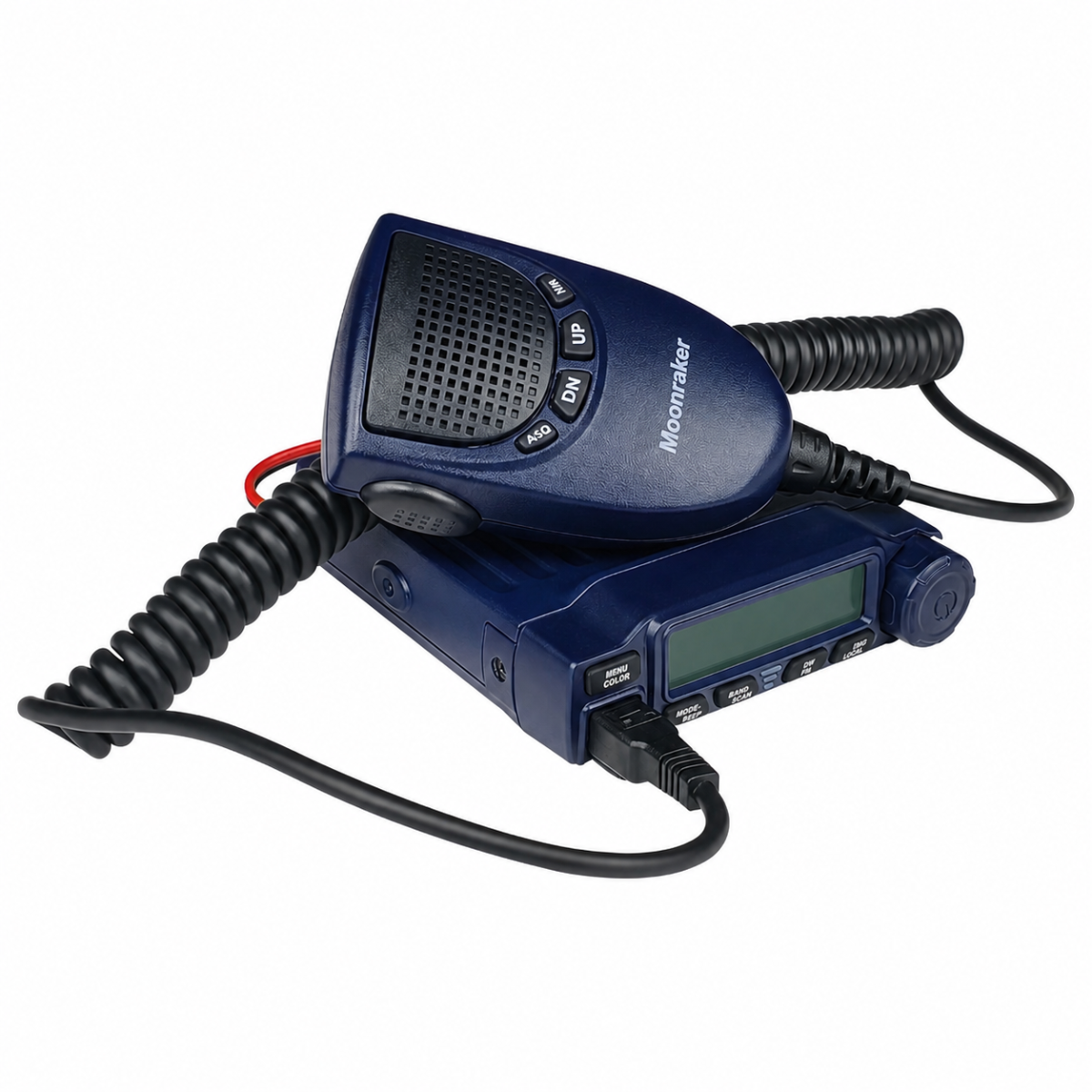

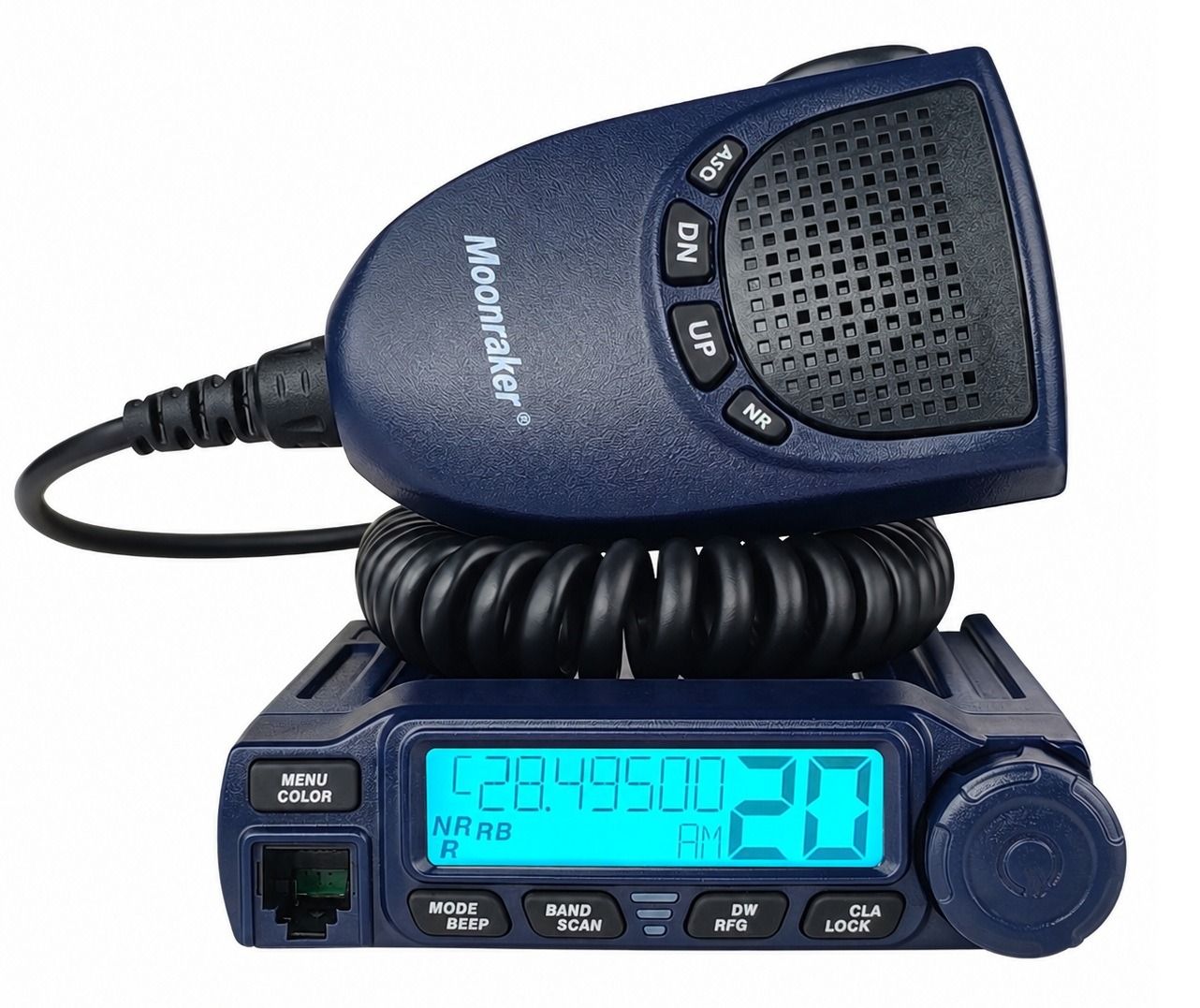

Moonraker Atlas 10m Mini Mobile Transceiver

Moonraker Atlas 10m Mini Mobile Transceiver

Compact, capable, and road-ready — the Moonraker Atlas is a full-featured 10m mobile transceiver built for operators who demand clear audio and flexible operation on the move. Advanced AI Noise Reduction (15 levels) keeps transmissions crisp, while support for PA, AM, FM, USB, and LSB gives you complete mode flexibility.

Key Features

• Multi-mode operation: PA, AM, FM, USB, LSB
• AI Noise Reduction with 15 adjustable levels for clean audio
• Dual Watch — monitor two frequencies simultaneously
• Built-in clarifier for precise SSB fine-tuning
• Adjustable colour backlight for day and night visibility
• Full button lock to prevent accidental changes

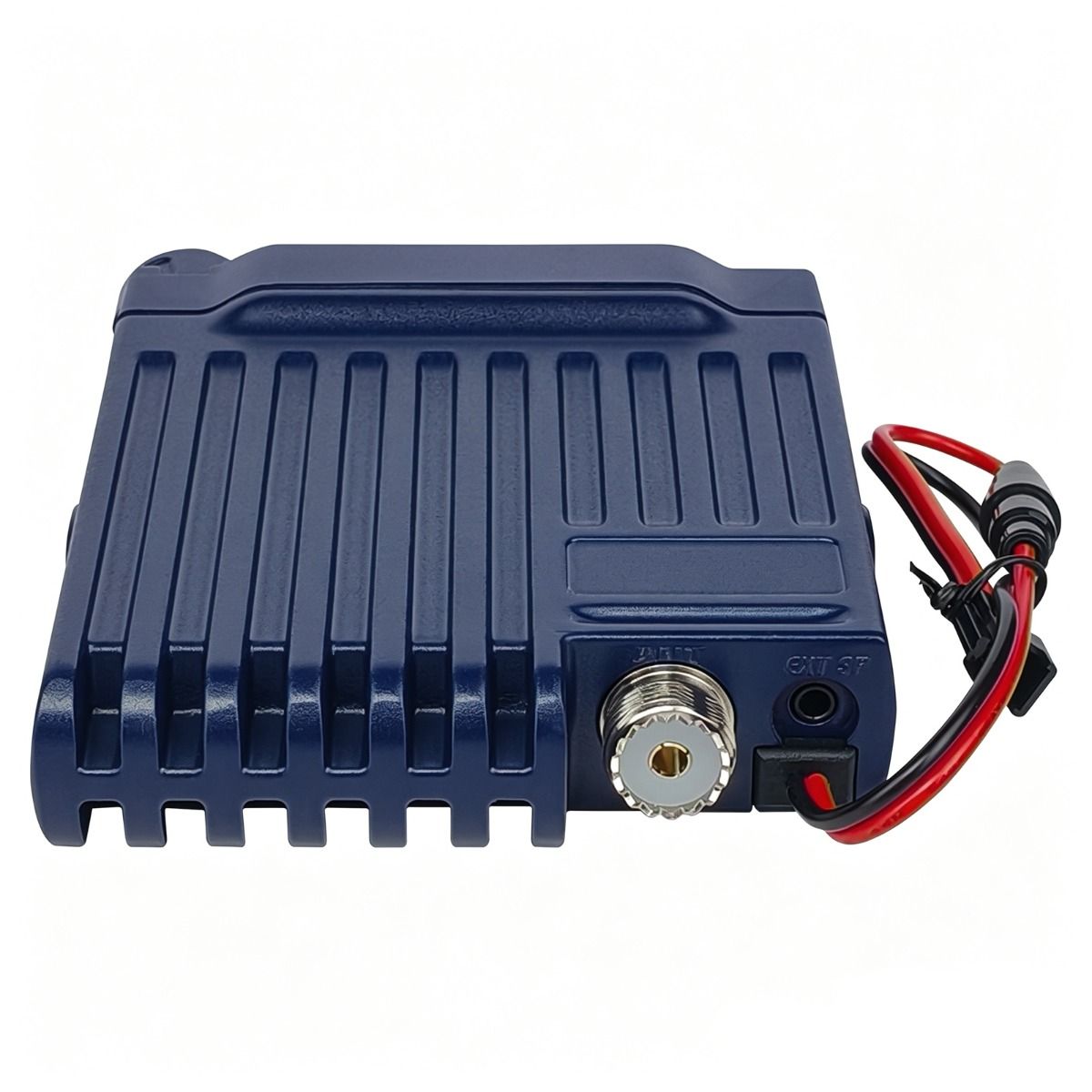

• SO239 antenna connector — compatible with most antennas
• Runs on 12–13.8V DC (negative ground) — direct battery connection supported

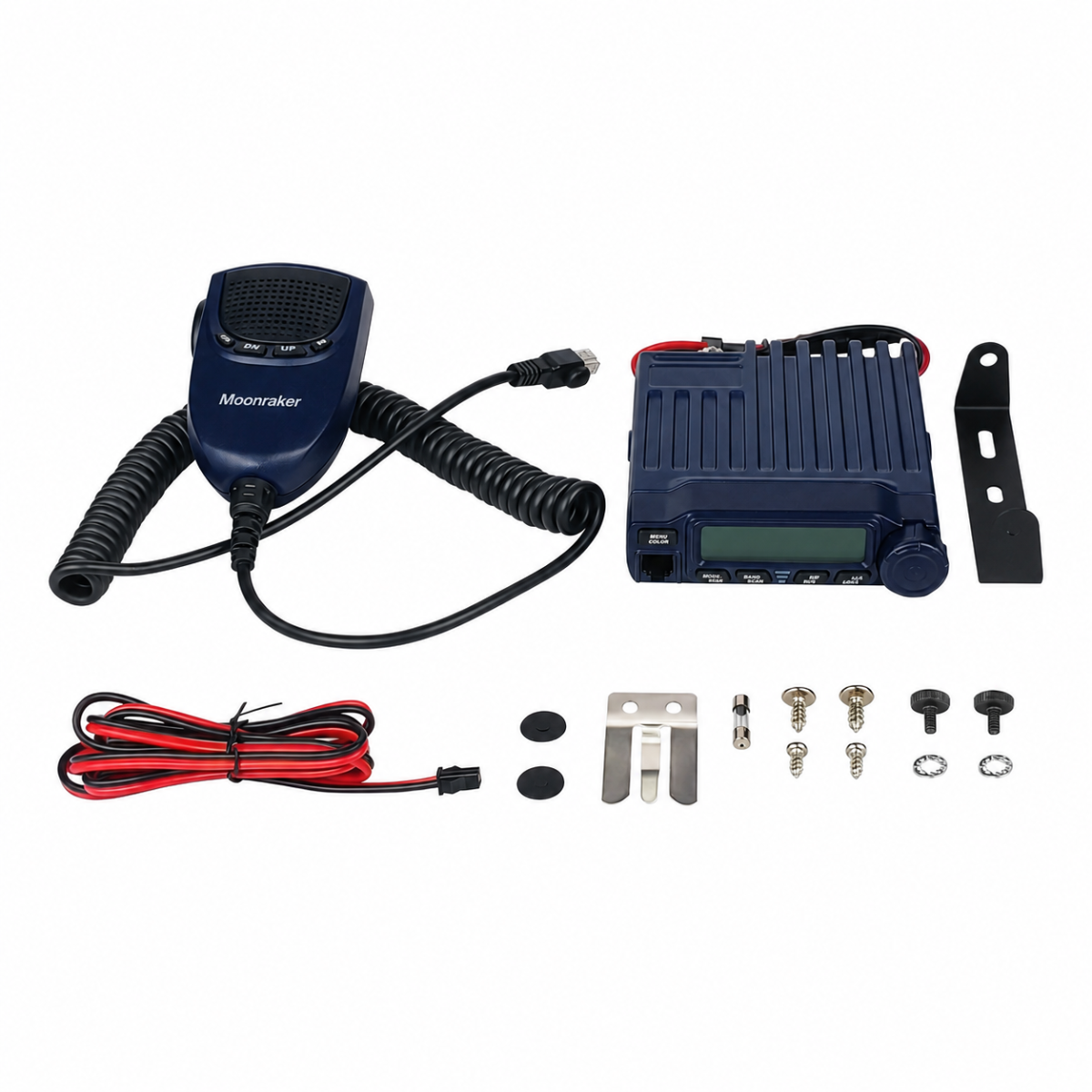

• Complete kit: microphone, mounting bracket, and power cord included

Specifications

• Frequency Range: 28.000–29.700 MHz
• Output Power: SSB 15W / FM 7W / AM 7W avg / PEP 16W
• Power Supply: 12–13.8V DC (negative ground)
• Dimensions: 21 × 19 × 5 cm
• Weight: 0.7 kg
