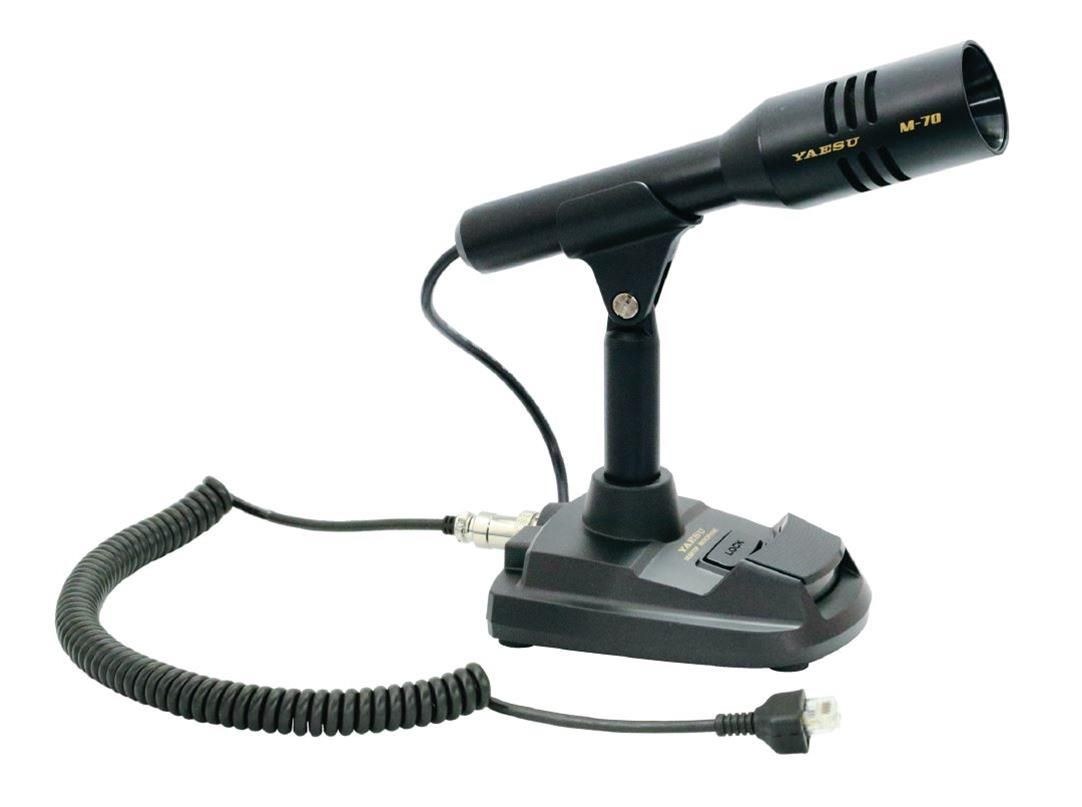

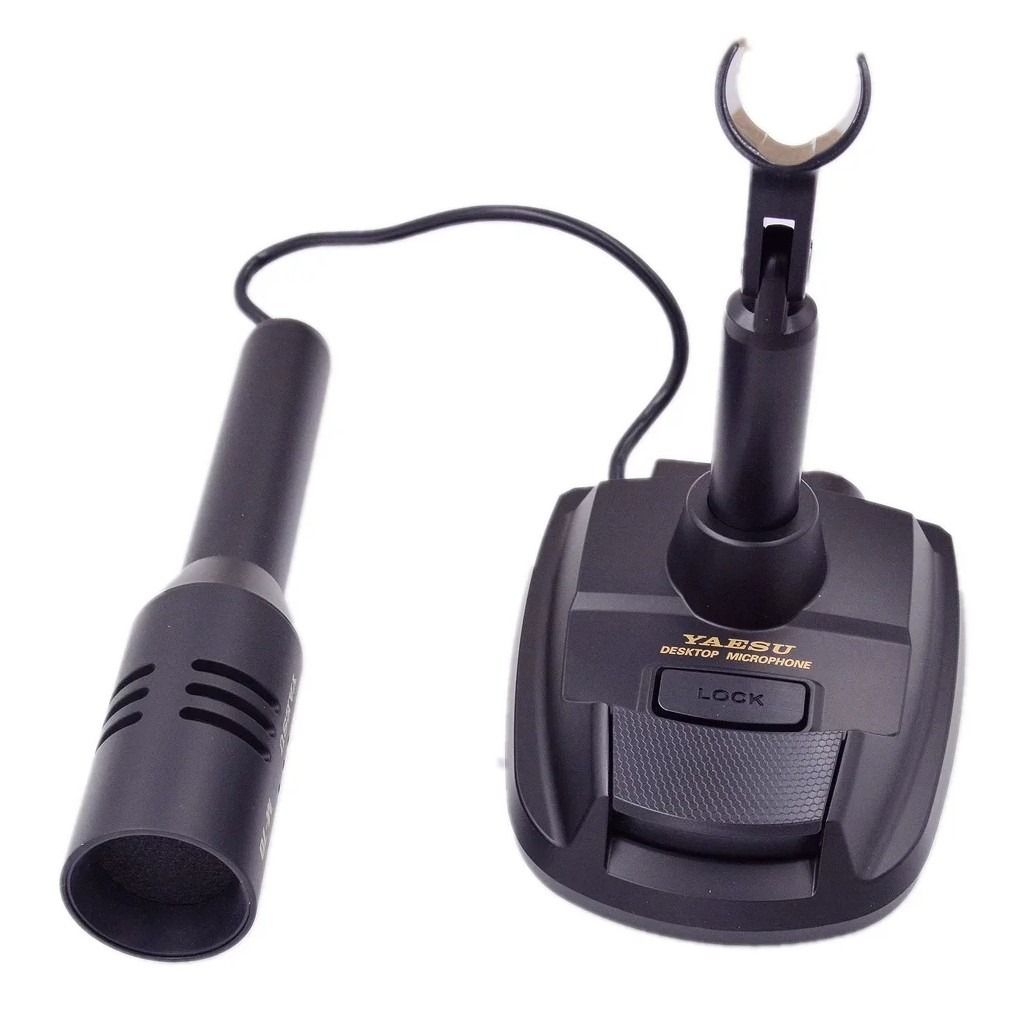

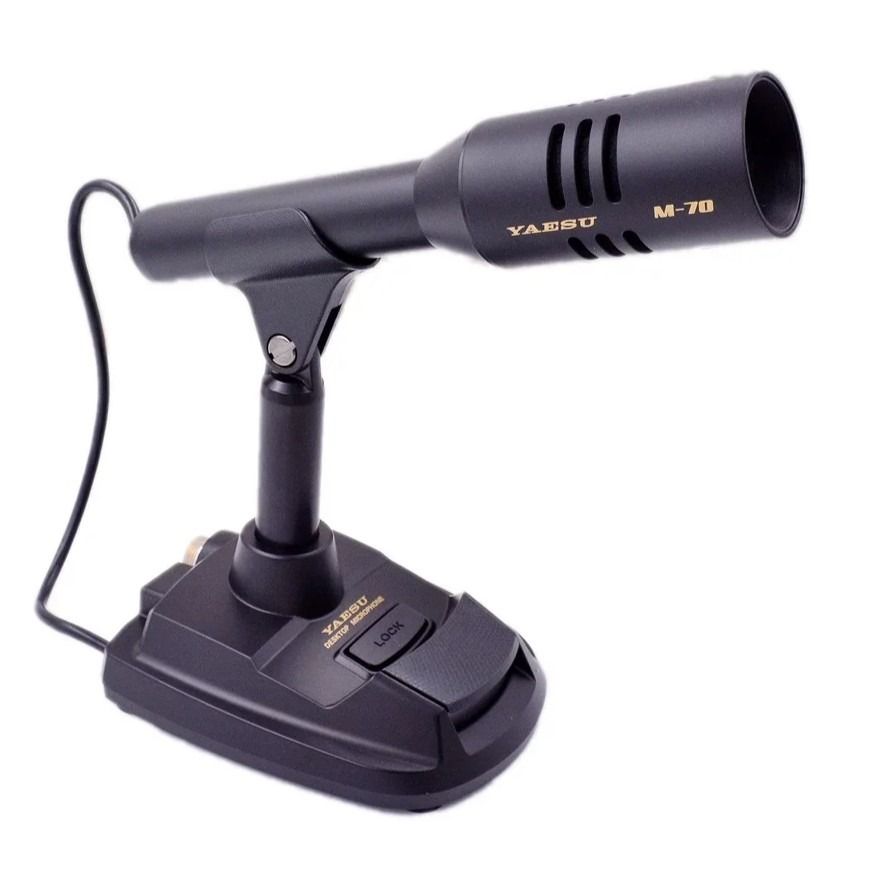

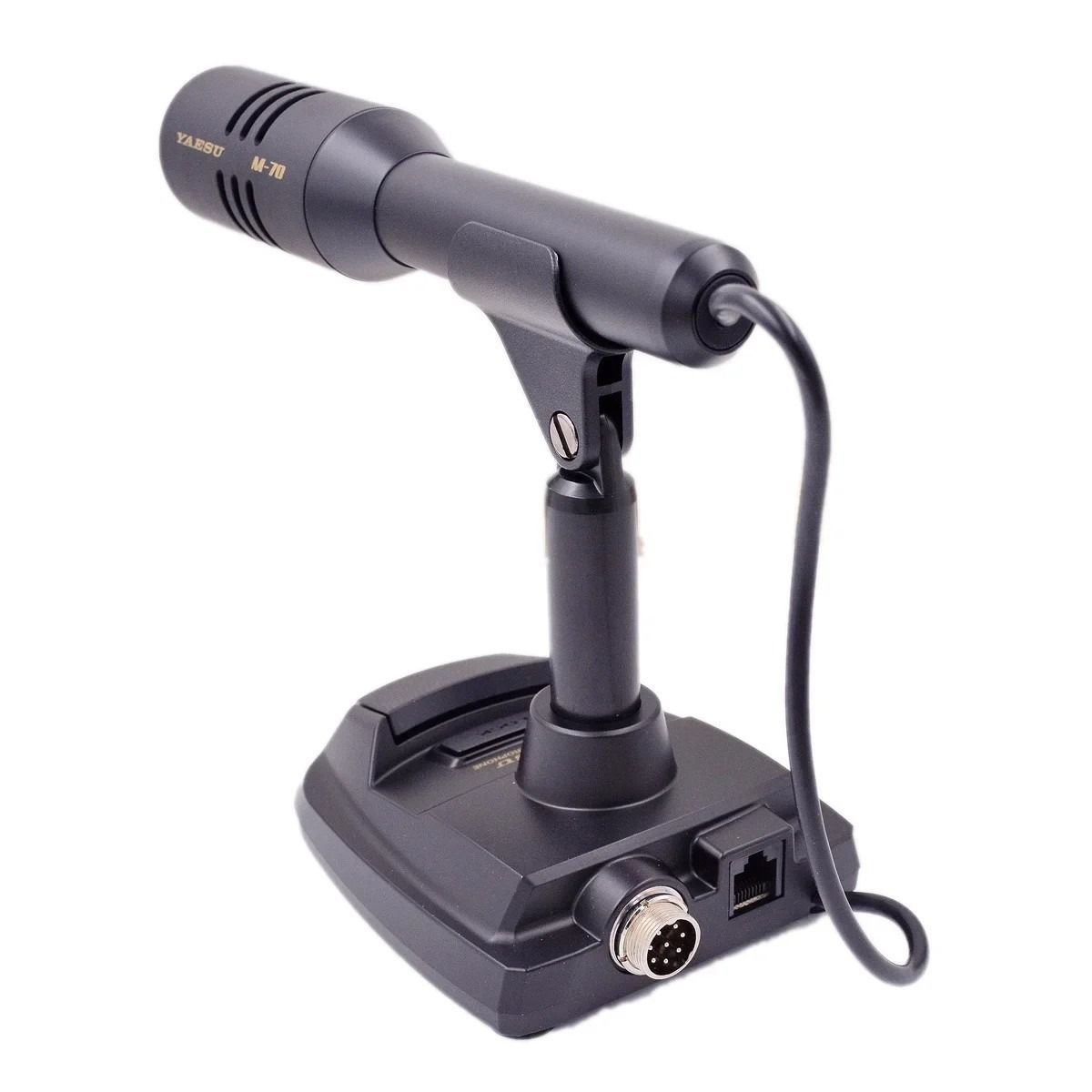

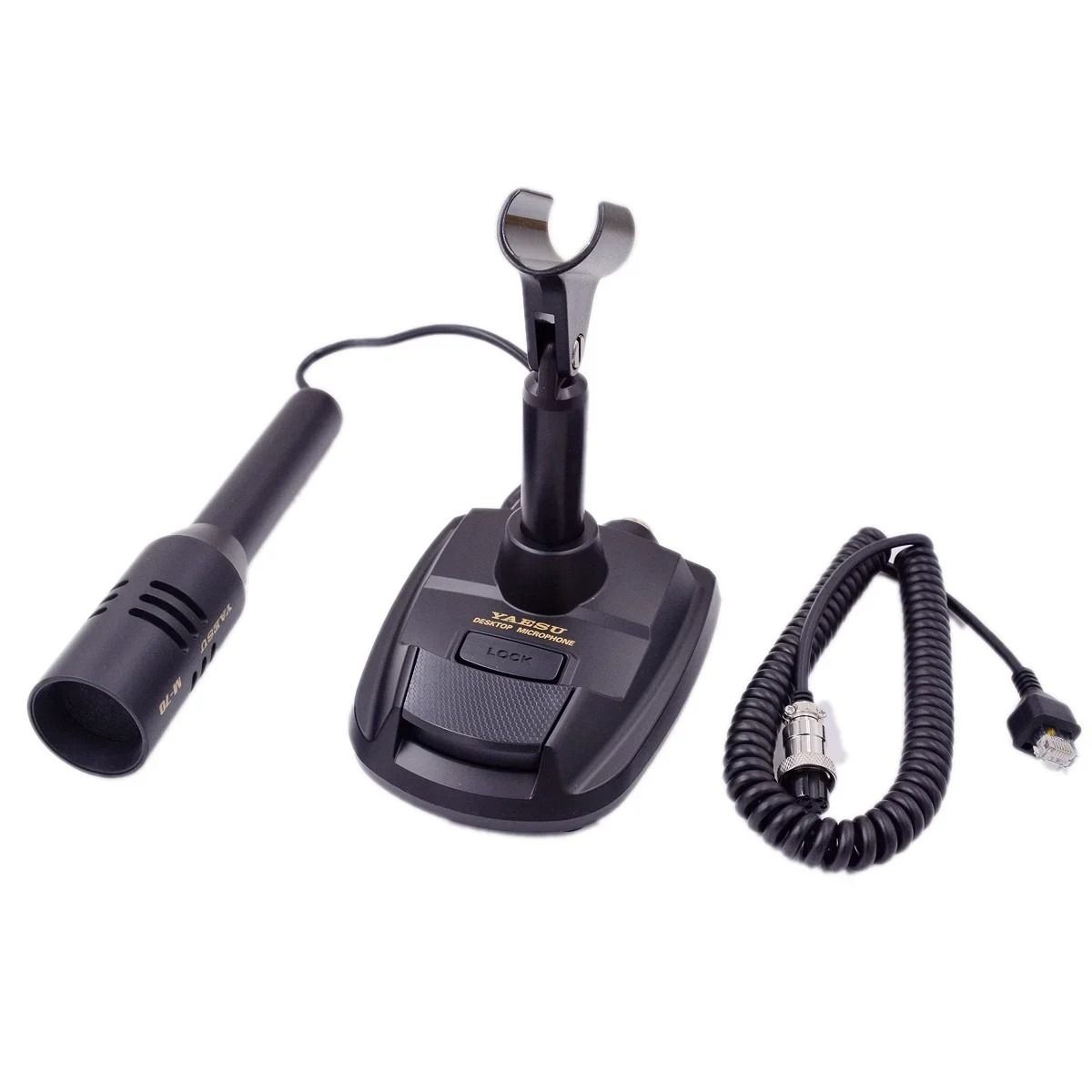

Yaesu M-70 Desktop Condenser Microphone Dual 8-Pin, 30-17000Hz, Low-Cut Filter, Isolation Transformer, For Yaesu HF Radios

The Yaesu M-70 is a premium desktop condenser microphone designed for Yaesu HF transceivers, delivering exceptional audio quality for SSB and AM operation. The directional condenser element covers a wide frequency response of 30–17000 Hz — significantly broader than typical dynamic microphones — for clear, crisp, and natural-sounding audio. An integrated isolation transformer on the circuit board further enhances audio quality by eliminating ground loop interference. The built-in low-cut filter (340 Hz, -6 dB/octave, switchable) shapes the low-frequency response to reduce room rumble and handling noise. The PTT mechanism uses three air-cylinder tubes — the same design as the flagship M-1 Reference Microphone — for solid, smooth, and reliable operation. A one-touch PTT keylock button sits directly above the PTT key for convenient locking during long QSOs. Compatible with all Yaesu HF transceivers equipped with a round 8-pin or 8-pin modular microphone connector.

Please note: This is a special order item. Please contact us before purchasing to confirm availability and lead time.

Key Features

• Directional condenser microphone element
• Wide frequency response: 30–17000 Hz
• Integrated isolation transformer for enhanced audio quality
• Built-in low-cut filter: 340 Hz, -6 dB/octave (switchable)
• Air-cylinder PTT mechanism (same as flagship M-1 Reference Mic)
• One-touch PTT keylock button
• Dual connector compatibility: round 8-pin & 8-pin modular
• Supply voltage: DC 5.0V ±10%
• Impedance: 600Ω
• Made by Yaesu (Japan)

Technical Specifications

• Microphone type: Condenser
• Frequency response: 30–17000 Hz
• Sensitivity: -60 dB (1 kHz, 0 dB = 1V/1Pa)
• Impedance: 600Ω
• Supply voltage: DC 5.0V ±10%
• Low-cut filter: 340 Hz, -6 dB/octave (switchable)
• Connectors: Round 8-pin & 8-pin modular
• Country of origin: Japan

Compatible Transceivers

• FTDX101, FTDX10
• FTDX9000 Series, FTDX5000 Series
• FTDX1200, FTDX3000D
• FT-991/A, FT-891
• FT-450/D, FT-857/D
• FT-818ND, FT-817/ND
• FT-2000/D
• FT-1000MP, FT-100MP MARK-V
• FT-950, FT-920, FT-900, FT-990*
• FT-897D, FT-847
• FT-1000*, FT-850*, FT-840*, FT-747*

*Models marked with an asterisk require the optional power supply unit.
