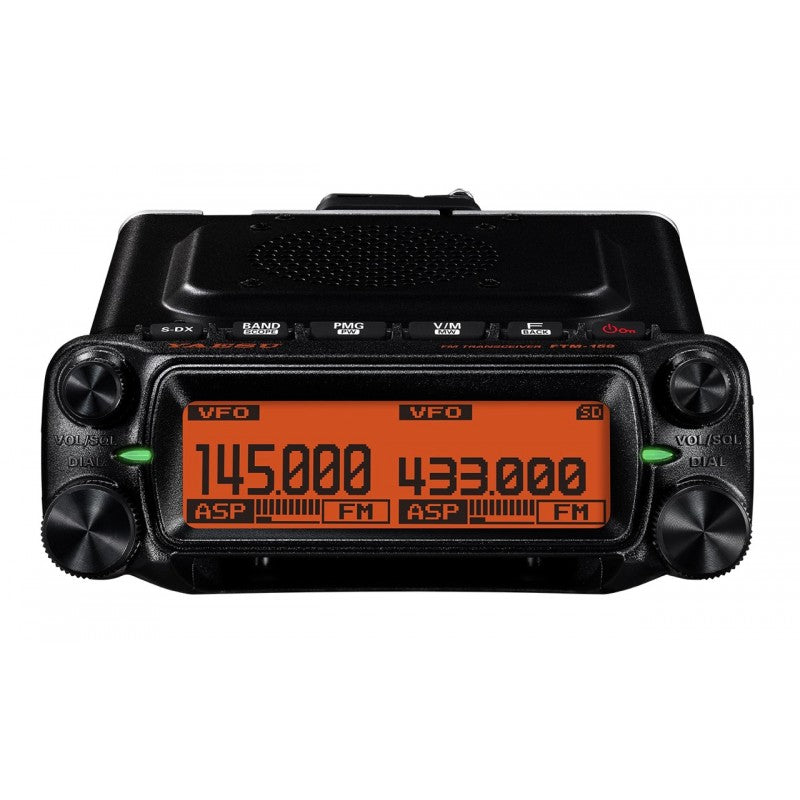

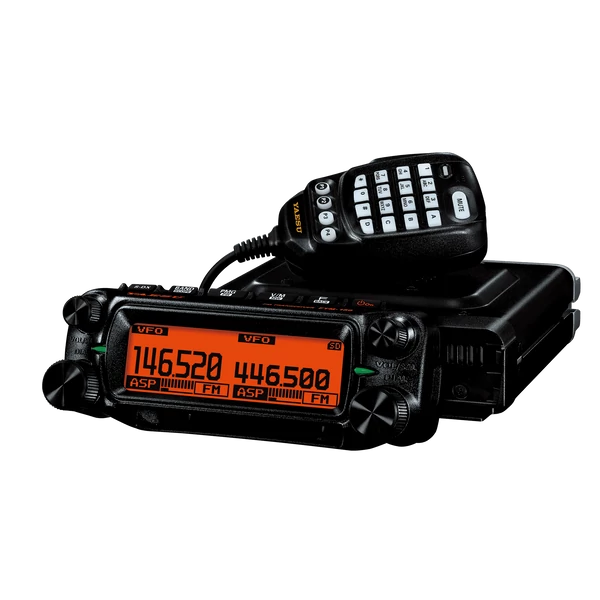

Yaesu FTM-150E 55W VHF/UHF Dual-Band Mobile Transceiver

The Yaesu FTM-150E is a powerful analogue FM mobile transceiver for the 2m and 70cm amateur bands. Two independent receivers support V+V, U+U, V+U and U+V operation, while the detachable control head and clear full dot-matrix display make it easy to install and operate in a vehicle or fixed station.

This listing is for the standard non-ASP FTM-150E. The separate FTM-150E ASP version includes Yaesu's additional Audio Digital Signal Processor.

Key features

• True dual-band receive with two independent receivers
• V+V, U+U, V+U and U+V operation
• Up to 55W output on VHF and 50W on UHF
• Selectable high, mid and low transmit power
• Detachable control head with full dot-matrix display
• Dual 3W speakers: one in the control head and one in the main radio body
• Heavy-duty heat sink with Yaesu FACC cooling design
• PMG Primary Memory Group monitoring for up to five favourite frequencies
• MAG Memory Auto Grouping with configurable My Group
• Band scope displaying activity across up to 47 channels
• Custom Function List for quick access to frequently used settings
• 1,103 memory channels
• Microphone connection on the control head or main radio body
• Direct frequency entry from the supplied DTMF microphone
• microSD card slot for settings and memory data
• Optional Bluetooth operation with the Yaesu BU-5 module

Technical specifications

• Transmit coverage: 144–146MHz and 430–440MHz
• Receive coverage: 108–550MHz
• Operating modes: FM and narrow FM transmit; AM, FM and narrow FM receive
• RF output: 55W VHF / 50W UHF maximum, plus 25W and 5W settings
• Tuning steps: 5, 6.25, 8.33, 10, 12.5, 15, 20, 25, 50 and 100kHz
• Frequency stability: ±2.5ppm from −20°C to +60°C
• Power requirement: 13.8V DC ±15%, negative ground
• Maximum transmit current: Approximately 11A
• Antenna connection: 50-ohm SO-239
• Radio body: 139 × 42 × 133mm, excluding projections
• Control head: 148 × 56 × 56mm, excluding projections
• Weight: Approximately 1.2kg with control head and cable

What's included

• Yaesu FTM-150E mobile transceiver
• SSM-85D DTMF hand microphone
• DC power cable with fuse
• Radio mounting bracket and fitting hardware
• Microphone hanger and fitting hardware
• Spare fuses
• Operating instructions

Licensing: Transmitting requires an appropriate amateur radio licence. The radio is supplied for operation on authorised amateur frequencies in accordance with the applicable regulations.
