Yaesu ATAS-25 Manual Tuning Portable Antenna 7–430MHz, 100W, Tripod Mount

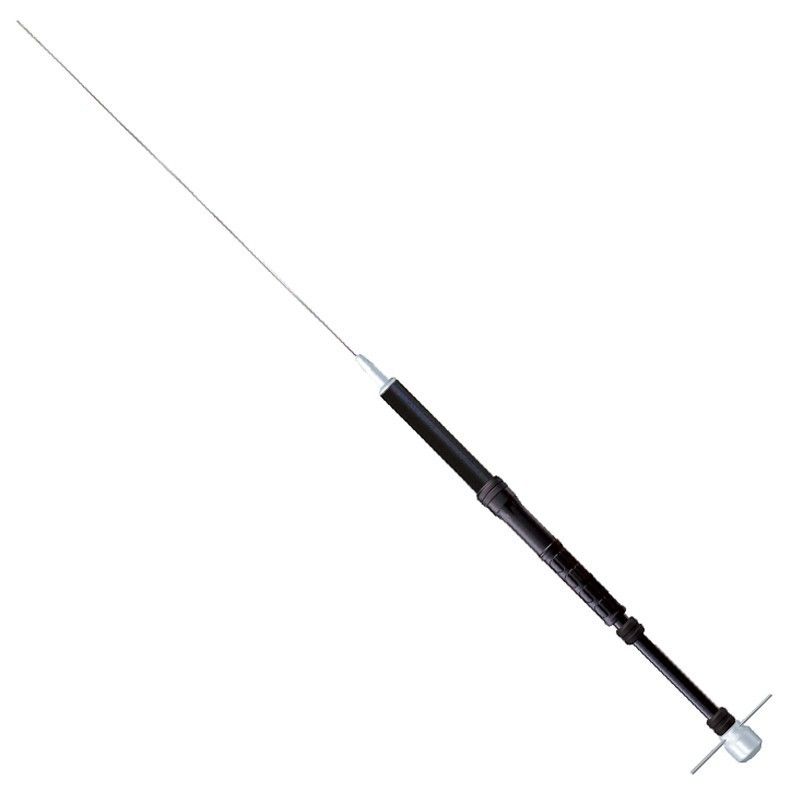

Yaesu ATAS-25 Manual Active Tuning Antenna

The Yaesu ATAS-25 is a versatile, manually-tuned portable antenna covering 7 to 430MHz across seven amateur bands. Unlike motorised ATAS antennas, the ATAS-25 uses a manual tuning system to resonate the radiating element for the lowest SWR — eliminating the need for expensive mono-band whip assemblies. It supports dual-frequency operation on HF or 50MHz combined with either 2m or 70cm (duplexer not supplied). Designed to mount directly onto a standard camera tripod, it's an excellent choice for portable, SOTA, POTA, or temporary field operation.

Key Features

• Manual tuning system — no mono-band whips required
• Covers 7, 14, 21, 28, 50, 144 & 430MHz bands
• Dual-frequency operation: HF/50MHz + 2m or 70cm (duplexer not supplied)
• Mounts onto a standard camera tripod (not supplied) — ideal for portable use
• Compact for transport at just 0.6m, extends to 2.2m for operation

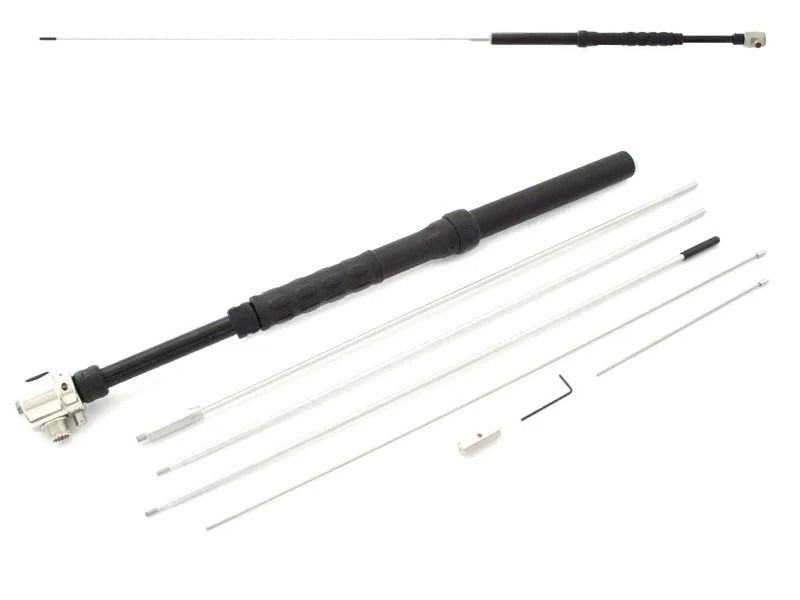

• Supplied with radiating elements, VHF/UHF radial elements, radial wires, spare radial wire & Allen key
• Not recommended for permanent outdoor installation

Technical Specifications

• Frequency: 7 / 14 / 21 / 28 / 50 / 144 / 430MHz
• Max Input Power: 100W SSB/CW, 50W AM/FM (HF/50MHz); 50W all modes (144/430MHz)
• Input Impedance: 50Ω
• Matched SWR: <2:1
• Height: 2.2m (operational) / 0.6m (transport)
• Weight: 930g
