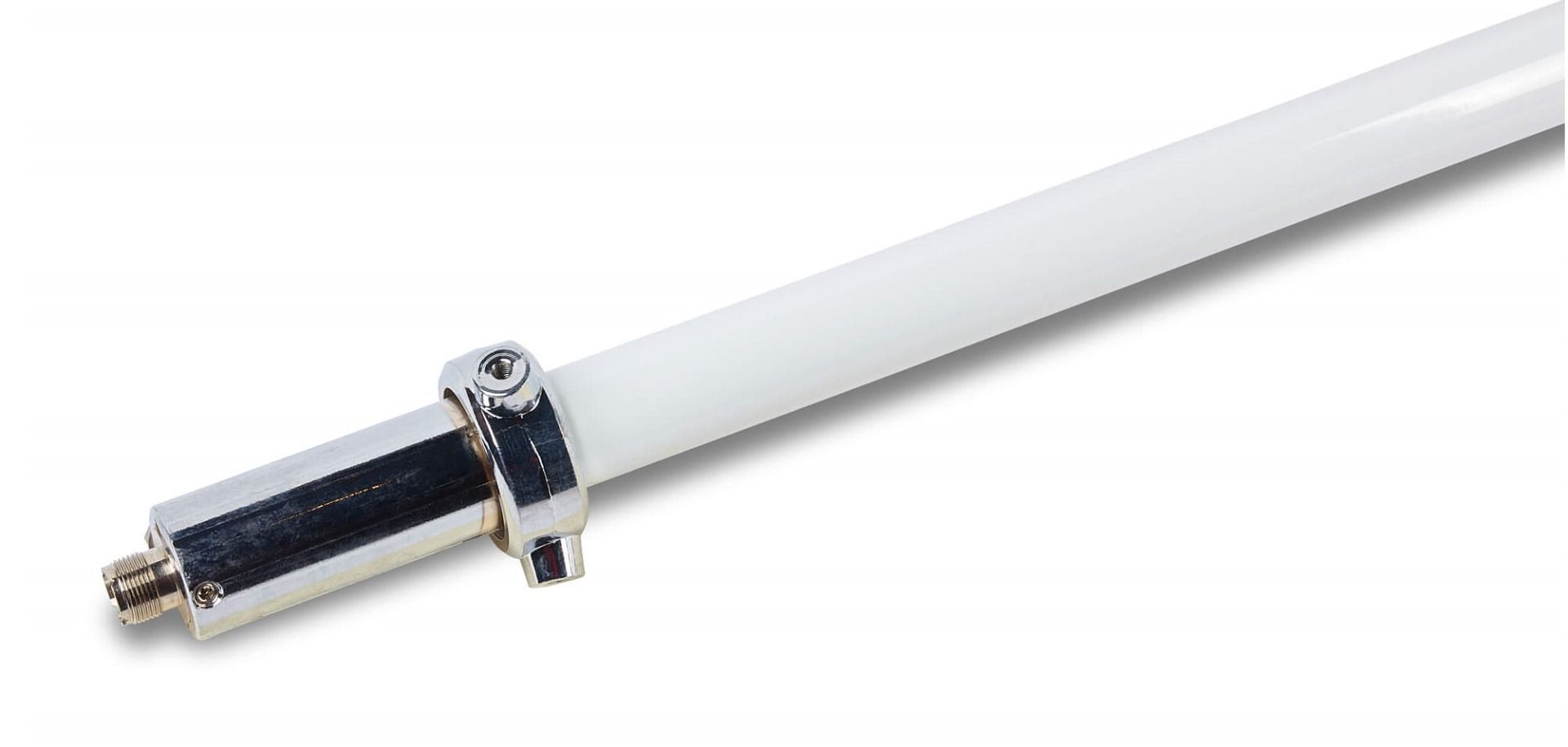

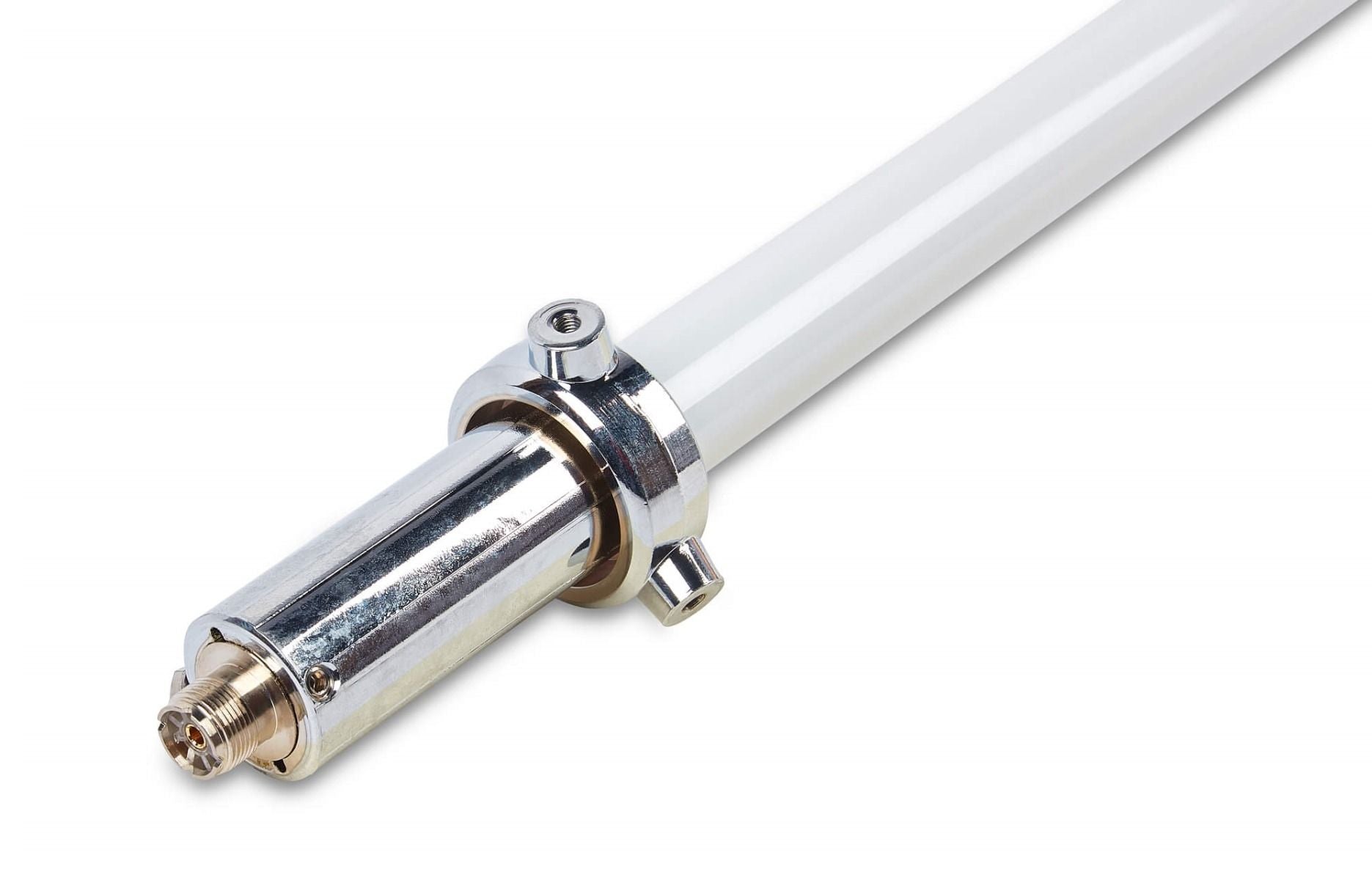

X-510 Dual Band Vertical Base Antenna 2m/70cm (SO239)

Sharman X 510 Dual Band Vertical Base Antenna 2m/70cm (SO239)

The Sharman X510 is a high-gain fibreglass base station antenna built for serious 2m and 70cm amateur radio operation. At 5.2m tall with an impressive 11.7dB gain on 70cm, it's designed for operators who want maximum range from a permanent mast-mounted installation. Supplied complete with mounting hardware and rated to withstand wind speeds of 40m/s, it's built to perform in all conditions.

Specifications

• Frequency: 2m (VHF) & 70cm (UHF)
• Gain: 8.3 dB (VHF) / 11.7 dB (UHF)
• Max Power: 200W
• Type: VHF: 3 × ⅝λ / UHF: 8 × ⅝λ
• Length: 5.2m
• Radial Length: 52cm
• Mast Diameter: 30–62mm
• Wind Rating: 40m/s
• Weight: 2kg
• Connector: SO239

Why Choose the Sharman X-510?

• Exceptional 11.7dB UHF gain — one of the highest available in this class
• 200W power rating — suitable for high-power base station and repeater use
• Fibreglass encapsulated construction for long-term outdoor durability
• Wind rated to 40m/s — reliable in exposed rooftop and mast installations

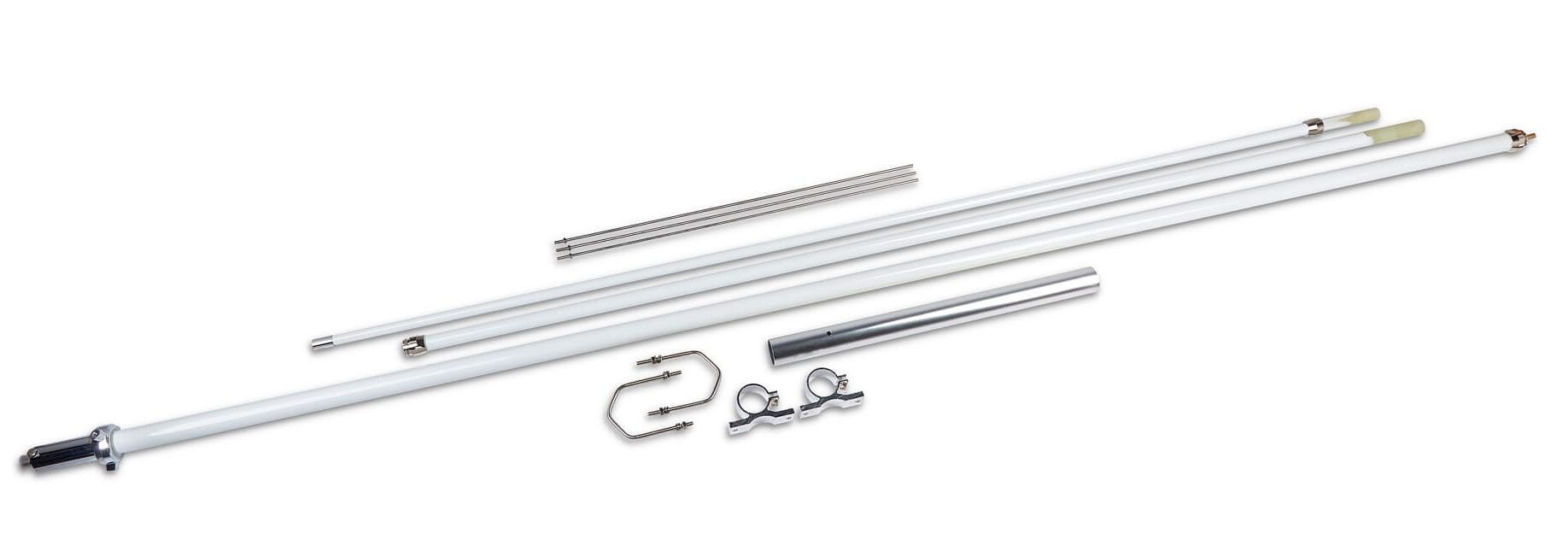

• Supplied complete with mounting hardware — ready to install
• Fits masts from 30–62mm diameter for flexible installation options
