Tecsun S-2200X LW/MW/SW/SSB/Air Band Radio Receiver, DSP Triple Conversion, 9150 Memories

Tecsun S-2200X LW/MW/SW/SSB & Air Band Radio Receiver

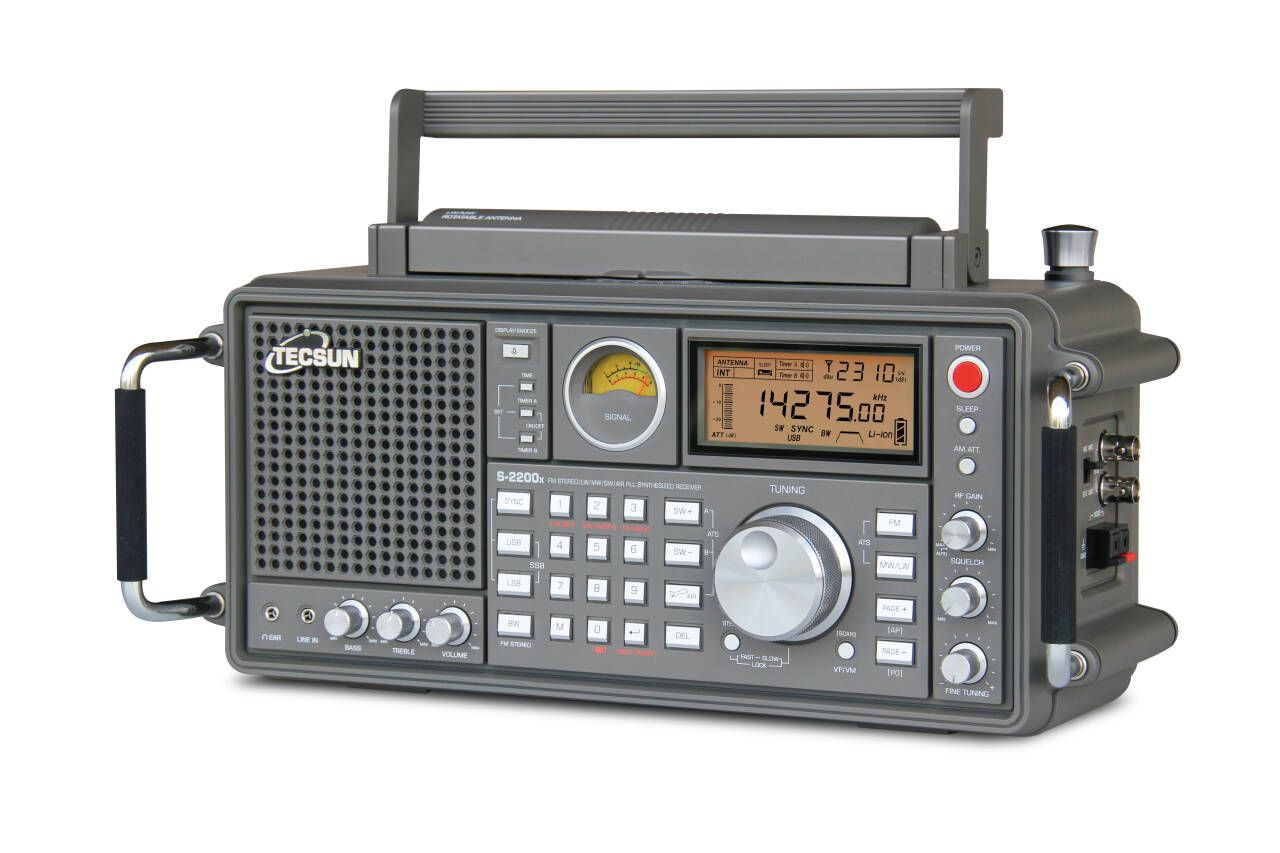

The Tecsun S-2200X is a high-performance DSP desktop receiver and the successor to the popular S-2000, combining analogue high-IF circuitry with DSP triple conversion decoding for outstanding sensitivity, selectivity, and mirror station rejection. Covering FM, LW, MW, SW, and VHF Air band with full SSB capability, it is an ideal receiver for shortwave enthusiasts, DXers, and aviation listeners who want a serious tabletop radio with flexible antenna options and precise tuning controls.

Key Features

• Multi-band coverage: FM (64–108 MHz), LW (50–522 kHz), MW (520–1710 kHz), SW (1621–29999 kHz), Air (118–137 MHz)
• SSB capable (USB/LSB) with dedicated sideband switching buttons
• DSP triple conversion with synchronous detection to suppress adjacent signal interference
• 5 AM bandwidth settings for optimised selectivity
• RF gain control and antenna signal attenuation to handle strong signals and improve weak signal reception
• Squelch control for AM and Air band monitoring
• 9150 memory channels across 25 pages with Auto Paging (AP)
• Rotatable telescopic antenna for directional reception without moving the radio

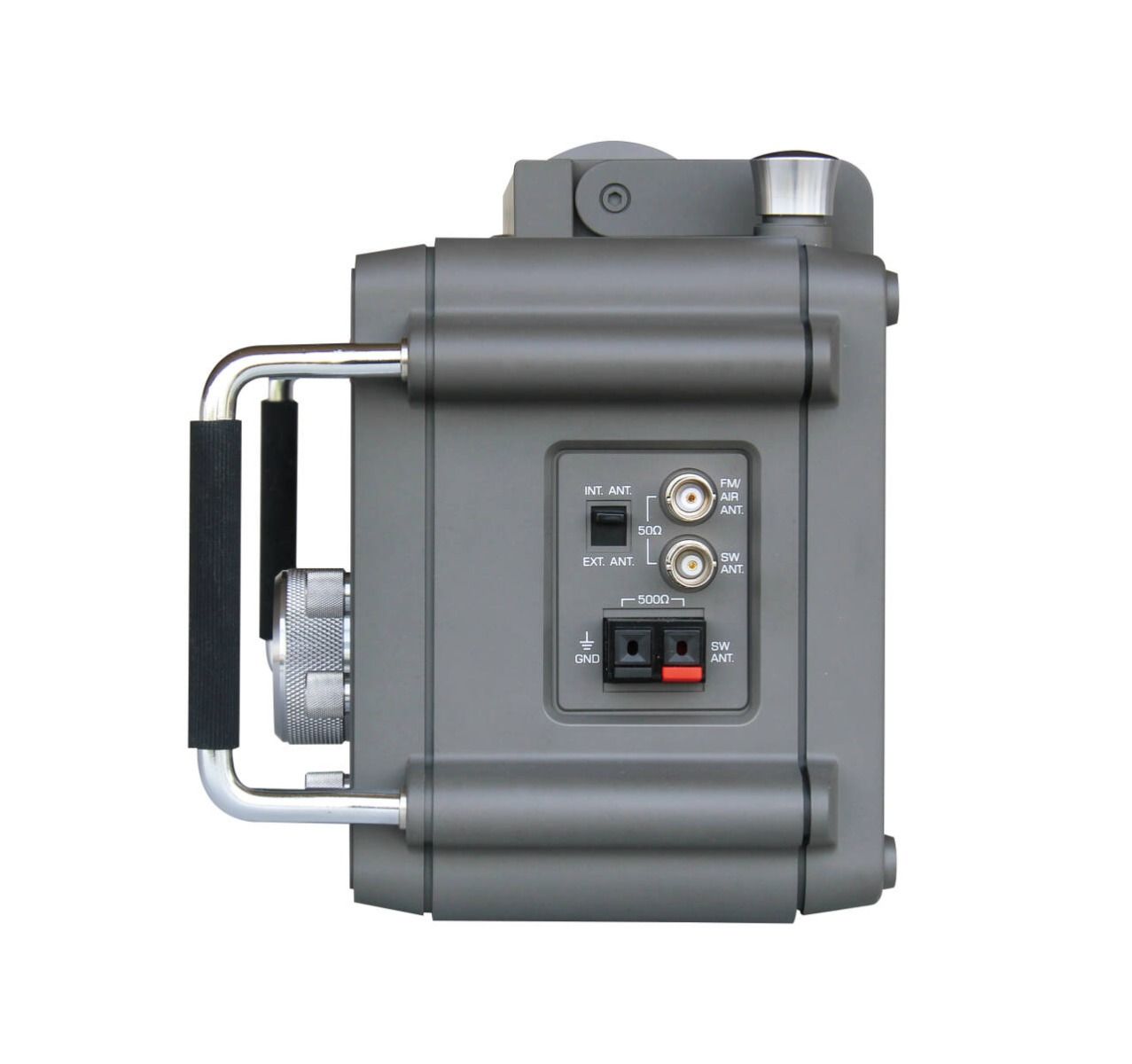

• Dual BNC external antenna sockets (low impedance) plus 500 Ω high-impedance wire antenna input
• 4-inch high-quality speaker with independent treble and bass controls
• Large VFO tuning knob with independent fast/slow and fine-tuning controls

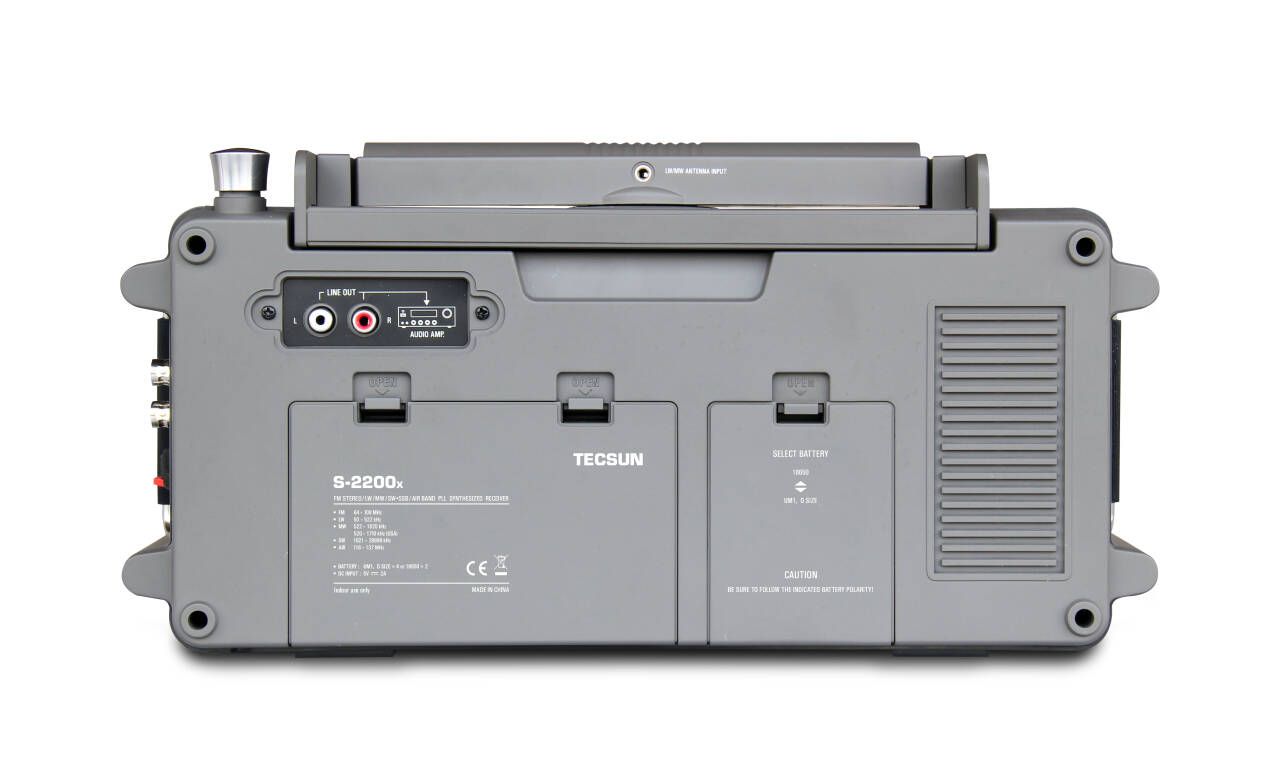

• Headphone output (3.5 mm, FM stereo), line-in and line-out sockets
• Clock (24H), alarm, and sleep timer

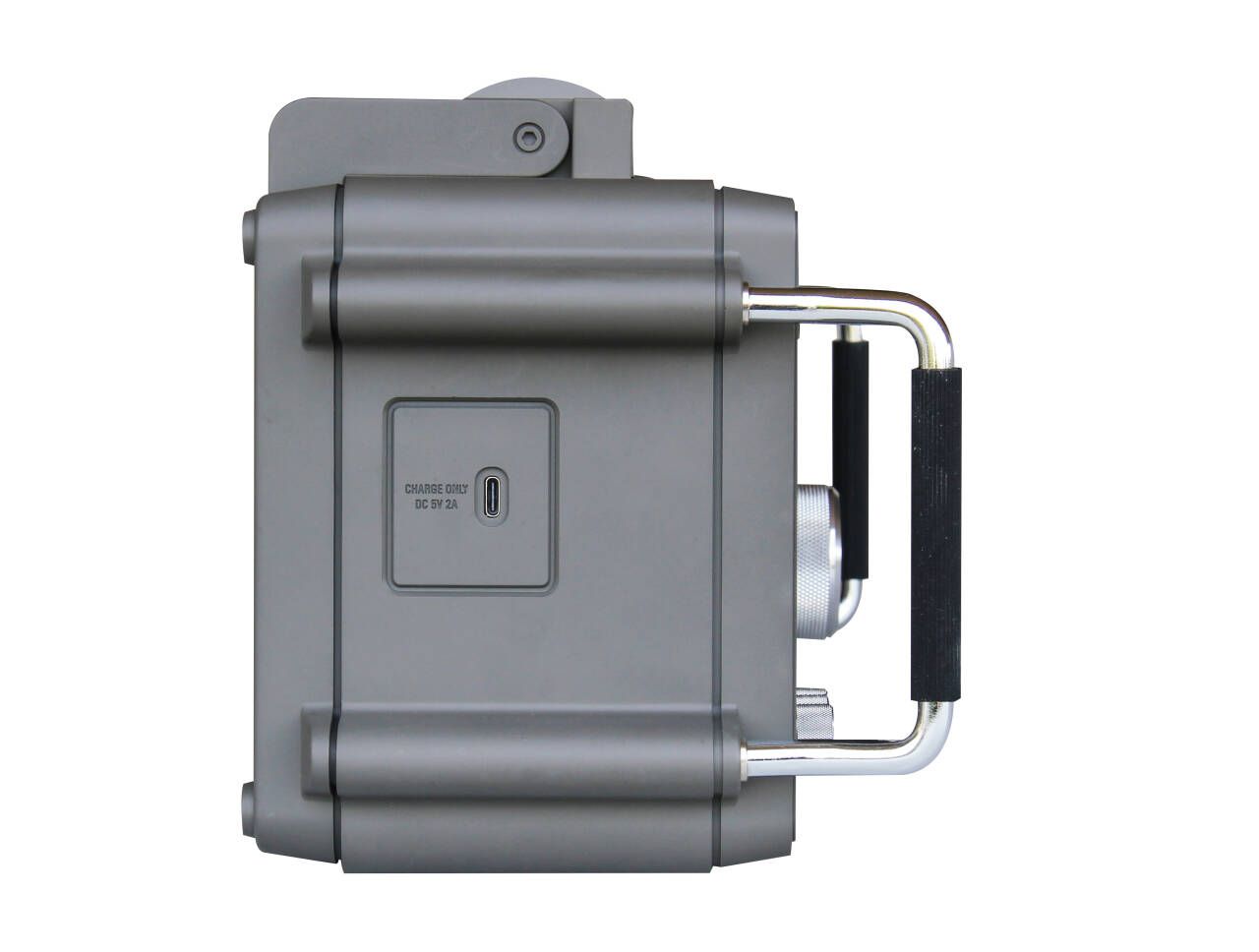

• Powered by 2 × 18650 Li-ion (included) or 4 × D-cell batteries; built-in USB-C charging

In the Box

• Tecsun S-2200X receiver
• 2 × rechargeable 18650 Li-ion batteries
• 2 × BNC plugs for custom antenna builds
• USB to USB-C charging cable
• User manual

Technical Specifications

• Frequency: FM 64–108 MHz / LW 50–522 kHz / MW 520–1710 kHz / SW 1621–29999 kHz / Air 118–137 MHz
• Modes: AM, FM, SSB (USB/LSB), Air
• Technology: Analogue high-IF + DSP triple conversion
• Memory: 9150 channels, 25 pages
• Speaker: 4-inch
• Audio outputs: 3.5 mm headphone, line-out
• Antenna inputs: 2 × BNC (low impedance), 1 × 500 Ω wire input
• Power: 2 × 18650 Li-ion or 4 × D-cell; USB-C charging
• Dimensions: 372 × 183 × 153 mm (W × H × D)
• Weight: approx. 2430 g
