SQBM100P Mk II Dual Band Vertical Base Antenna 2m/70cm RX 25–1300 MHz (SO239)

Moonraker SQBM100P MkII Dual Band Vertical Base Antenna 2m/70cm (SO239)

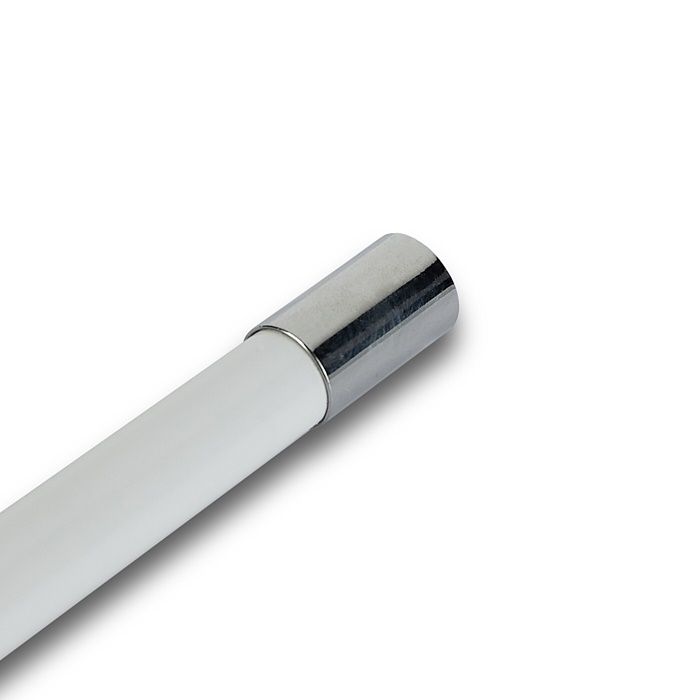

The Moonraker SQBM100P MkII is a compact, high-quality GRP fibreglass vertical collinear antenna for 2m and 70cm base station use. At just 130cm including radials, it's one of the more discreet options in its class — yet still delivers a solid 6.0 dBd gain on 70cm and 150W power handling. Pre-tuned, fully weatherproofed, and supplied with mast mounting brackets, it's ready to go straight out of the box. The MkII version adds wideband receive from 25–1300MHz for versatile monitoring capability.

Specifications

• Type: Fibreglass Vertical Collinear
• TX Frequency: 144–146 MHz (2m) & 430–440 MHz (70cm)
• RX Frequency: 25–1300 MHz (wideband)
• Gain: 3.0 dBd (2m) / 6.0 dBd (70cm)
• VSWR: 1.5:1 or better
• Max Power: 150W
• Length: 130cm (inc. radials)

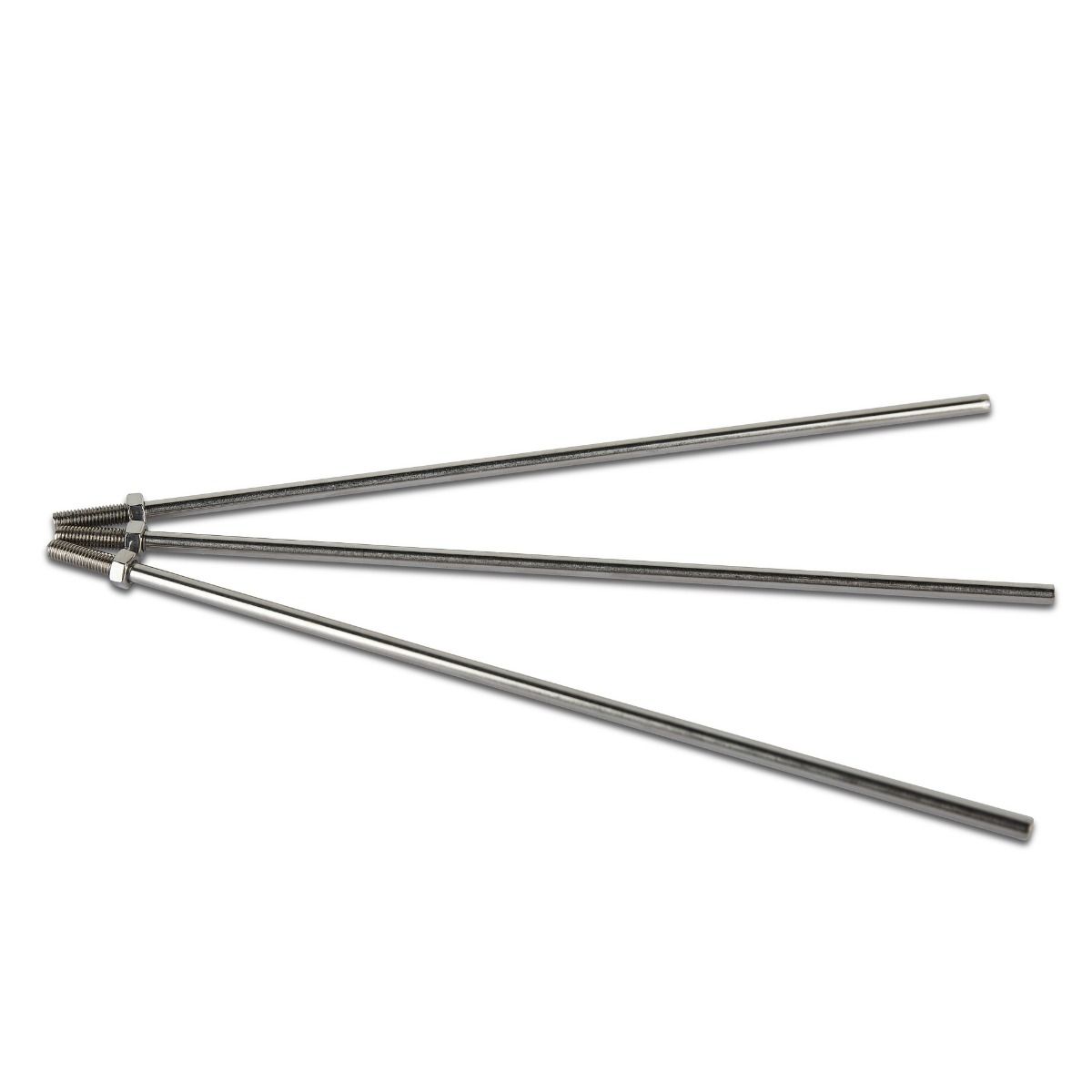

• Radials: 3 × 17cm

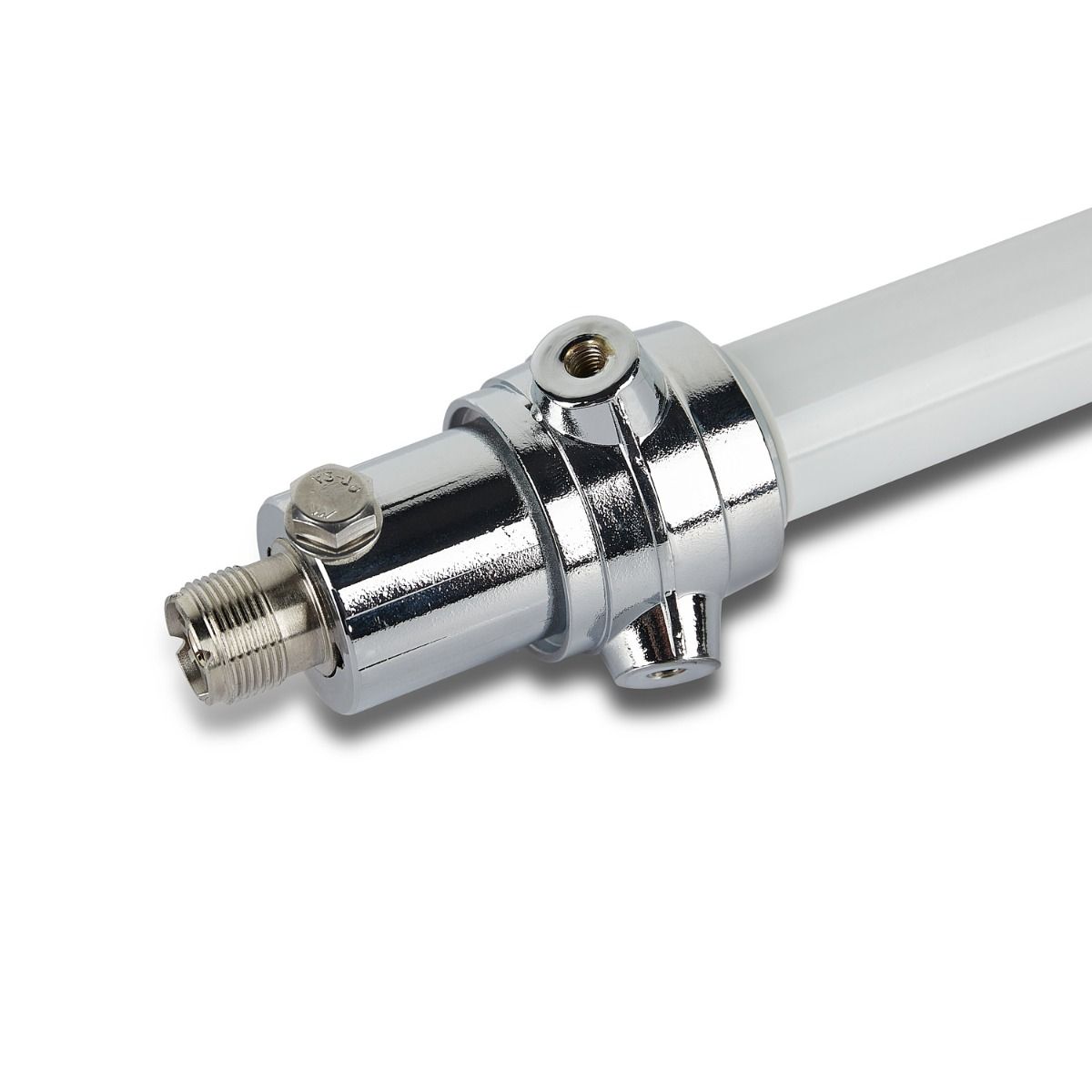

• Connector: SO239
• Construction: GRP Fibreglass, pre-tuned, fully weatherproofed

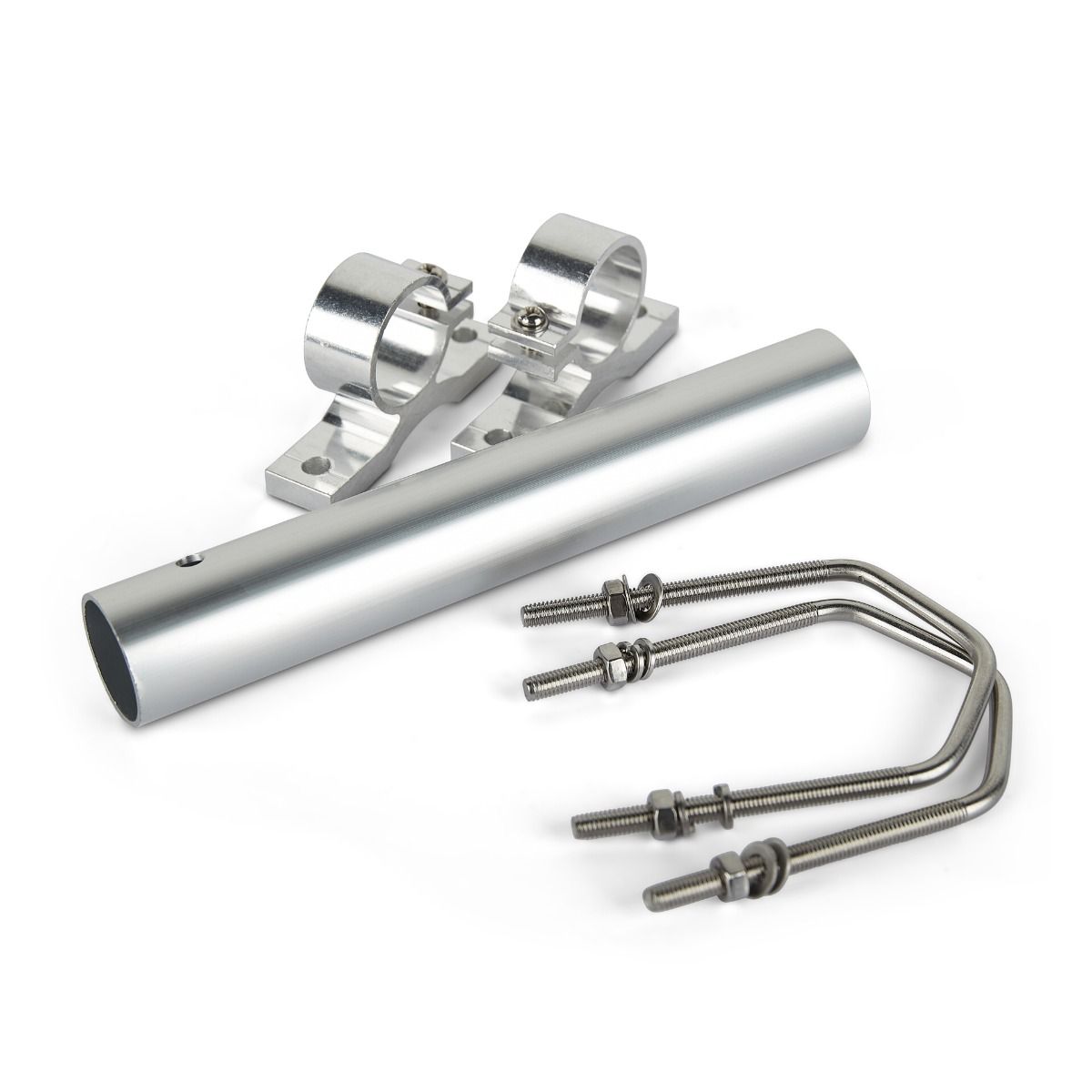

• Mounting: On-Mast (brackets included)

Why Choose the SQBM100P MkII?

• Compact 130cm profile — discreet base station antenna without sacrificing gain
• Wideband RX from 25–1300MHz — doubles as a capable monitoring antenna
• 6.0 dBd UHF gain — strong 70cm performance for a compact collinear
• 150W rated — suitable for most base station transceivers
• Pre-tuned fibreglass GRP build — weatherproofed and ready to install

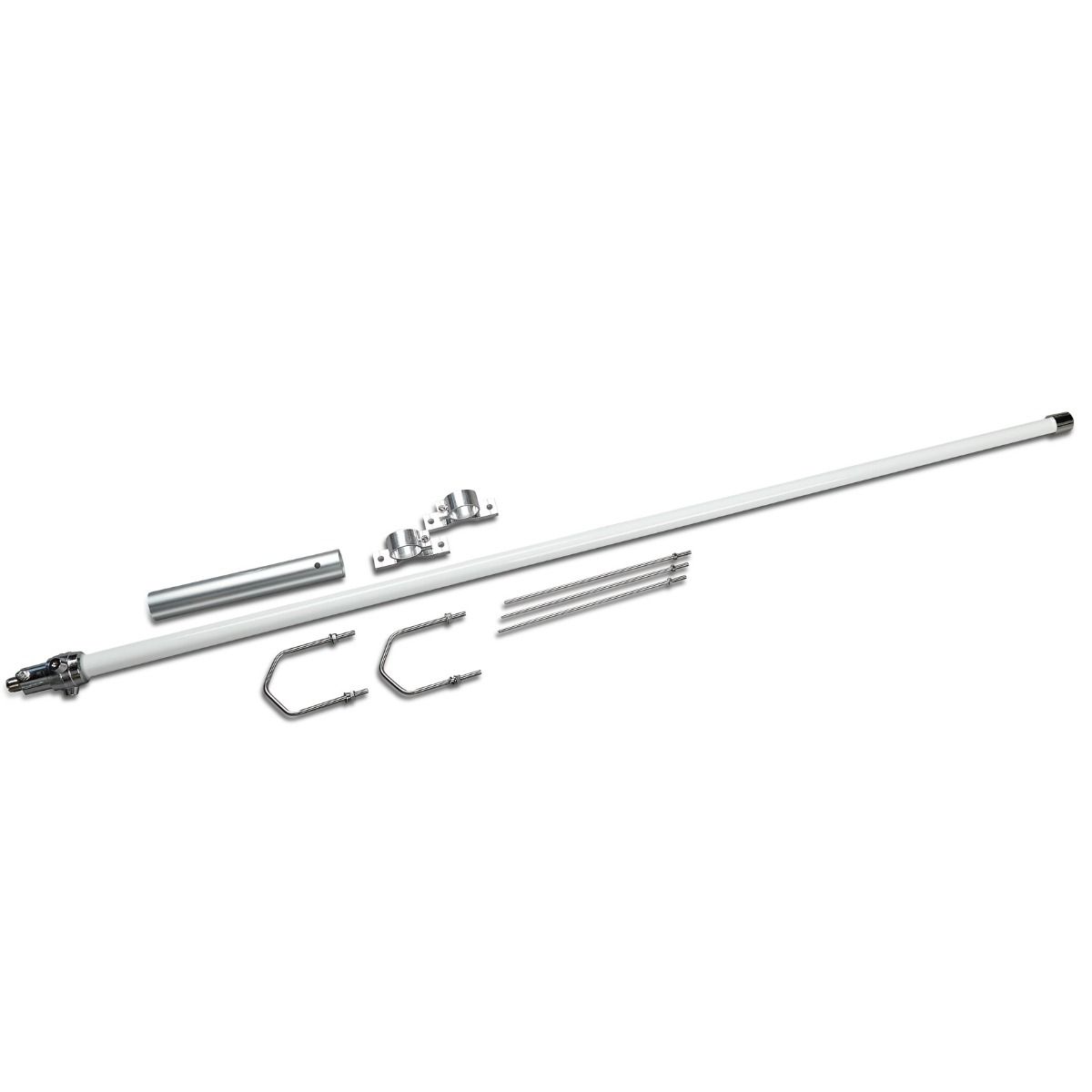

• Supplied with mast mounting brackets — complete kit, no extras needed
