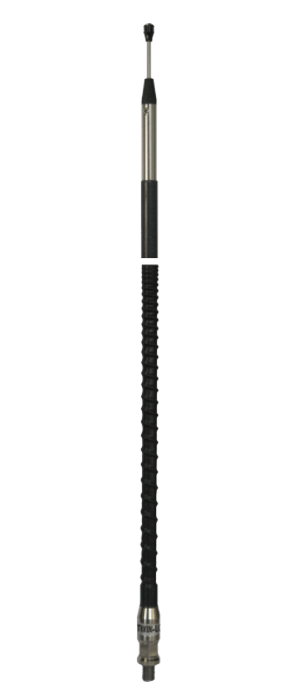

Sirio Twin-Log 3 CB Mobile Antenna 26.6-27.9MHz, 900W Peak, 95cm, 3/8"

The Sirio Twin-Log 3 is a compact high-power CB mobile antenna using Sirio's parallel twin-wire logarithmic loading system to reduce RF resistance and heat loss. It is tunable across 26.6-27.9MHz and uses a heavy-duty fibreglass radiator with a standard 3/8"-24 male thread.

At approximately 945mm tall, the Twin-Log 3 offers a practical balance between size, bandwidth and power handling for mobile CB installations.

Features

• High-performance CB mobile antenna
• Parallel twin-wire logarithmic loaded design
• Tunable from 26.6-27.9MHz
• 300W CW continuous power handling
• 900W CW short-time power handling
• Minimum 600kHz bandwidth at SWR ≤2
• Heavy-duty 9.2mm fibreglass rod
• Top tuning element
• 3/8"-24 male mounting thread
• Designed and manufactured in Italy

Technical Specifications

• Manufacturer: Sirio Antenne
• Model: Twin-Log 3
• Product Number: 2408115.03
• Type: Twin-wire logarithmic loaded CB mobile antenna
• Frequency Range: 26.6-27.9MHz, tunable
• Impedance: 50 ohms
• Radiation: Omnidirectional
• Polarisation: Linear vertical
• SWR at Resonance: ≤1.5
• Bandwidth: ≥600kHz at SWR ≤2
• Maximum Power: 300W CW continuous / 900W CW short time
• Height: Approx. 945mm
• Weight: Approx. 300g
• Mounting: 3/8"-24 male thread
• Materials: Copper, chromed brass, stainless steel and fibreglass

Installation

The Twin-Log 3 is supplied as an antenna whip for installation on a compatible 3/8"-24 female stud or mount. The antenna should be tuned after installation for the required operating frequency.
