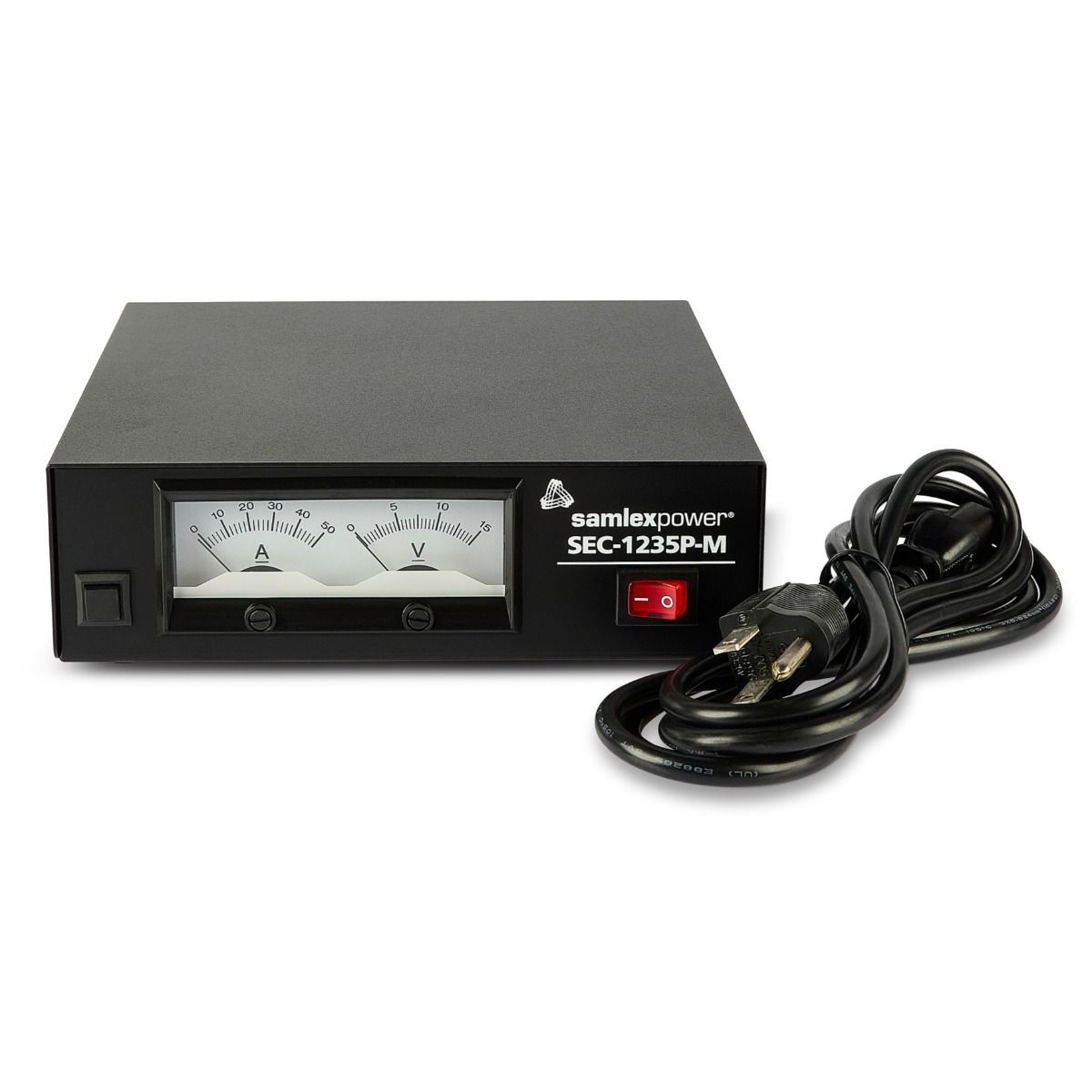

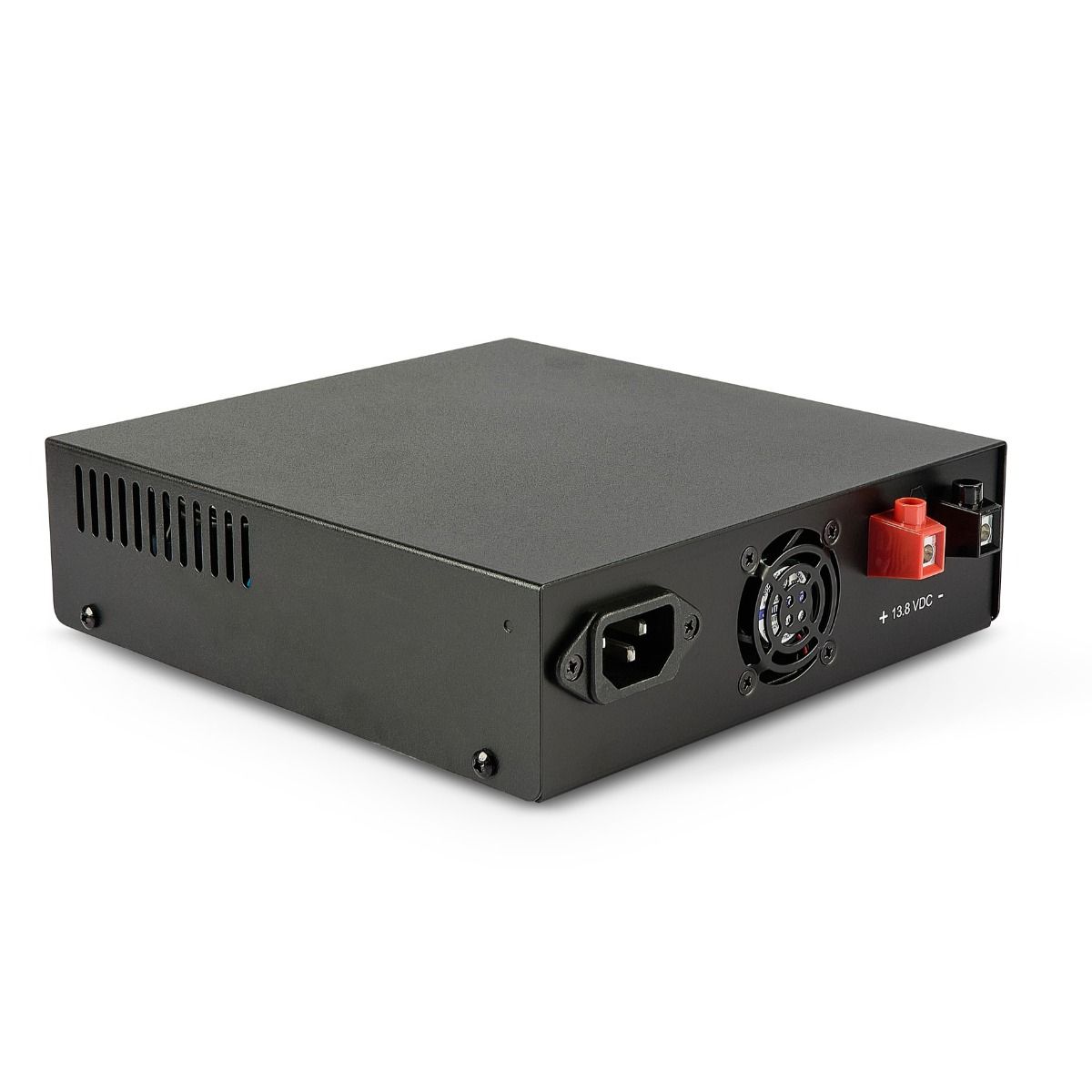

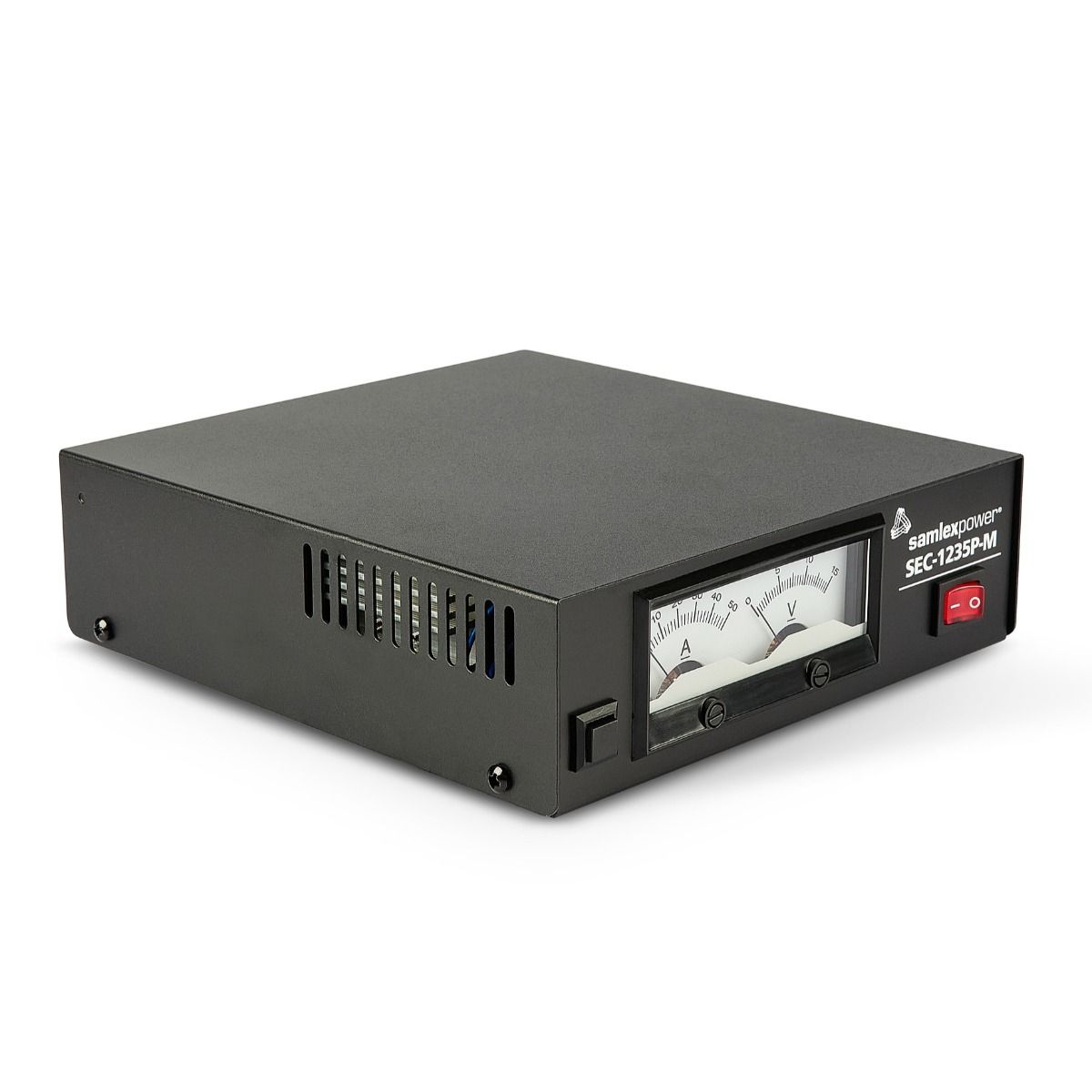

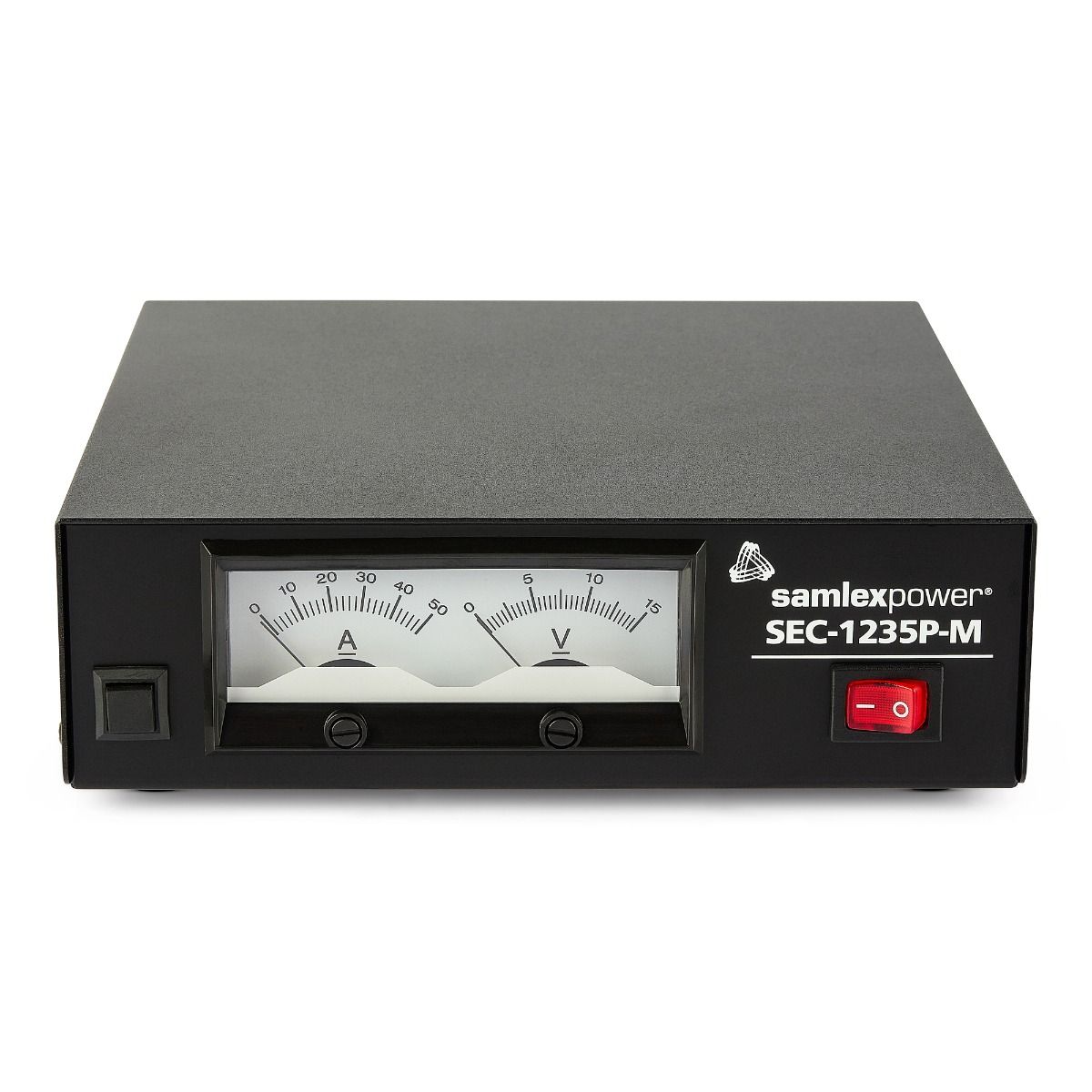

Samlex SEC-1235P-M 30A Switching Power Supply 13.8V, Backlit Meters

Samlex SEC-1235P-M 30A Switching Power Supply with Backlit Meter

The Samlex SEC-1235P-M is a premium 30-amp switch mode power supply delivering a regulated 13.8V DC output — the standard operating voltage for land mobile and amateur radio transceivers. With a universal 100–240V AC input, it operates anywhere in the world, while advanced circuit innovations minimise output voltage ripple and RFI for clean, interference-free power. UL safety listed and CE certified to IEC 62368-1.

Key Features

• 30A output at 13.8V DC — ideal for high-power mobile and amateur radio transceivers
• Universal input: 100–240V AC, 50/60Hz — suitable for worldwide use
• Backlit dual analog meters for easy monitoring of voltage and current
• Advanced switch-mode technology minimises output ripple and RFI
• Power factor corrected for improved efficiency
• Efficiency Level VI compliant — meets MEPS for external power supplies
• UL safety listed, CE certified (IEC 62368-1), FCC Part 15(B) Class B compliant
• Compact and lightweight at 1.67kg

Technical Specifications

• Input: 100–240V AC, 50/60Hz
• Output: 13.8V DC
• Output Current: 30A
• Weight: 1.67kg
• Dimensions (W × D × H): 185 × 208 × 60mm
• Safety Certifications: UL, CE (IEC 62368-1), FCC Part 15(B) Class B
• Efficiency: Level VI
