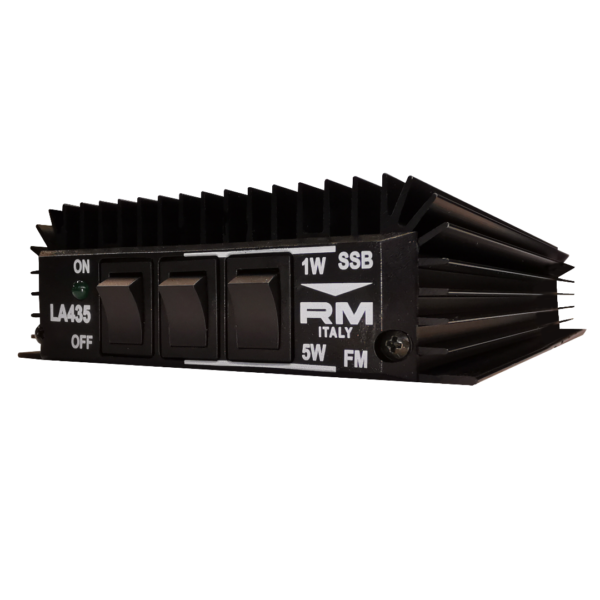

RM Italy LA 435 UHF Wideband Amplifier 405-480MHz, 70W Max

The RM Italy LA 435 is a compact wideband linear amplifier for the UHF band, covering 405-480MHz. It is designed for use with low-power transceivers and accepts an RF drive level from 1W up to 5W maximum.

RM Italy specifies a 60W nominal output at full power with up to 70W maximum output. Actual RF output depends on both the input drive level and the operating frequency.

Features

• Wideband UHF linear amplifier
• 405-480MHz frequency coverage
• 60W nominal RF output
• 70W maximum RF output
• 1-5W RF input drive
• Compact design
• Designed for low-power handheld and portable transceivers
• Output varies according to input power and operating frequency

Technical Specifications

• Manufacturer: RM Italy
• Model: LA 435
• Product Type: UHF wideband linear amplifier
• Frequency Range: 405-480MHz
• RF Input Power: 1-5W maximum
• Nominal RF Output: 60W
• Maximum RF Output: 70W

Important Information

This amplifier covers a wide UHF frequency range. Transmission is only permitted on frequencies and services for which the operator and equipment are appropriately authorised. Always check the applicable licence conditions and radio regulations before use.
