RM Italy KL 805 Linear Amplifier 25-30MHz, 600W, 24V, 26dB Preamp

600W 24V Linear Amplifier for 10m and CB with Built-In Preamplifier

The RM Italy KL805 is a high-power linear amplifier covering 25–30MHz, designed for 10m amateur radio and CB use on a 24V DC supply. With a drive requirement of just 1–15W across all modes (AM, FM, SSB, CW), it delivers up to 600W output power with a built-in 26dB RX preamplifier for improved receive sensitivity. Three cooling fans, a three-position power selector, and a front-panel LED wattmeter make it practical for both mobile and base station installations. A rear connector provides remote control capability.

⚠️ Important: Do not exceed the maximum input drive power. RM Italy do not cover amplifiers damaged by over-driving under warranty, and repair costs are significant.

Key Features

• Frequency range: 25–30MHz (10m / CB)
• Output power: 600W across AM, FM, SSB, and CW modes
• Drive power: 1–15W input
• 24V DC supply (20–30V DC operating range)
• Built-in 26dB RX preamplifier with electronic switching

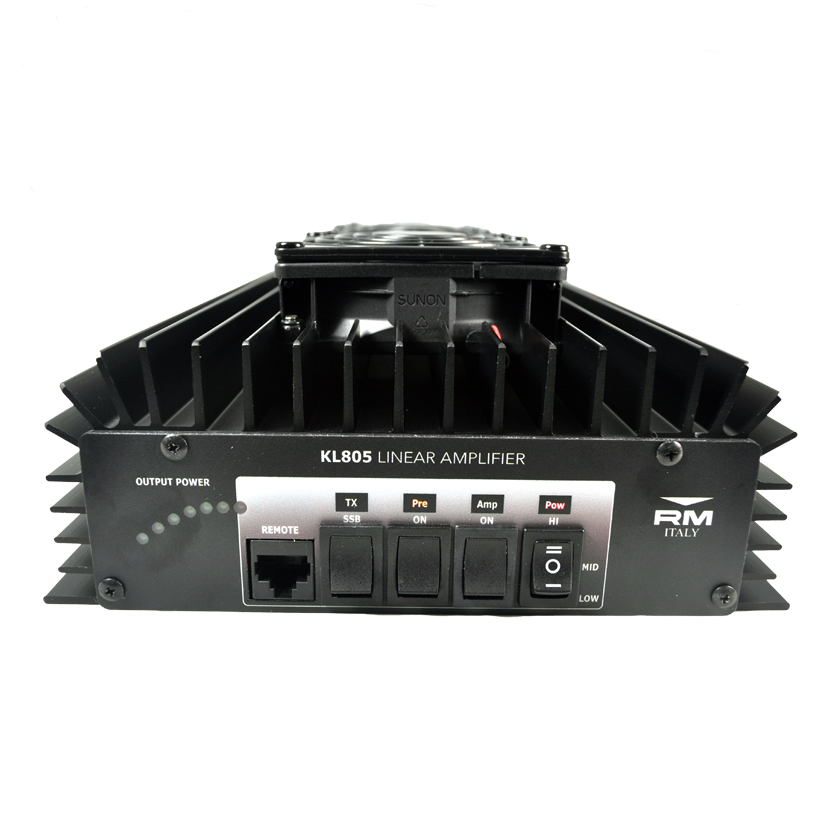

• Three-position power selector switch on front panel
• LED wattmeter for output power indication

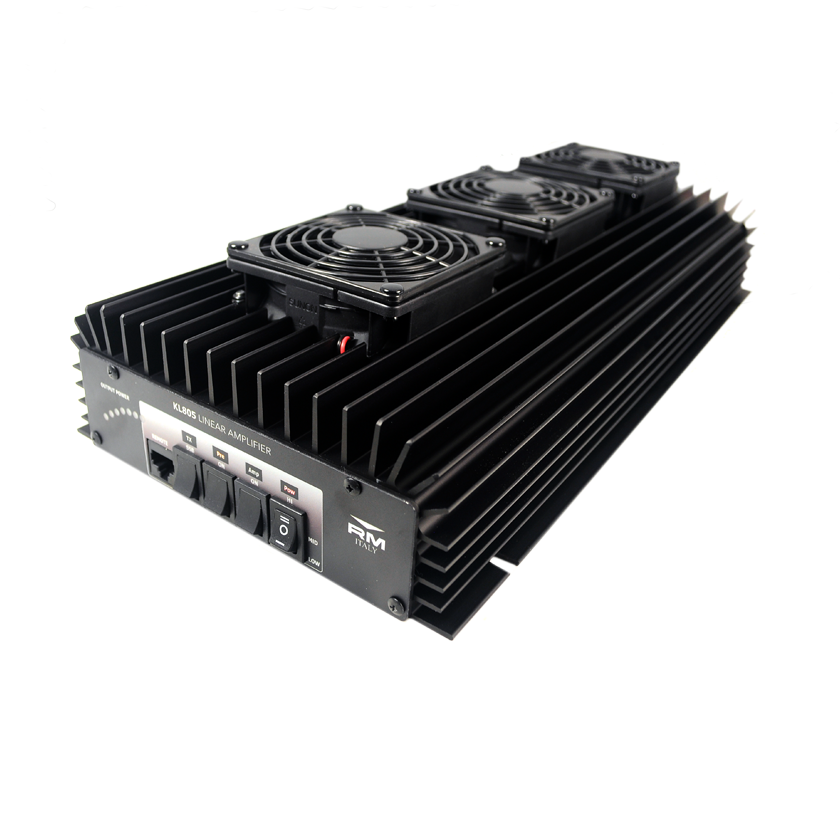

• Three cooling fans for sustained operation
• Remote control connector

Technical Specifications

• Frequency Range: 25–30MHz
• Power Supply: 20–30V DC
• Max Input Current: 10–30A
• Fuse: 3× 12A
• Input Power: 1–15W
• Output Power: 600W
• Modes: AM, FM, SSB, CW
• Preamplifier Gain: 26dB
• Dimensions: 191 × 450 × 80mm
• Weight: 3.3kg
