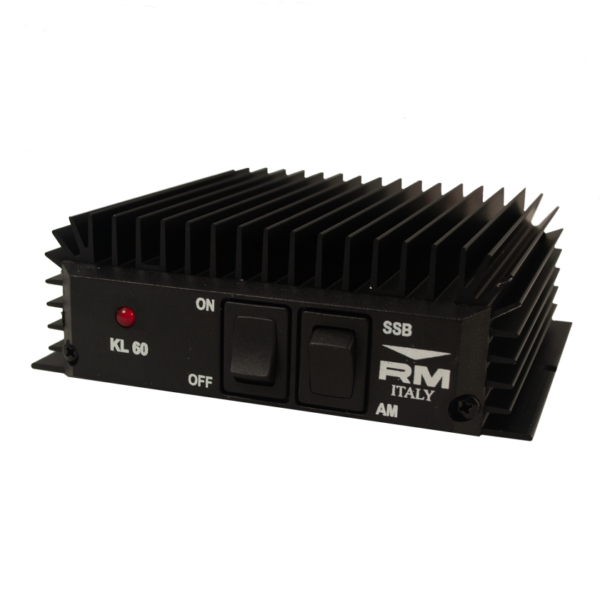

RM Italy KL 60 28-29.7MHz 35W 10m Linear Amplifier

The RM Italy KL 60 is a compact 12V linear amplifier designed for operation on the 28-29.7MHz 10m amateur band. RM Italy specifies an RF output of 25-35W with support for AM, FM and SSB modes.

The amplifier operates from a 12-14V DC supply and draws up to 4A. Drive requirements are 1-5W in AM/FM and 2-10W in SSB. Automatic electronic transmit/receive switching and reverse-polarity protection are built in.

Features

• Designed for the 28-29.7MHz 10m amateur band
• 25-35W RF output
• AM, FM and SSB operation
• 1-5W AM/FM drive input
• 2-10W SSB drive input
• 12-14V DC operation
• 4A maximum current draw
• Automatic electronic TX/RX switching
• Reverse-polarity protection
• Compact finned aluminium heatsink chassis

Technical Specifications

• Manufacturer: RM Italy
• Model: KL 60
• Product Type: Linear amplifier
• Operating Frequency: 28-29.7MHz
• Modes: AM / FM / SSB
• Power Supply: 12-14V DC
• Maximum Current: 4A
• Input Power: 1-5W AM/FM; 2-10W SSB
• Output Power: 25-35W
• Input VSWR: 1.1-1.5:1
• Fuse: 5A fast, 5 x 20mm
• Dimensions: 125 x 120 x 40mm
• Weight: Approx. 410g

Important Information

This amplifier is intended for lawful amateur-radio use on the 10m band. RM Italy states that use on 27MHz is prohibited. The manufacturer also specifies use with the appropriate external low-pass filter for CE-compliant operation. Users are responsible for ensuring that their installation and operating privileges comply with applicable radio regulations.
