RigExpert Stick XPro Antenna & Cable Analyser 0.1-1150 MHz, SWR, TDR, Bluetooth

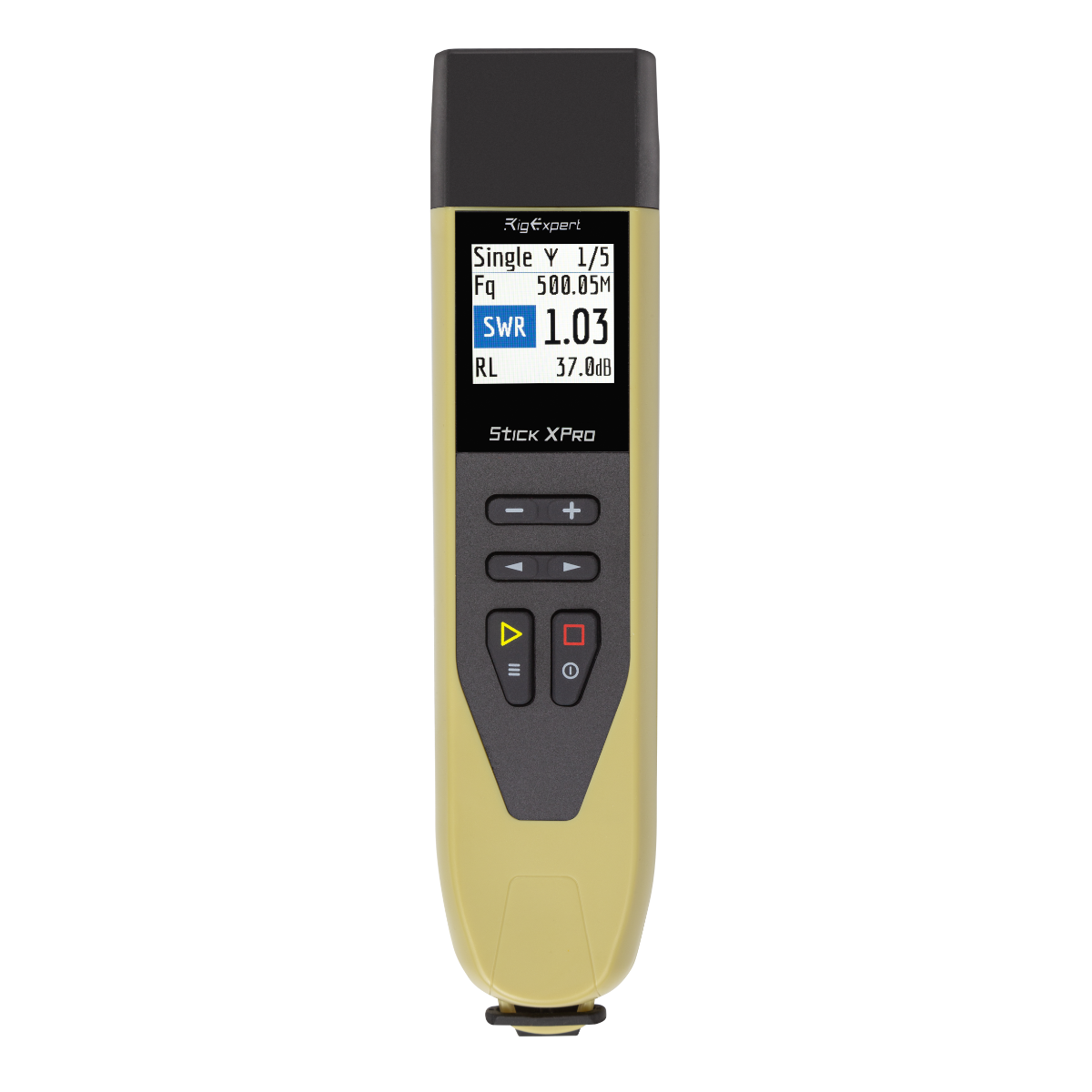

RigExpert Stick XPro Antenna & Cable Analyser

The RigExpert Stick XPro is a compact, handheld vector network analyser covering 0.1 to 1150 MHz — delivering professional-grade antenna and cable diagnostics in the same slim form factor as the Stick 230, but with nearly five times the frequency range. With an extended operating temperature down to −20 °C, full TDR, OSL calibration, and a comprehensive cable tools suite, it is equally at home on a SOTA summit or a professional RF installation site.

Key Features

• Wide frequency coverage: 0.1 to 1150 MHz (1 kHz resolution)
• Measures SWR, |Z|, R, X, C, L, return loss, magnitude and phase angle
• Supports 12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450 and 600 Ω systems
• SWR range: 1–100 (digital) / 1–10 (graph), with SWR and return loss charts
• Operating modes: Multé, HAM, Single, TDR, SWR chart, Return Loss chart, RX chart, OSL calibration
• Full cable tools suite: stub tuner, cable length, impedance, loss measurements
• Bluetooth 4.2 BLE via USB-C for wireless PC/mobile connectivity

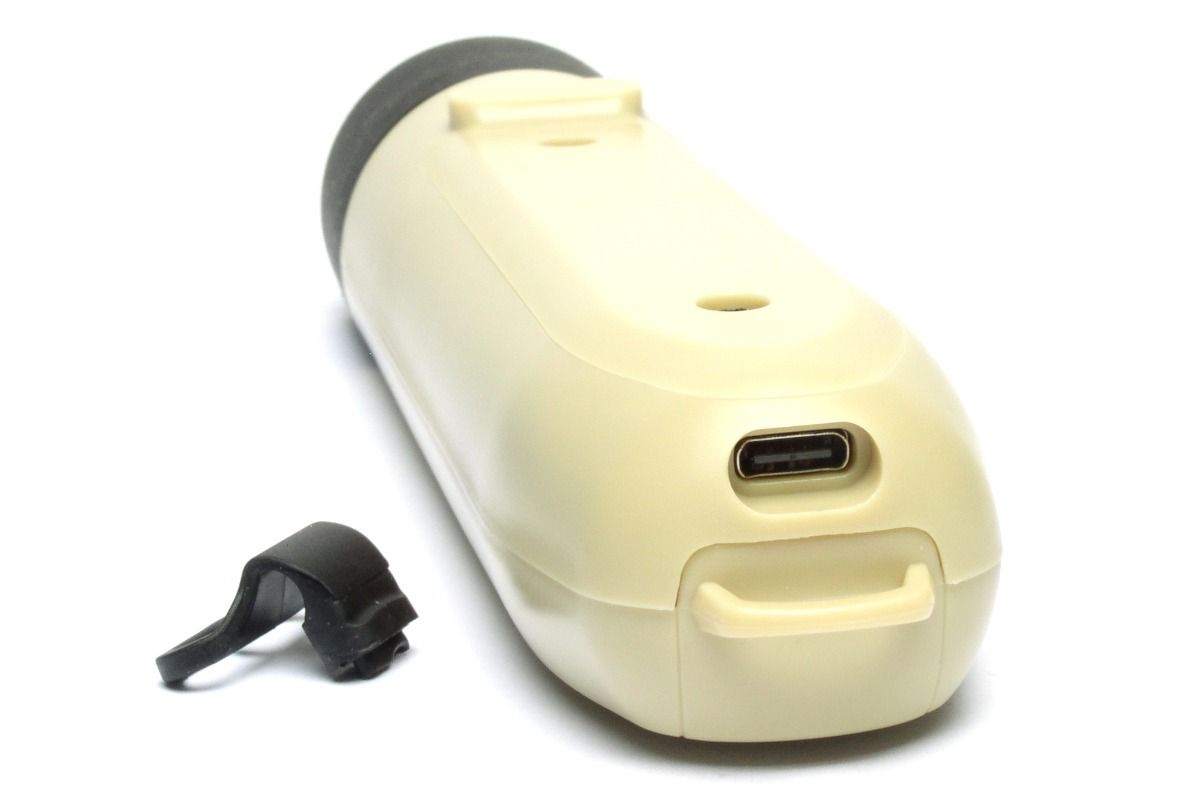

• USB-C connection for PC software and external power

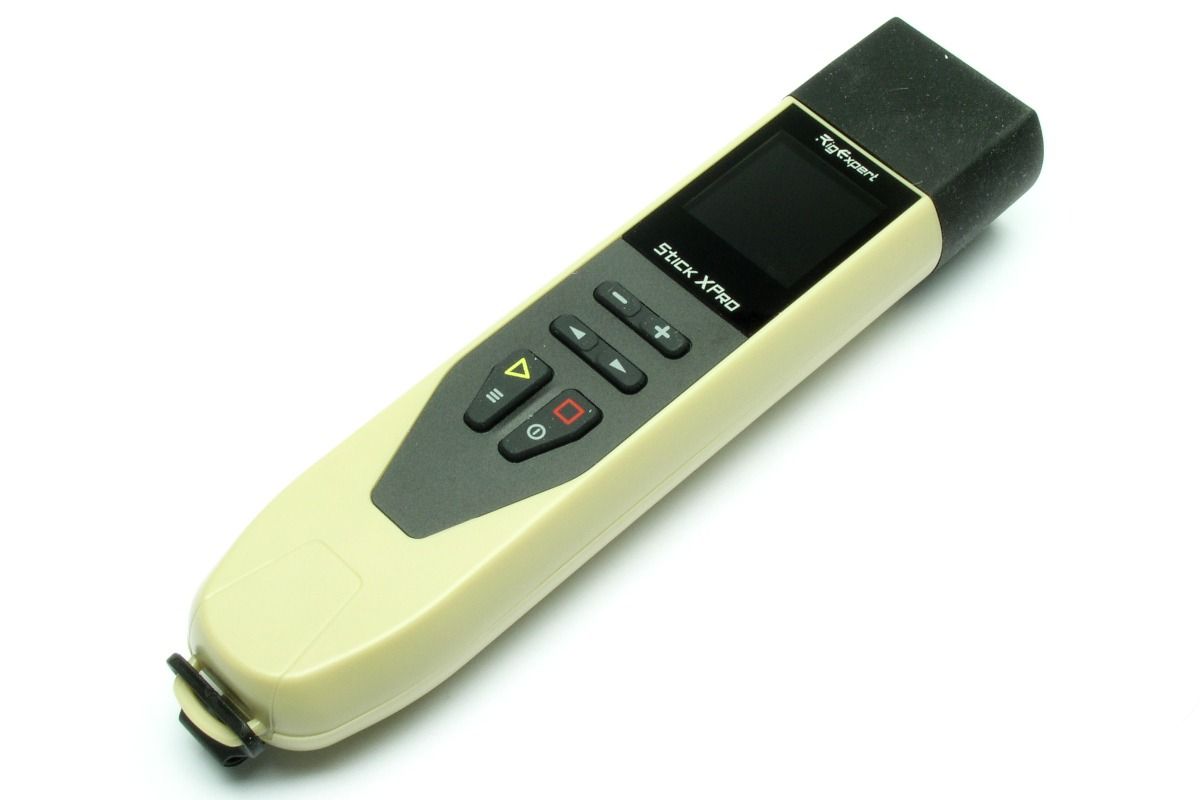

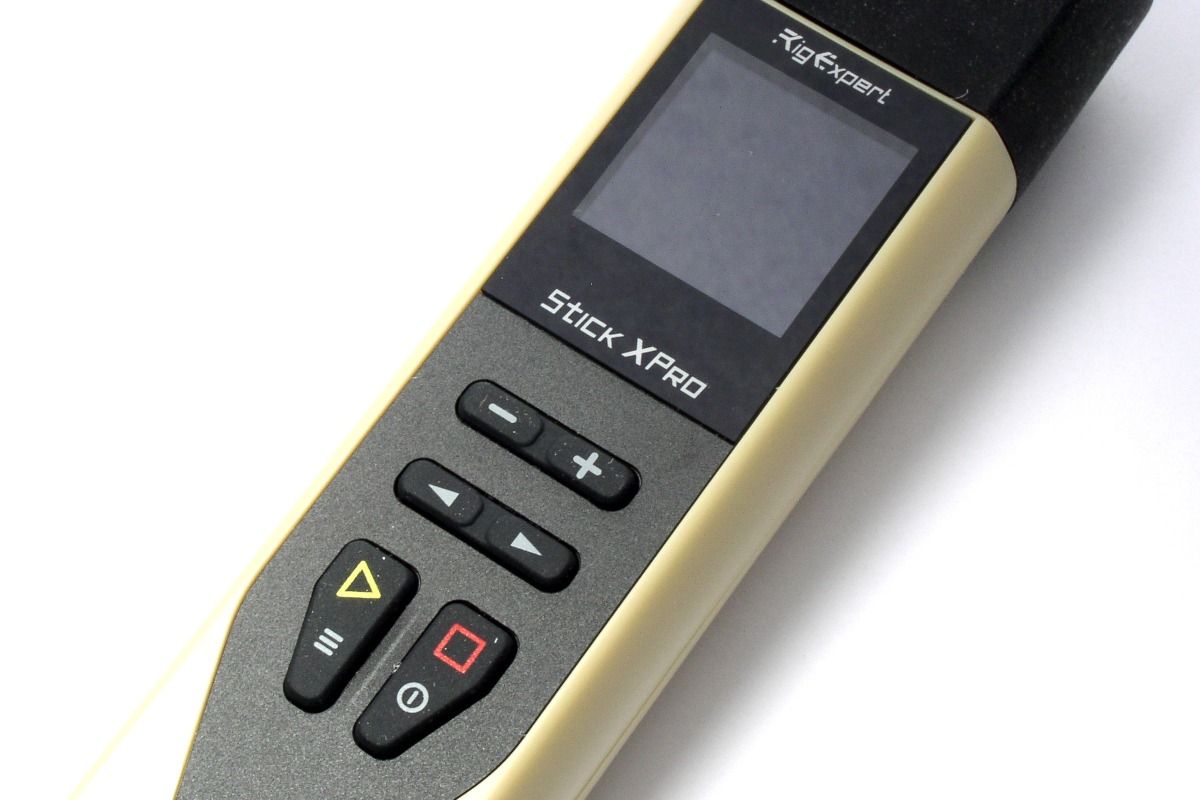

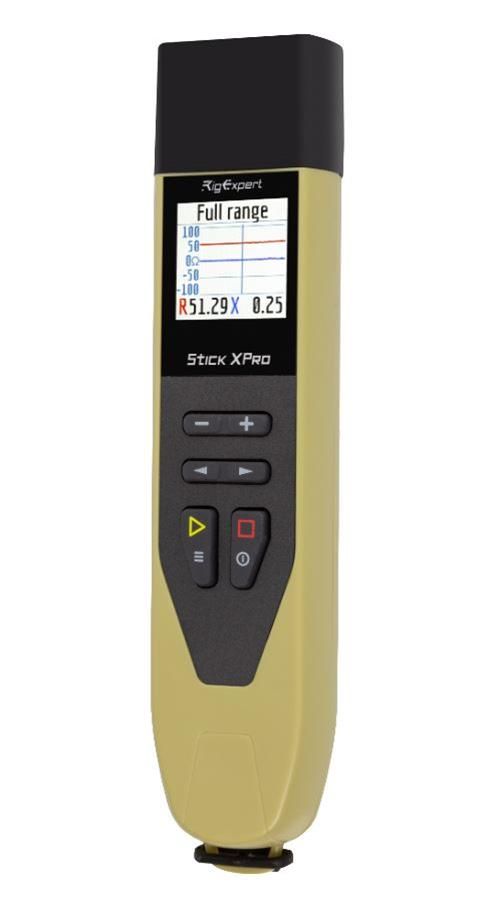

• TFT display 220 × 220 px, waterproof keyboard (2 × 3 keys)
• Extended operating temperature: −20 to +55 °C

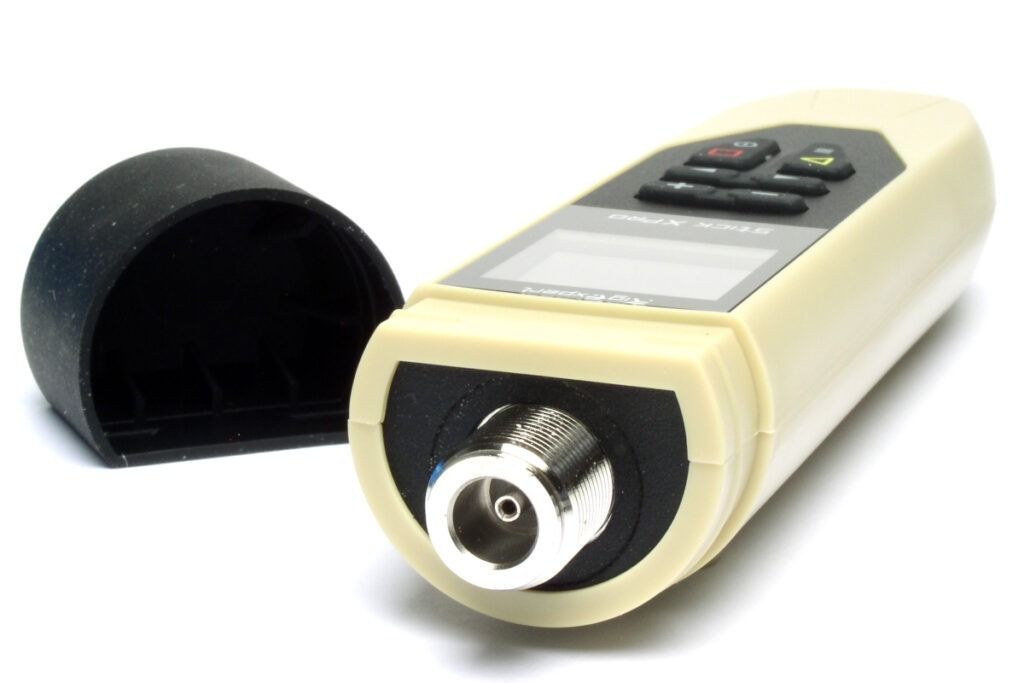

• N-type connector

Technical Specifications

• Frequency range: 0.1–1150 MHz
• Frequency step: 1 kHz
• Output signal: Square wave 0.1–1000 MHz; −10 dBm at 50 Ω
• SWR measurement: 1–100 (digital), 1–10 (graph)
• R and X range: 0–2,000 / −2,000–2,000
• Connector: N-type

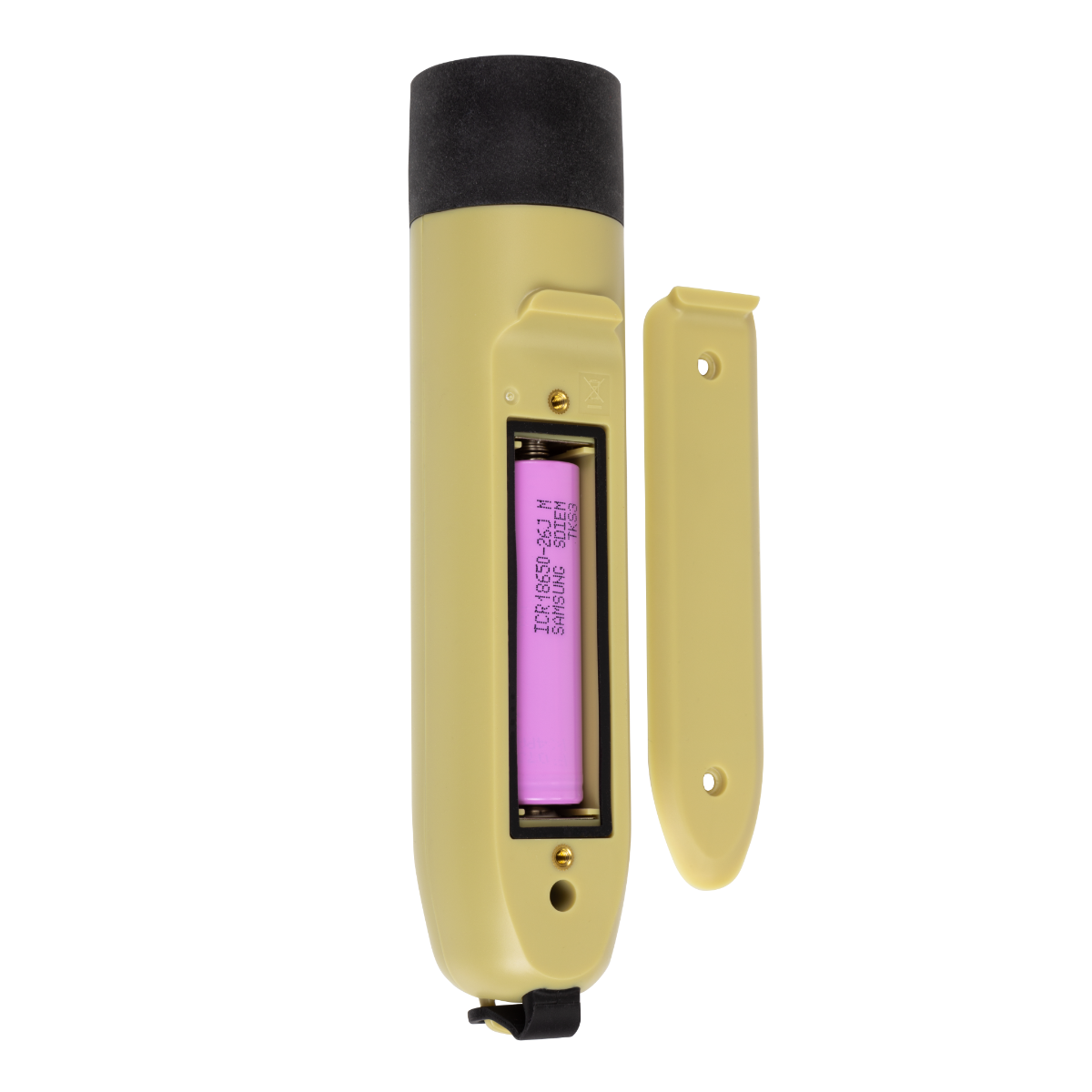

• Battery: Li-ion 18650 (included); charge time approx. 3 hours
• Interface: USB 2.0 Type-C; Bluetooth 4.2 BLE
• Display: TFT, 220 × 220 px
• Dimensions: 185 × 40 × 33 mm
• Weight: 185 g (with battery)
• Operating temperature: −20 to +55 °C (−4 to +131 °F)
