RigExpert Stick 500 Antenna & Cable Analyser 0.1-500 MHz, 16hr Battery, Bluetooth

RigExpert Stick 500 Antenna & Cable Analyser

The RigExpert Stick 500 is a compact, handheld vector network analyser covering 0.1 to 500 MHz — ideal for amateur radio operators and antenna builders who need accurate SWR, impedance, and cable measurements across HF and VHF in the field. Like all Stick analysers, it delivers 16 hours of continuous operation on a single Li-ion charge, and its slim 185 × 40 × 33 mm form factor makes it easy to carry to any site, in any weather.

Key Features

• Wide frequency coverage: 0.1 to 500 MHz (1 kHz resolution)
• Measures SWR, return loss, R, X, Z, L, C, magnitude and phase angle
• Supports 25, 50, 75, 100, 150, 200, 300, 450 and 600 Ω systems
• SWR range: 1–100 (digital) / 1–10 (graph), 100-point SWR chart
• Multé mode for quick multi-band antenna checks
• 16-hour battery life on a single Li-ion 18650 charge
• Bluetooth 4.2 BLE for wireless PC/mobile connectivity
• USB-C for PC connection and charging (3-hour charge time)

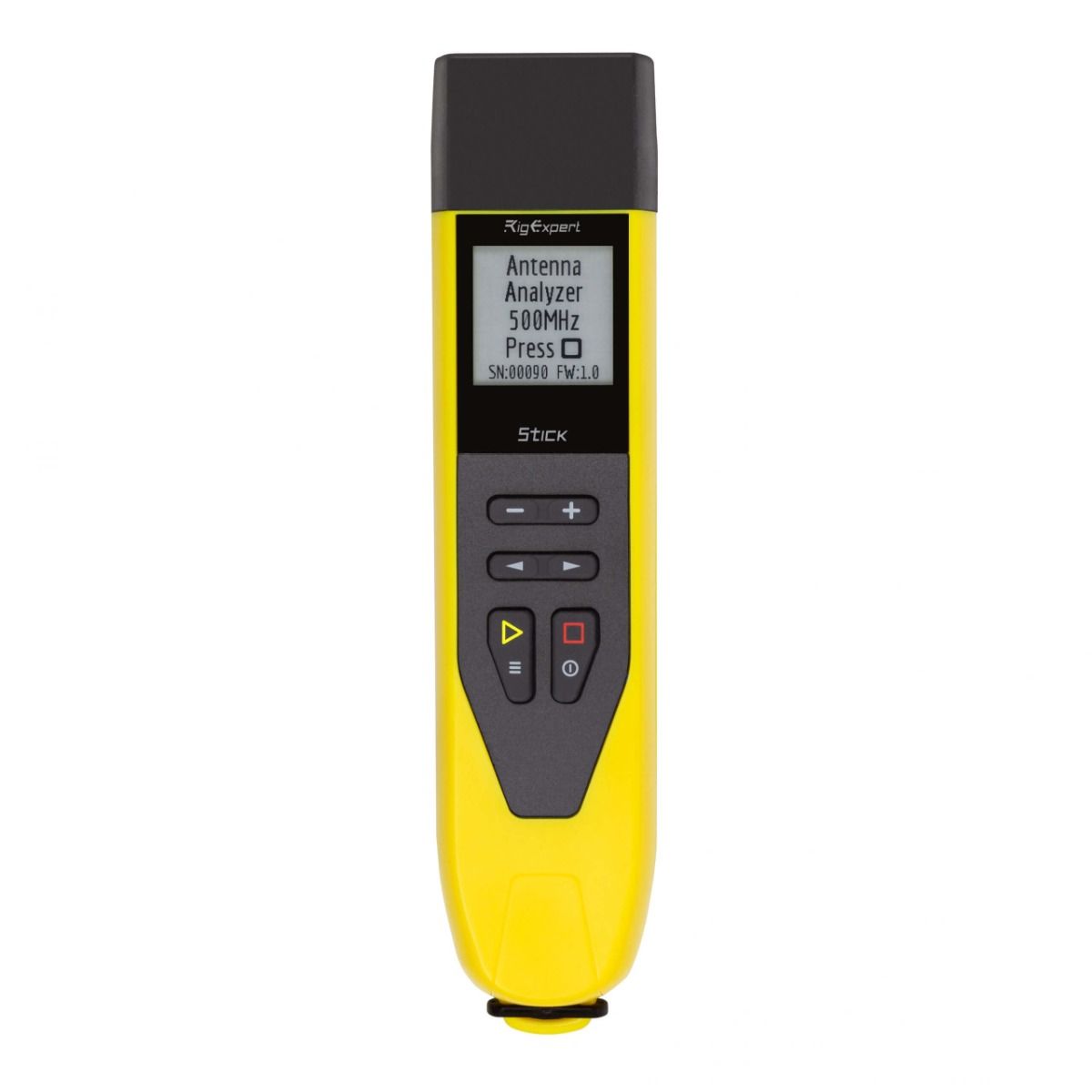

• High-contrast E Ink display (200 × 200 px), waterproof keyboard (2 × 3 keys)
• Extended operating temperature: −15 to +40 °C

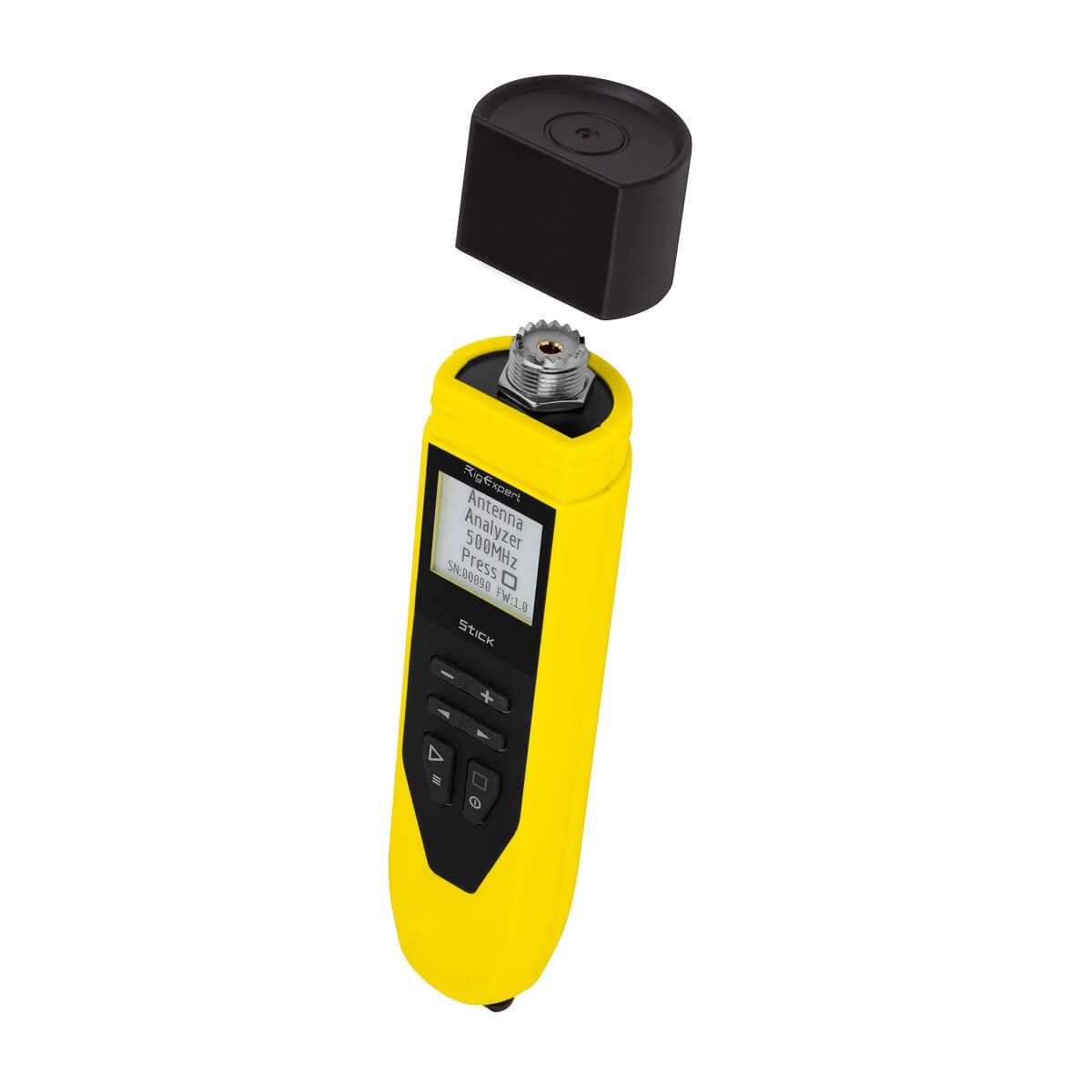

• SO-239 (UHF) connector

Technical Specifications

• Frequency range: 0.1–500 MHz
• Frequency step: 1 kHz
• Output signal: Square wave 0.1–500 MHz; −10 dBm at 50 Ω
• SWR measurement: 1–100 (digital), 1–10 (graph)
• R and X range: 0–10,000 / −10,000–10,000
• Connector: SO-239 (UHF)

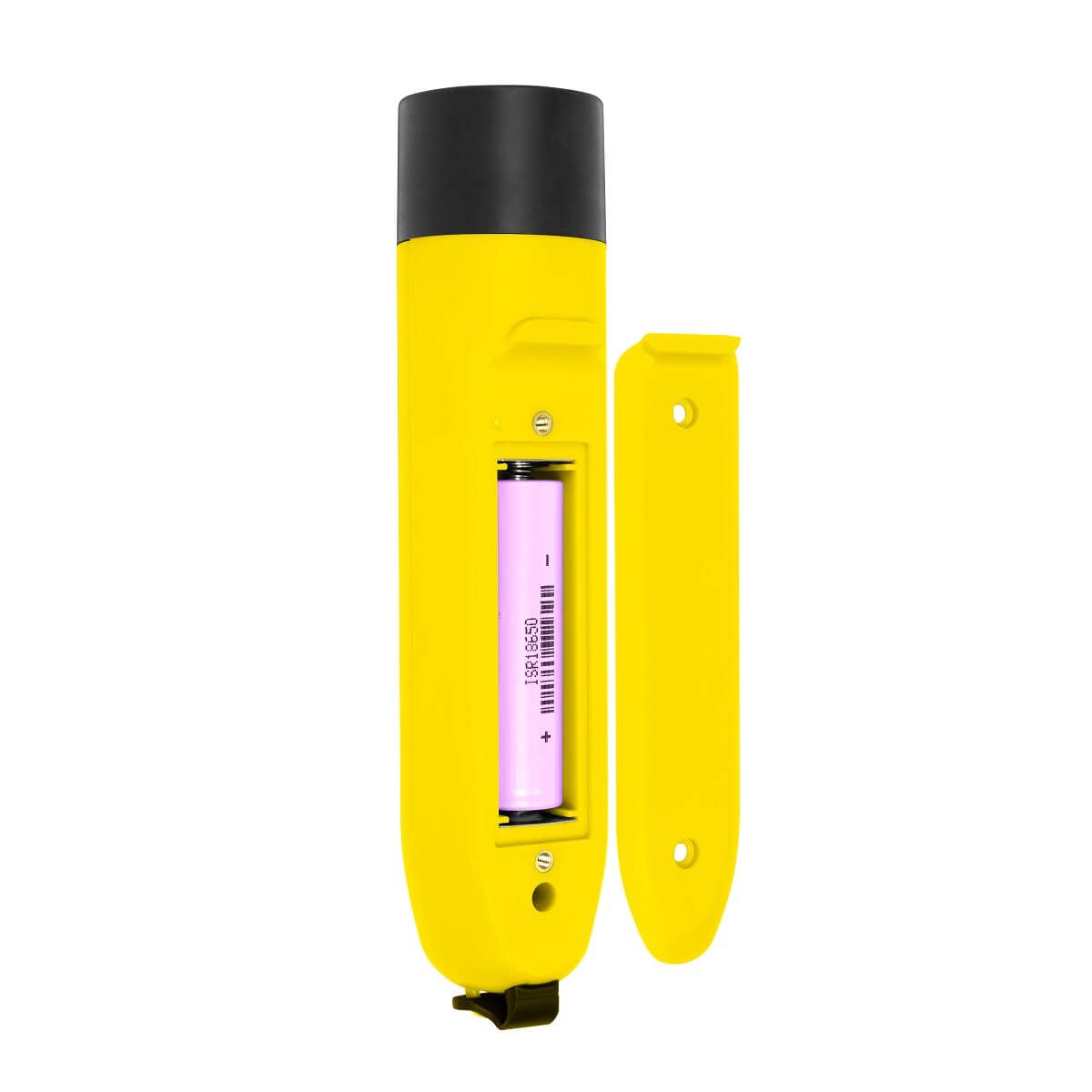

• Battery: Li-ion 3.7 V, type 18650 (included)
• Battery life: Up to 16 hours
• Charging: USB-C, approx. 3 hours
• Bluetooth: v4.2 BLE, Single-mode, Class B
• Display: E Ink, 200 × 200 px, high contrast
• Dimensions: 185 × 40 × 33 mm
• Weight: 185 g (with battery)
• Operating temperature: −15 to +40 °C (5 to 104 °F)
