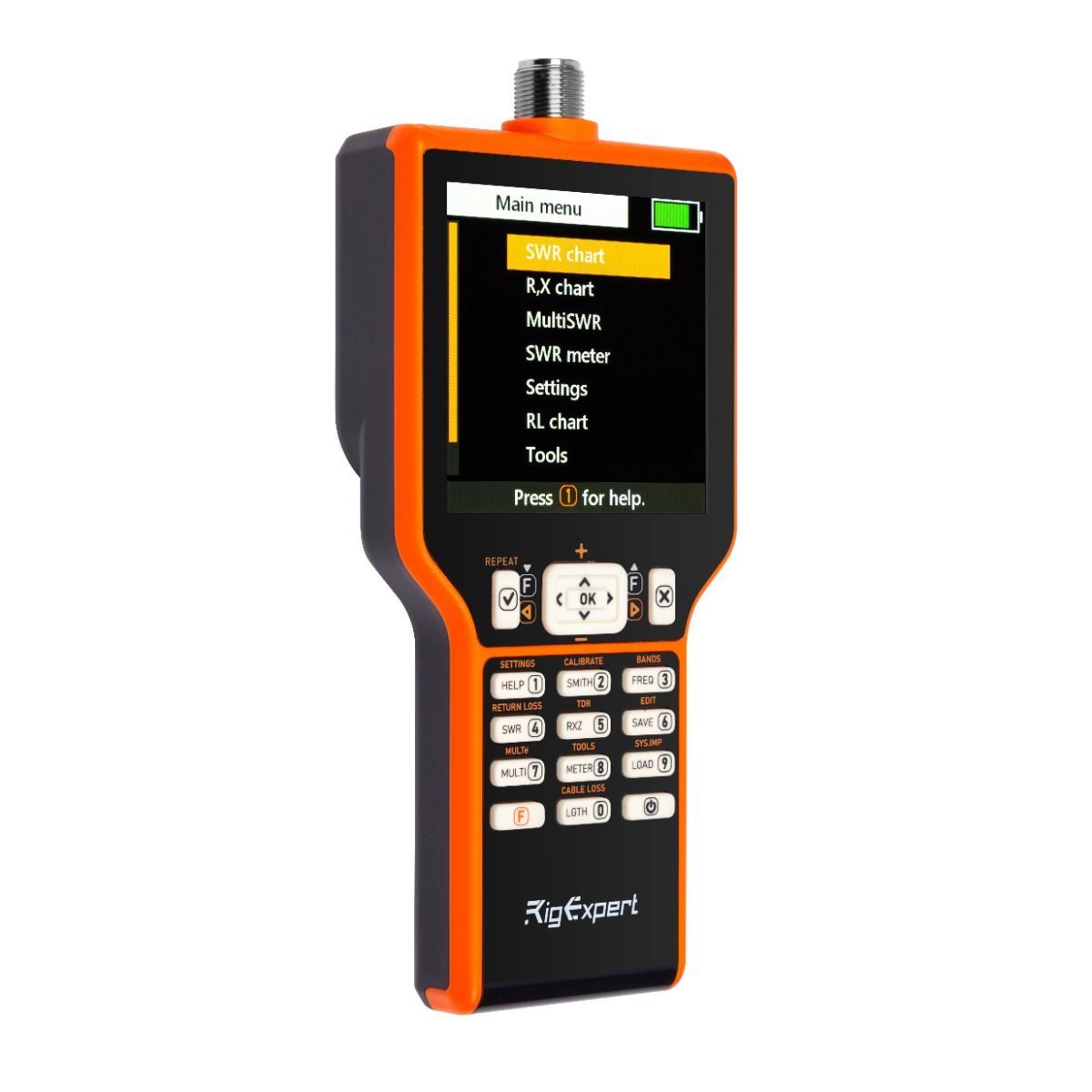

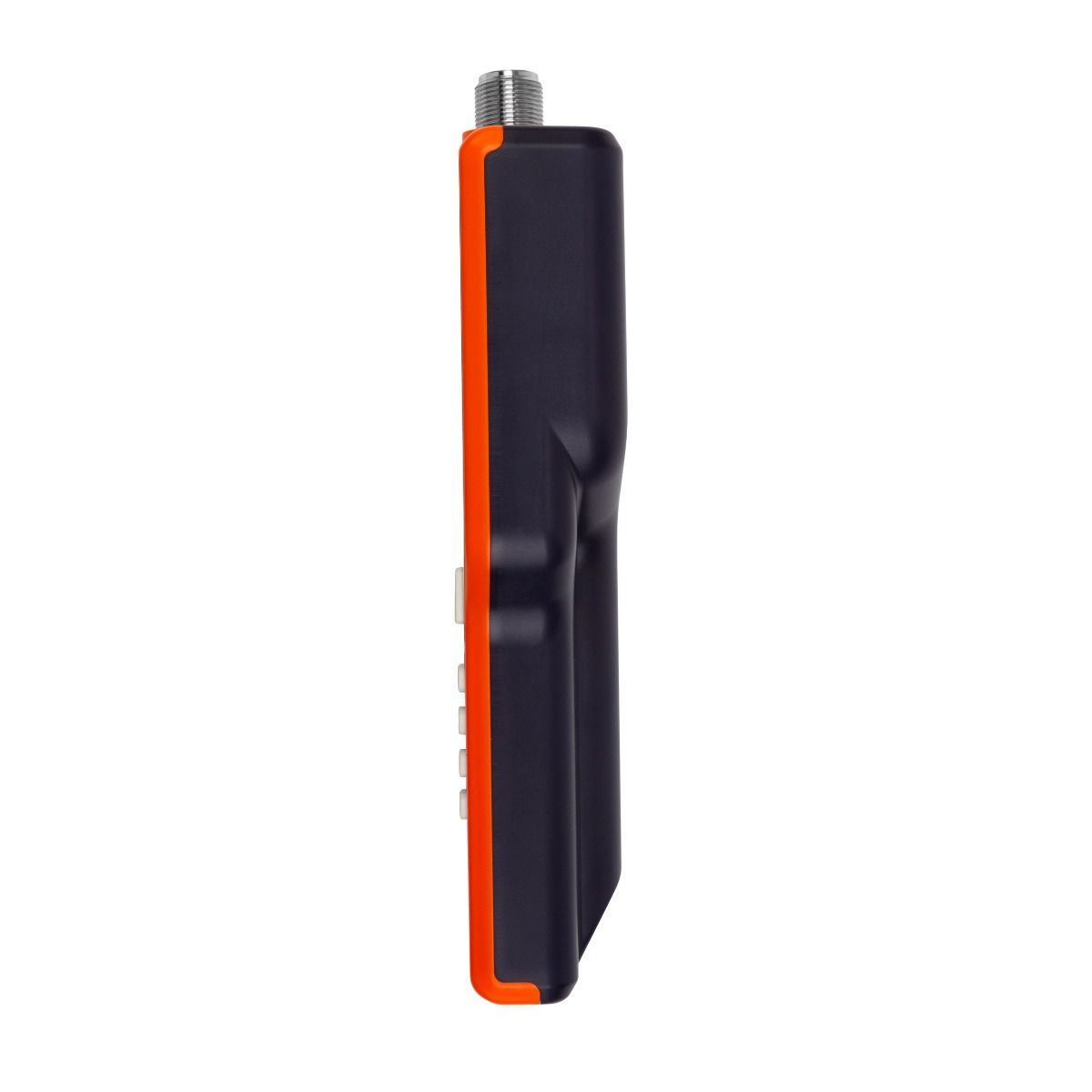

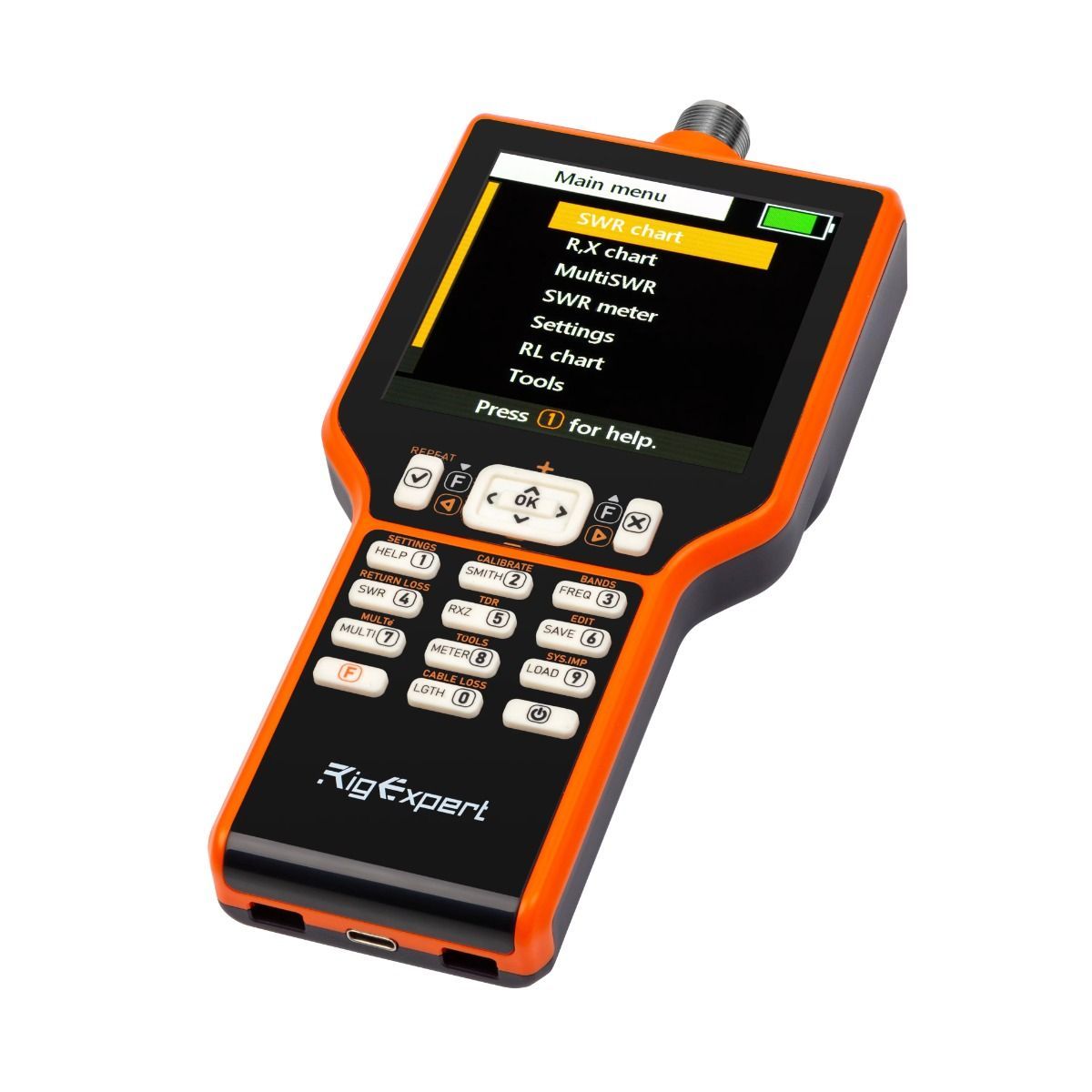

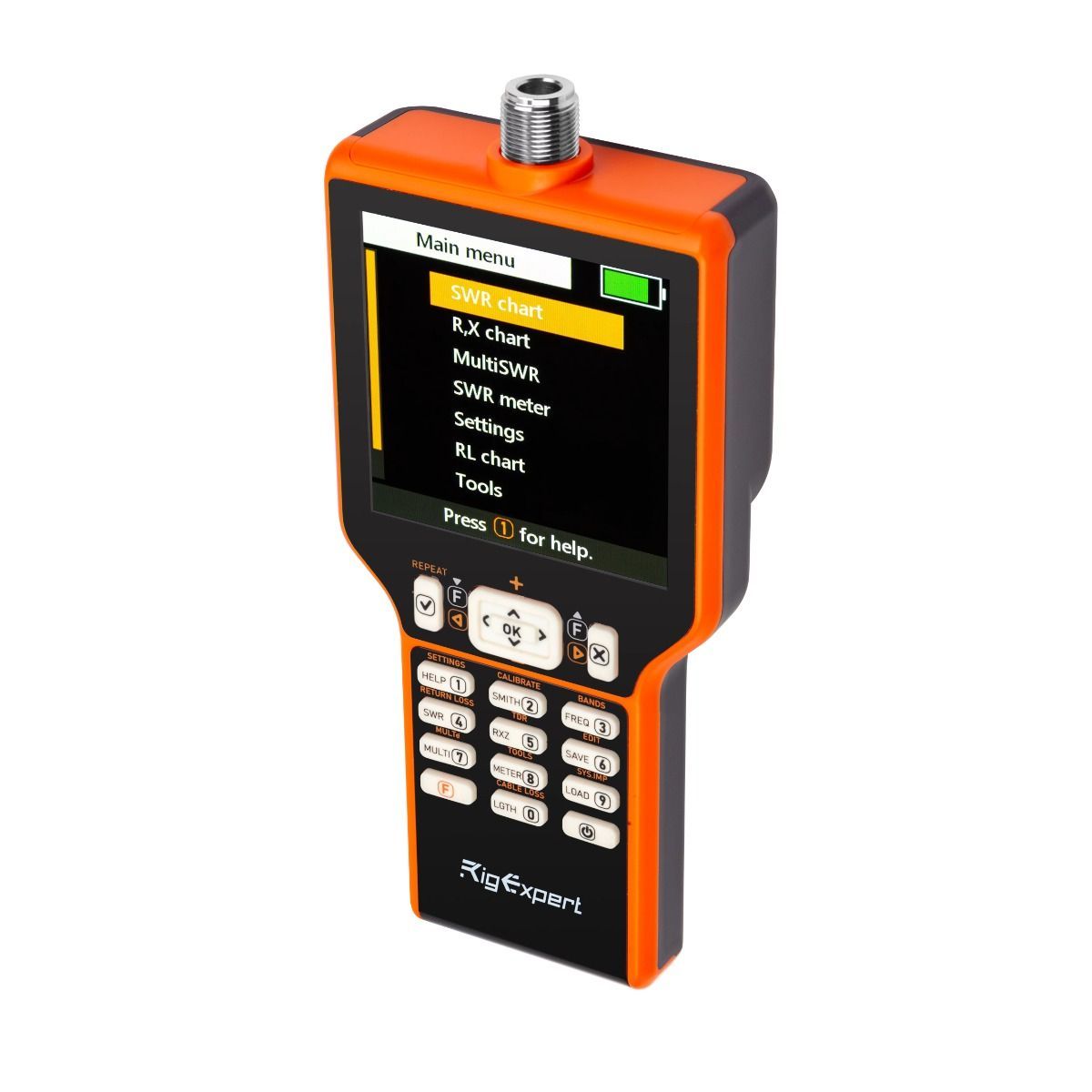

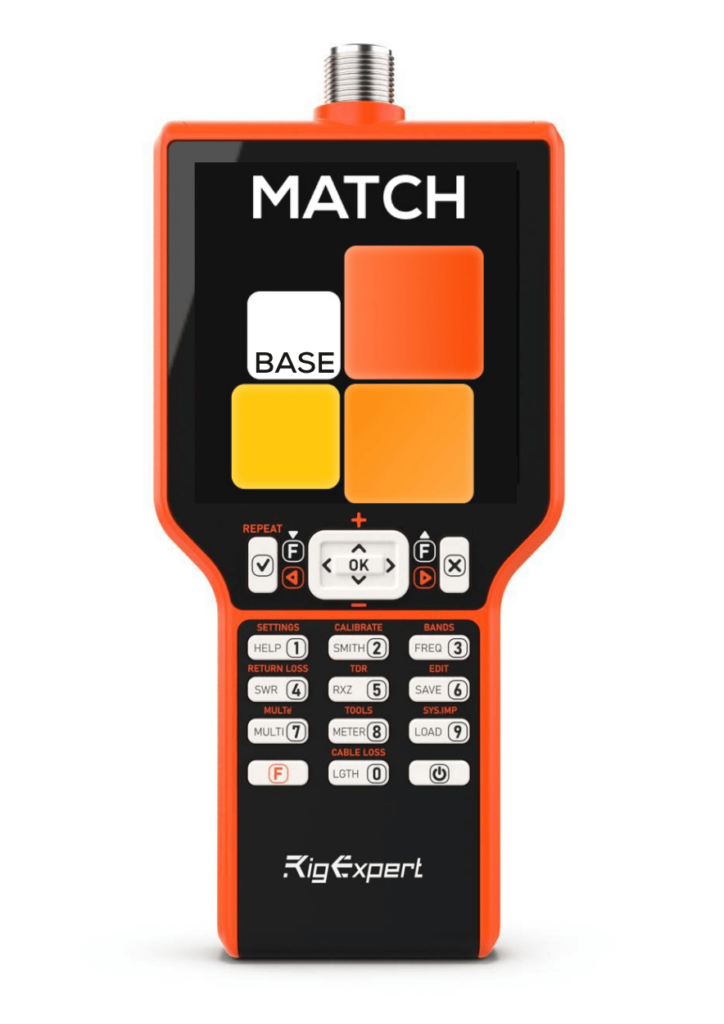

RigExpert MATCH Antenna & Cable Analyser 0.1-70 MHz, Upgradeable to 500 MHz

RigExpert MATCH Antenna & Cable Analyser

The RigExpert MATCH is a compact, handheld antenna and cable analyser that starts with HF coverage (0.1–70 MHz) and can be upgraded via software licence to 230 MHz (VHF) or the full 500 MHz (UHF) — without replacing any hardware. This makes it an ideal entry point for amateur radio operators who want a capable analyser today with room to grow as their station evolves.

Upgradeable Frequency Range

• Basic (included): 0.1–70 MHz — full HF coverage
• Advanced upgrade: Extends to 230 MHz (HF + VHF)
• RFE upgrade: Full coverage to 500 MHz (HF + VHF + UHF)

Upgrade licences are applied at any time — expand capability without replacing hardware.

Key Features

• Measures SWR, return loss, impedance (R + jX), and cable loss
• SWR measurement range: 1.0–10
• Impedance range: approx. 1–1,000 Ω
• High-speed sweep for rapid antenna checks
• Internal calibration for improved accuracy
• Real-time SWR and impedance graphing on colour display
• USB interface for firmware updates and PC connectivity
• Rechargeable internal battery for portable use
• SO-239 (UHF female) connector
• Compact and lightweight handheld design

Technical Specifications

• Frequency range: 0.1–70 MHz (base); upgradeable to 230 MHz or 500 MHz
• Measurements: SWR, return loss, R, X, impedance, cable loss
• SWR range: 1.0–10
• Impedance range: approx. 1–1,000 Ω
• Connector: SO-239 (UHF female)
• Connectivity: USB (PC software, firmware updates)
• Power: Rechargeable internal battery
