Panorama BSV-H5 VHF Base Station Antenna 149-159 MHz, 2 dBi, 100W, N-Type

Panorama BSV-H5 VHF Base Station Antenna

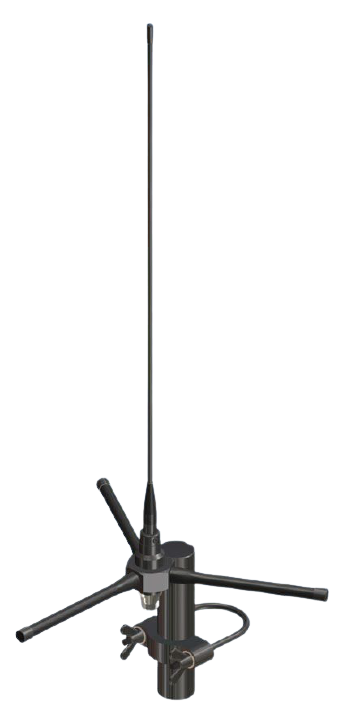

The Panorama BSV-H5 is a ruggedised, ground-plane-independent VHF base station antenna covering 149–159 MHz — ideal for professional radio installations, temporary field deployments, and permanent site monitoring. The black plated brass centre hub is mounted on a nylon stub mast and fitted with a N-type socket terminal, allowing use of different coaxial cable types and diameters to suit any installation. Three helical ground plane elements eliminate the need for a metal ground plane, making it straightforward to mount on walls, poles, or masts.

Key Features

• VHF coverage: 149–159 MHz (banded 132–174 MHz)
• 2 dBi peak gain, omni-directional pattern
• Ground plane independent — no metal ground plane required
• 100W maximum input power
• VSWR: typically less than 2:1
• N-type socket terminal — compatible with various coax types and diameters
• Wall or mast mount via U-bolt (mounting hardware included)
• Ruggedised construction for temporary field use or permanent installation
• Wide operating temperature: −40 to +80 °C
• Black finish

Technical Specifications

• Frequency: 149–159 MHz (VHF); banded 132–174 MHz
• Gain: 2 dBi
• Pattern: Omni-directional
• VSWR: <2:1 (typical)
• Max input power: 100W
• Connector: N-type socket
• Ground plane: Independent (3 helical elements)
• Mounting: Wall or mast, U-bolt
• Colour: Black
• Operating temperature: −40 to +80 °C
