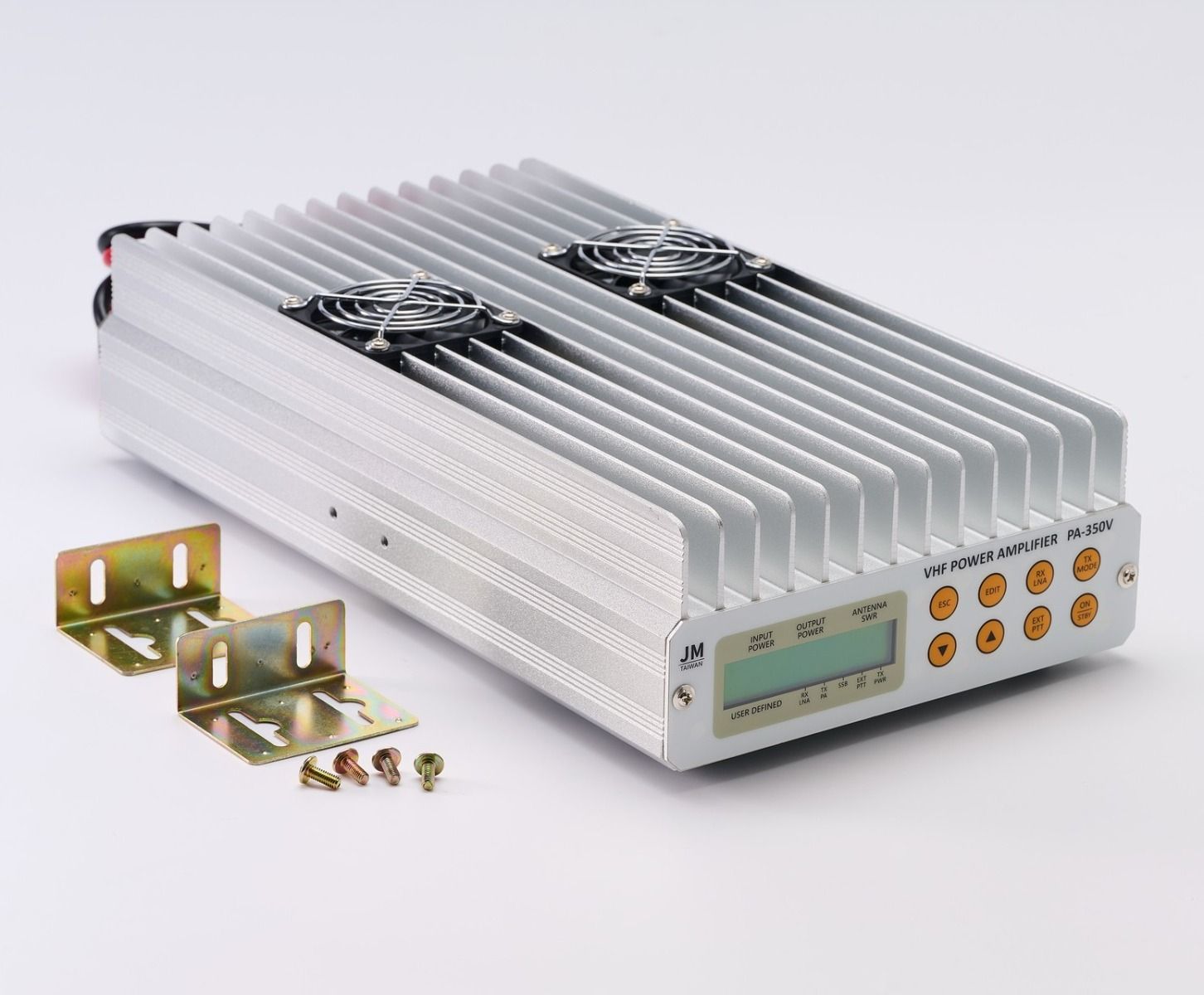

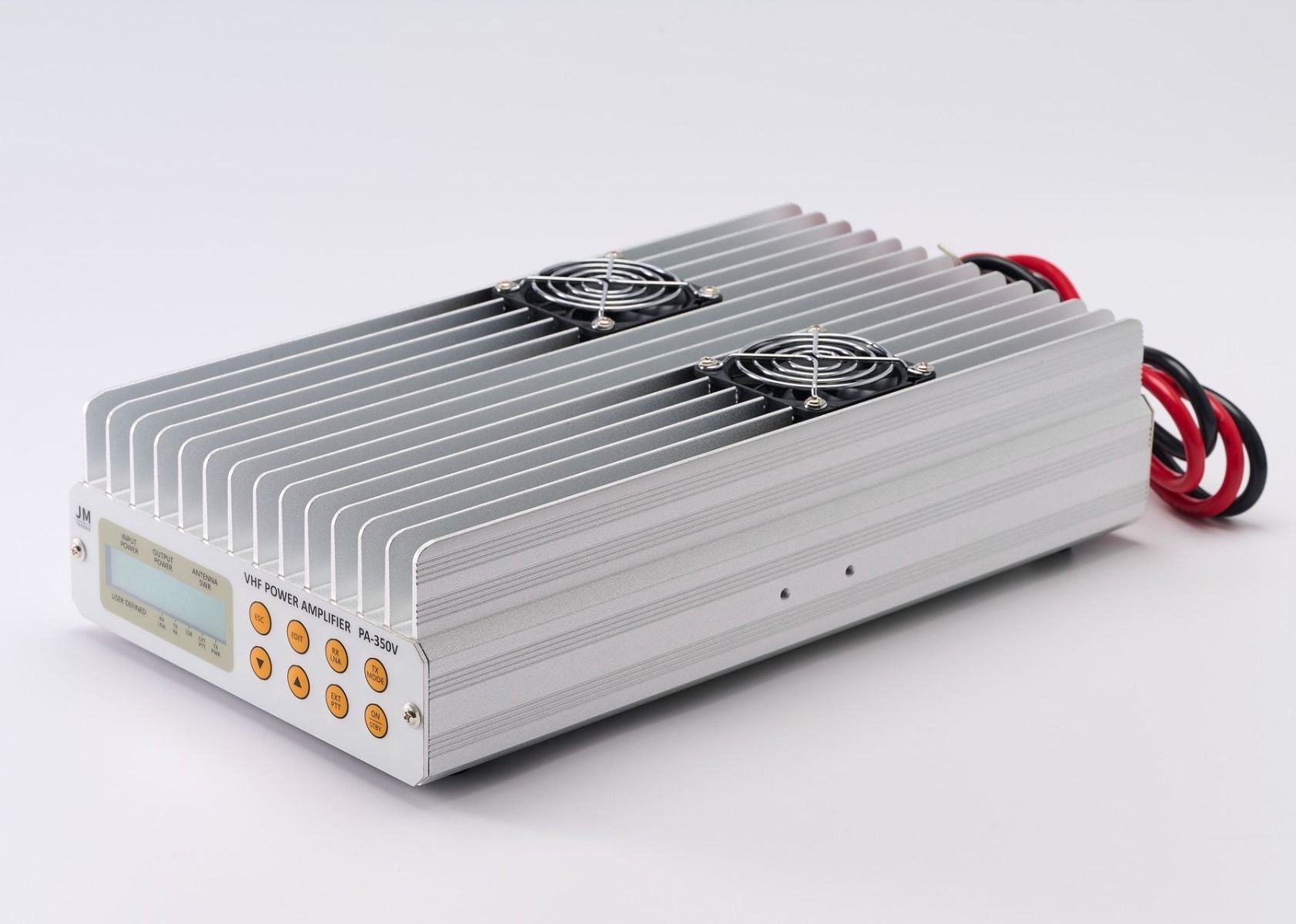

PA-350V VHF Power Amplifier 135–165MHz, 350W, FM/SSB/CW, 2m

The TOPTEK PA-350V is a high-power solid-state linear amplifier designed for 2m amateur radio and commercial VHF operations across 135–165 MHz. Delivering up to 350W output from as little as 5W input (HT) or 10–25W input (mobile transceiver), it accommodates virtually any VHF radio with its two selectable input ranges (15W max / 30W max).

A large green backlit alphanumeric LCD displays simultaneous input power, output power, and SWR readings in real time. Power output is user-selectable in four steps (100W, 200W, 300W, 350W) for FM, and continuously variable up to 360W PEP for SSB. Multiple protection circuits, a built-in 20dB LNA with bandpass filter, thermostatically controlled fans, and RF sense or PTT keying make this a fully self-contained amplifier solution.

Key Features

• Frequency: 135–165 MHz (covers full 2m amateur band)
• Output power: up to 350W FM / 360W SSB PEP
• Two selectable input ranges: 15W max or 30W max
• ~300W output from 5W HT input; 350W from 10–25W mobile input
• FM power steps: 100W, 200W, 300W, 350W (user programmable)
• Built-in 20dB LNA with bandpass filter for low-noise receive
• RF sense or PTT keying (PTT required for SSB/CW)
• Thermostatically controlled fans — quiet at low power

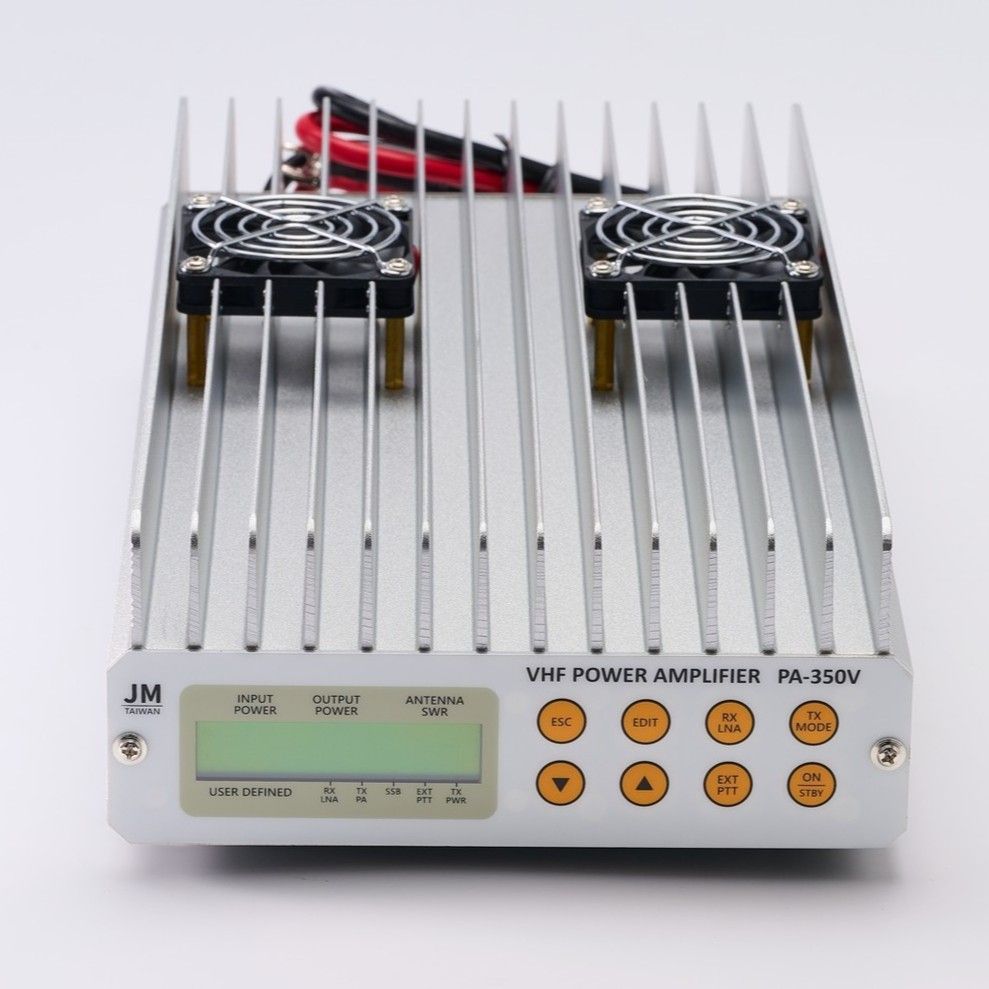

• Green backlit LCD: simultaneous input power, output power, SWR
• Type N female RF connectors (50Ω, low loss)
• RF bypass: max 50W (0.35dB insertion loss at 145 MHz)

Specifications

• Frequency: 135–165 MHz
• FM output: 20–360W (user programmable)
• SSB output: 0–360W PEP max
• Input ranges: 15W max / 30W max (selectable)
• RF bypass: 50W max (0.35dB loss @ 145 MHz)
• RX preamp gain: 20dB @ 145 MHz
• Supply: 13.8V DC (10.5–14.5V range), 48A continuous / 54A peak at 350W
• PTT connector: 3.5mm stereo jack (ground tip)
• RF connectors: Type N female
• Dimensions: 184 × 90 × 350mm
• Weight: 3 kg

Note: Requires 13.8V DC @ 50A max. External power supply not included.
