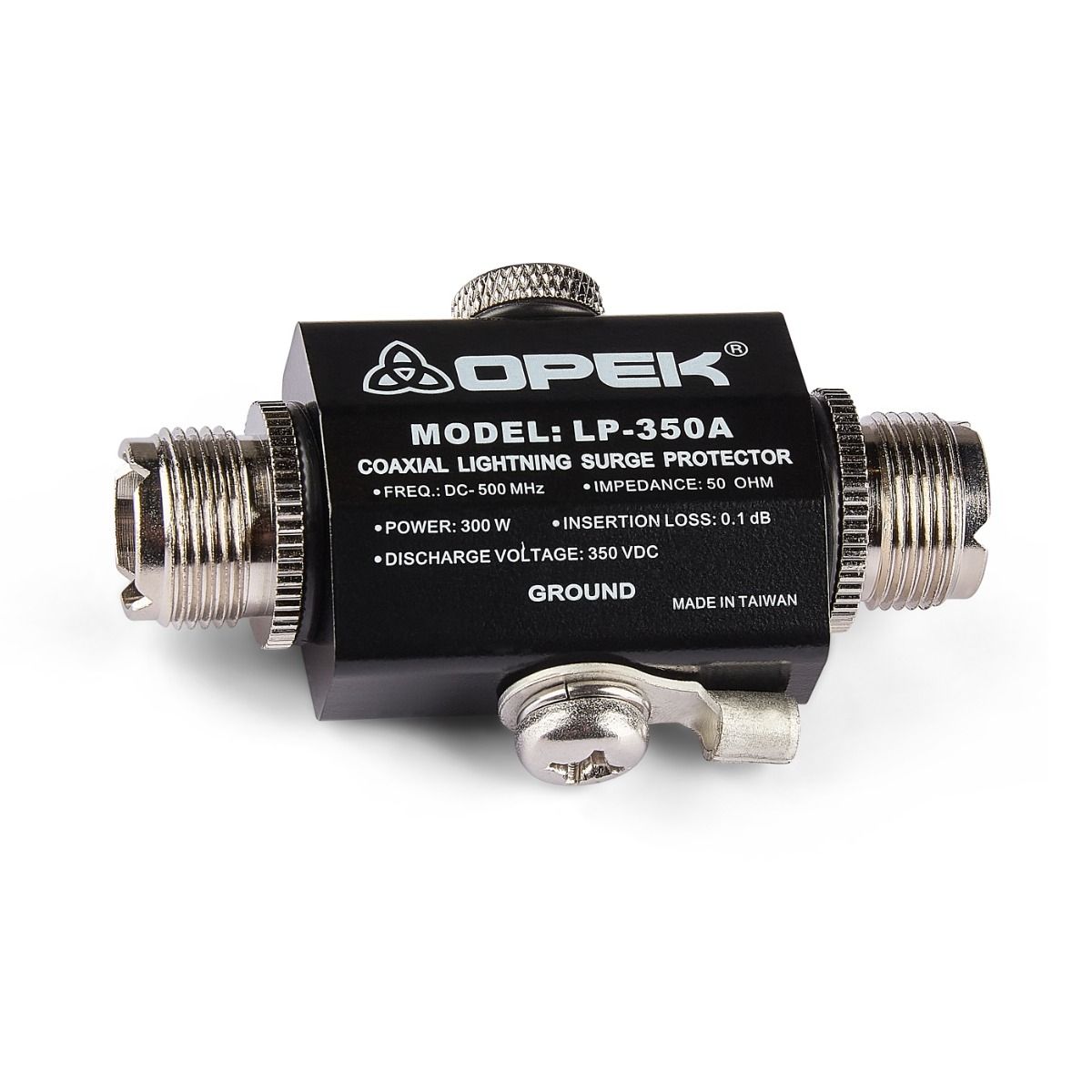

OPEK LP-350A Lightning Arrestor, DC-500MHz, 300W, SO-239 Female-Female

Static Discharge Protection for Receivers and Transceivers

The OPEK LP-350A is a coaxial lightning arrestor designed to safely discharge static build-up on antenna feedlines before it reaches the sensitive front-end of your receiver or transceiver. Static accumulation on aerials is a genuine and common risk — particularly with vertical antennas and long feedlines — and can cause permanent damage to RF front-ends without warning. The LP-350A installs inline on any 50 Ohm coaxial run, covering DC through 500MHz with less than 0.1dB insertion loss and a 300V DC discharge threshold. SO-239 female-to-female connection makes it compatible with standard PL-259 terminated feedlines.

Key Features

• Protects receiver and transceiver front-ends from static discharge damage
• Wide frequency coverage: DC to 500MHz
• Ultra-low insertion loss: less than 0.1dB
• 300W PEP power handling
• DC 350V discharge voltage threshold
• 50 Ohm impedance
• SO-239 female to SO-239 female (UHF female-to-female) inline connection
• Compact form factor: 66.5 × 40 × 20mm

Technical Specifications

• Frequency Range: DC–500MHz
• Impedance: 50 Ohms
• Insertion Loss: Less than 0.1dB
• Maximum Power: 300W (PEP)
• Discharge Voltage: DC 350V
• Connection: UHF female (SO-239) to UHF female (SO-239)
• Dimensions: 66.5 × 40 × 20mm
