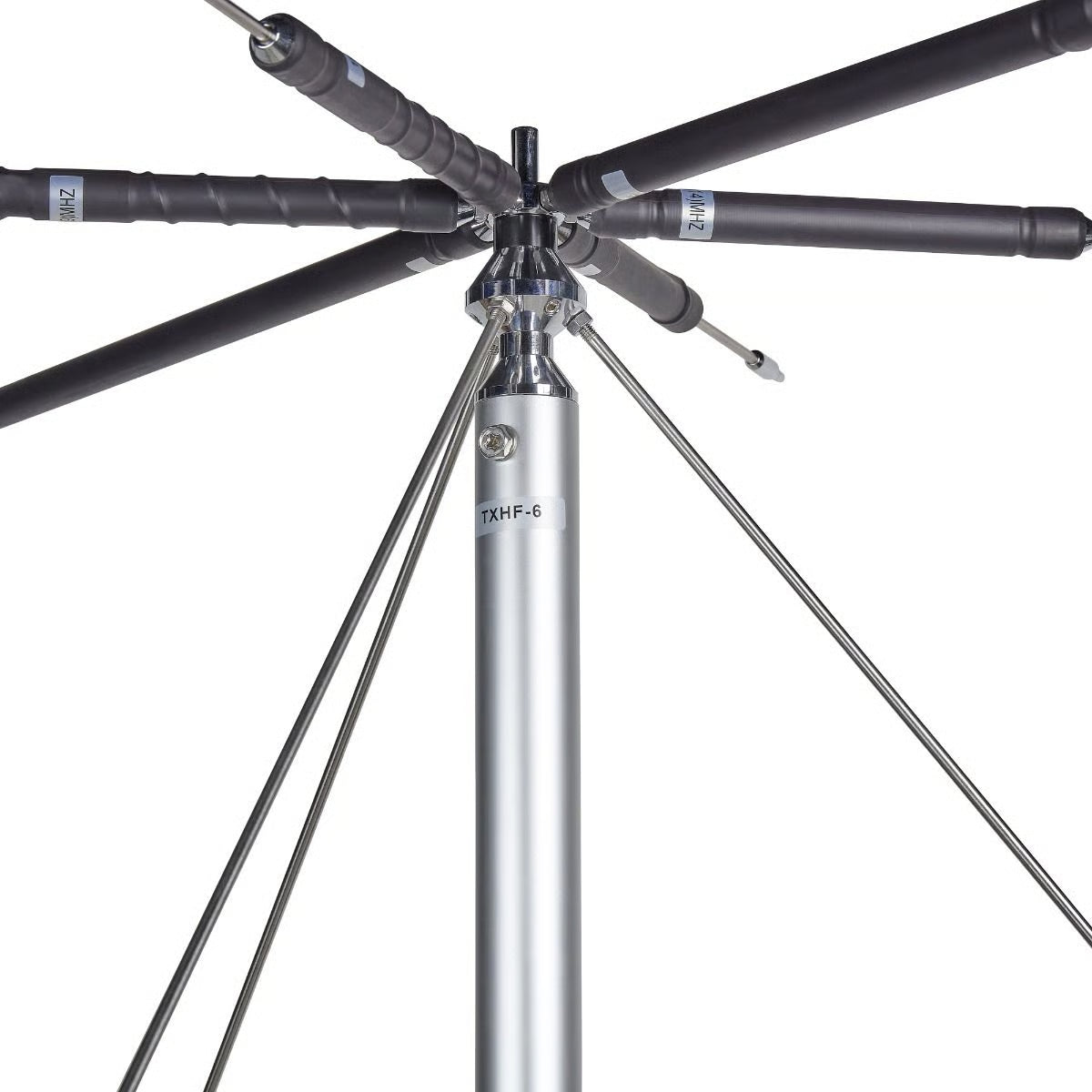

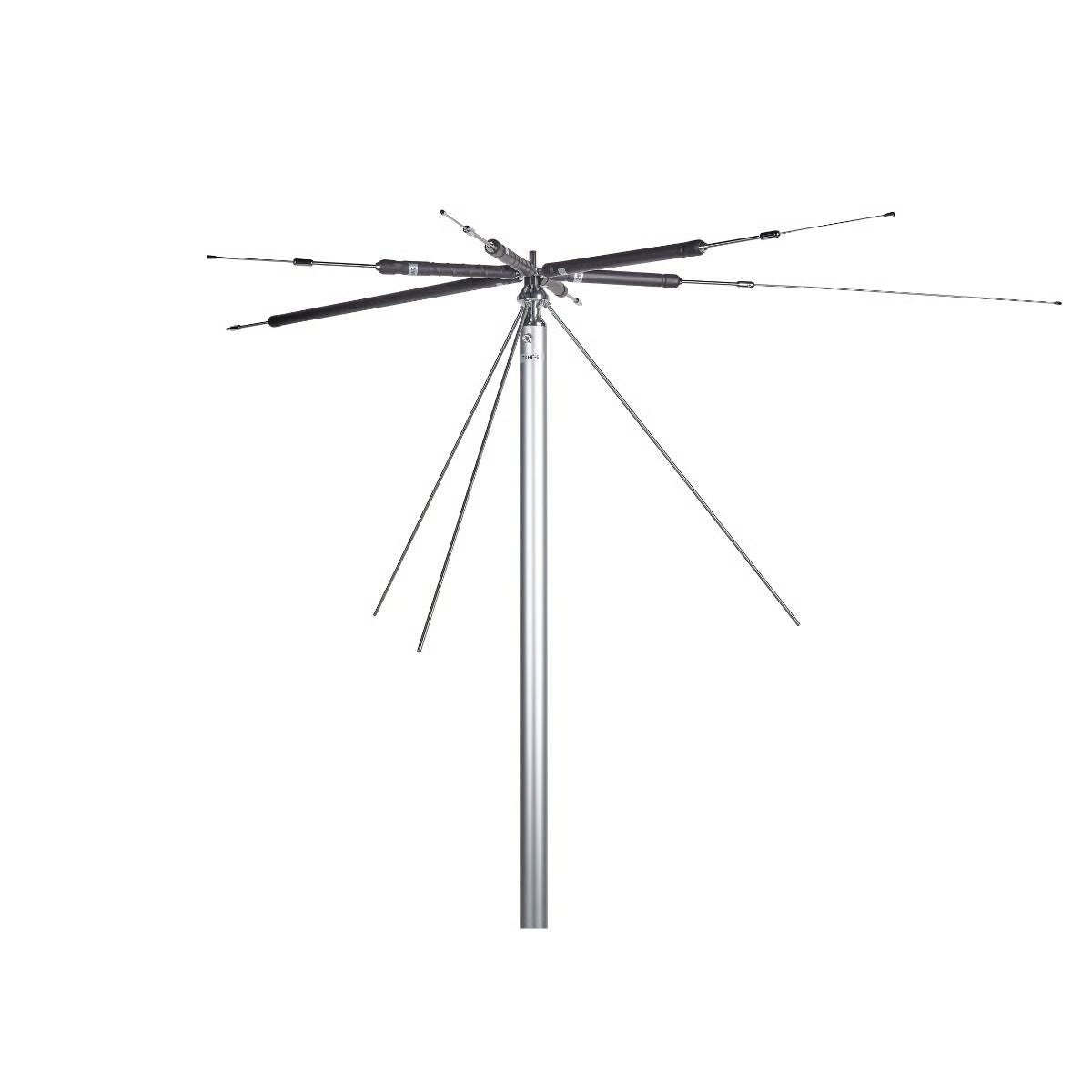

Moonraker ScanKing TXHF-6 Discone 3-1000MHz RX / 80-6m TX Antenna

The Moonraker ScanKing TXHF-6 is a wideband discone-style antenna designed for both scanner reception and amateur radio transmitting. It provides receive coverage from 3-1000MHz and supports transmission on six amateur radio bands from 80m to 6m.

The antenna is rated for up to 200W transmit power and uses dedicated tuned elements for the supported HF and 6m transmit frequencies. Its discone section also provides broad receive coverage for monitoring a wide range of HF, VHF and UHF signals.

Features

• Wideband receive coverage from 3-1000MHz
• Transmit capability on 3.5 / 7 / 14 / 21 / 29 / 50MHz
• Covers 80m, 40m, 20m, 15m, 10m and 6m amateur bands for transmit
• Maximum transmit power up to 200W
• 2.15dBi gain over a standard discone
• SO-239 antenna connection
• Wide 220cm overall diameter
• Suitable for scanner reception and amateur radio use

Technical Specifications

• Manufacturer: Moonraker
• Model: ScanKing TXHF-6
• Antenna Type: Discone-style receive / transmit antenna
• Receive Frequency: 3-1000MHz
• Transmit Frequencies: 3.5 / 7 / 14 / 21 / 29 / 50MHz
• Transmit Bands: 80m / 40m / 20m / 15m / 10m / 6m
• Maximum Power: 200W
• Gain: 2.15dBi over standard discone
• Height: 84cm
• Diameter: 220cm
• Radius: 110cm
• Connector: SO-239

Note: The transmit specification applies only to the stated amateur-band frequencies. For other frequencies within the 3-1000MHz range, the antenna should be treated as receive-only.
