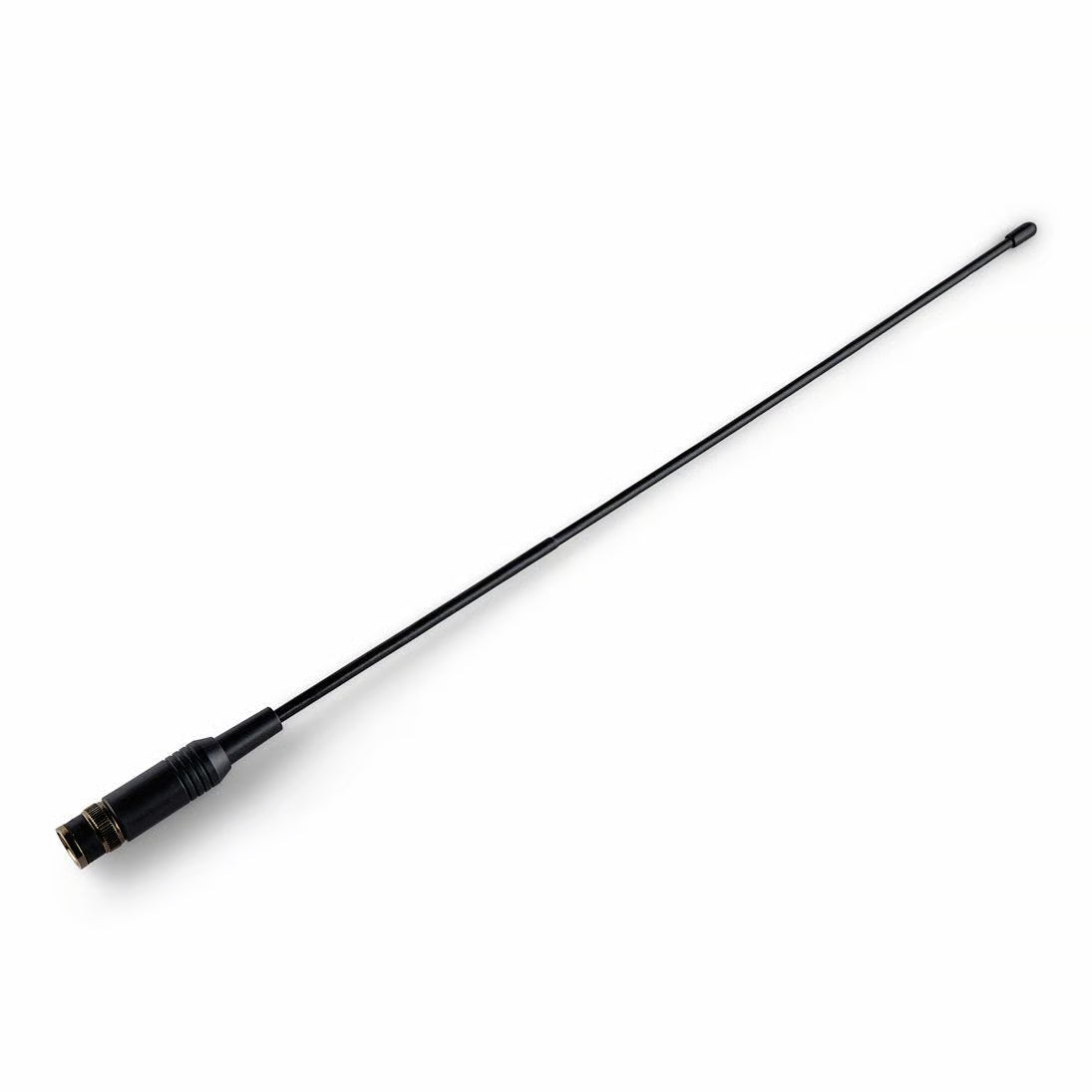

Moonraker MRW-118 VHF Airband Super Gainer BNC Antenna

The Moonraker MRW-118 is a portable VHF airband antenna designed for handheld scanners and radios fitted with a BNC connection. Its 395mm flexible whip is optimised for civil airband use while also providing wider receive coverage for general VHF/UHF monitoring.

The antenna covers 88-450MHz for receive and is specified by Moonraker for 118-137MHz transmit with up to 10W maximum input power. With 2.15dBi gain and 50-ohm impedance, it is a straightforward upgrade for compatible handheld scanners where improved airband reception is required.

Features

• Designed for VHF civil airband monitoring
• 88-450MHz receive coverage
• 118-137MHz transmit specification
• 2.15dBi gain
• 10W maximum input power
• 50-ohm impedance
• 395mm flexible whip design
• BNC connector for compatible handheld scanners and radios
• Suitable for scanners such as the Uniden UBC125 series when fitted with a BNC antenna socket

Technical Specifications

• Manufacturer: Moonraker
• Model: MRW-118
• Antenna Type: Handheld VHF airband / scanner antenna
• Receive Frequency Range: 88-450MHz
• Transmit Frequency Range: 118-137MHz
• Gain: 2.15dBi
• Maximum Input Power: 10W
• Impedance: 50 ohms
• Length: 395mm
• Connector: BNC

Important Information

Transmit capability does not itself authorise transmission. Airband transmitting is regulated and should only be carried out using appropriately approved equipment and with the required authority or licence for the operating service and frequency.
