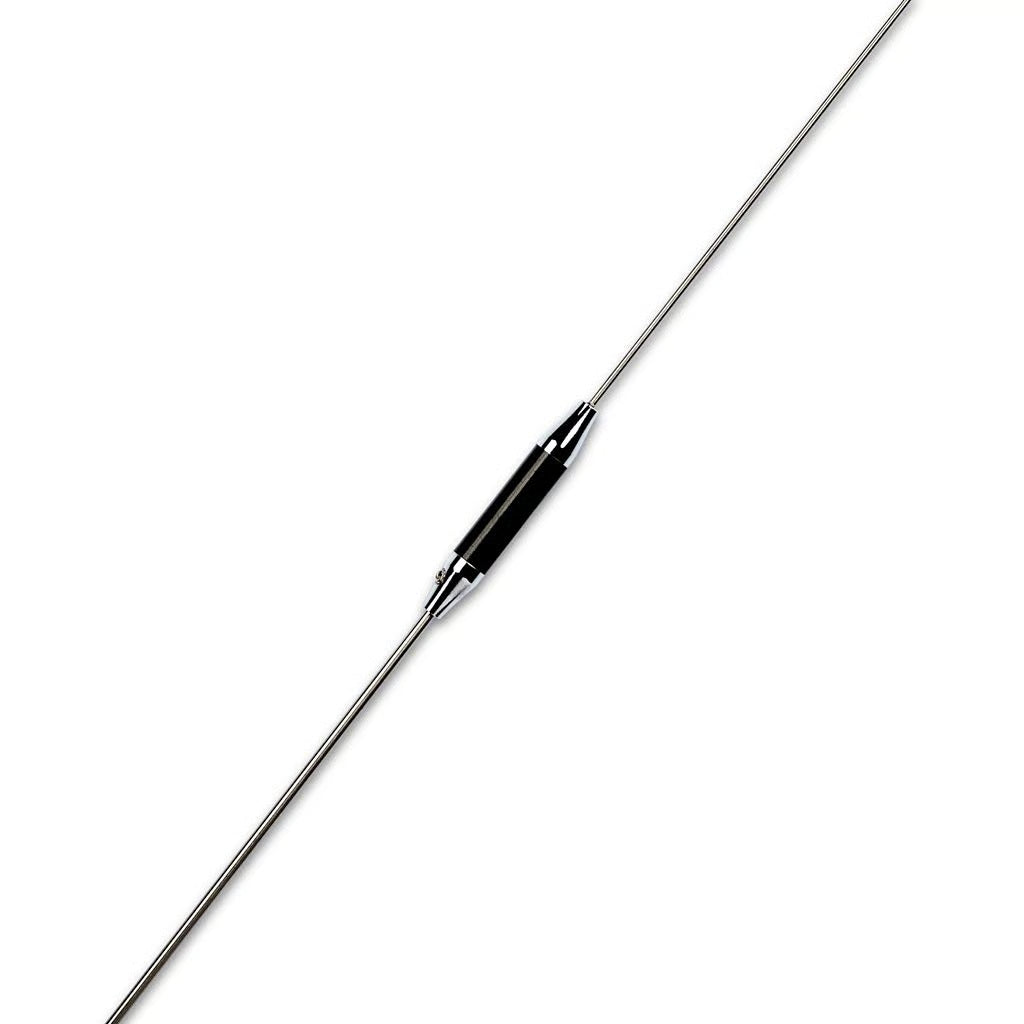

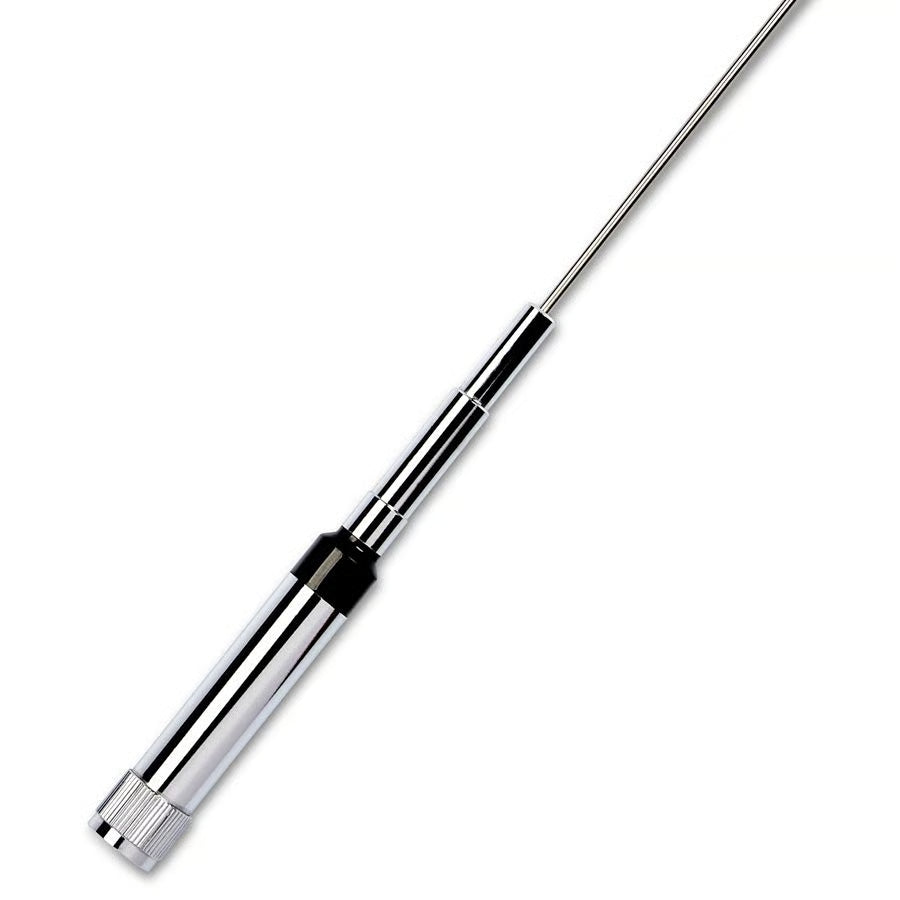

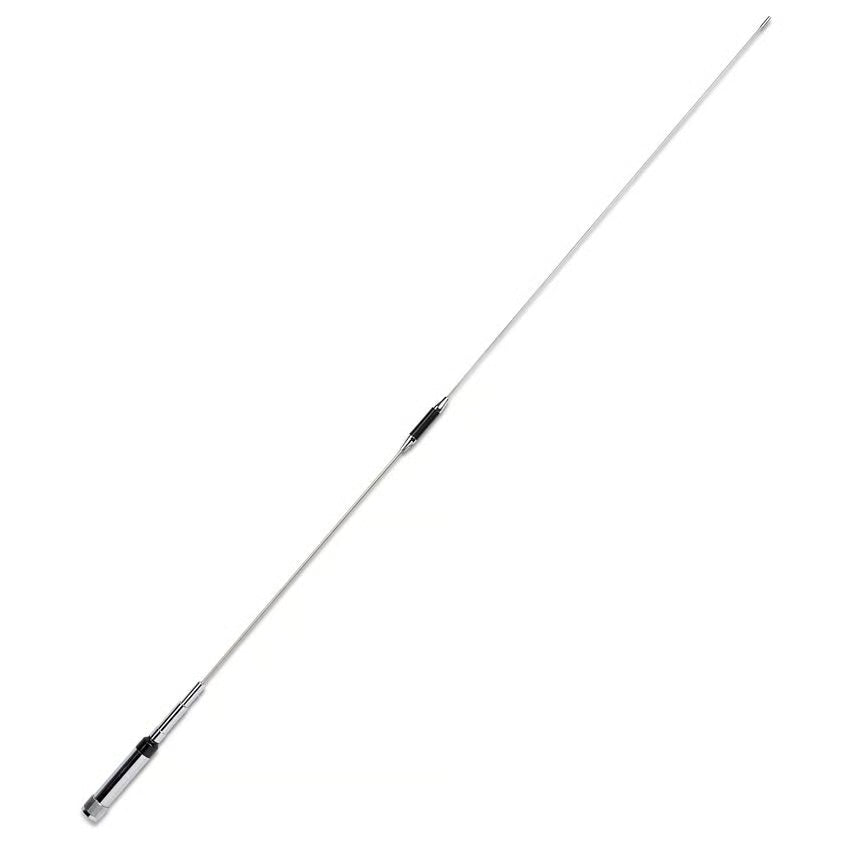

MRQ500 Dual Band 2m/70cm Mobile Antenna 200W, 95cm, PL-259

The Moonraker MRQ500 is a dual-band mobile antenna for the 2m and 70cm amateur bands. Its configuration uses a 1/2-wave element on 2m and 2 x 5/8-wave on 70cm, providing useful gain while keeping the overall antenna length to approximately 95cm.

The MRQ500 uses a PL-259 fitting and incorporates a fold-over base, allowing the whip to be tilted down for garages and other low-clearance situations.

Features

• Dual-band 2m / 70cm mobile antenna
• 1/2-wave configuration on 2m
• 2 x 5/8-wave configuration on 70cm
• 5.35dBi gain on 2m
• 7.95dBi gain on 70cm
• 200W maximum power rating
• VSWR 1.5:1 or better
• Approx. 95cm overall length
• PL-259 fitting
• Fold-over base for low-clearance parking
• Slimline mobile whip design

Technical Specifications

• Manufacturer: Moonraker
• Model: MRQ500
• Type: Dual-band VHF/UHF mobile antenna
• Frequency: 144-146MHz / 430-440MHz
• Element Configuration: 1/2 wave on 2m / 2 x 5/8 wave on 70cm
• Gain: 5.35dBi / 7.95dBi
• VSWR: 1.5:1 or better
• Maximum Power: 200W
• Length: Approx. 95cm
• Connector: PL-259
• Base: Fold-over / tilt-over design

Installation

The MRQ500 is designed for a compatible SO-239 mobile antenna mount or magnetic base. A suitable mount and coaxial feedline are required unless already present on the vehicle.
