Moonraker Mini-1300 0.1–1300MHz Handheld Antenna Analyser

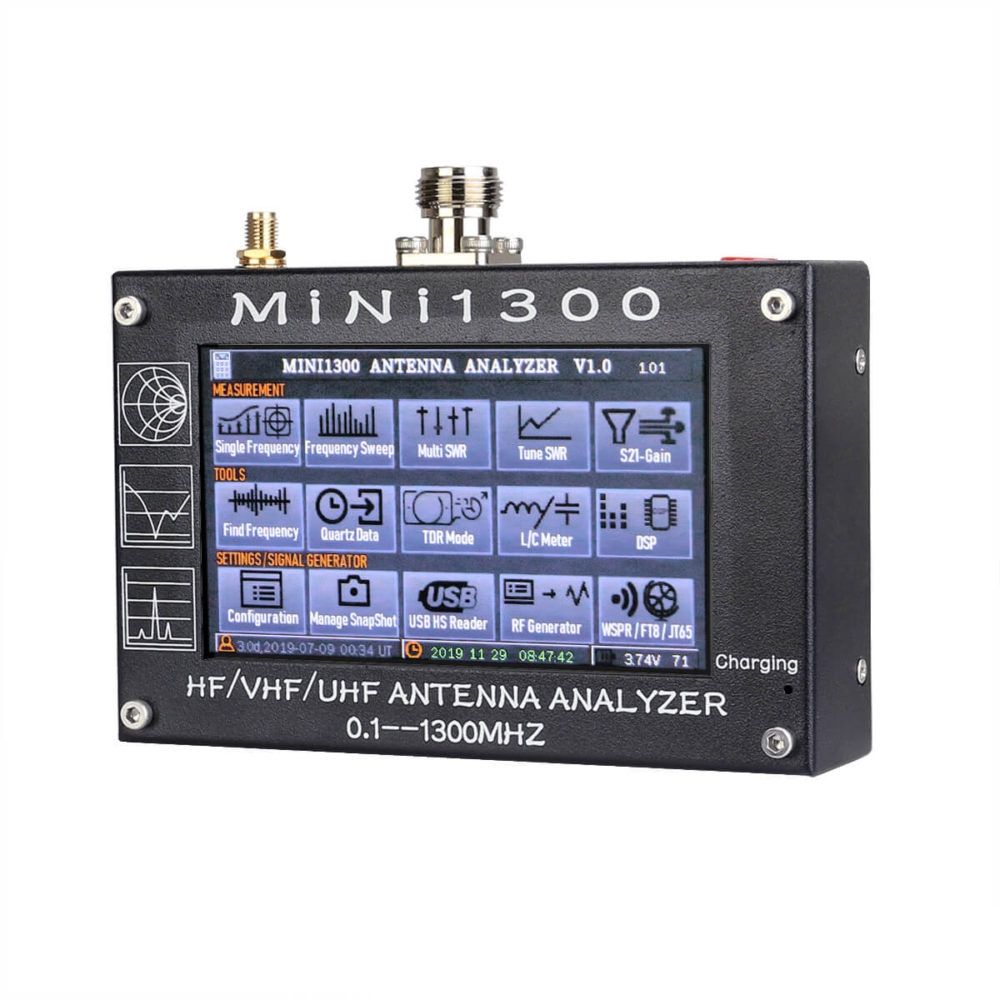

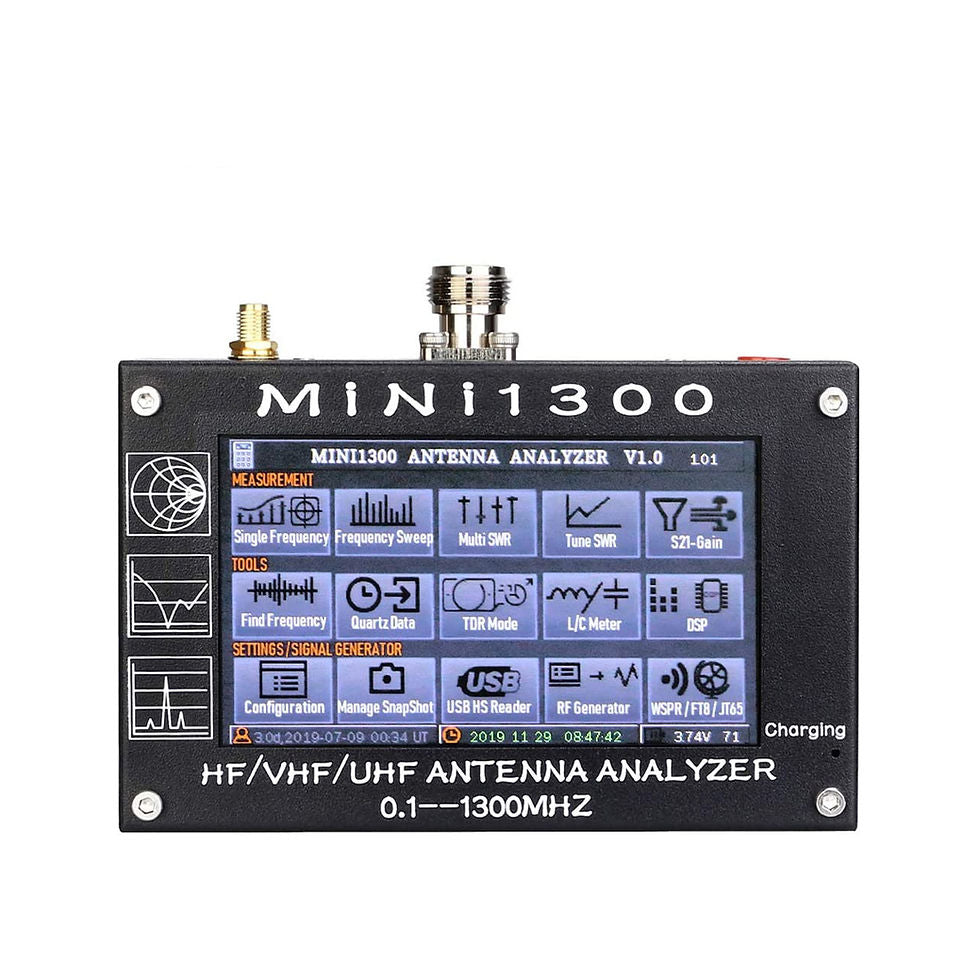

The Moonraker Mini-1300 is a portable antenna analyser covering 0.1–1300MHz continuously across HF, VHF and UHF. Its large capacitive touchscreen and rechargeable battery make it a practical choice for antenna installation, tuning, fault finding and field maintenance.

Measurement capabilities

• Single-frequency antenna measurement
• Panoramic frequency sweeps
• Multi-SWR display and audible SWR tuning
• Time-domain reflectometry for checking cables and locating faults
• Numerical, curve and Smith chart display modes
• Measures SWR, resistance, reactance, impedance and return loss
• Built-in frequency finder and RF signal generator
• WSPR, FT8 and JT65 transmission functions for appropriately licensed operators
• Snapshot viewing and TF-card storage
• USB high-speed card-reader function

Technical specifications

• Frequency range: 0.1–1300MHz continuous HF/VHF/UHF coverage
• Impedance: 50 ohms
• Measurement modes: Single point, frequency sweep and TDR
• Measured parameters: SWR, R, +Jx, −Jx, |Z| and return loss
• SWR range: 1.0–1999 in single-point mode; 1.0–20.0 in scan mode
• Display: 4.3-inch 480 × 272 TFT LCD
• Touch interface: Capacitive touchscreen
• RF connector: N-type
• Calibration interface: SMA open/short/load kit
• Power: USB or internal lithium-ion battery
• Maximum charging input: 5V/1.5A
• Storage: TF card
• Dimensions: 133 × 85 × 29mm, excluding projecting connectors
• Weight: Approximately 550g

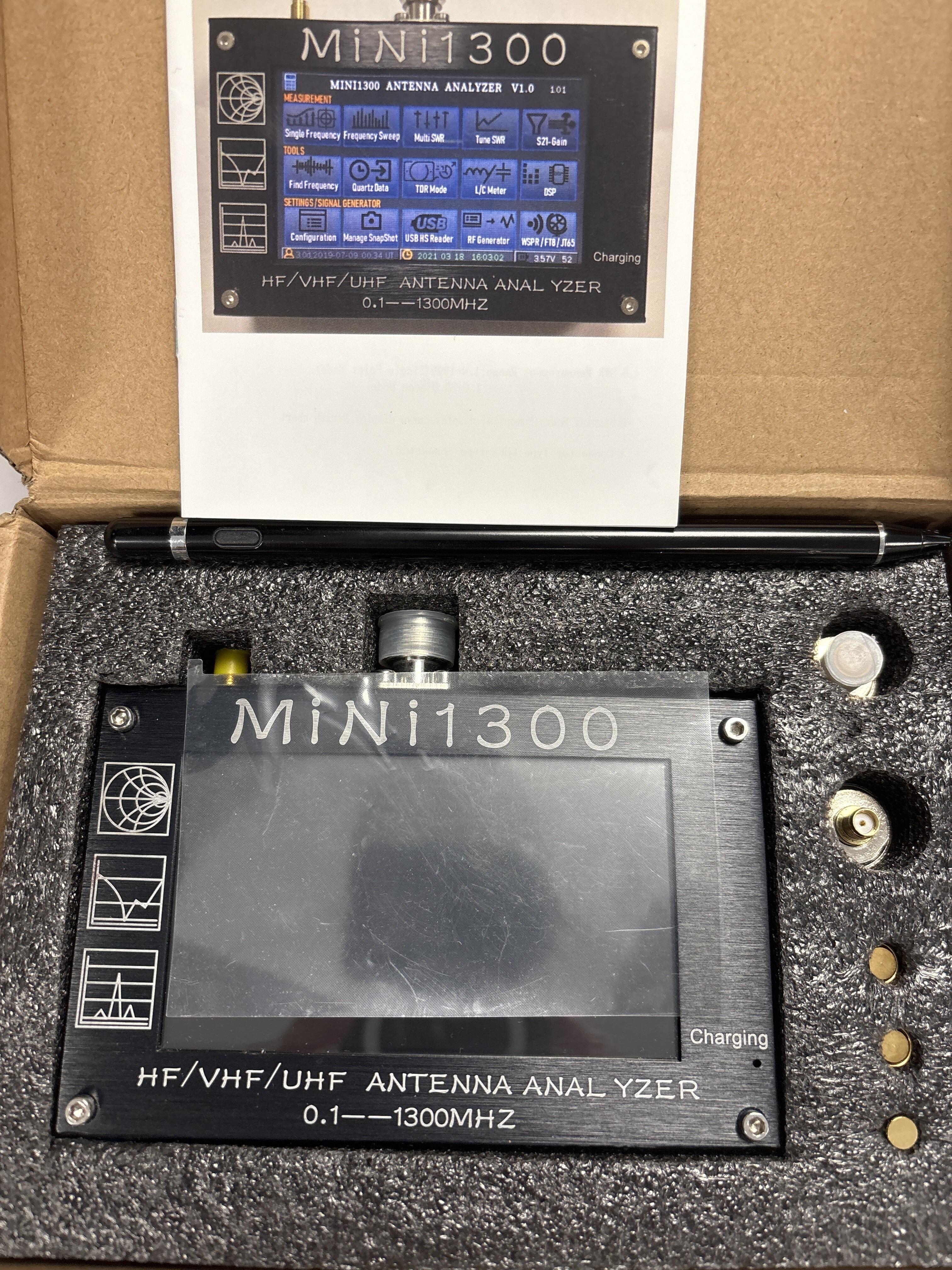

What's included

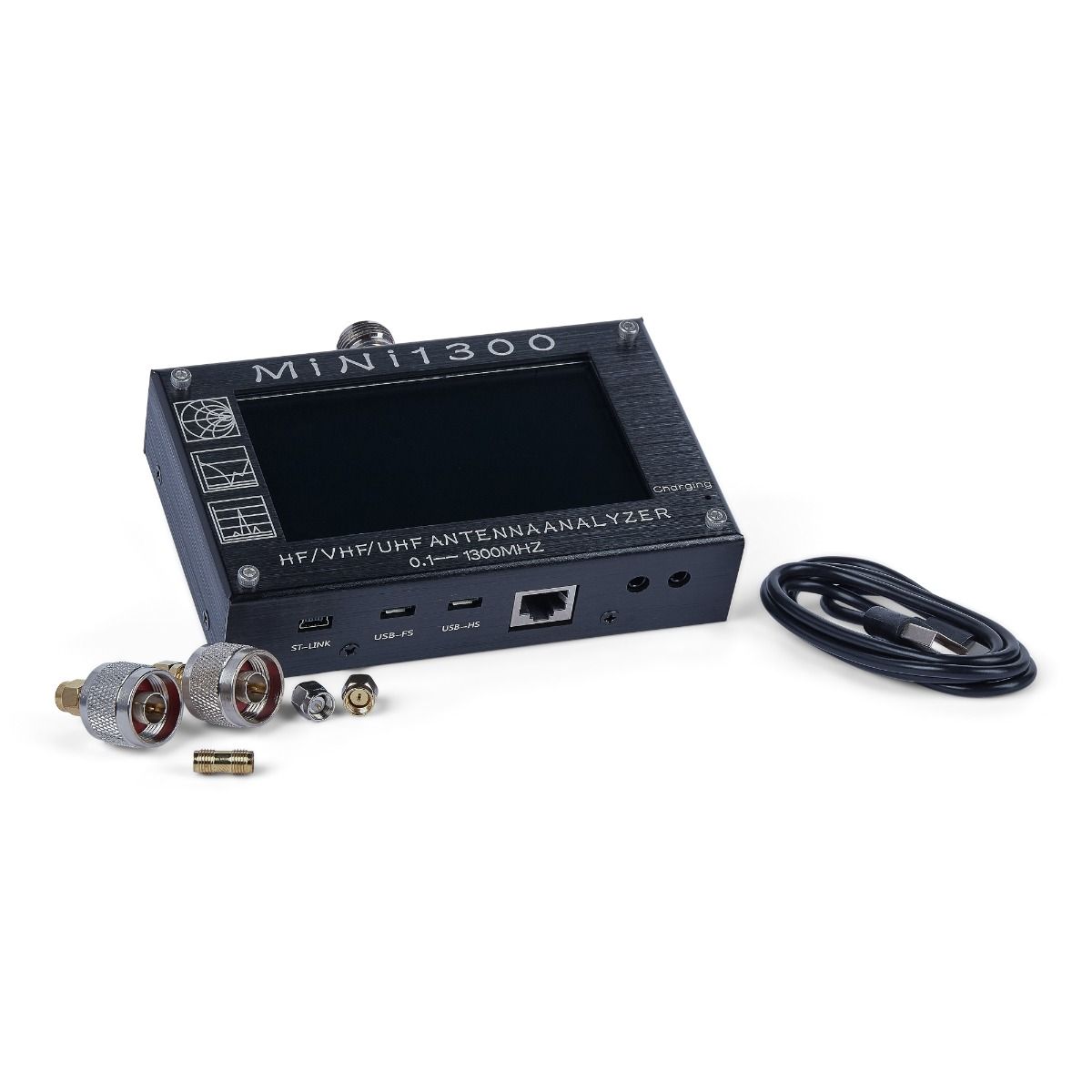

• Mini-1300 handheld antenna analyser
• SMA open, short and load calibration kit
• Connection accessories


Important: The analyser is a sensitive receiving and measuring instrument. Do not connect it directly to an active transmitter or other RF source unless the signal level is known to be safe and suitable protection is fitted.
