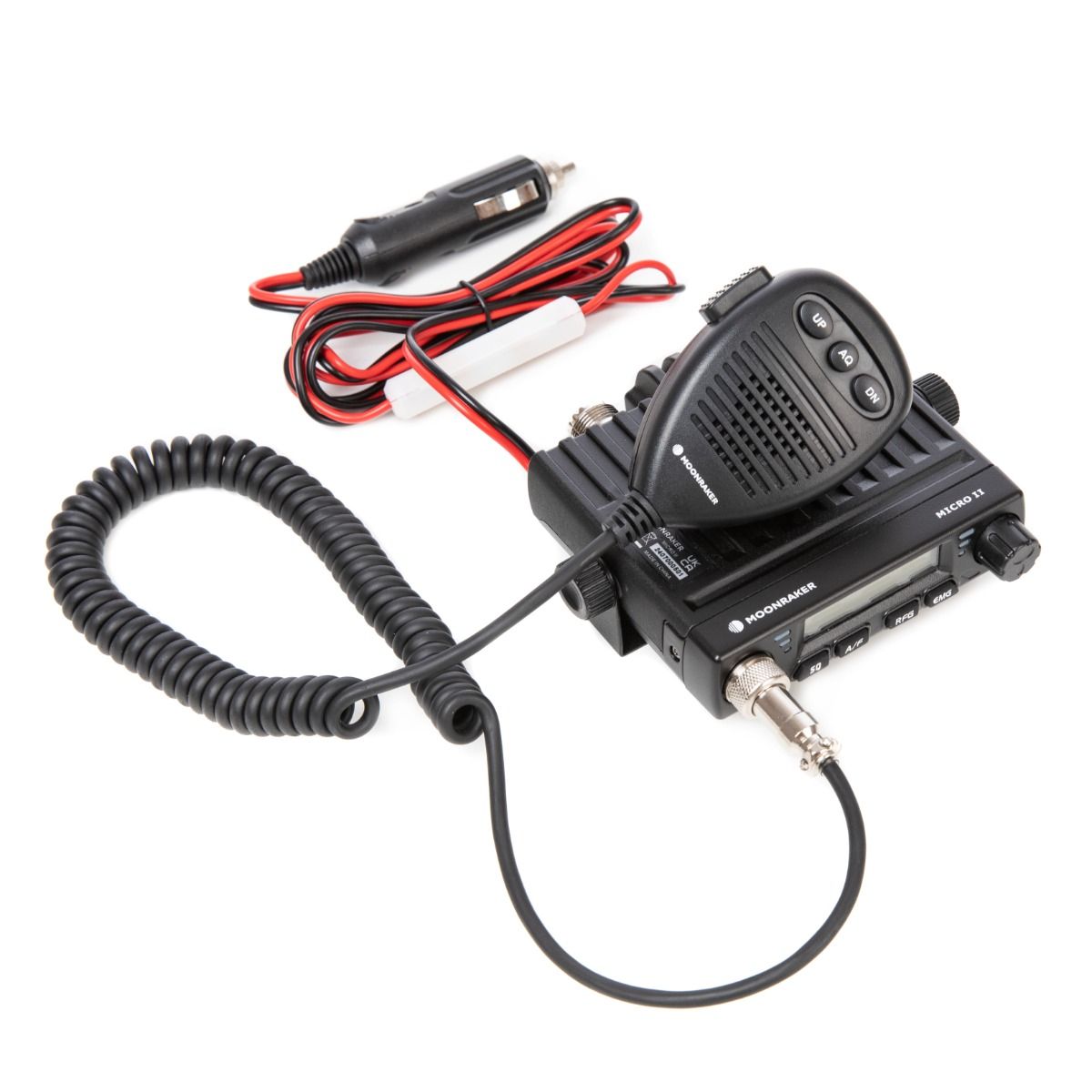

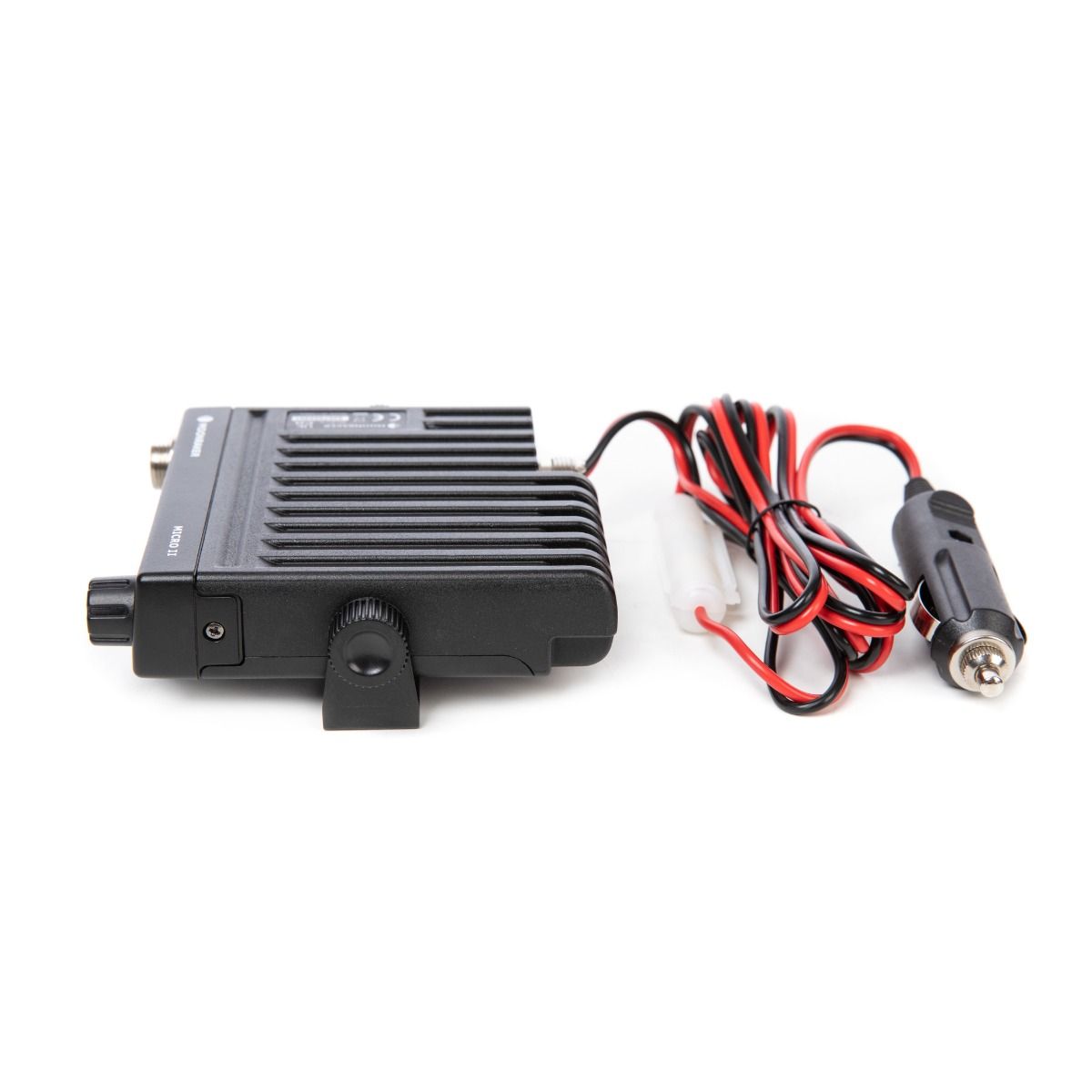

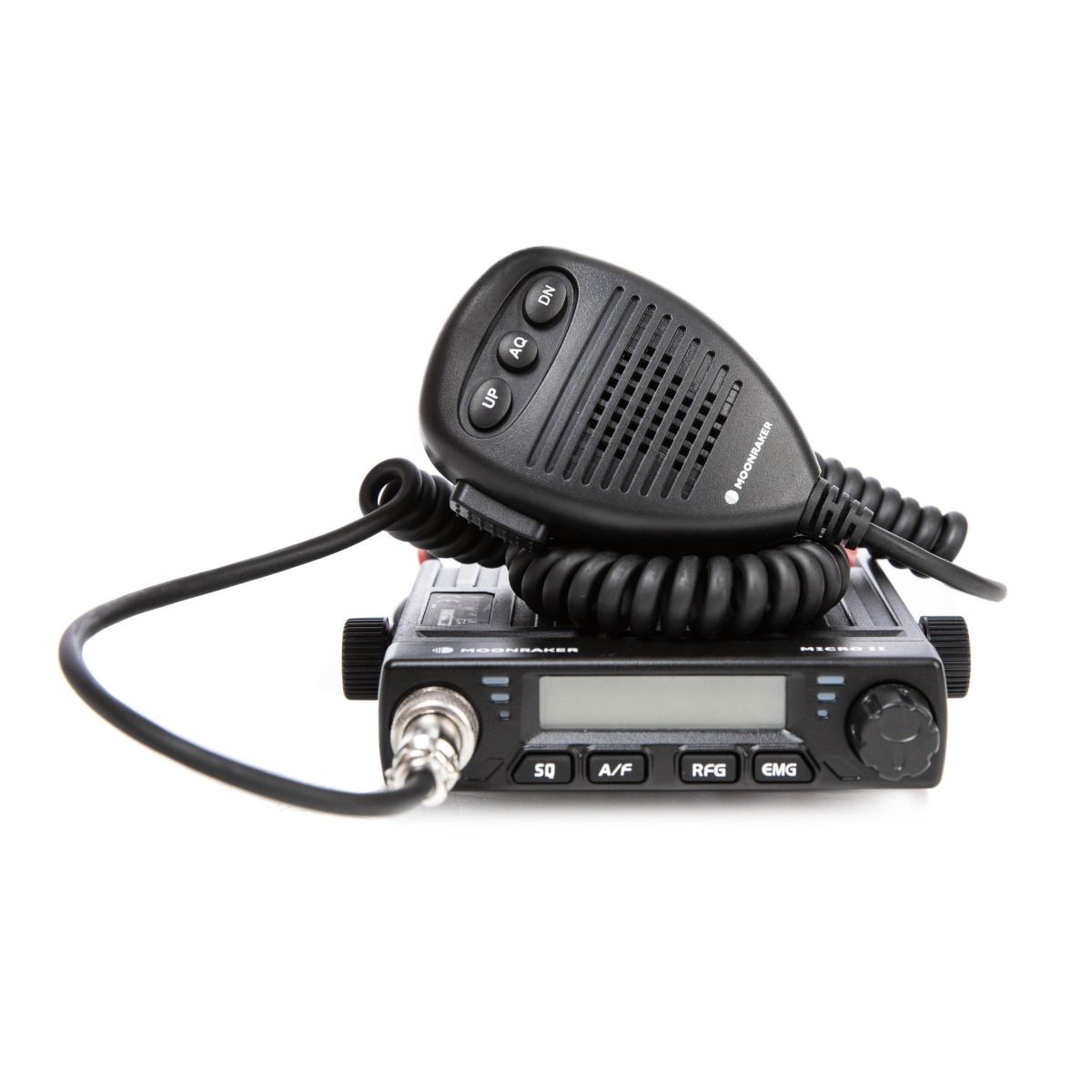

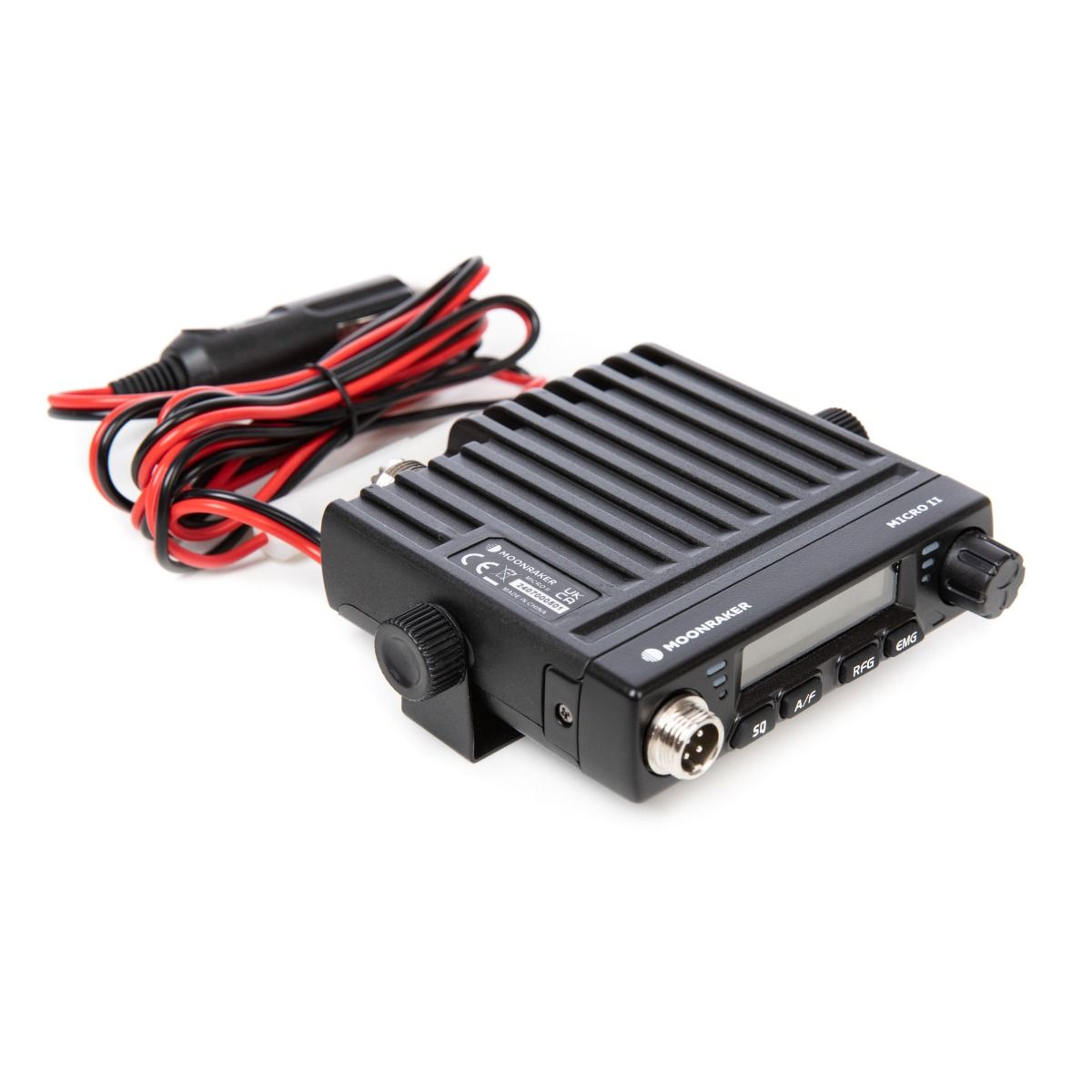

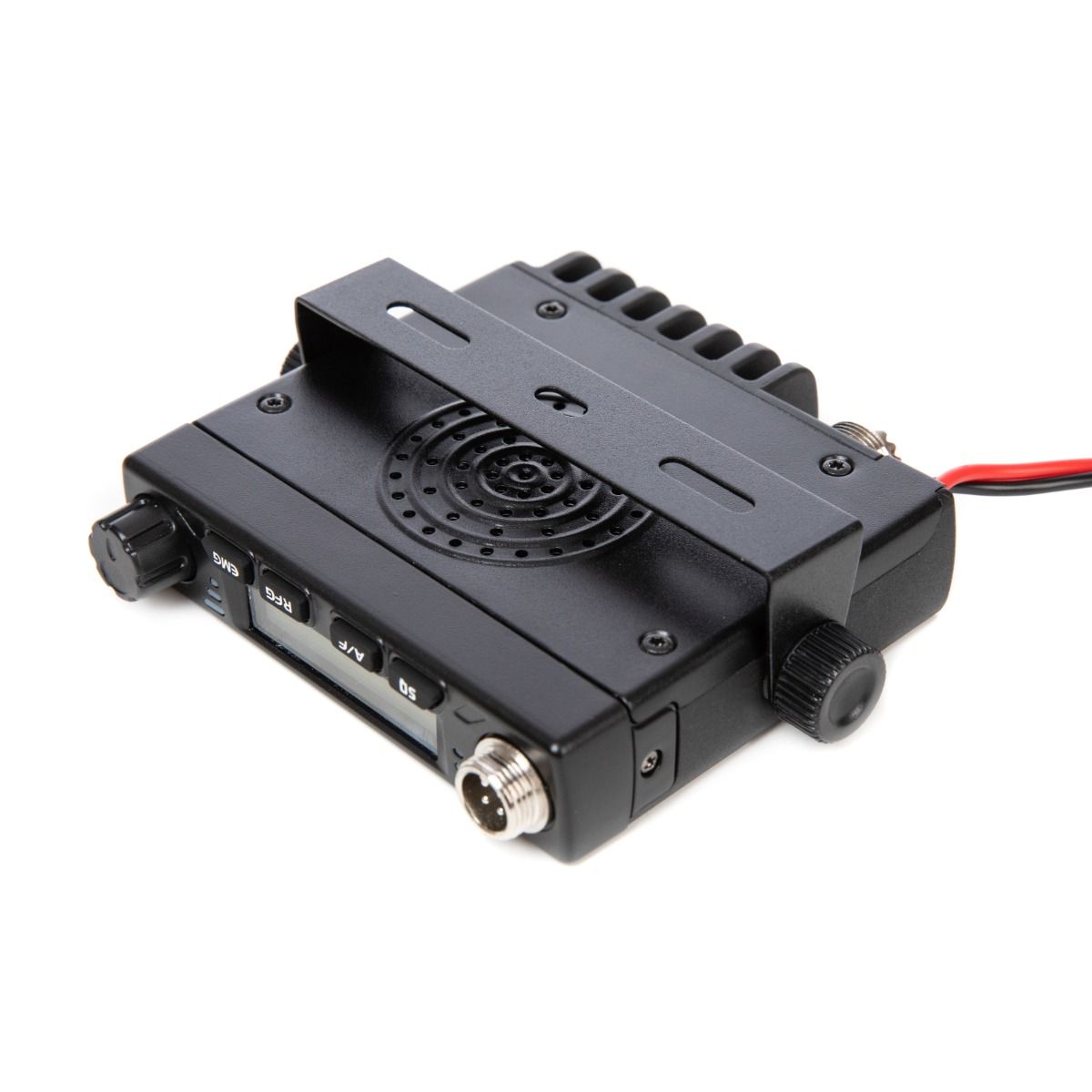

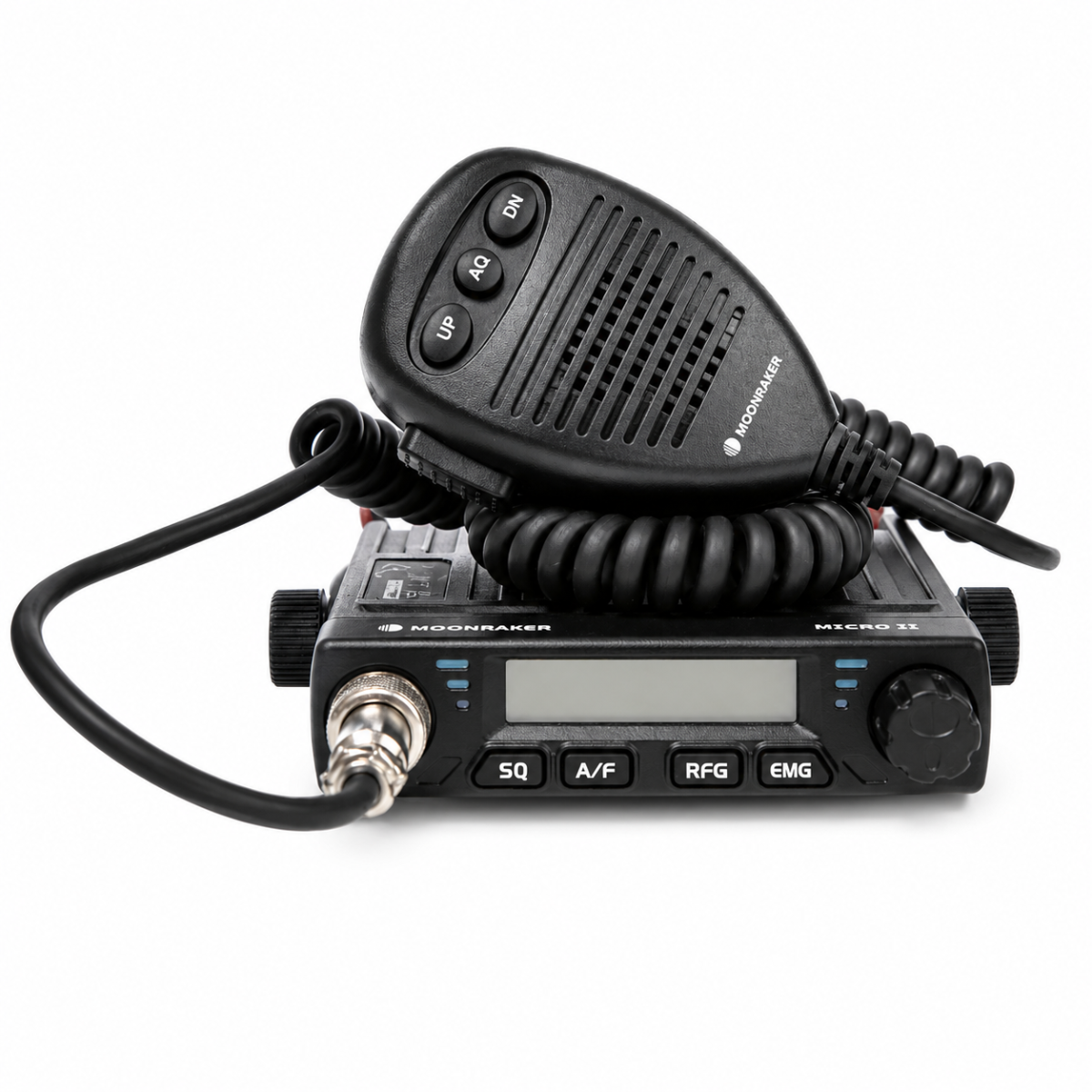

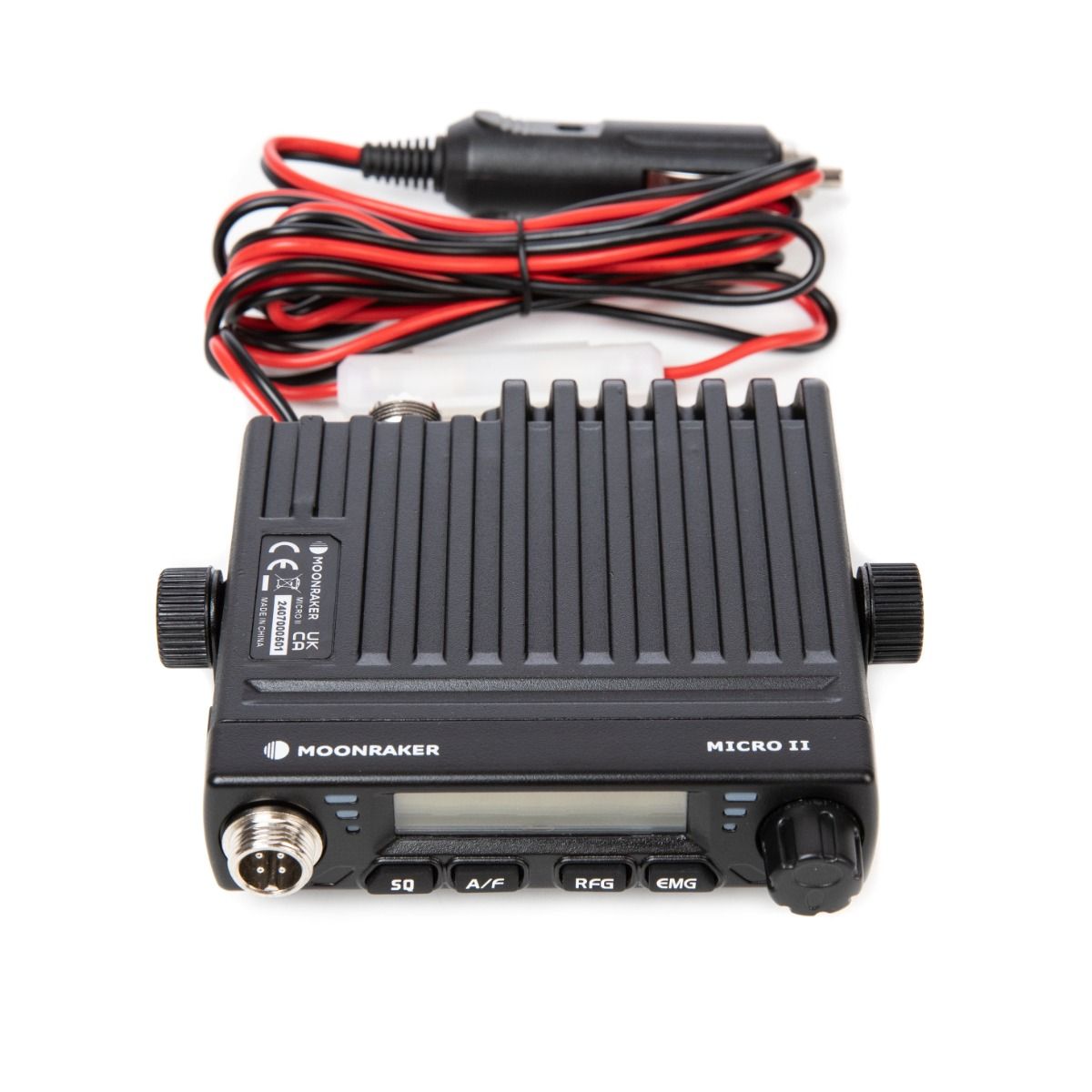

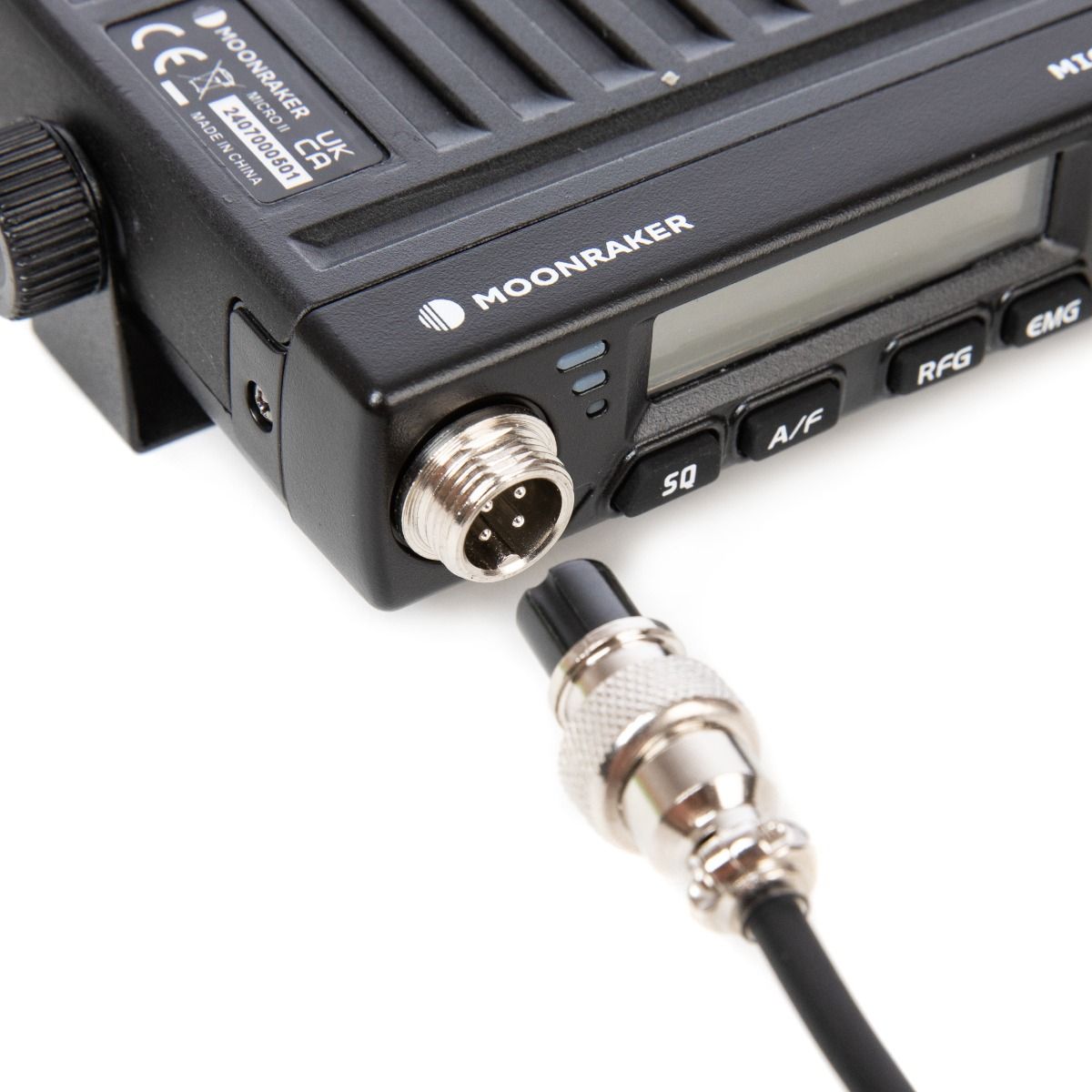

Moonraker Micro II UK/EU Mobile CB Transceiver

Moonraker Micro II UK/EU Mobile CB Transceiver

Compact, lightweight, and built for the road — the Moonraker Micro II is a slim-profile mobile CB transceiver covering UK and EU frequency standards. At just 25mm deep and 416g, it fits neatly in any vehicle without compromising on performance.

Key Features

• FM modulation with 4W output power
• Multi-standard frequency coverage: 26.965–27.405 MHz (EU) + UK 40ch (27.60125–27.99125 MHz)
• PLL frequency control for stable, accurate tuning

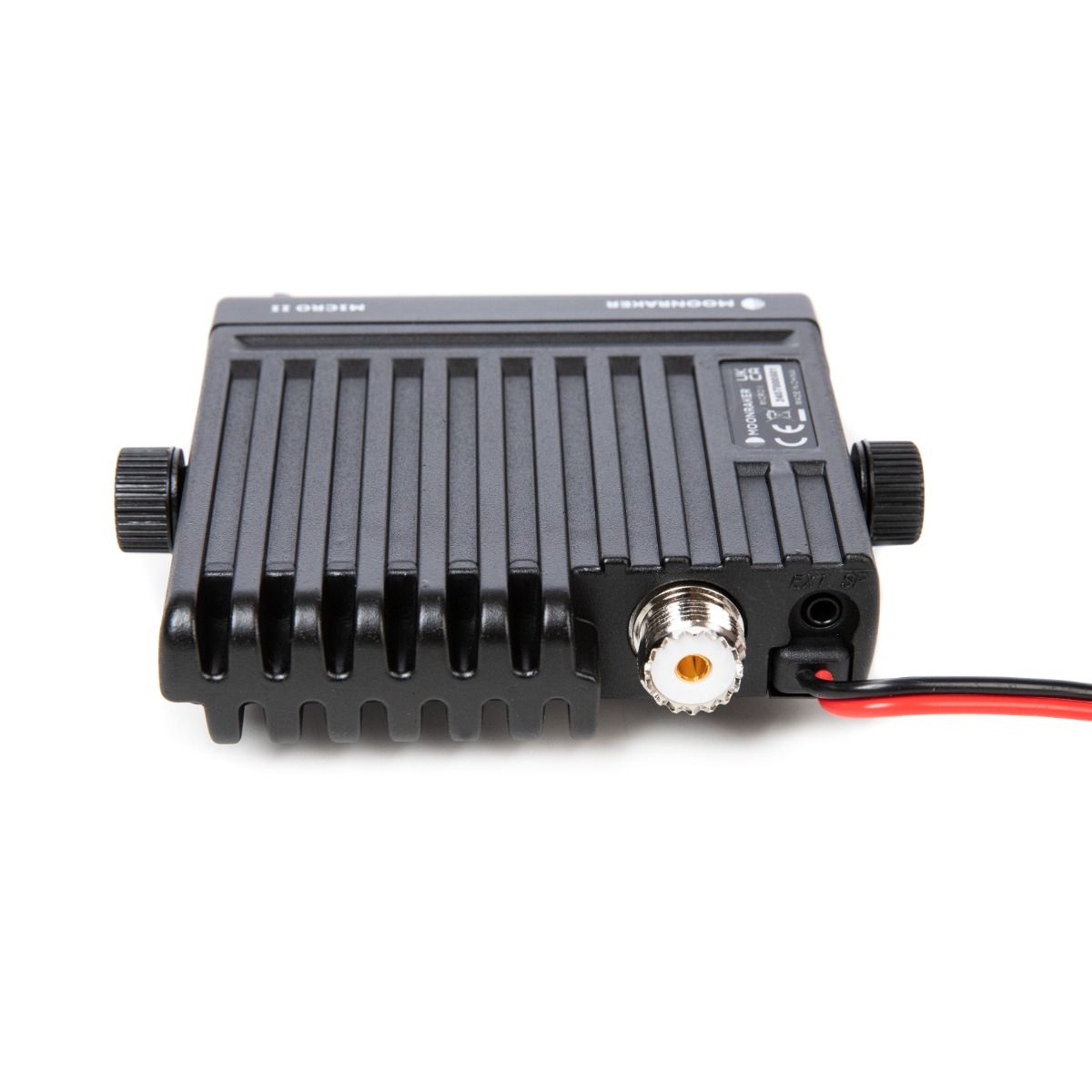

• SO239 antenna connector — compatible with standard CB antennas
• Compact form factor: 104 × 108 × 25 mm
• Operating temperature range: −20°C to +50°C

Transmitter

• Output Power: 4W FM
• Impedance: 50 ohms
• Frequency Response: 300–3,000 Hz
• Modulation Distortion: <5%
• Spurious Emissions: <4nW (−54 dBm)

Receiver

• Sensitivity: <1μV for 10dB (S+N)/N
• Image Rejection: 70 dB
• Adjacent Channel Rejection: 60 dB
• Audio Output: 1W
• IF Frequencies: 1st 10.695 MHz / 2nd 455 kHz

General

• DC Input: 13.2V
• Current Draw: TX 2A max / RX squelched 0.3A / RX vol max 0.8A
• Dimensions: 104 × 108 × 25 mm
• Weight: 416 g
