Moonraker LWHF-160 160m-6m Multiband End Fed Long Wire Antenna 400W

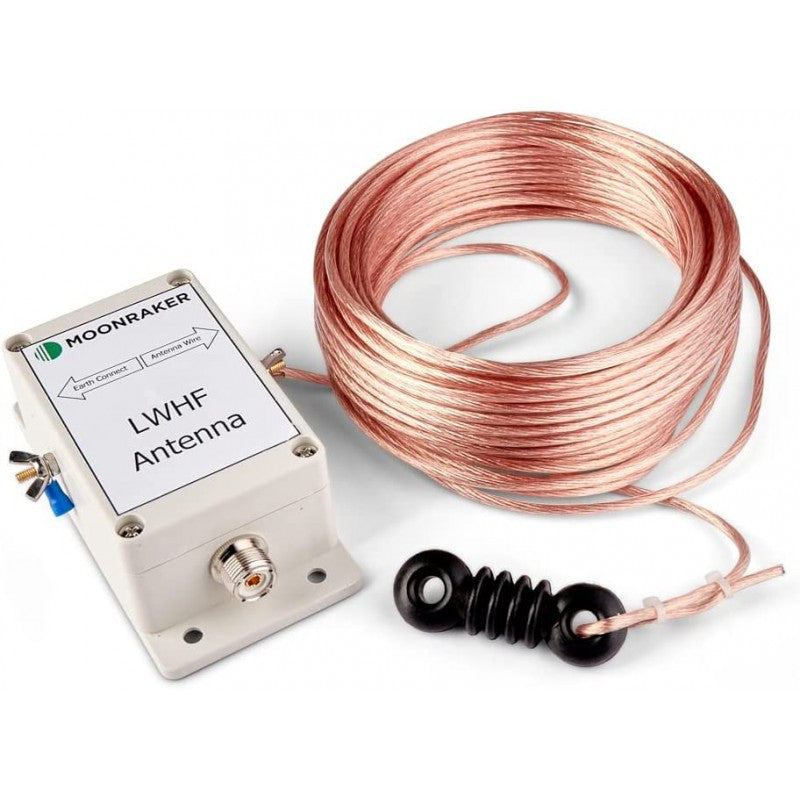

The Moonraker LWHF-160 is a multiband end-fed long-wire antenna designed for amateur-radio operation from 160m (1.8MHz) through 6m (50MHz), including the WARC bands. It uses an integrated 9:1 Unun and a 41.7m wire element, providing very broad HF coverage from a single end-fed antenna.

Moonraker recommends using the antenna with a suitable antenna tuning unit (ATU) to obtain a good match across the supported bands. The matching unit also provides a separate ground connection for an earth rod if required.

Features

• Multiband end-fed long-wire HF antenna
• Coverage from 160m to 6m
• Includes WARC bands
• Integrated 9:1 Unun
• 41.7m wire element
• SO-239 coaxial connection
• 400W manufacturer power rating
• Ground connection for optional earth rod
• Designed for use with a suitable ATU for multiband matching
• Suitable for fixed or portable amateur-radio installations

Technical Specifications

• Manufacturer: Moonraker
• Model: LWHF-160
• Type: Multiband end-fed long-wire antenna
• Frequency Coverage: 160m (1.8MHz) to 6m (50MHz)
• WARC Bands: Included
• Unun: 9:1
• Wire Length: 41.7m
• Connector: SO-239 (UHF female)
• Power Rating: 400W
• Ground Connection: Yes, for optional earth rod

Operating Bands

Moonraker specifies operation from 160m to 6m including the WARC bands when used with a suitable antenna tuner.

Installation

The LWHF-160 is end-fed, allowing the feedpoint to be positioned near a building, mast or other convenient support while the 41.7m wire is deployed horizontally, as a sloper, inverted-L or another practical long-wire arrangement. Actual tuning and performance depend on the installation, feedline, grounding and nearby objects.
