GPA-80FHP 1kW 80–6m GRP HF Vertical Fibreglass Antenna

Moonraker GPA-80FHP 1kW HF Vertical Fibreglass Antenna

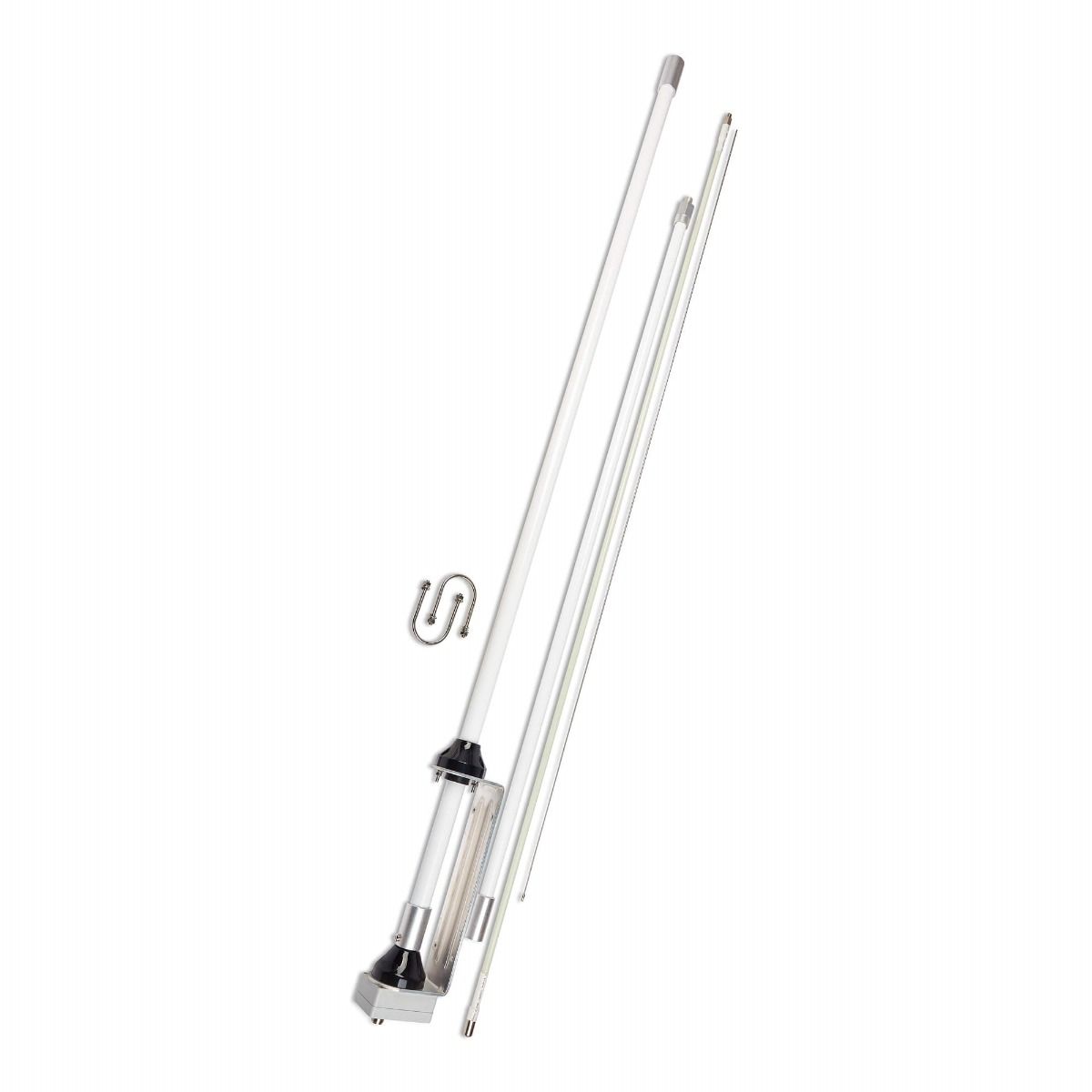

The Moonraker GPA-80FHP is a 6m-long GRP fibreglass vertical antenna with an unun matched base. This high-power version is rated for up to 1000W and covers the 80m to 6m amateur radio bands when used with an external antenna tuning unit (ATU).

It provides receive coverage from 2–90MHz, a 50-ohm impedance and an SO239 base connection. It accommodates mounting mast diameters of 25–42mm.

Key Features

• 80m to 6m transmit coverage with an external ATU.
• GRP fibreglass vertical construction.

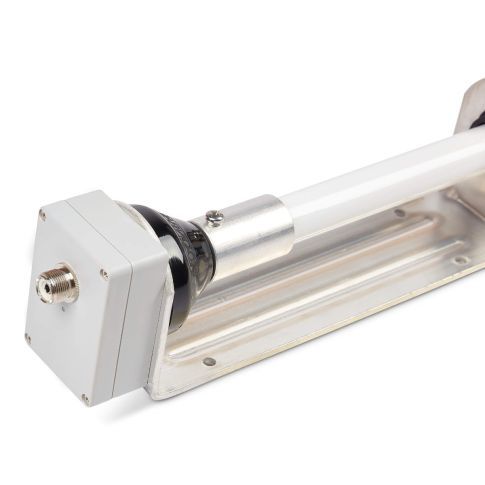

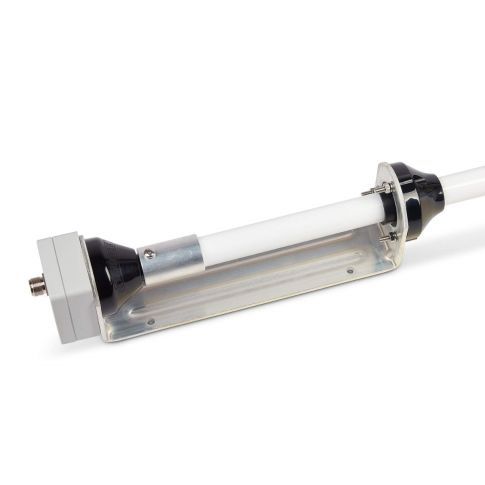

• Unun matched base.
• Maximum power handling of 1kW.
• SO239 connection for a matching PL259 coaxial plug.

Technical Specifications

• Model: GPA-80FHP
• Type: Fibreglass vertical with unun matched base
• Transmit bands: 80m to 6m with external ATU
• Receive frequency: 2–90MHz
• Maximum power: 1000W (1kW)
• VSWR: Manufacturer quotes less than 1.5:1 across bands when used with a suitable external ATU
• Impedance: 50 ohms
• Base connection: SO239
• Length: 6m
• Mounting mast diameter: 25–42mm
