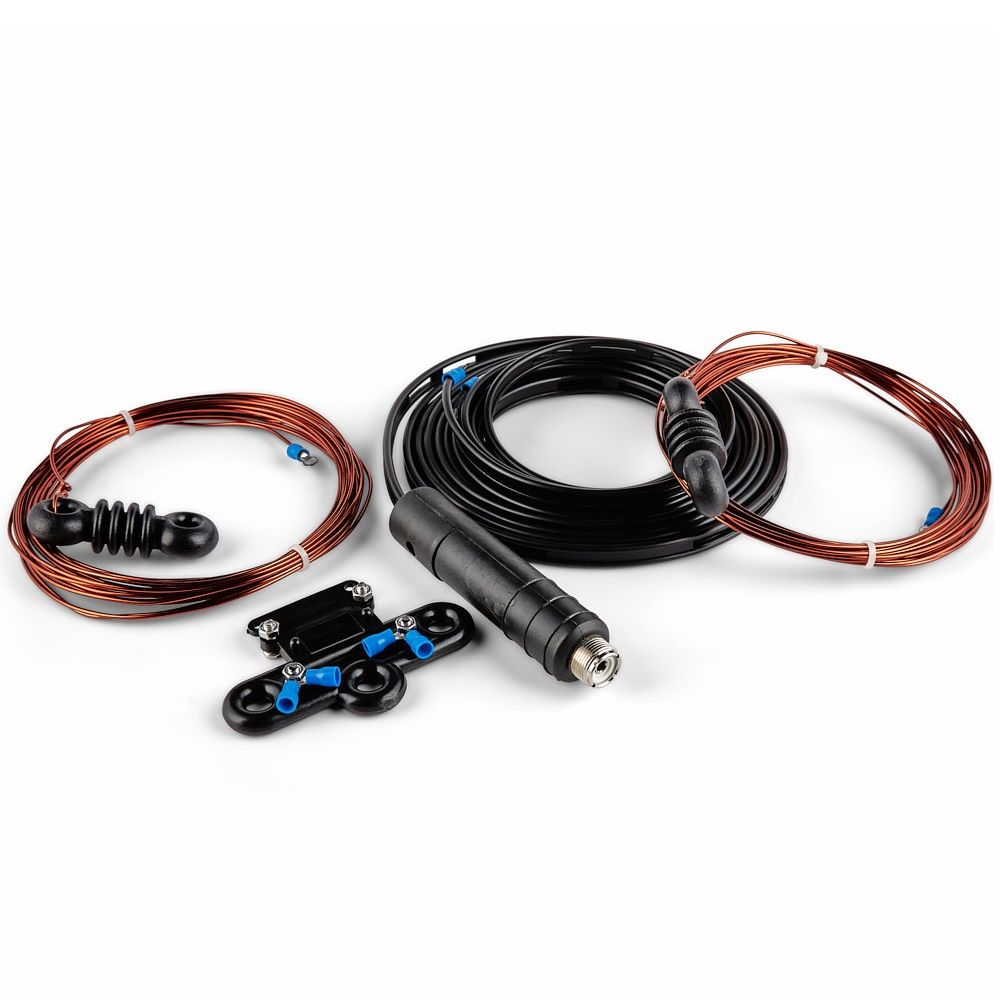

Moonraker G5RV Half-Size HF Dipole Antenna | 10/15/20/40m, 500W, SO-239, 15.5m Wire, 300 Ohm Ribbon

The Moonraker G5RV Half-Size is a half-size version of the classic G5RV multiband HF dipole antenna — one of the most popular and widely used all-round HF antennas in the world. The half-size G5RV is designed for operators with limited garden space who cannot accommodate the full-size 31m G5RV, while still covering 10m, 15m, 20m, and 40m with an external ATU. Like the full-size version, it uses a matching section of 300-ohm ribbon feeder to transform the antenna impedance, allowing the use of standard 50-ohm coax as the main feedline to your radio — eliminating the need for open-wire ladder line throughout the shack. Resonant on 10m without a tuner. 500W power handling. 15.5m of 1.5mm enamelled copper wire with 4.6m of high-quality USA-made 300-ohm ribbon. High-power moulded SO-239 socket. Made by Moonraker (UK).

Note: An external ATU is required for 15m, 20m, and 40m operation. Some internal (auto) ATUs may not have sufficient range to tune this antenna — an external manual or automatic ATU is recommended.

Key Features

• Half-size G5RV — ideal for limited garden space
• Covers 10m, 15m, 20m & 40m (with external ATU)
• Resonant on 10m without a tuner
• 500W power handling
• 15.5m of 1.5mm enamelled copper wire
• 4.6m of high-quality USA-made 300-ohm ribbon matching section
• 50-ohm coax feedline — no ladder line in the shack
• High-power moulded SO-239 socket
• Made by Moonraker (UK)

Technical Specifications

• Type: Half-size G5RV multiband dipole
• Frequency: 10m / 15m / 20m / 40m (ATU required except 10m)
• Resonant band: 10m
• Power: 500W
• Impedance: 50 ohms
• Wire: 15.5m of 1.5mm enamelled copper
• Ribbon: 4.6m of 300-ohm (USA-made)
• Connector: SO-239 (UHF-Female)
• Country of origin: UK
