MAT 1500 PRO ll AUTOMATIC ANTENNA TUNER

The mAT-1500ProII is a multipurpose high-power automatic antenna tuner that can match almost all transmitters and linear amplifiers.

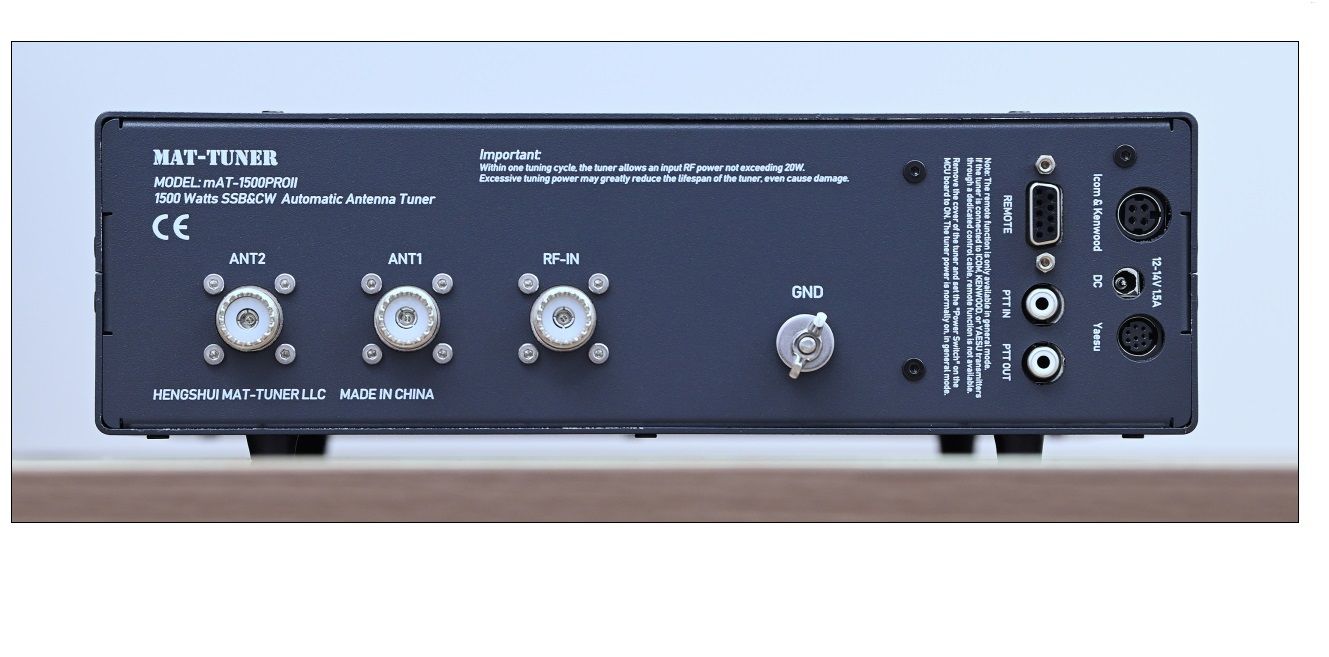

The maximum RF power allowed is 1500 watts (SSB), the frequency range allowed is 1.8-30MHz, and two antennas can be connected at the same time. According to the different connected transmitters, the tuner has three modes, YAESU, ICOM and GENERAL.

The tuner can automatically determine and match the type of the connected transmitters to minimize the manual operation.

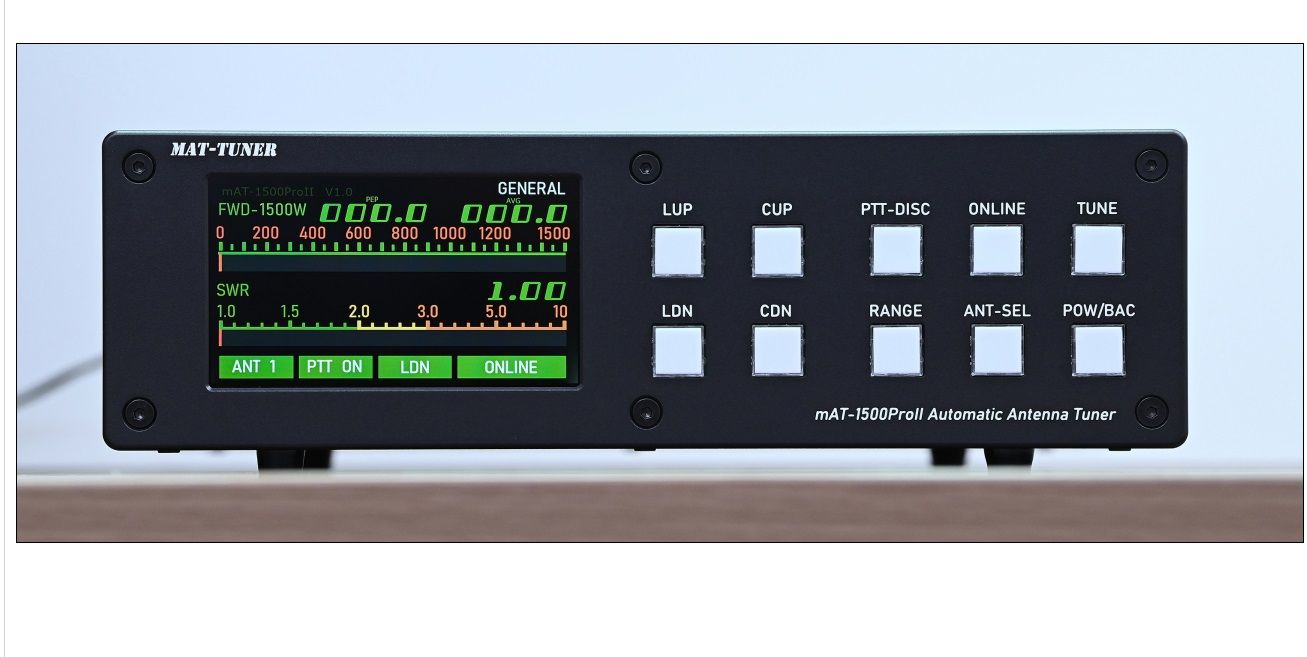

The mAT-1500ProII can accurately measure the current RF power and SWR, and display them on a 4.3-inch high-resolution display. The display can also show information such as the working status of the tuner. When the tuner is set to BYPASS mode, it can be used as an accurate RF power & SWR meter.

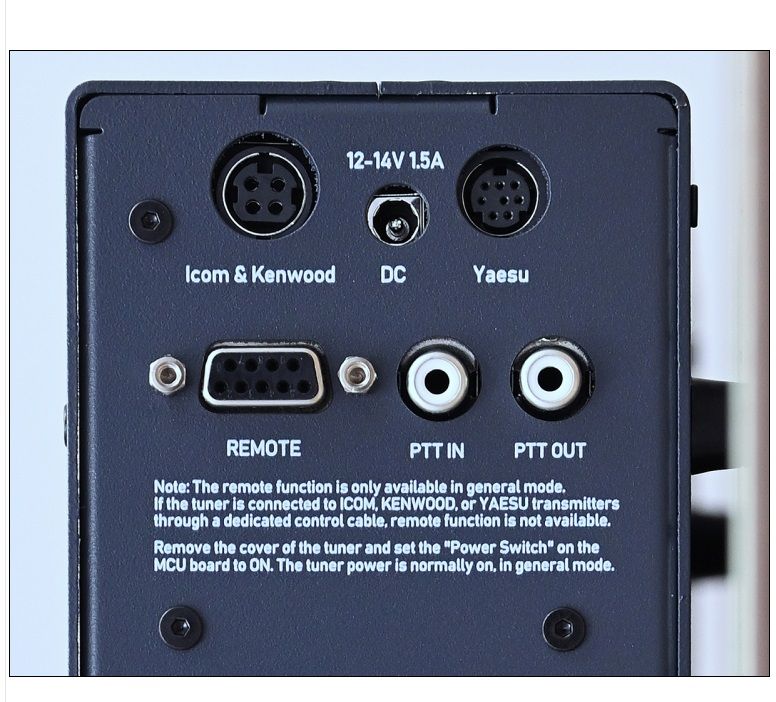

The mAT-1500ProII can also be remotely operated. There is an RS232 remote control interface on the rear panel of the tuner, which can be easily controlled by a computer or another terminal device.

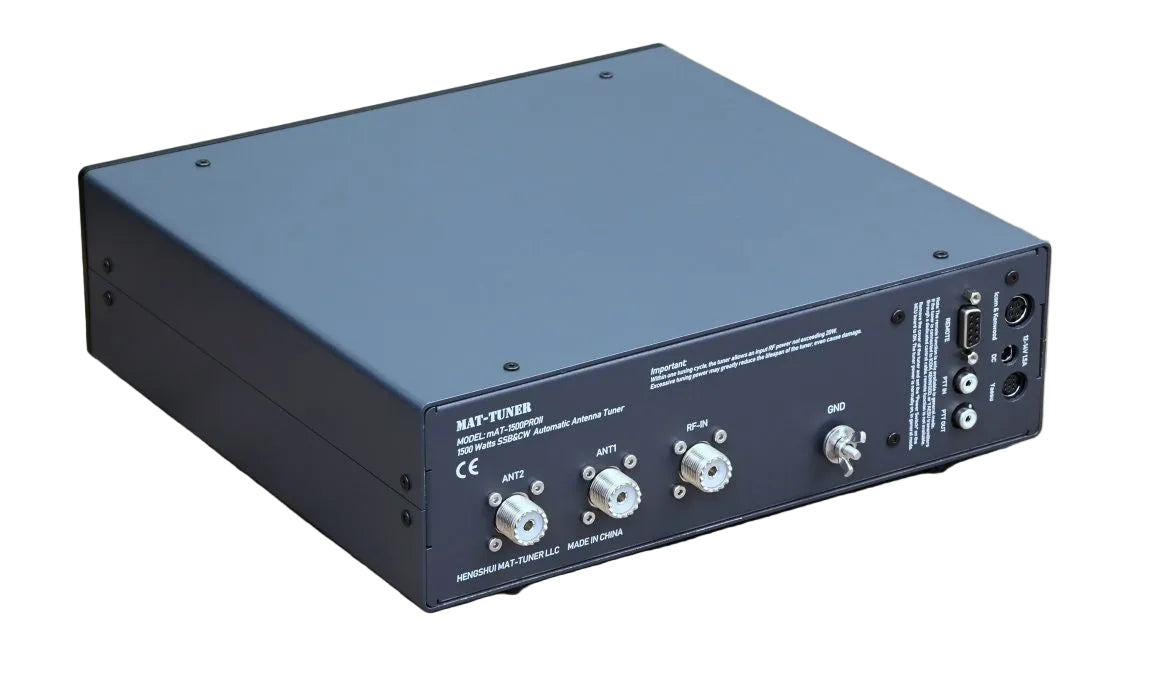

The tuner adopts an all-aluminum casing and CNC panel, which looks beautiful and sturdy, and is relatively light in weight.The tuner adopts an all-aluminum casing and CNC panel, which looks beautiful and sturdy, and is relatively light in weight.

Through the RS232 socket, users can use computers or other terminal devices to control the operation of the tuner. It is a universal control interface that only requires a few simple commands to control all operations of the tuner.
