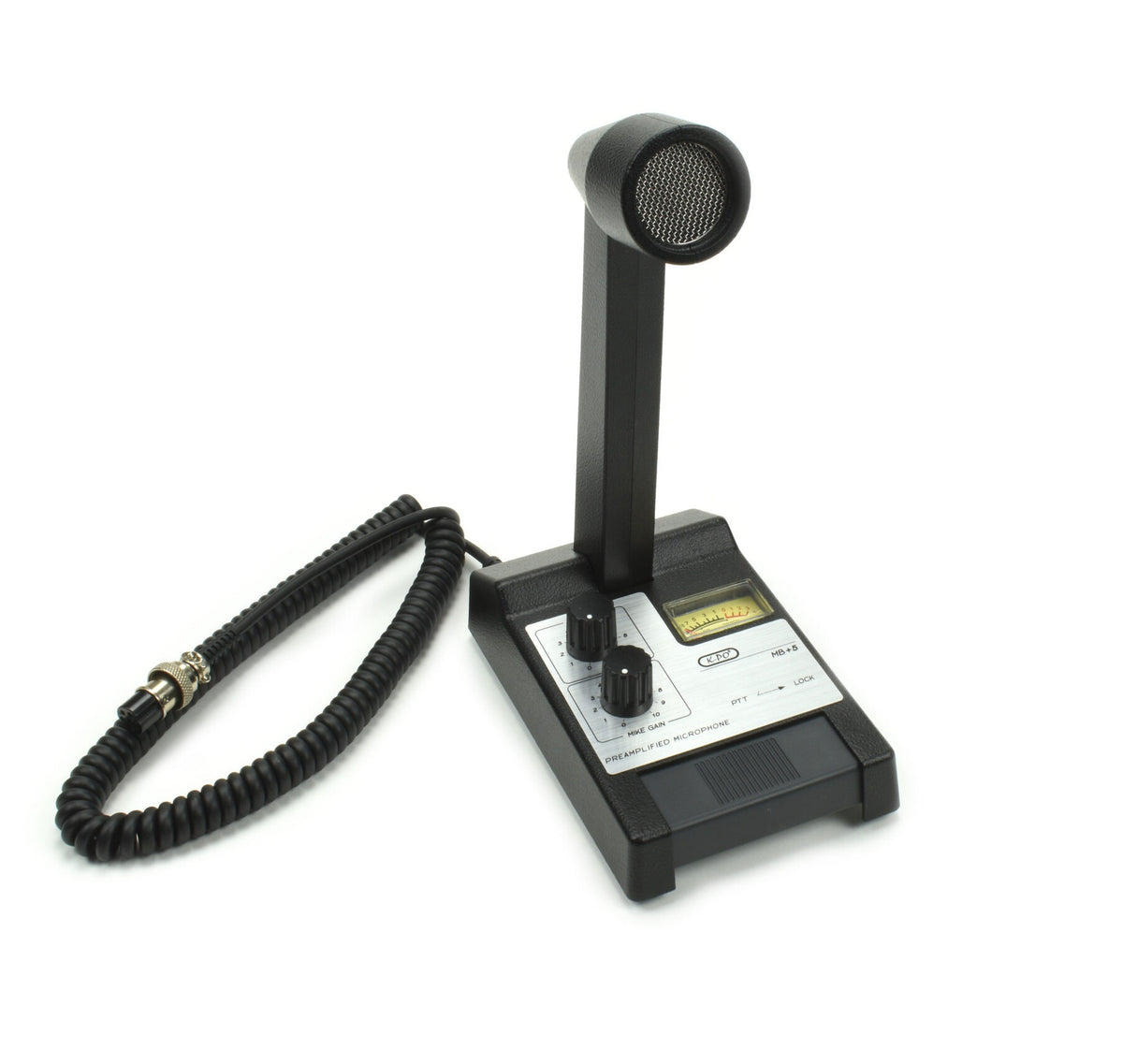

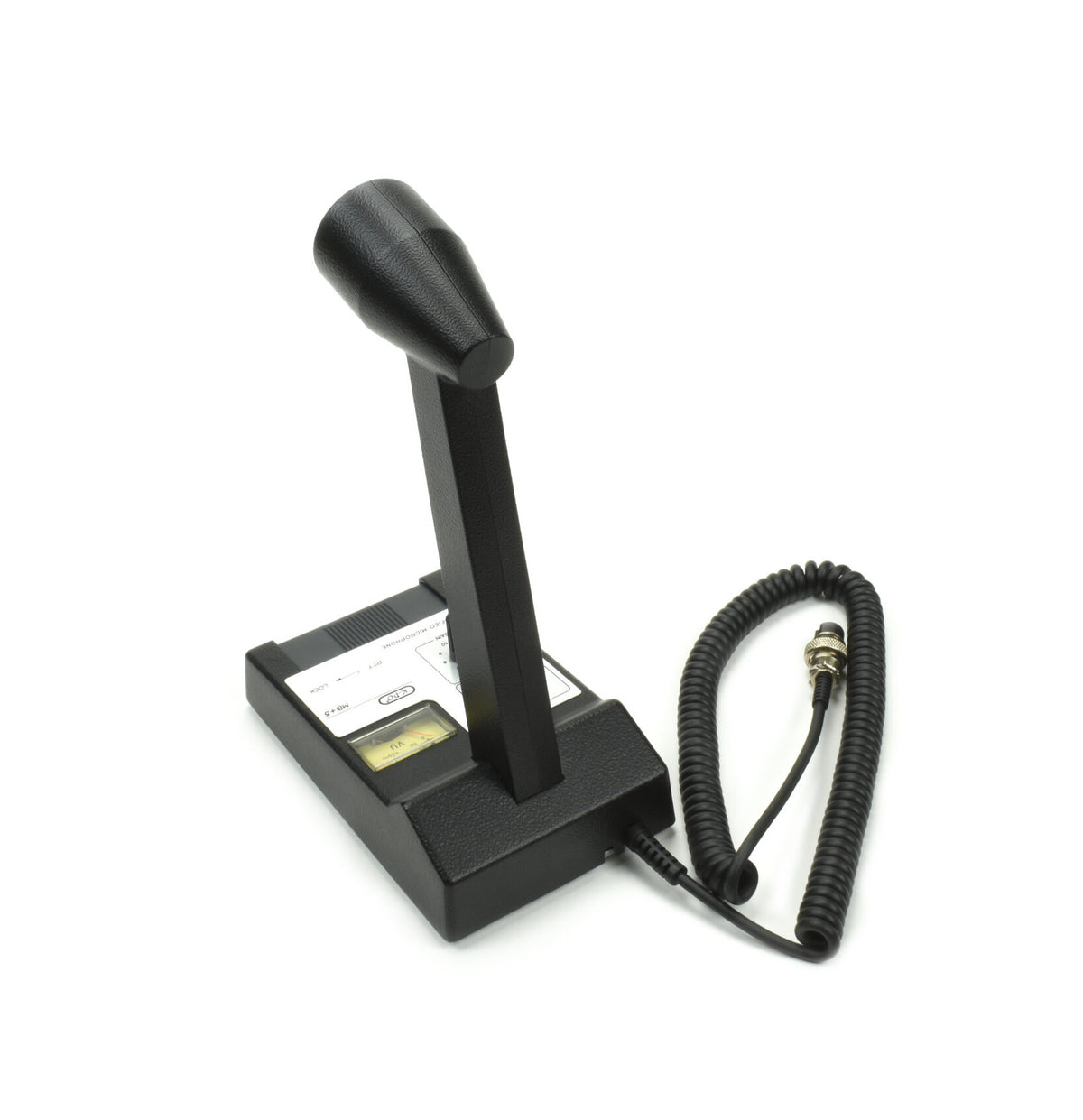

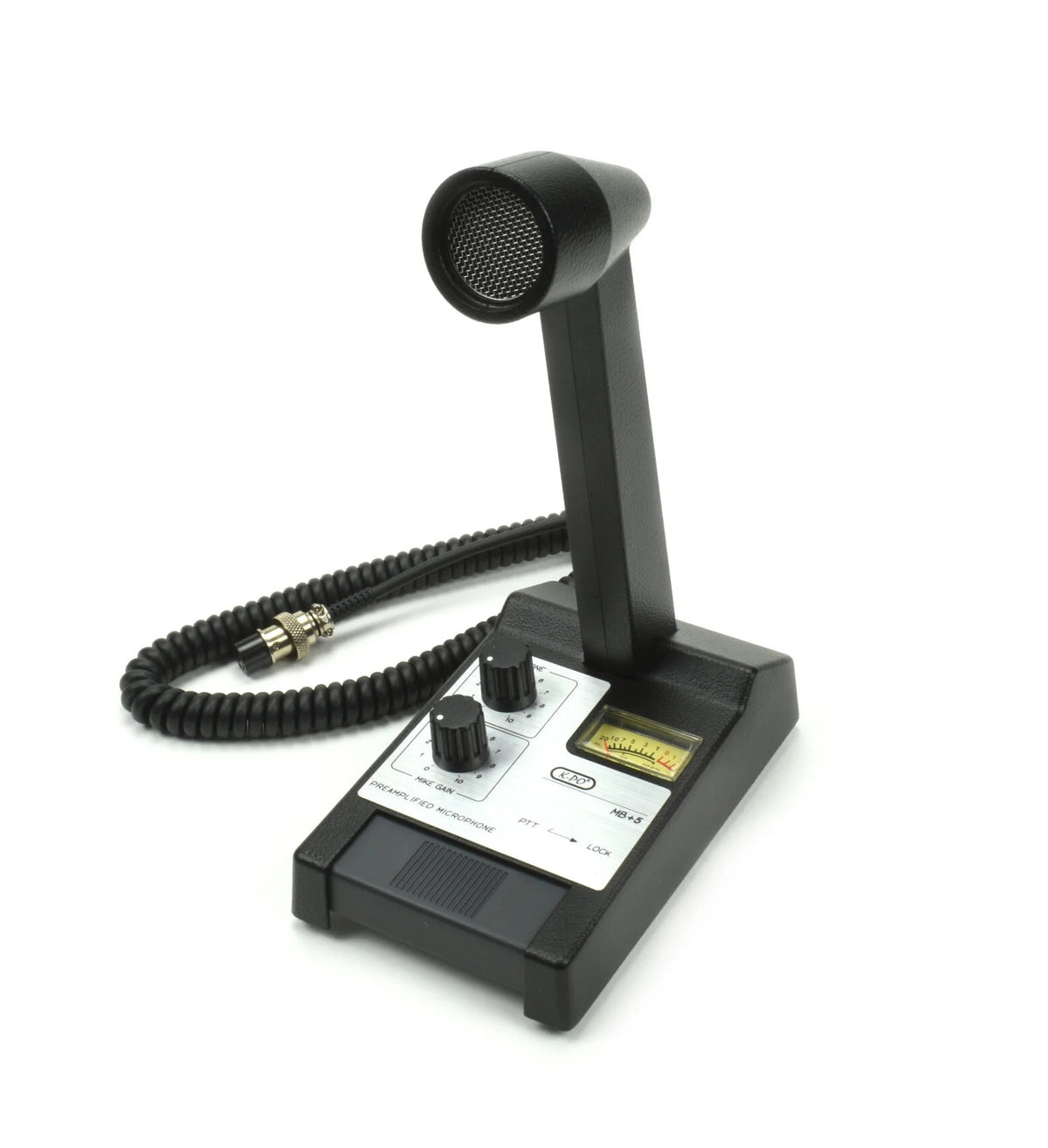

K-PO MB+5 P6 6-Pin Desk Power Microphone with VU Meter

The K-PO MB+5 P6 is an amplified desk microphone designed for CB and amateur-radio transceivers using the compatible standard 6-pin microphone wiring. It combines adjustable microphone gain and tone controls with a built-in compressor and analogue VU meter for monitoring modulation level during transmission.

K-PO specifies approximately 35dB of built-in microphone amplification. The output level can be adjusted to suit the connected transmitter, while the internal audio equalisation allows the transmitted sound to be tailored to the operator's preference.

Features

• Amplified desk / base-station microphone
• 6-pin microphone connector
• Approx. 35dB built-in microphone gain
• Adjustable microphone gain control
• Adjustable tone control
• Integrated volume compressor for consistent modulation
• Internal audio equalisation
• Analogue VU meter for modulation monitoring


Technical Specifications

• Manufacturer: K-PO
• Model: MB+5 P6
• Microphone Type: Power / amplified desk microphone
• Frequency Response: 250-3500Hz
• Output Level: -23dB (manufacturer specification: 0dB = 1V/μB)
• Impedance: 0-5000 ohms
• Battery Included: No
• Connector: 6-pin microphone plug
• Dimensions: 95 x 160 x 230mm (L x W x H)
• Weight: Approx. 1100g

Microphone Wiring

• Pin 1: Microphone audio
• Pin 2: Receive (RX)
• Pin 3: Transmit (TX)
• Pin 4: Not connected
• Pin 5: Ground
• Pin 6: Not connected

Compatibility

K-PO states that the P6 version is pre-wired for most standard 6-pin CB radios and specifically gives the Midland Alan 48 PRO and President Barry II+ as examples. Always verify the microphone socket and wiring of the exact radio before connection.
