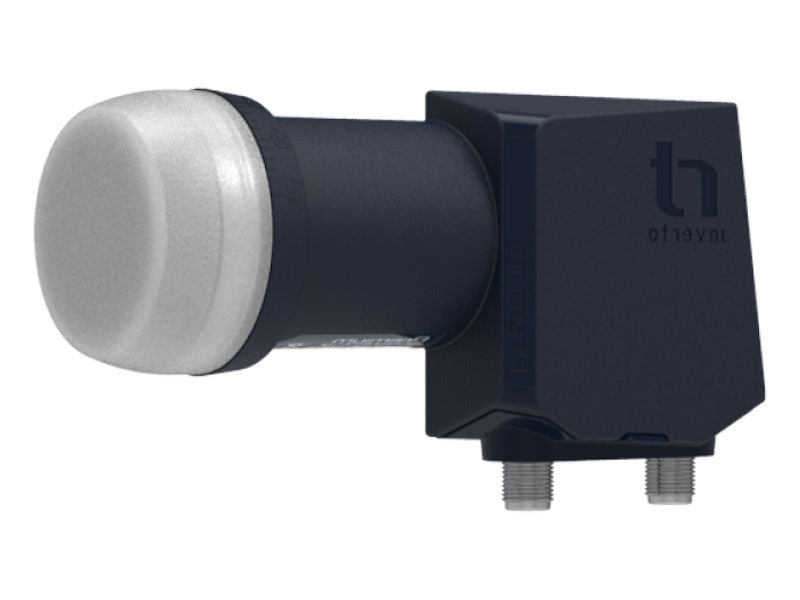

Inverto Twin LNB
Main Features:
• Very low Noise Figure
• Low Phase Noise, DVB-S2 (HDTV) compliant
• Low power consumption
• High Cross-Pole performance
• High Frequency stability
Technical Specifications:
Low Band Input Frequency Range 10.7~11.7 GHz
Low Band Output Frequency Range 950~1950 MHz
LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7~12.75 GHz
High Band Output Frequency Range 1100~2150 MHz
LO Frequency 10.6 GHz
Noise Figure 0.2dB typ. (0.7dB max.)
LO Initial Accuracy +/- 1.0 MHz max.
LO Temperature Drift +/- 3.0 MHz max.
LO Phase Noise @ 10K Hz -85 dBc/Hz max.
Conversion Gain 55 dB min.
Gain Ripple +/- 0.75 dB/27MHz
Gain Variation +/- 4 dB
Image Rejection 40 dB min.
1 dB Compression Point (O/P) 0.0 dBm min.
Cross talk 22dB min.
Control Signals Ca [ V ] 11.0~14.0 V
Control Signals Cb [ H ] 16.0~20.0 V
Control Signals Cc [Band switching] 22KHz +/- 4KHz 0.4V – 0.8V pp
Output VSWR 2.5 : 1
Radiated Interference -50 dBm max.
DC Power 180mA max. @ 11 – 20V
Working Temperature -30~+60 °C
Output Impedance (connect to STB) 75?
Output connector F-type (female)
Weight 181 g
