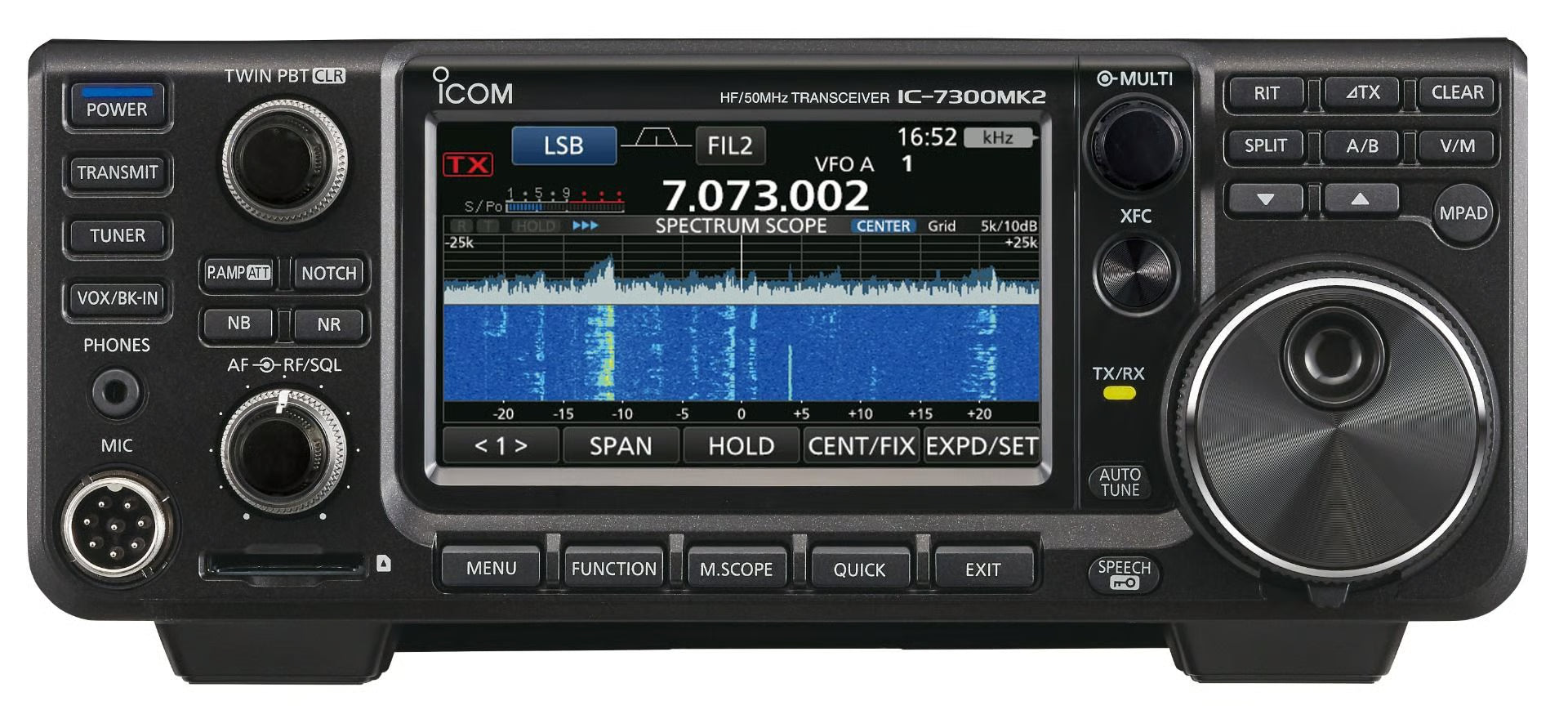

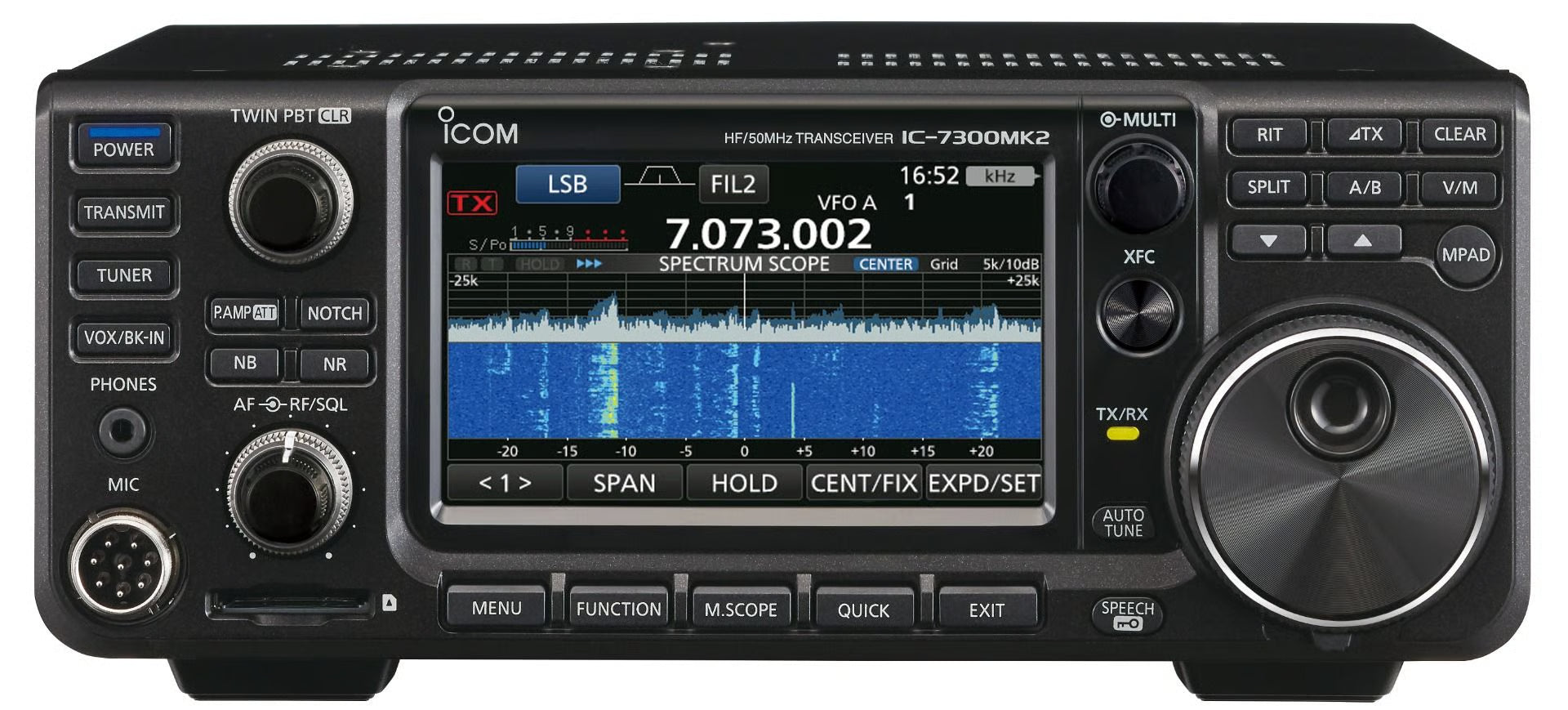

ICOM IC-7300 MK2

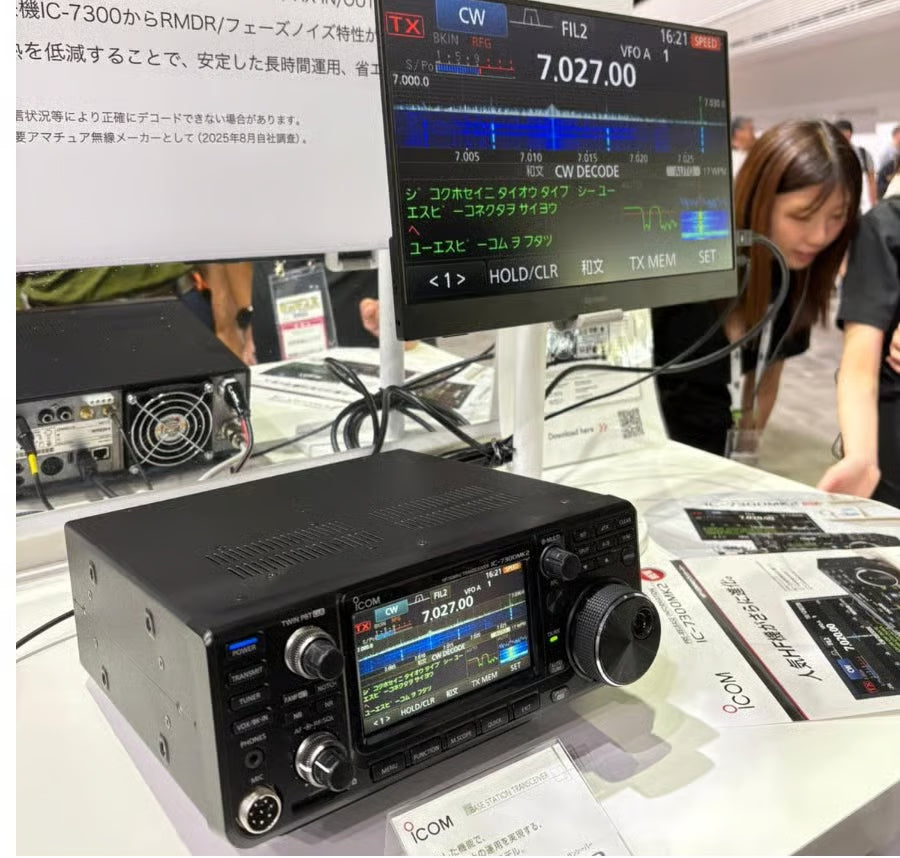

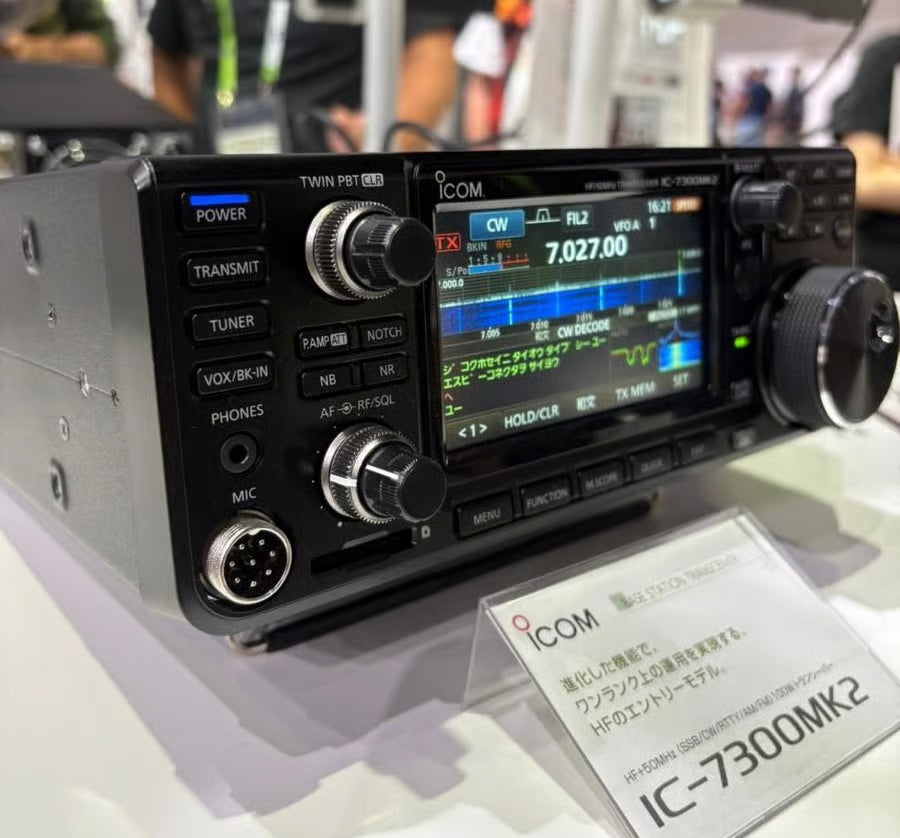

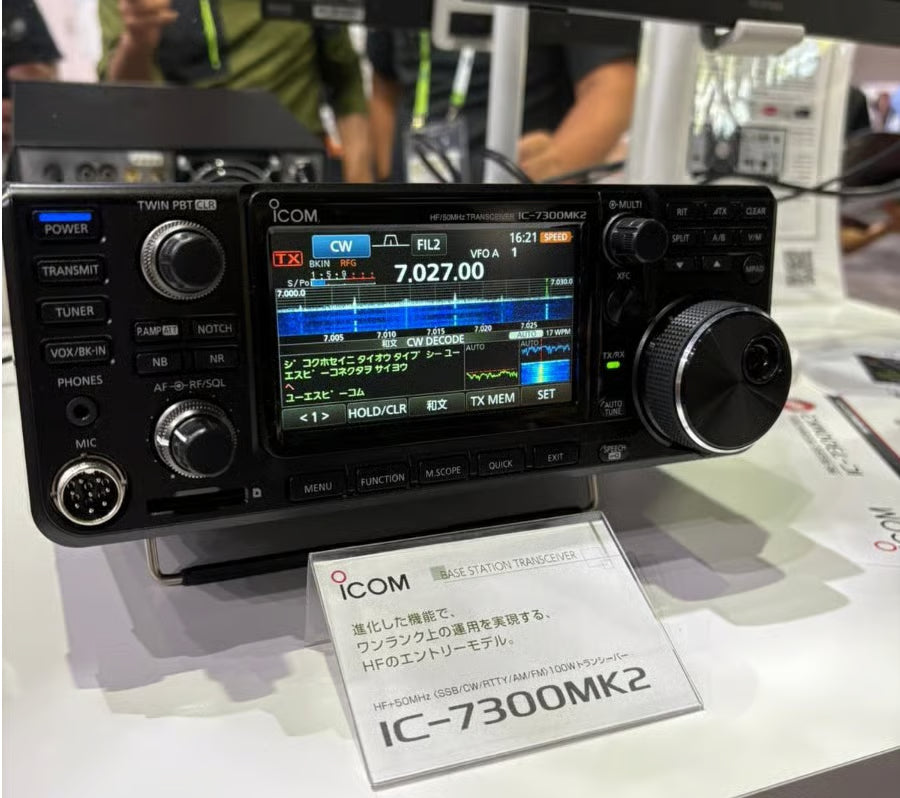

The Icom IC‑7300MK2, unveiled at the Tokyo Ham Fair 2025 (held August 23–24), is the highly anticipated successor to the IC‑7300. It elevates performance, usability, and connectivity for both new and seasoned HF operators.

Performance Enhancements

• Better Signal Clarity: RMDR is now approximately 105 dB (at 2 kHz separation), with about 12 dB improvement in transmit phase noise—resulting in quieter, crisper receive and transmit performance.
• Efficient and Cool Running: RX standby current drops to 0.7 A from 0.9 A, reducing heat and enabling stable performance during long contest or DX periods.

Innovative Features

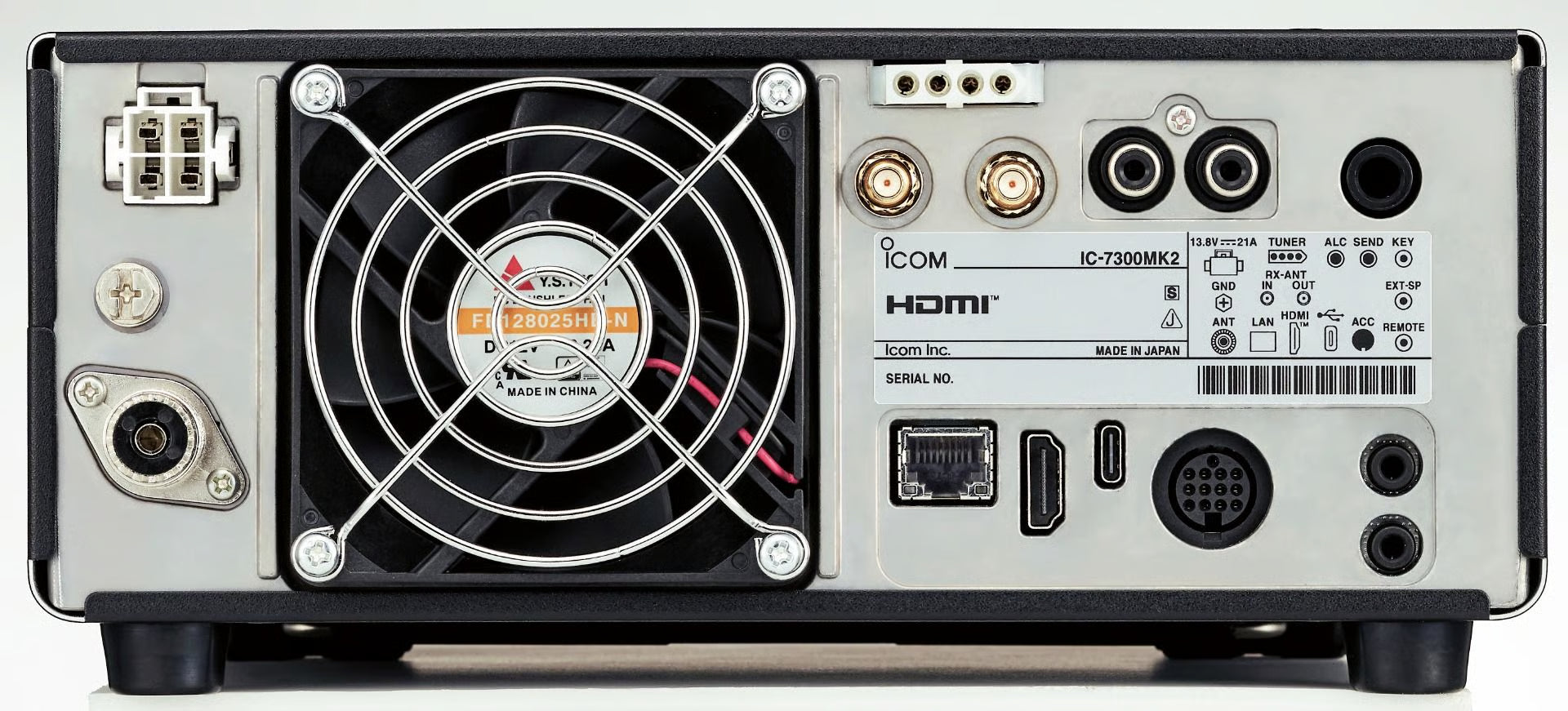

• HDMI Port: A first for any Icom HF radio—connect to an external monitor to display spectrum scope, waterfall, menus, and route audio seamlessly.
• Built‑in CW Decoder: Enjoy Morse decoding right on-screen—no PC required. The decoder auto-tracks signals and adjusts keying speed.
• USB Type‑C with Dual COM & Audio: Supports simultaneous applications (e.g., FT8 logging + contest software) through one cable.
• RX Antenna IN/OUT Connectors: Optimize reception by connecting dedicated RX antennas, filters, or preamps to reduce QRN and interference.
• Ethernet-Enhanced Remote Control: Built-in LAN enables control via RS‑BA1 (Ver. 2) without a PC at the base station—plus ideal for remote ON/OFF.

Expanded Frequency Coverage

• Wide Band Support: Continues coverage of HF and 50 MHz. The Europe version includes 70 MHz and newly allocated 5 MHz band, perfect for expanded operation in various regions.

Why It Matters

• Combines legendary IC‑7300 SDR performance with cutting-edge features
• Supports multitasking workflows with USB‑C and HDMI
• Enhances usability for CW operators, contesters, and remote users
• Future-proof with expanded band support and connectivity
