Hustler 5-BTV 5-Band HF Vertical Antenna 10/15/20/40/75-80m

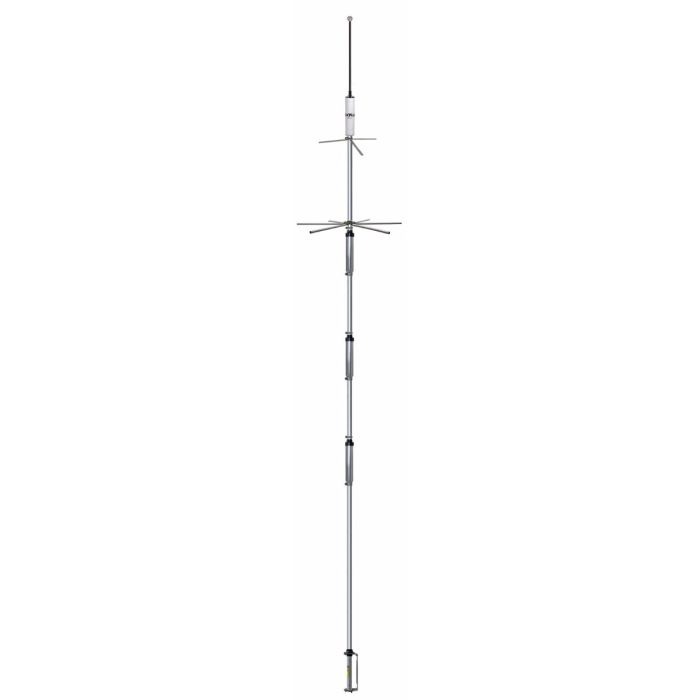

The Hustler 5 BTV is a five-band HF trap vertical antenna designed for the 10m, 15m, 20m, 40m and 75/80m amateur bands. It provides automatic band selection through individually tuned traps and is well suited to fixed-station installations where a compact vertical footprint is preferred.

The 5-BTV uses heavy-wall aluminium tubing, fibreglass trap forms and stainless-steel hardware. The 75/80m section uses the supplied resonator and spider assembly, allowing the antenna to be tuned for the required portion of the 75 or 80 metre band.

Features

• Five-band HF vertical antenna
• Covers 10m, 15m, 20m, 40m and 75/80m
• Automatic band selection using tuned traps
• Omnidirectional radiation pattern
• Heavy-wall aluminium construction
• Solid fibreglass trap forms
• Stainless-steel clamps and hardware
• Single 50-ohm coaxial feedline
• Ground or elevated installation options
• 75/80m resonator and spider assembly included as part of the antenna design

Technical Specifications

• Manufacturer: Hustler
• Model: 5-BTV
• Type: Five-band trap vertical HF antenna
• Amateur Bands: 10m / 15m / 20m / 40m / 75 or 80m
• VSWR at Resonance: 1.2:1 or better
• Bandwidth: VSWR 2:1 or better at band edges on 10-40m; up to 100kHz on 75/80m
• Power Capability: Full legal-limit SSB/CW operation
• Feedline: 50-ohm coaxial cable
• Length: Approx. 7.65m (25ft 1in)
• Weight: Approx. 7.5kg (16.5lb)
• Maximum Support Diameter: Approx. 44.5mm (1.75in) OD
• Wind Load: 29lb at 70mph
• Construction: Aluminium tubing, fibreglass trap forms and stainless-steel hardware

Installation

The 5-BTV can be ground mounted or elevated. Hustler permits ground mounting with or without radials, while elevated installations require radials. For best performance, a suitable radial system and careful tuning are recommended.

The 75/80m resonator is relatively narrow-band compared with the higher bands and should be adjusted for the part of the band you intend to use most often.

Safety

Do not install this antenna near overhead power lines. Follow the manufacturer's assembly, grounding and tuning instructions before use.
