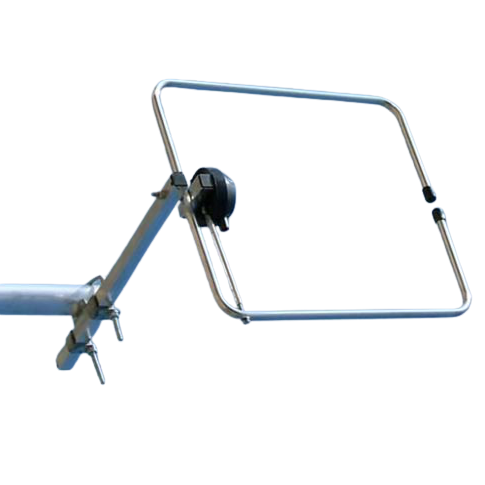

HLP-2 2m Halo Loop Folded Dipole Antenna 144–146MHz, 200W

The Moonraker HLP-2 is a compact halo loop folded dipole antenna designed for the 2m amateur band (144–146 MHz). At just 300mm square, it is the smallest in the HLP halo series — ideal for loft installations, portable operation, or any space-constrained location where a full-size 2m dipole isn’t an option.

Omni-directional coverage with unity gain delivers consistent horizontal radiation in all directions, while the direct dipole centre connection keeps the feed arrangement simple. With a VSWR of 1.5:1 or better and a 200W power rating, it handles SSB, FM, and digital modes on the 2m band without compromise.

Key Features

• Halo loop folded dipole design — compact and omni-directional
• Frequency: 144–146 MHz (2m amateur band)
• Unity gain — consistent coverage in all horizontal directions
• Low VSWR: 1.5:1 or better
• 200W power rating
• Overall square size: 300mm — the most compact in the HLP range
• Direct connection to dipole centre — simple feed arrangement
• Suitable for portable, loft, or fixed base station use

Specifications

• Type: Folded dipole (halo loop)
• Frequency: 144–146 MHz
• VSWR: 1.5:1 or better
• Power: 200W
• Overall size: 300mm square
• Connection: Direct to dipole centre
