Diamond MX-610 Duplexer HF/VHF/UHF, 1.3-30/49-470MHz, 600W, SO-239

HF, VHF and UHF Duplexer for Simultaneous Multi-Band Operation

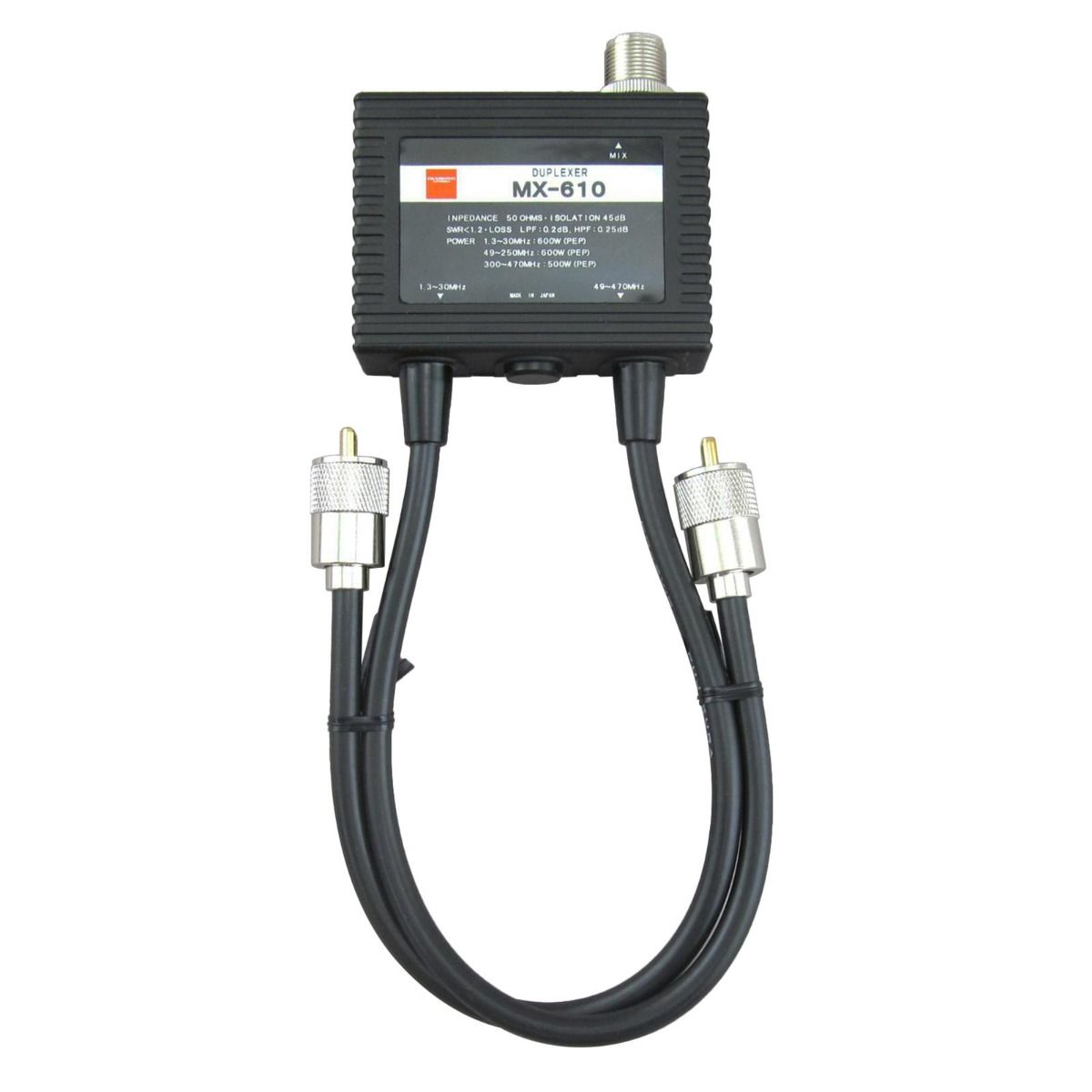

The Diamond MX-610 is a compact, high-performance duplexer covering HF (1.3–30MHz) and VHF/UHF (49–470MHz) simultaneously from a single SO-239 common port. With more than 45dB of isolation between ports and a 600W PEP power rating across HF and VHF, it is a reliable solution for multi-band shack installations. The low-pass port handles HF through 30MHz, while the high-pass port covers 49–470MHz including 2m and 70cm — with 76–120MHz available for receive only. Supplied with 35cm of 5D-2VS coaxial cable and 2× PL-259 connections.

Key Features

• Simultaneous dual-band operation: 1.3–30MHz (LPF) and 49–470MHz (HPF)
• 76–120MHz receive-only passband on the HPF port
• 45dB+ isolation between ports
• Low insertion loss: <0.2dB (LPF) and <0.25dB (HPF)
• 600W PEP on HF and VHF; 500W PEP on UHF (300–470MHz)
• 50 Ohm impedance, VSWR <1.2:1
• Common port: SO-239 | Connections: 2× PL-259 | Cable: 5D-2VS, 35cm
• Compact form factor: 86 × 64 × 25mm, 300g

Technical Specifications

• LPF Passband: 1.3–30MHz
• HPF Passband: 49–470MHz (76–120MHz receive only)
• LPF Insertion Loss: Less than 0.2dB
• HPF Insertion Loss: Less than 0.25dB
• Maximum Input Power: 1.3–30MHz / 600W (PEP)
• Maximum Input Power: 49–250MHz / 600W (PEP)
• Maximum Input Power: 300–470MHz / 500W (PEP)
• Isolation: More than 45dB
• Impedance: 50 Ohms, VSWR <1.2:1
• Common Socket: SO-239
• Connections: 2× PL-259
• Coaxial Cable: 5D-2VS, 35cm
• Dimensions: W86 × D64 × H25mm
• Weight: 300g
