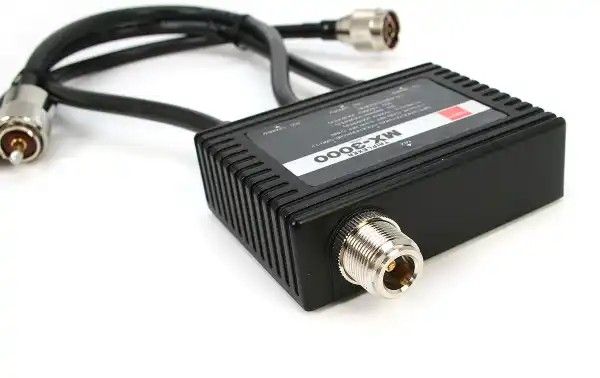

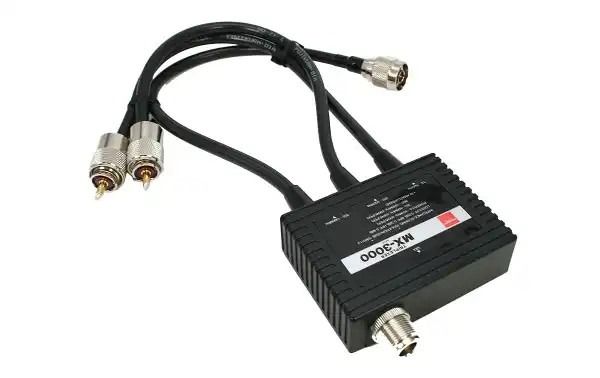

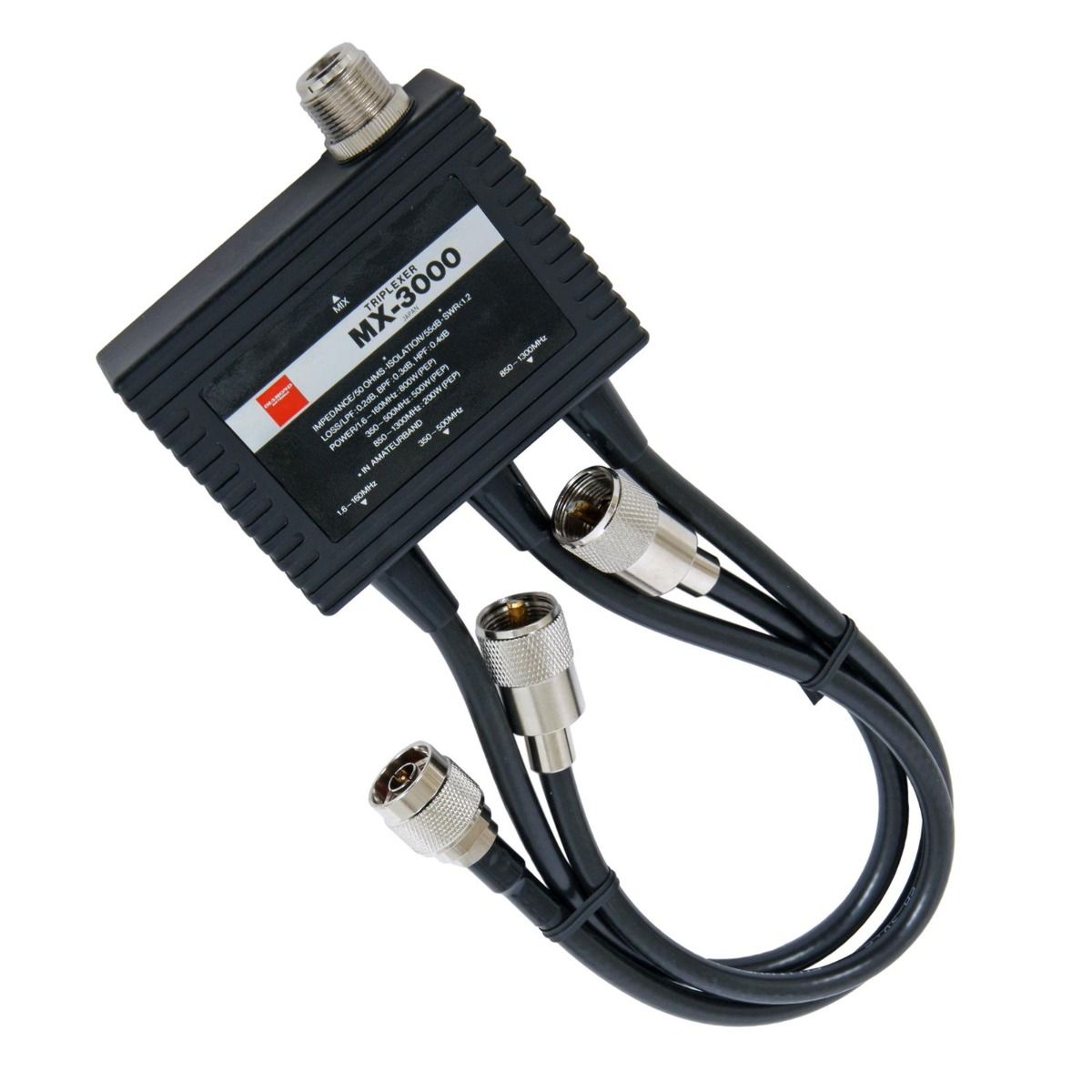

Diamond MX-3000 Triplexer HF/VHF/UHF/1.2GHz, 1.6-160/350-500/850-1300MHz, 800W

Three-Band Triplexer for HF, VHF, UHF and 1.2GHz

The Diamond MX-3000 is a precision triplexer that simultaneously splits or combines three separate frequency bands — HF/VHF (1.6–160MHz), UHF (350–500MHz), and 1.2GHz (850–1300MHz) — from a single Type N female common port. With more than 55dB of isolation between all three ports, it provides clean separation for demanding multi-band installations. Whether you are running separate HF, 2m/70cm, and 23cm antenna systems from a single transceiver output, or combining multiple radios into a shared antenna, the MX-3000 handles it with minimal insertion loss. Supplied with 35cm of 5D-2VS coaxial cable.

Key Features

• Three-port simultaneous operation: 1.6–160MHz, 350–500MHz, and 850–1300MHz
• Covers HF, 6m, 2m, 70cm, and 23cm in a single unit
• 55dB+ isolation between all ports
• Low insertion loss: <0.2dB (LPF), <0.3dB (BPF), <0.4dB (HPF)
• High power handling: 800W PEP (LPF), 500W PEP (BPF), 200W PEP (HPF)
• 50 Ohm impedance, VSWR <1.2:1
• Common socket: Type N female | Connectors: 2× PL-259, 1× Type N male | Cable: 5D-2VS, 35cm
• Compact form factor: 86 × 64 × 25mm, 410g

Technical Specifications

• LPF Passband: 1.6–160MHz
• BPF Passband: 350–500MHz
• HPF Passband: 850–1300MHz
• LPF Insertion Loss: Less than 0.2dB
• BPF Insertion Loss: Less than 0.3dB
• HPF Insertion Loss: Less than 0.4dB
• Maximum Input Power: LPF / 800W (PEP)
• Maximum Input Power: BPF / 500W (PEP)
• Maximum Input Power: HPF / 200W (PEP)
• Isolation: More than 55dB
• Impedance: 50 Ohms, VSWR <1.2:1
• Common Socket: Type N, female

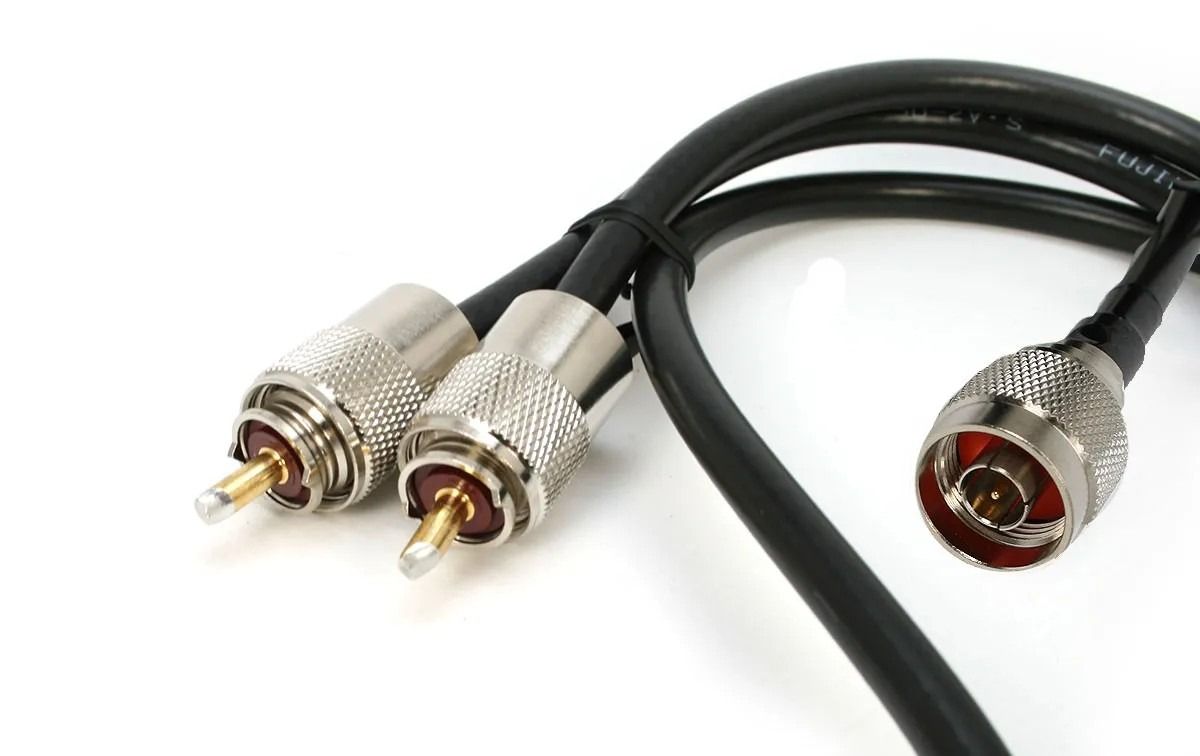

• Connectors: 2× PL-259, 1× Type N male
• Coaxial Cable: 5D-2VS, 35cm
• Dimensions: W86 × D64 × H25mm
• Weight: 410g
