Diamond GZV6000 60A Switch Mode Power Supply 1-15V Variable, 100-240V AC

Diamond GZV6000 60A Switch Mode Power Supply

The Diamond GZV6000 is a professional-grade switching mode DC power supply delivering a continuous 60A output — ideal for high-power amateur radio transceivers, linear amplifiers, and demanding shack setups. With variable voltage from 1 to 15 VDC and a centre-detent at 13.5V, it’s ready to power your station straight out of the box.

Key Features

• 60A continuous rating at 100% duty cycle — no derating under sustained load
• Variable voltage 1–15 VDC with centre detent at 13.5V — perfect for standard 13.8V radio operation

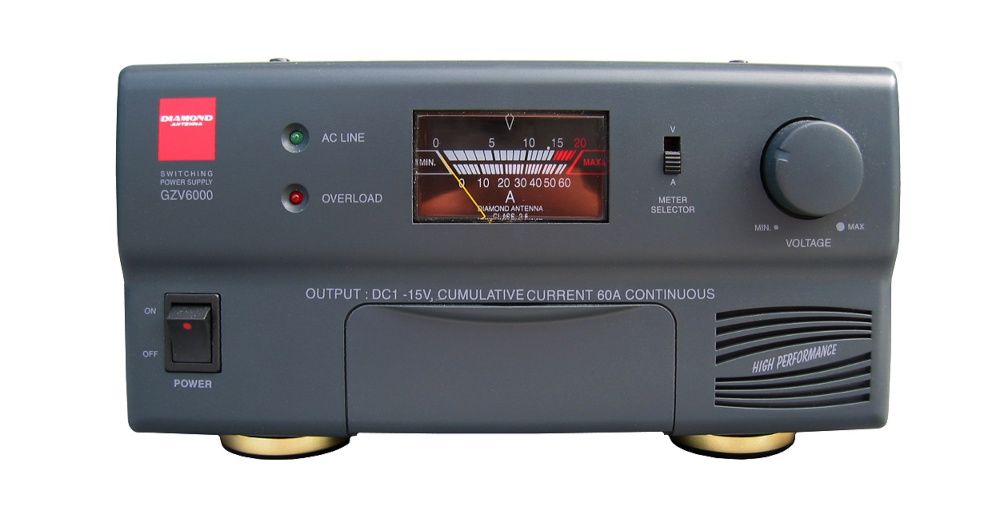

• Built-in meter selector — monitor voltage and current from the front panel
• Overload and short-circuit protection with current foldback at ~62A
• Over-temperature protection with variable-speed fan — quiet under light loads, ramps up as needed

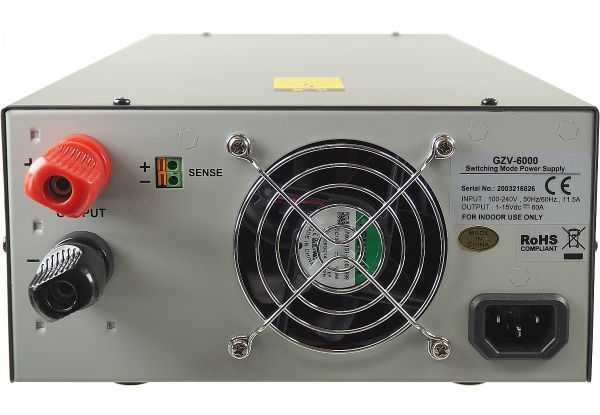

• Front panel DC terminals and cigarette lighter jack; standard 60A terminals on rear panel
• High RFI and EMI protection — AC line filter keeps noise out of your receive chain
• Built-in speaker and power/overload indicators
• Universal AC input: 100–240 VAC ±20%, 50–60 Hz

Technical Specifications

• Output Current: 60A continuous, 100% duty cycle
• Output Voltage: 1–15 VDC variable (centre detent at 13.5V)
• AC Input: 100–240 VAC ±20%, 50–60 Hz
• Ripple & Noise: <8 mV r.m.s.
• Short-circuit Protection: Current foldback at ~62A
• Dimensions: 8.25” × 4.5” × 16”
• Weight: 12.8 lbs (5.8 kg)
• Connector: Front panel DC terminals + cigarette lighter jack; rear 60A terminals
