Diamond AZ805M Tri-Band Mobile Antenna
The Diamond AZ805M is a compact mobile antenna for the 144, 430 and 1200MHz amateur radio bands (2m, 70cm and 23cm). Measuring 57cm and weighing 84g, it features an M-P connector and a total power rating of 50W FM.
Key Features
- Bands: 144/430/1200MHz (2m/70cm/23cm)
- Length: 57cm
- Weight: 84g
- Gain: 3.8dBi at 430MHz; 7.2dBi at 1200MHz
- Maximum power rating: 50W FM total
- Impedance: 50 ohms
- VSWR: less than 1.5:1

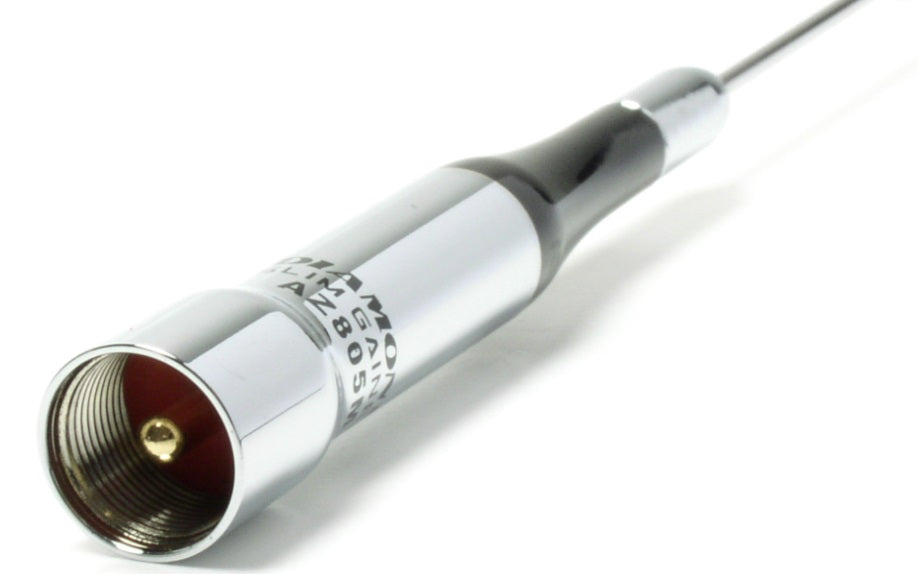

- Connector: M-P (PL-259)
Antenna Design
- 144MHz: quarter-wave
- 430MHz: C-Load radialless
- 1200MHz: three stacked 5/8-wave C-Load radialless sections
Installation
For operation on the 144MHz band, the antenna uses the vehicle body as its ground plane. Ensure a sound electrical connection between the antenna mount and vehicle body.
