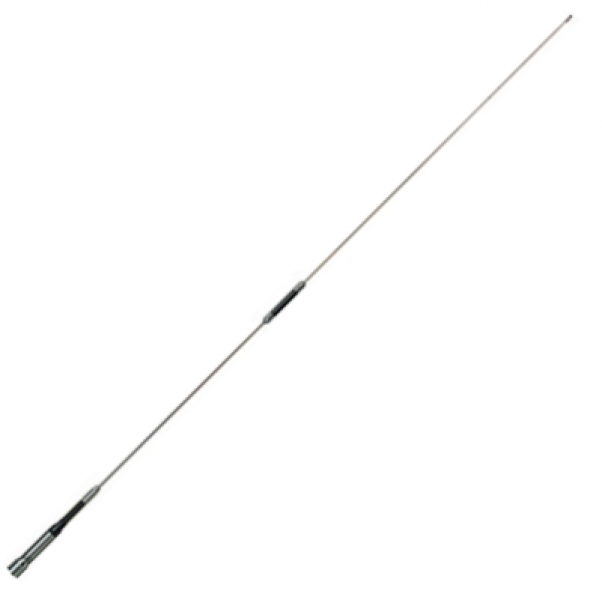

Diamond AZ-510 Dual Band Mobile Antenna
The Diamond AZ-510 is a popular dual band mobile antenna covering 144 MHz (2m) and 430 MHz (70cm), offering a practical balance of size and gain for amateur radio operators using FM, digital modes, or APRS from a vehicle. The radialless design means no ground plane is required, making it straightforward to mount on any magnetic base or NMO fitting with a PL-259 adaptor.
Key Features
- Dual band coverage: 144 MHz (2m) and 430 MHz (70cm)
- Gain: 2.15 dBi on 144 MHz; 5.5 dBi on 430 MHz
- Radialless design — no ground plane required
- 50W maximum power handling
- Low VSWR: less than 1.5:1
- 50 Ω impedance
- PL-259 connector
- Lightweight at 120 g
Technical Specifications
- Frequency: 144 MHz / 430 MHz
- Gain: 2.15 dBi (144 MHz); 5.5 dBi (430 MHz)
- Type: 1/2λ radialless (144 MHz); 2×5/8λ radialless (430 MHz)
- Power: 50W max
- Impedance: 50 Ω
- VSWR: <1.5:1
- Connector: PL-259
- Length: 95 cm (0.95 m)
- Weight: 120 g
