Diamond AZ-507R Dual Band Mobile Whip Antenna 2m/70cm, 9dBi, PL259

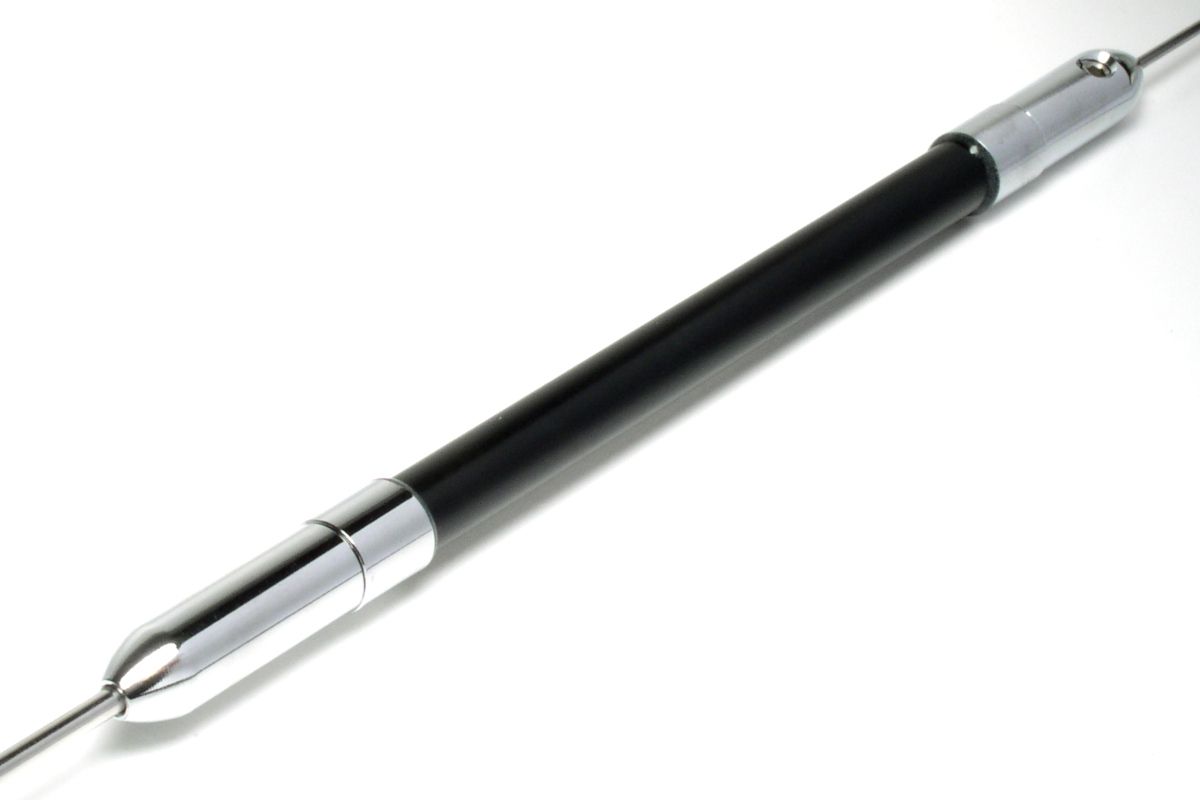

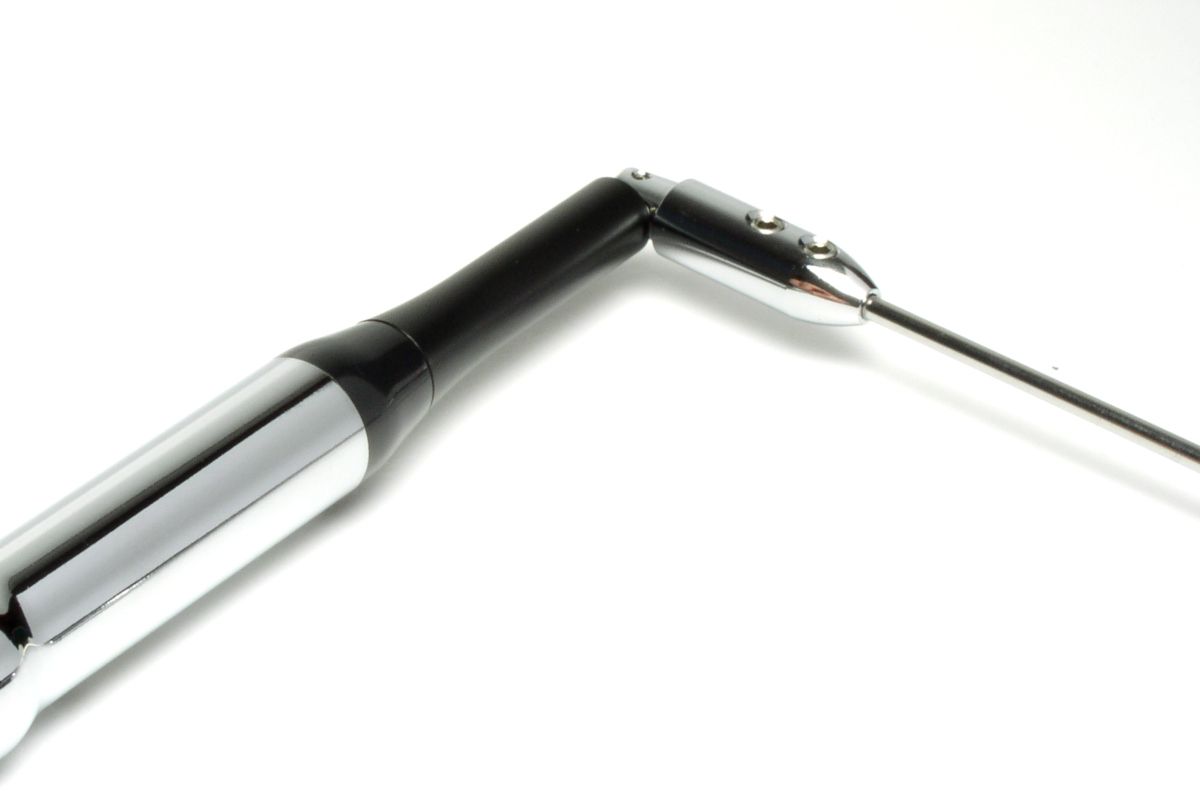

Diamond AZ-507R Dual Band Mobile Whip Antenna

The Diamond AZ-507R is a compact dual band mobile whip covering 144 MHz (2m) and 430 MHz (70cm) — delivering strong gain on UHF without the bulk of a longer antenna. At just 0.75m, it’s an ideal choice for vehicles where space is tight but performance still matters.

Key Features

• 9 dBi gain on 430 MHz — excellent UHF performance for local and repeater use
• Radialless design on both bands — no ground plane required, clean installation
• Compact 0.75m length — low-profile for everyday driving without sacrificing gain
• 50W FM power rating — compatible with most mobile transceivers
• PL259 connector — direct fit to standard SO-239 mounts
• VSWR <2.0:1 — efficient power transfer across both bands

Technical Specifications

• Frequency: 144 MHz (2m) / 430 MHz (70cm)
• Gain: 2.15 dBi (144 MHz) | 9 dBi (430 MHz)
• Type: 1/2 wave radialless (144 MHz) | 2×5/8 wave radialless (430 MHz)
• Length: 0.75 m
• Max Power Rating: 50W FM (total)
• Impedance: 50 Ω
• VSWR: <2.0:1
• Connector: PL259
