Diamond A1430S8 Dual Band Beam Antenna 2m/70cm, 9/10dBi, 3+5 Element, 100W

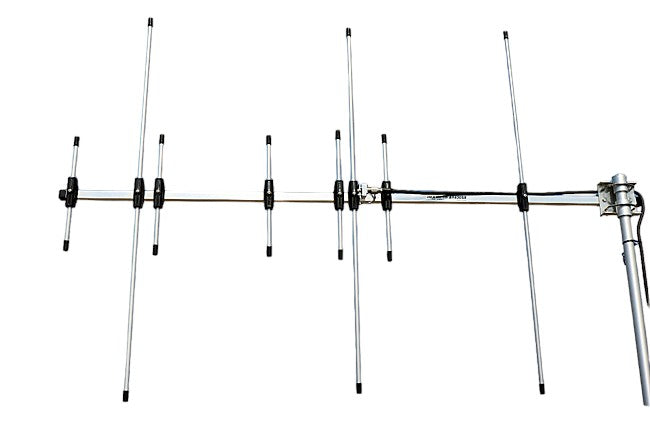

Diamond A1430S8 Dual Band Beam Antenna

The Diamond A1430S8 is a dual band directional beam antenna for the 2m (144MHz) and 70cm (430MHz) amateur radio bands. Combining a 3-element Yagi on 2m with a 5-element Yagi on 70cm, it delivers 9.0dBi gain on 144MHz and 10.0dBi on 430MHz — ideal for weak signal work, satellite operation, direction finding, or boosting range from a fixed base station. Compact enough for a 1.35m turning radius, it suits smaller rotator setups.

Key Features

• Dual band directional beam: 3-element (144MHz) + 5-element (430MHz)
• High gain: 9.0dBi at 144MHz, 10.0dBi at 430MHz
• 100W FM power rating
• 50Ω impedance, SO-239 (MJ) connector
• Compact 1.35m turning radius — suitable for smaller rotators
• Accepts mast diameter 38–61mm
• Suitable for weak signal, satellite, direction finding, and base station use

Technical Specifications

• Frequency: 144–146 / 430–440MHz (2m / 70cm)
• Type: 3-element beam (144MHz) / 5-element beam (430MHz)
• Gain: 9.0dBi (144MHz) / 10.0dBi (430MHz)
• Max Power: 100W FM
• Impedance: 50Ω
• Connector: SO-239 (MJ)
• Size: 1400 × 1030 × 50mm
• Turning Radius: 1.35m
• Accepted Mast Diameter: 38–61mm
