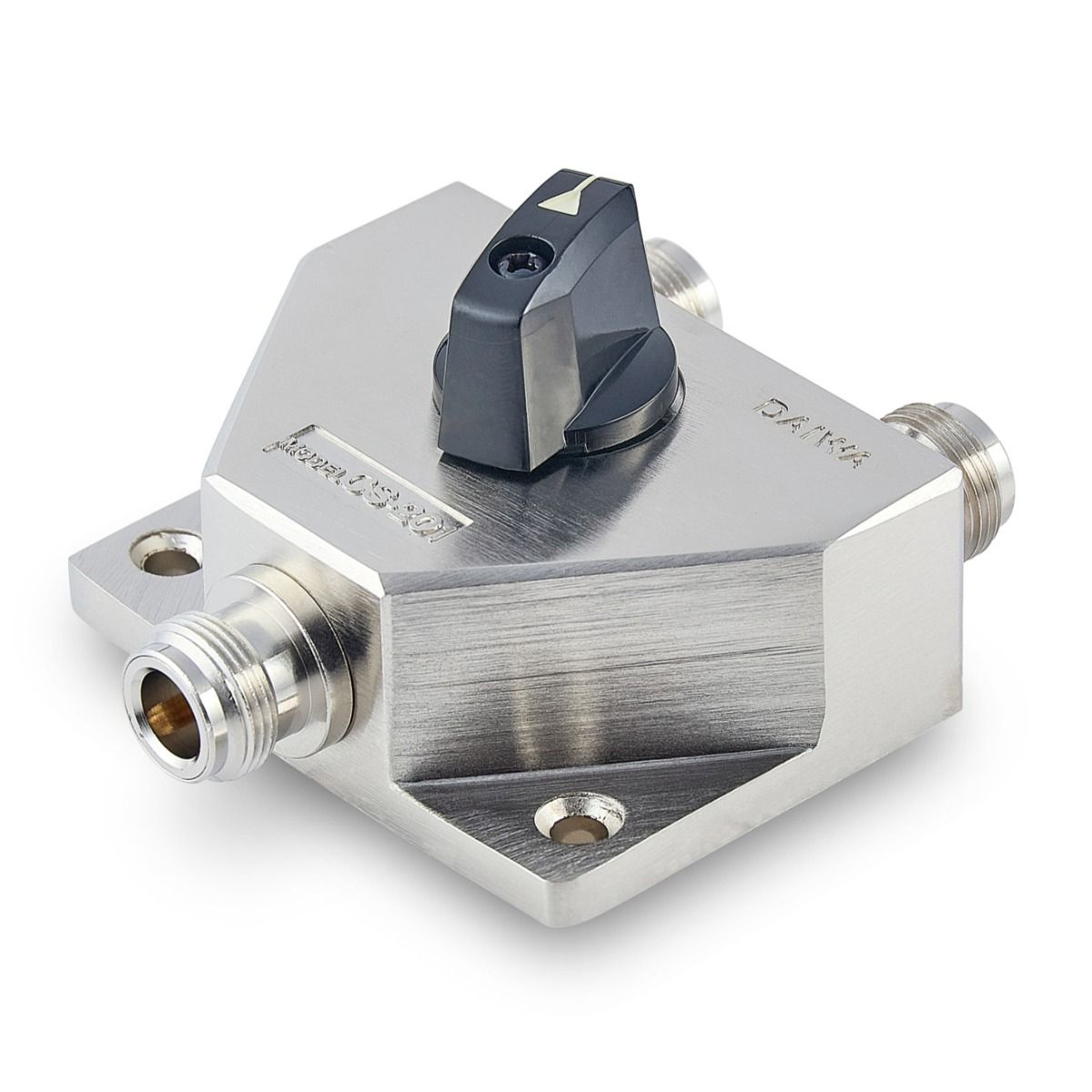

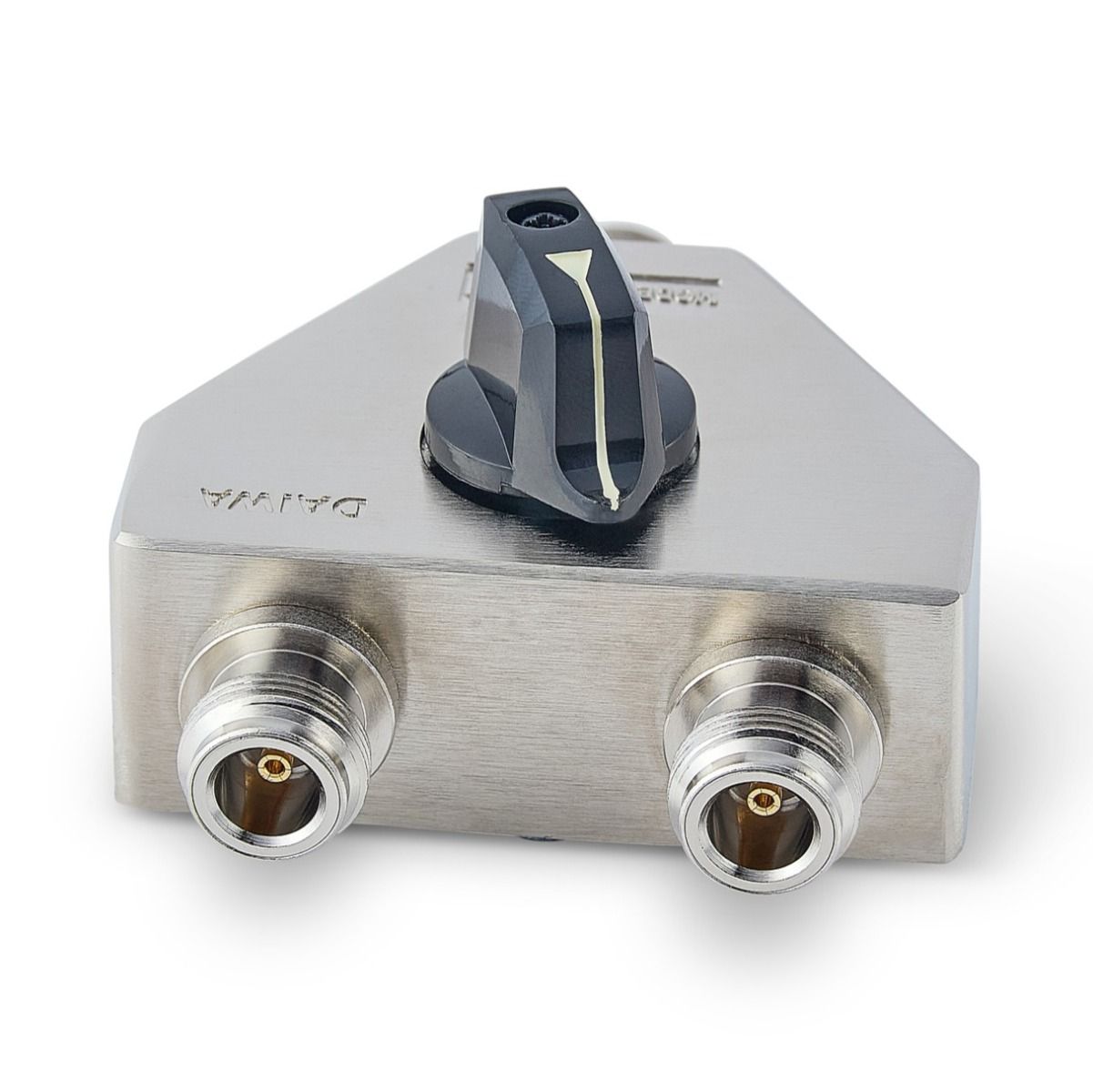

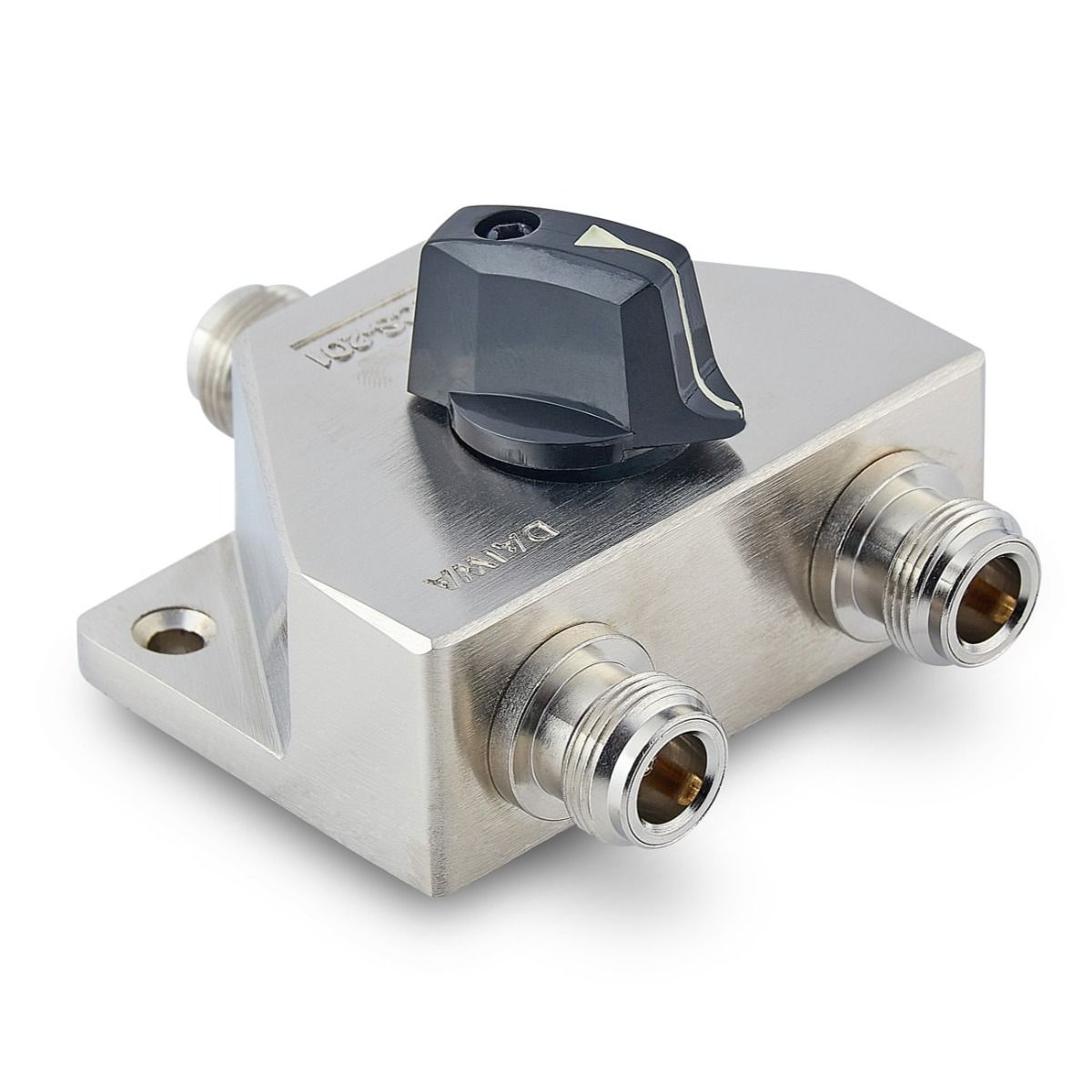

Daiwa CS-201G11 2-Position N-Type Coaxial Antenna Switch
The Daiwa CS-201G11 is a 2-position N-type coaxial antenna switch covering DC through 1.3GHz, making it suitable for HF, VHF, UHF, and microwave antenna switching. With a 1.5kW power rating on HF and very low insertion loss of just 0.12dB up to 1GHz, it delivers clean, reliable performance for demanding station setups.
Key Features
- 2-position N-type coaxial switch — connect 2 antennas to one transceiver
- Wide frequency coverage: DC to 1.3GHz — HF through microwave
- High power rating: 1.5kW (DC–30MHz), stepping down to 150W at 1–2GHz
- Very low insertion loss: 0.12dB (DC–1GHz), 1.2dB (1–2GHz)
- 50Ω impedance, N-type connectors throughout
Technical Specifications
- Type: 2-position coaxial antenna switch
- Connector: N-type
- Impedance: 50Ω
- Frequency Range: DC to 1.3GHz
- Power Rating: 1.5kW (DC–30MHz) / 1kW (30–150MHz) / 500W (150–600MHz) / 250W (500MHz–1GHz) / 150W (1–2GHz)
- Insertion Loss: 0.12dB (DC–1GHz) / 1.2dB (1–2GHz)
- VSWR: ≤1.3:1
