Comet CHV5A 5-Band Rotatable Compact Dipole Antenna 40/20/15/10/6m, 220W, SO-239

Comet CHV5A 5-Band Rotatable Compact Dipole Antenna

The Comet CHV5A is a 5-band 1/2 wave rotatable dipole covering 40, 20, 15, 10, and 6 metres — designed specifically for operators who want a multiband HF dipole that can be rotated, but don’t have the space for a full-size installation. Each band tunes independently of the others, and the antenna can be configured in either a horizontal “V” shape or a ground-plane configuration. Compact, lightweight, and easily assembled.

Key Features

• 5-band 1/2 wave rotatable dipole: 40m, 20m, 15m, 10m, and 6m
• Each band tunes independently — no interaction between bands

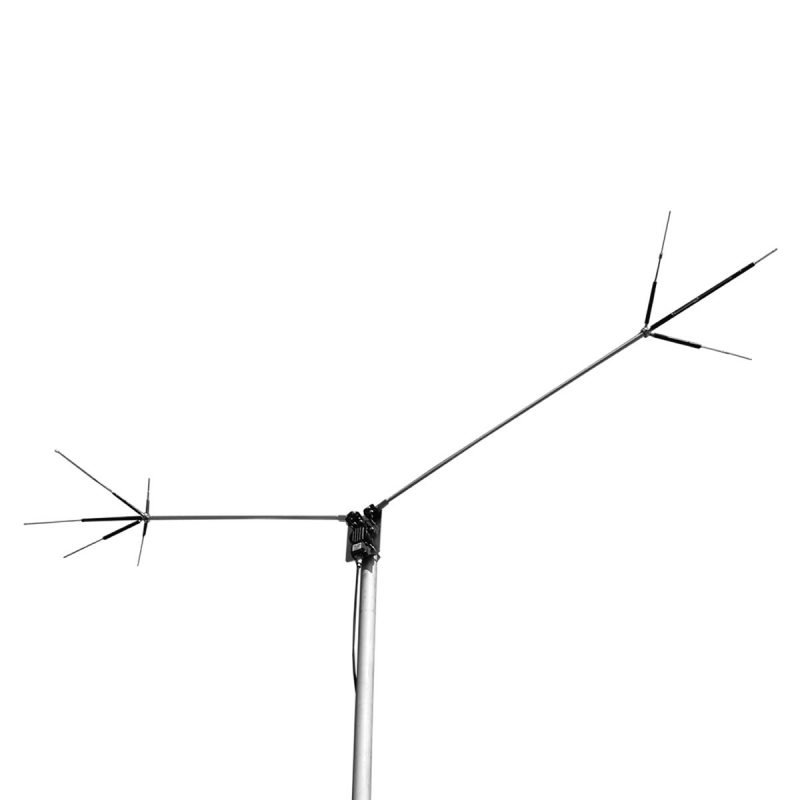

• Configurable as horizontal “V” dipole or ground-plane
• Rotatable design — ideal for directional HF operation in limited space
• 220W SSB power rating on 15/10/6m, 150W SSB on 40/20m
• SO-239 connector, 50Ω impedance
• Compact horizontal span of approximately 4m (13ft)
• Requires 1–2.5" mast (not included)

Technical Specifications

• Bands: 40m, 20m, 15m, 10m, 6m
• Type: 1/2 wave rotatable dipole
• Max Power: 150W SSB (40/20m) / 220W SSB (15/10/6m)
• Impedance: 50Ω
• Connector: SO-239
• Horizontal Length: ~4m (13ft)
• Weight: ~2.7kg (6lbs)
• Mast Requirement: 1–2.5" diameter
