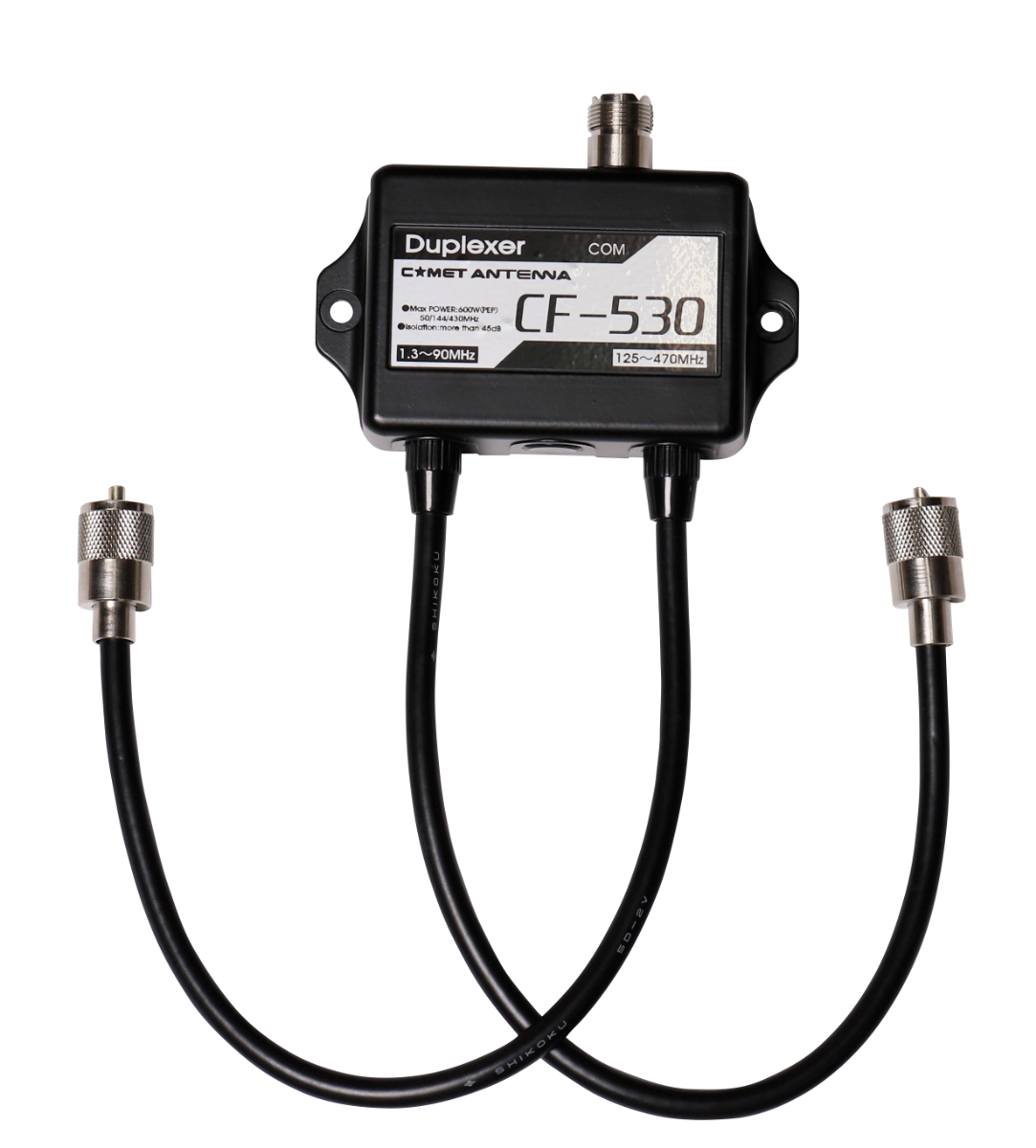

Comet CF-530 Duplexer 1.3-90/125-470MHz, 600W, SO-239

Wideband Dual-Band Duplexer for HF, VHF and UHF

The Comet CF-530 is a high-quality wideband duplexer designed for simultaneous transmission and reception across two broad frequency ranges — 1.3–90MHz (covering HF and 6m) and 125–470MHz (covering 2m and 70cm). With more than 45dB of isolation between ports and a flat 600W PEP power rating across all bands, it is one of the most versatile duplexers in the Comet range. Combined bandpass filters suppress TVI effectively. The unused port can remain open, though terminating with a dummy load is recommended.

Key Features

• Simultaneous dual-band operation: 1.3–90MHz and 125–470MHz
• Covers HF, 6m, 2m, and 70cm in a single unit
• 45dB+ isolation between ports
• Flat 600W PEP power rating across all frequency ranges
• Low insertion loss: <0.2dB (low pass) and <0.3dB (high pass)
• 50 Ohm impedance, VSWR <1:1.2
• Input: SO-239 socket | Outputs: 2× leads with fitted PL-259 plugs
• Compact form factor: 66 × 90 × 26mm, 300g

Technical Specifications

• BandPass Frequency & Input Loss: 1.3–90MHz / Less than 0.2dB
• BandPass Frequency & Input Loss: 125–470MHz / Less than 0.3dB
• Impedance: 50 Ohms
• VSWR: Less than 1:1.2
• Maximum Input Power: 1.3–90MHz / 600W (PEP)
• Maximum Input Power: 125–250MHz / 600W (PEP)
• Maximum Input Power: 300–470MHz / 600W (PEP)
• Isolation: More than 45dB
• Input: SO-239 Socket
• Output: 2× Leads with Fitted PL-259 Plugs
• Dimensions: W66 × D90 × H26mm
• Weight: 300g
