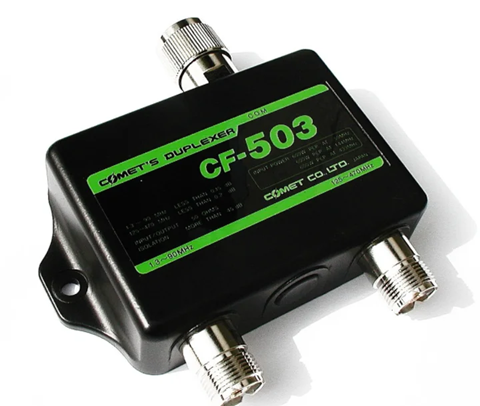

Comet CF-503C Duplexer 1.3-90/125-470MHz, 600W, PL 259

HF and VHF/UHF Duplexer with Direct-Mount PL-259 Input

The Comet CF-503C is a high-power duplexer for simultaneous transmission and reception across HF/6m (1.3–90MHz) and VHF/UHF (125–470MHz), covering 2m and 70cm in a single compact unit. Unlike most duplexers in the Comet range, the CF-503C features a PL-259 plug input fitted directly to the body of the duplexer, with two SO-239 socket outputs — making it ideal for installations where the transceiver end uses a PL-259 terminated feedline. More than 45dB of isolation between ports ensures clean band separation. The unused port can remain open, though terminating with a dummy load is recommended.

Key Features

• Simultaneous dual-band operation: 1.3–90MHz and 125–470MHz
• Covers HF, 6m, 2m, and 70cm in a single unit
• 45dB+ isolation between ports
• Flat 600W PEP power rating across all frequency ranges
• Low insertion loss: <0.15dB (LPF) and <0.2dB (HPF)
• 50 Ohm impedance, VSWR <1:1.2
• Input: PL-259 plug (direct mount) | Outputs: 2× SO-239 sockets (direct mount)
• Compact form factor: 66 × 90 × 26mm, 300g

Technical Specifications

• BandPass Frequency & Input Loss: 1.3–90MHz / Less than 0.15dB
• BandPass Frequency & Input Loss: 125–470MHz / Less than 0.2dB
• Impedance: 50 Ohms
• VSWR: Less than 1:1.2
• Maximum Input Power: 1.3–470MHz / 600W (PEP)
• Isolation: More than 45dB
• Input: 1× PL-259 Plug (fitted direct to duplexer)
• Output: 2× SO-239 Sockets (fitted direct to duplexer)
• Dimensions: W66 × D90 × H26mm
• Weight: 300g
