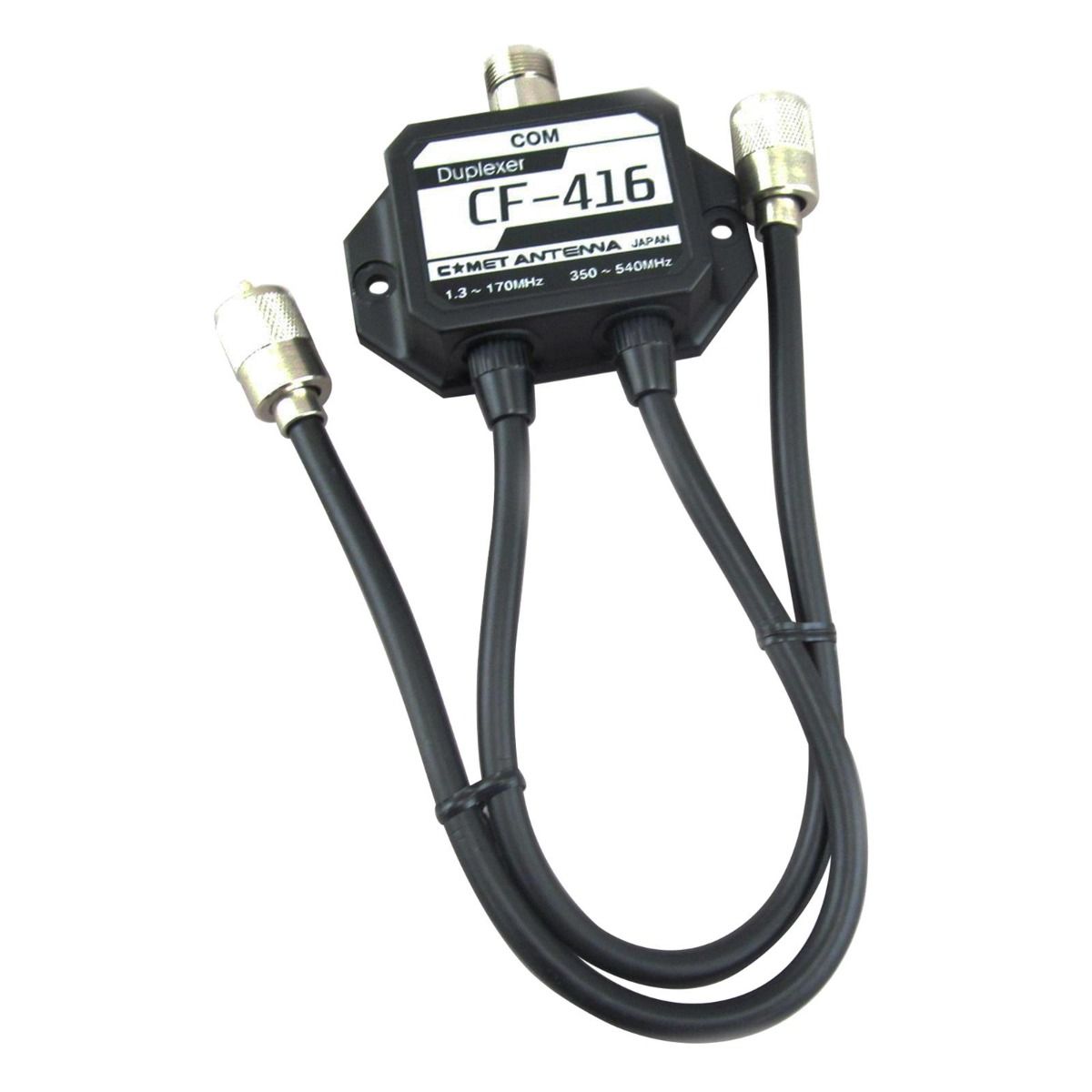

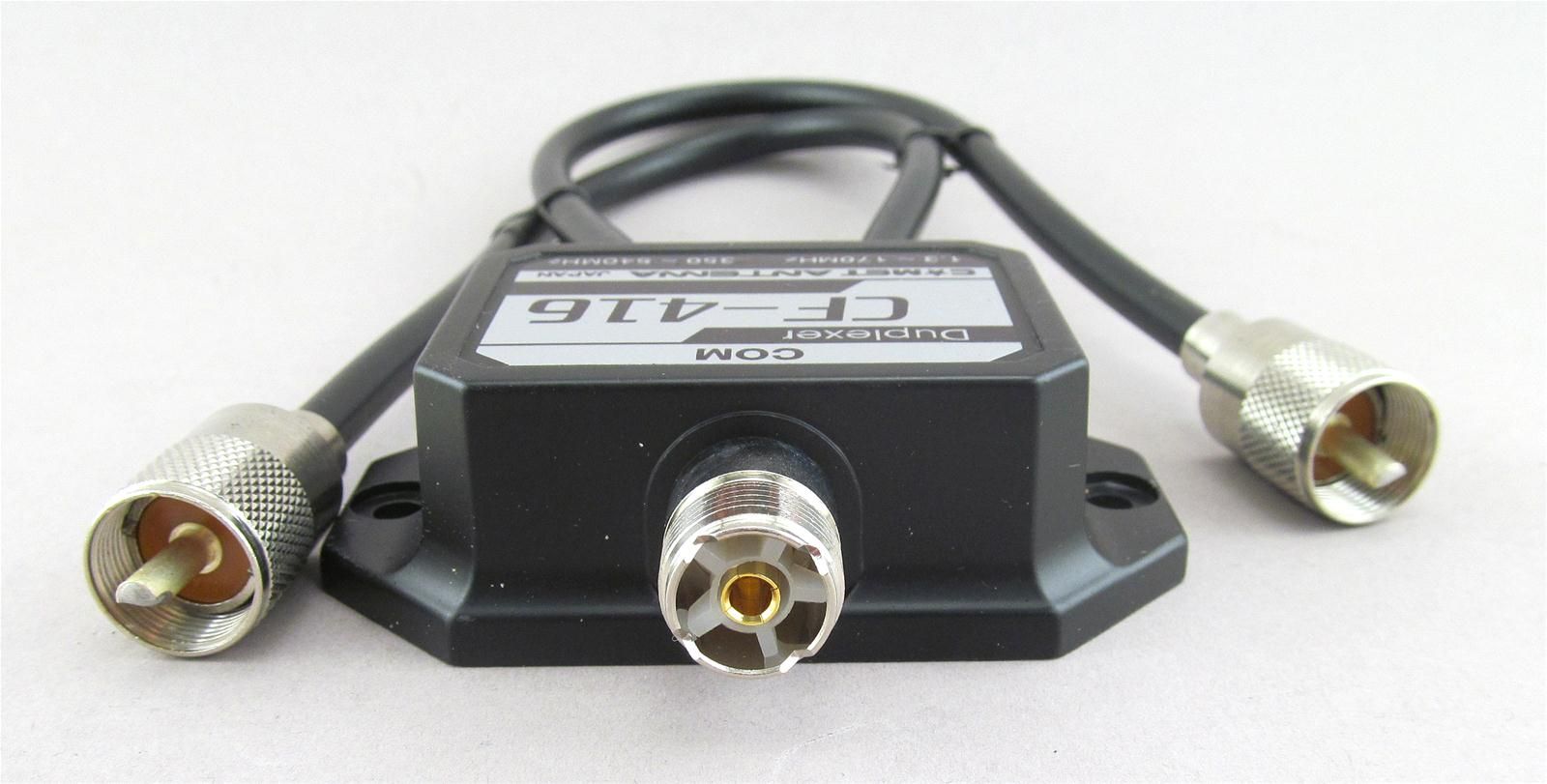

Comet CF-416A Duplexer 1.3-170/350-540MHz, 1000W, SO-239

Simultaneous Dual-Band Operation for Amateur Radio Stations

The Comet CF-416A is a high-grade duplexer designed to allow simultaneous transmission and reception across two separate frequency bands — 1.3–170MHz and 350–540MHz — from a single antenna feed point. Combined bandpass filters suppress TVI effectively, making it a clean solution for busy shack installations. If only one port is in use, the other can remain open, though terminating with a dummy load is recommended for best results.

Key Features

• Simultaneous dual-band operation: 1.3–170MHz and 350–540MHz
• High-grade combined bandpass filters for TVI suppression
• Low insertion loss: <0.15dB (LF/VHF) and <0.25dB (UHF)
• High power handling: up to 1000W PEP on HF/6m
• 50 Ohm impedance, VSWR <1:1.2
• Input: SO-239 socket | Outputs: 2× PL-259 leads (30cm RG58)
• Unused port can remain open or be terminated with a dummy load

Technical Specifications

• BandPass Frequency & Input Loss: 1.3–170MHz / Less than 0.15dB
• BandPass Frequency & Input Loss: 350–540MHz / Less than 0.25dB
• Impedance: 50 Ohms
• VSWR: Less than 1:1.2
• Maximum Input Power: 1.3–60MHz / 1000W (PEP)
• Maximum Input Power: 100–170MHz / 800W (PEP)
• Maximum Input Power: 350–540MHz / 500W (PEP)
• Input: 1× SO-239 Socket
• Output: 2× Leads with Fitted PL-259 Plugs, 30cm in length
