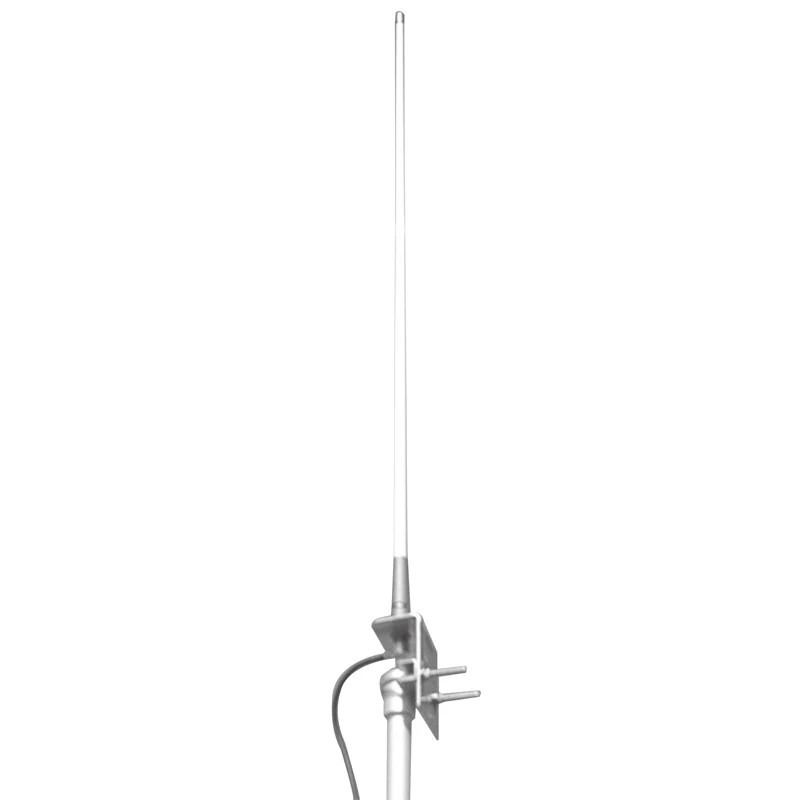

Comet AB-380 VHF/UHF Airband Base Receive Antenna with 10m Cable

The Comet AB-380 is a dedicated receive-only VHF/UHF airband base antenna covering 108-140MHz and 220-400MHz. It is designed for civil and military airband monitoring and can be installed on a mast, balcony or similar fixed mounting point.

The lightweight glass-fibre element uses an integrated weather-resistant construction for outdoor installation. The antenna is supplied with a 10m RG-58/U coaxial lead, mounting hardware and the required antenna adaptor.

Features

• Dedicated VHF/UHF airband receiving antenna
• Receive-only design — not for transmission
• VHF coverage: 108-140MHz
• UHF coverage: 220-400MHz
• Lightweight glass-fibre integrated construction
• Weather-resistant and waterproof design
• Suitable for mast or balcony installation
• Includes 10m RG-58/U coaxial cable
• Includes mast mounting hardware

Technical Specifications

• Manufacturer: Comet
• Model: AB-380
• Type: VHF/UHF airband receiving base antenna
• Receiving Frequency: 108-140MHz / 220-400MHz
• Operation: Receive only
• Impedance: 50 ohms
• Length: Approx. 1.17m
• Weight: Approx. 520g including bracket
• Maximum Wind Load: 60m/s
• Mounting Mast Diameter: 10-50mm
• Antenna Connector: M-P / PL-259
• Coaxial Cable: RG-58/U, 10m
• Cable Connectors: M-P / M-P

Package Contents

• AB-380 antenna
• L-bracket
• Mast bracket
• U-bolt
• M6 nuts and spring washers
• MA-JJ-NT adaptor
• 10m RG-58/U coaxial cable
• Self-fusing tape

Important Information

This antenna is designed for reception only. Do not transmit through the AB-380, as doing so may damage the antenna or connected equipment.
