Chelegance RF Explorer 6G Combo PLUS Slim Spectrum Analyser

The RF Explorer 6G Combo PLUS Slim is a pocket-sized spectrum analyser for monitoring and troubleshooting RF activity from 50kHz to 6.1GHz. Its two input paths provide gapless coverage across LF, MF, HF, VHF, UHF, amateur-radio and 2.4/5GHz Wi-Fi bands, making it well suited to interference hunting, signal monitoring, antenna work, leakage detection and EMC pre-testing.

Key features

• Continuous 50kHz–6.1GHz coverage using two SMA input ports
• Left input: 50kHz–960MHz; right input: 240MHz–6.1GHz
• Selectable 25dB low-noise amplifier plus 30dB and 60dB attenuators
• Peak Max/Hold, Normal, Overwrite and Averaging spectrum modes
• Dedicated 2.4GHz and 5GHz Wi-Fi analysis

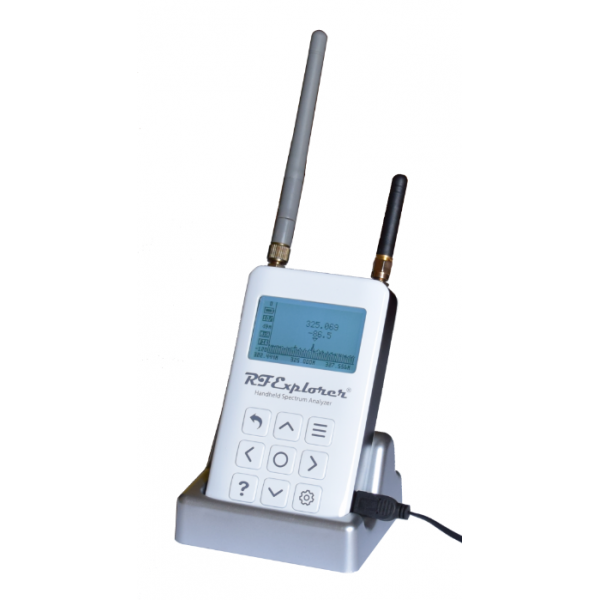

• Backlit 128 × 64-pixel graphic LCD for indoor and outdoor visibility
• USB connection for charging, computer control, data storage and replay
• Free software and open-source API support for Windows, Linux and macOS
• Rechargeable 1800mAh lithium-ion battery with 10+ hours typical runtime
• Compact, lightweight SLIM metal enclosure for field or bench use

Technical specifications

• Frequency coverage: 50kHz–960MHz (left input); 240MHz–6.1GHz (right input)
• Single-sweep span: 2–960MHz
• Frequency resolution: 1kHz
• Resolution bandwidth: Automatic, 2.6kHz–600kHz
• LNA gain: Selectable 25dB
• Attenuation: Selectable 30dB and 60dB
• Dynamic range: −125dBm to +10dBm
• Average noise level: −125dBm typical with LNA
• Amplitude resolution: 0.5dBm
• Amplitude accuracy: ±3dBm typical
• Frequency accuracy: ±1ppm typical
• Absolute maximum input: +30dBm
• Display: 128 × 64-pixel backlit graphic LCD
• RF connectors: Two 50-ohm SMA connectors
• Battery: Rechargeable 1800mAh lithium-ion
• Computer support: Windows, Linux and macOS

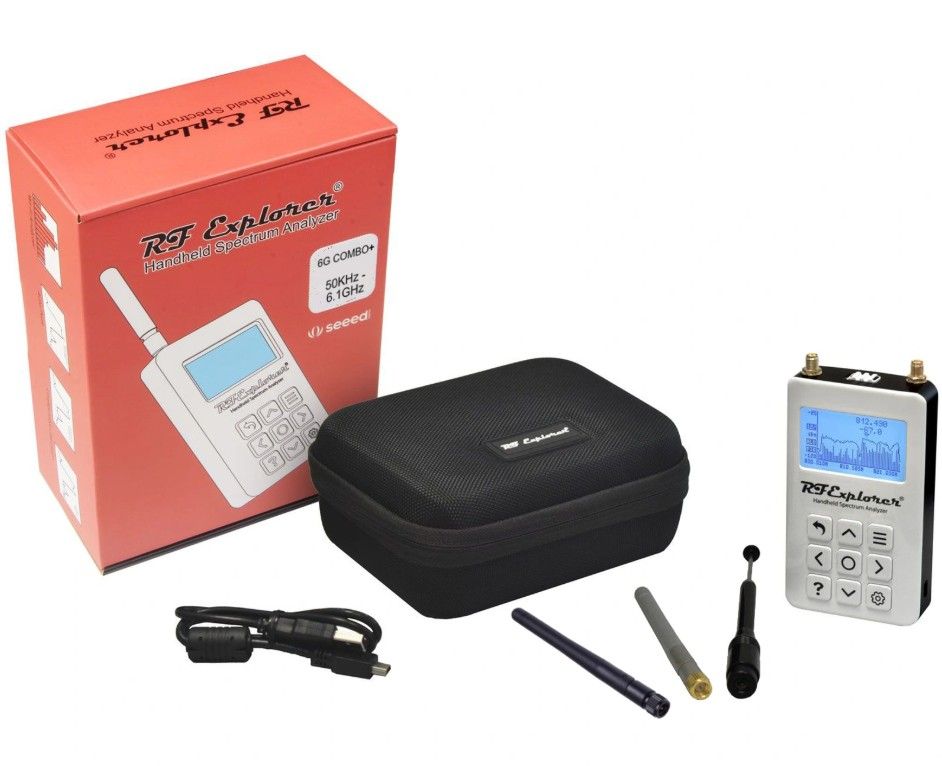

What's included

• RF Explorer 6G Combo PLUS Slim spectrum analyser
• Mini-USB cable

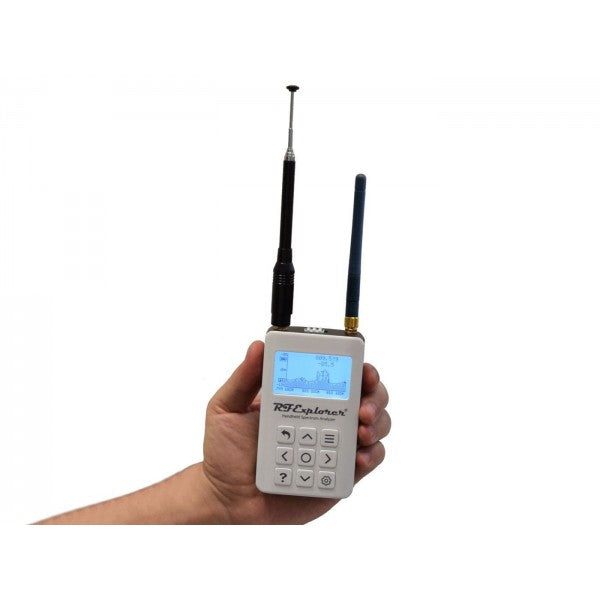

• 144/430MHz dual-band telescopic antenna
• 400–900MHz UHF articulated antenna
• 2.4/5GHz dual-band antenna
• EVA carrying case

Input protection: The +30dBm figure is an absolute maximum input level, not a normal operating target. Do not connect a transmitter directly unless its level has been measured and suitable external attenuation or protection is fitted.
