AOR AR-DV10 Wideband Digital Handheld Scanner 100kHz-1300MHz, SDR, Multi-Mode

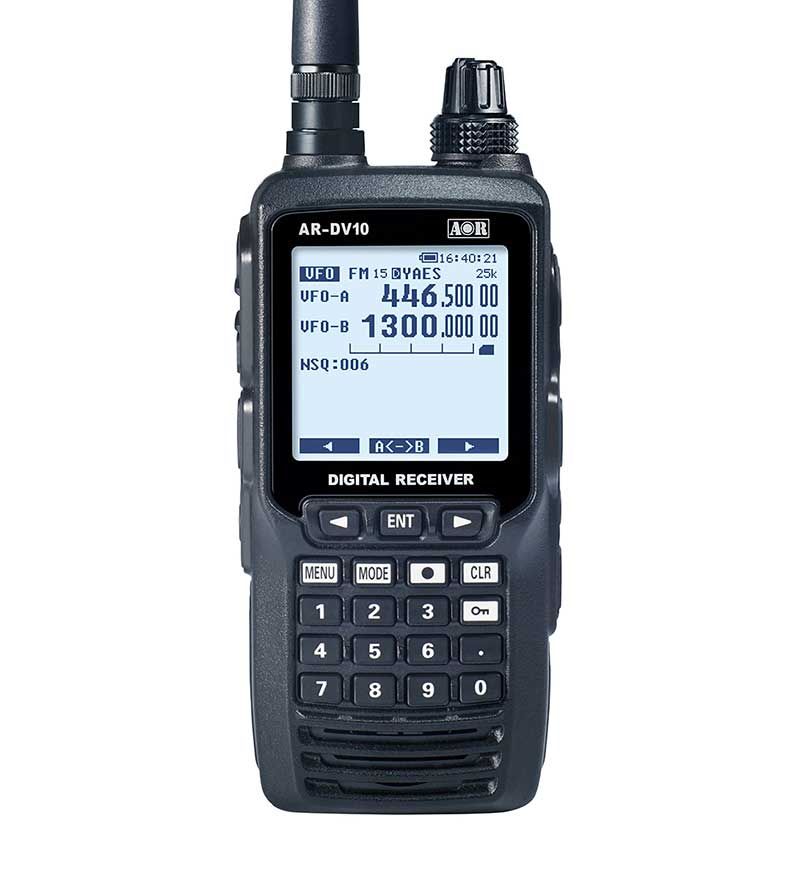

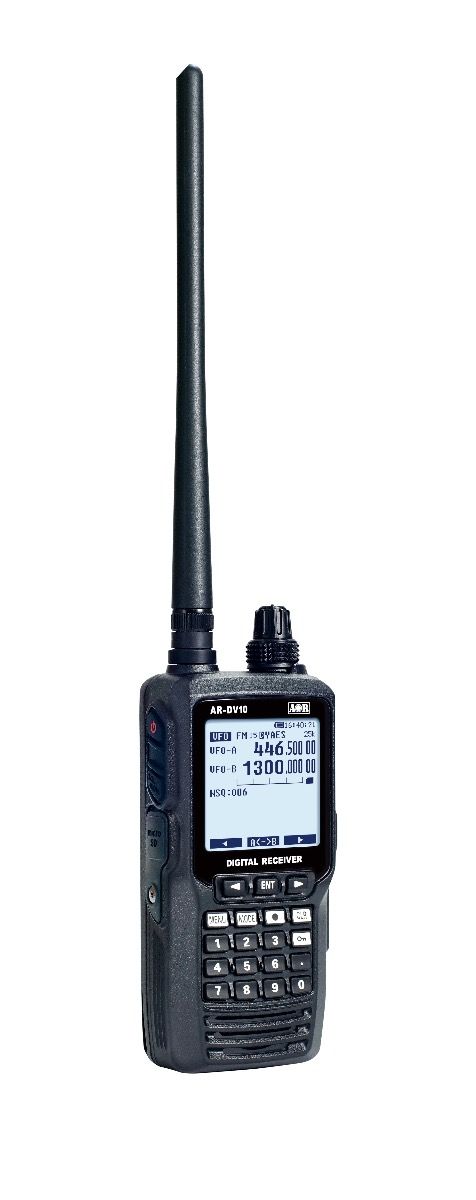

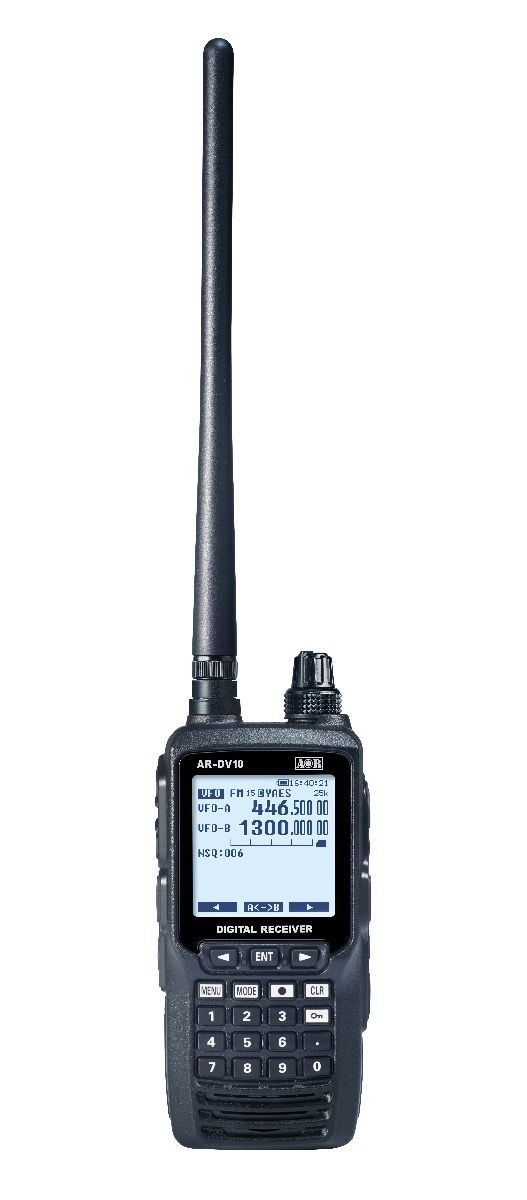

AOR AR-DV10 Wideband Digital Handheld Scanner

The AOR AR-DV10 sets a new standard for handheld receivers, combining wideband coverage from 100kHz to 1300MHz with advanced SDR-based digital mode reception and automatic mode detection. Built around an Altera FPGA Cyclone IV and Analog Devices Blackfin DSP, it decodes a wide range of digital protocols automatically — just set Digital AUTO MODE and the AR-DV10 identifies and decodes the signal for you, even while scanning at high speed. IPX5 water resistant and supplied with a comprehensive accessory kit.

Key Features

• Wideband coverage: 100kHz–1300MHz — LW, MW, SW, FM, air band, VHF/UHF and beyond
• SDR-based architecture: FPGA + DSP for advanced digital signal processing
• Automatic digital mode detection: DMR (Tier 1/2/Mototrbo), NXDN (6.25k), dPMR (446 Tier 1), APCO25 Phase 1, D-STAR, Yaesu C4FM, Alinco EJ47U, Japanese D-CR
• Full analogue mode support: WFM, NFM, AM, USB, LSB, CW
• Digital amateur modes: GMSK and C4FM
• Advanced signal selection: NXDN/D-CR scrambling code, RAN, NAC, colour codes, CTCSS/DCS
• Quick memory scan and program search
• MicroSD card support — recording, memory data I/O, firmware updates
• Dedicated IC for AM (520kHz–1710kHz) and FM (64–108MHz) broadcast reception
• IPX5 water resistant (with all covers and accessories fitted)
• Compact: 65 × 137 × 41mm

Supplied Accessories

• BP-10 lithium-ion battery (7.4V, 2000mAh)
• BT-10 alkaline battery box
• AA-10E AC adapter
• CC-10 fast charger holder
• DC-10 DC/DC converter for cigarette lighter (12V/24V input)
• RA-10 rubber antenna
• BC-10 belt clip
• PDF manual

Technical Specifications

• Frequency Range: 100kHz–1300MHz
• IF: 47.25MHz super heterodyne (RF stages) / Direct I/Q conversion (FM/AM broadcast)
• Processing: Altera FPGA Cyclone IV + Analog Devices Blackfin DSP
• Digital Modes: DMR, NXDN, dPMR, APCO25, D-STAR, C4FM, Alinco EJ47U, D-CR (auto-detect)
• Analogue Modes: WFM, NFM, AM, USB, LSB, CW
• Water Resistance: IPX5
• Storage: MicroSD
• Dimensions (W × H × D): 65 × 137 × 41mm
