AOR SA7000 Twin Element Wideband Receive Antenna 30kHz-2GHz, 15m RG58

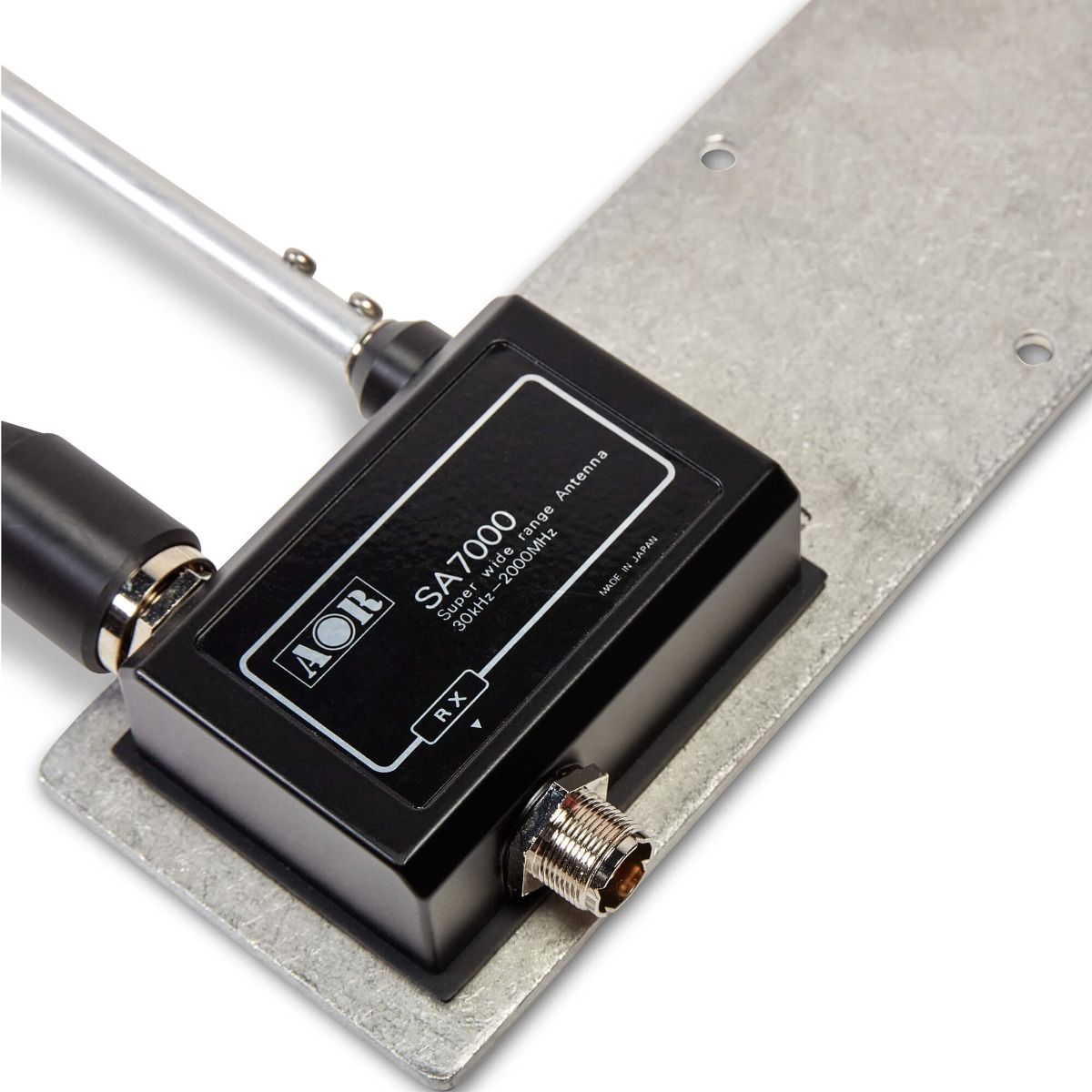

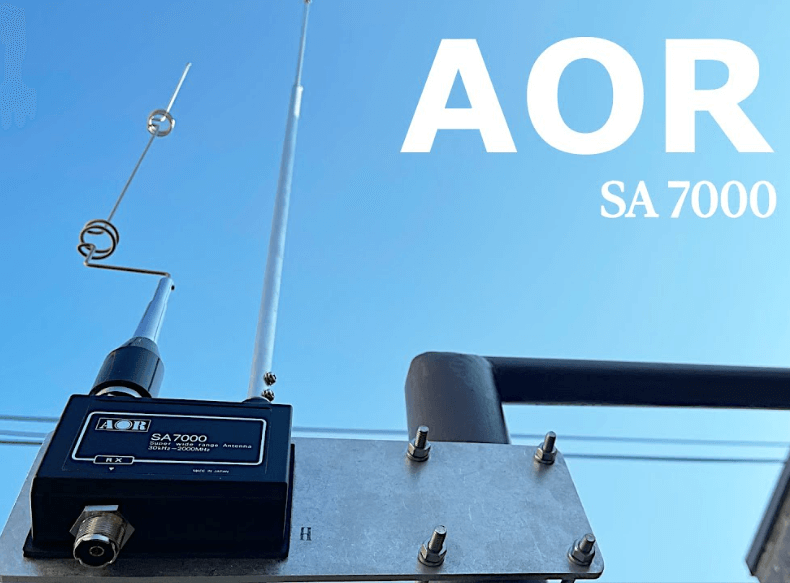

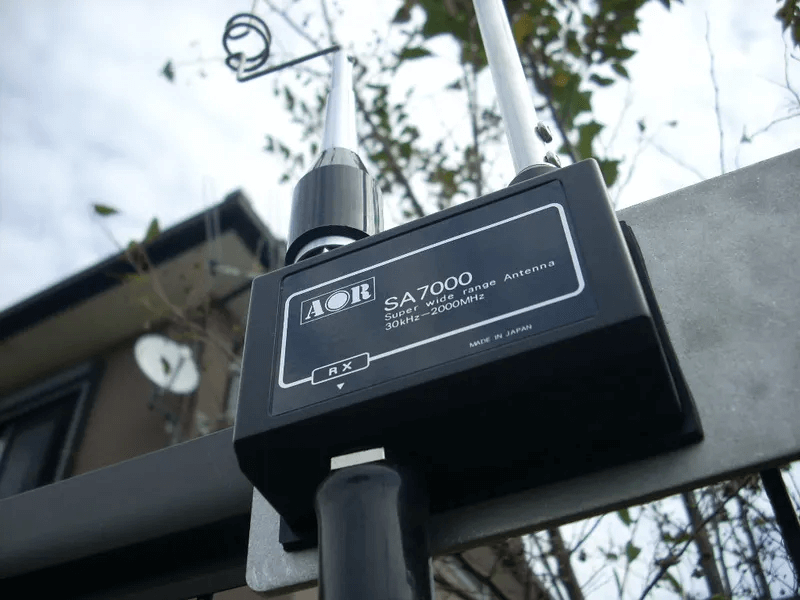

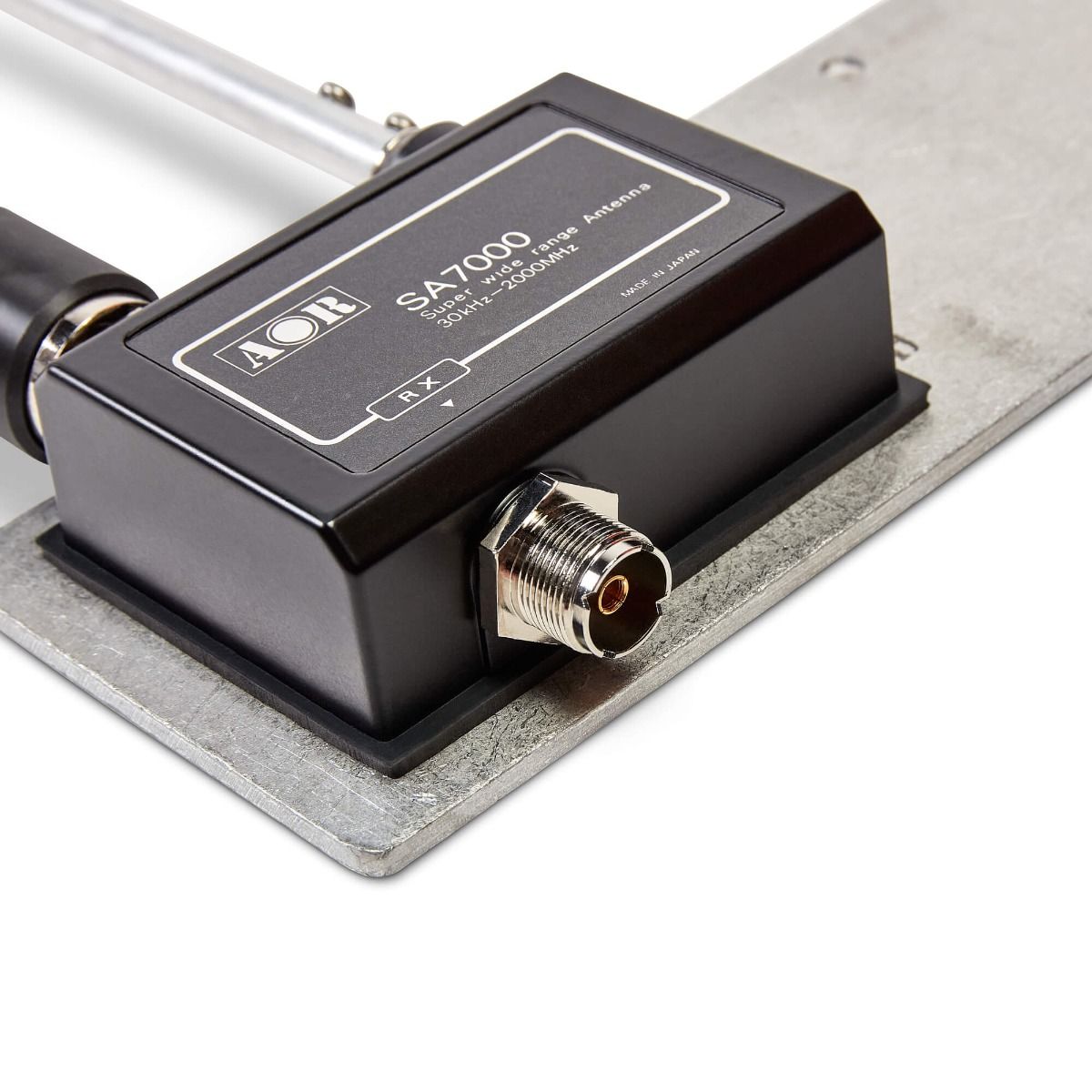

AOR SA7000 Twin Element Wideband Receive Antenna

The AOR SA7000 is an ultra-wideband passive receive antenna covering an exceptional 30 kHz to 2 GHz — from longwave and shortwave right through to UHF. Designed for scanner enthusiasts, SDR users, and serious SWL operators, it delivers broad spectrum coverage from a compact, unobtrusive installation. Two whip elements handle different frequency ranges, with loading coils tuned around 150 MHz and 800 MHz to enhance VHF and UHF performance.

Key Features

• Exceptional 30 kHz–2 GHz coverage — one antenna for LW, MW, SW, VHF, and UHF receive
• Twin element passive design — long whip for shortwave up to 30 MHz, shorter loaded whip for up to 2 GHz

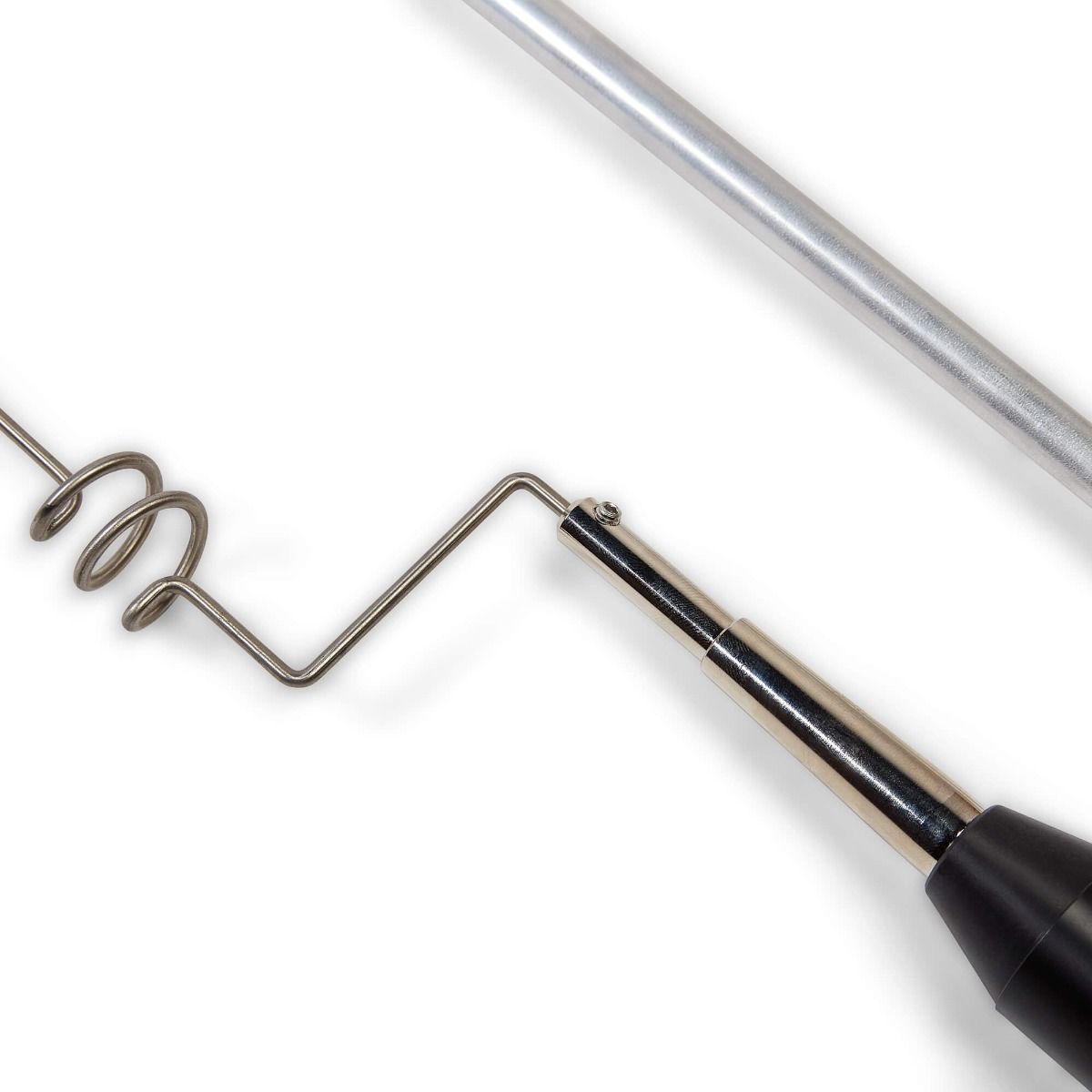

• Loading coils tuned at 150 MHz and 800 MHz — enhanced VHF and UHF sensitivity
• Compact and unobtrusive — ideal where space or aesthetics are a concern
• Wind-rated to 50 m/s — robust enough for permanent outdoor installation

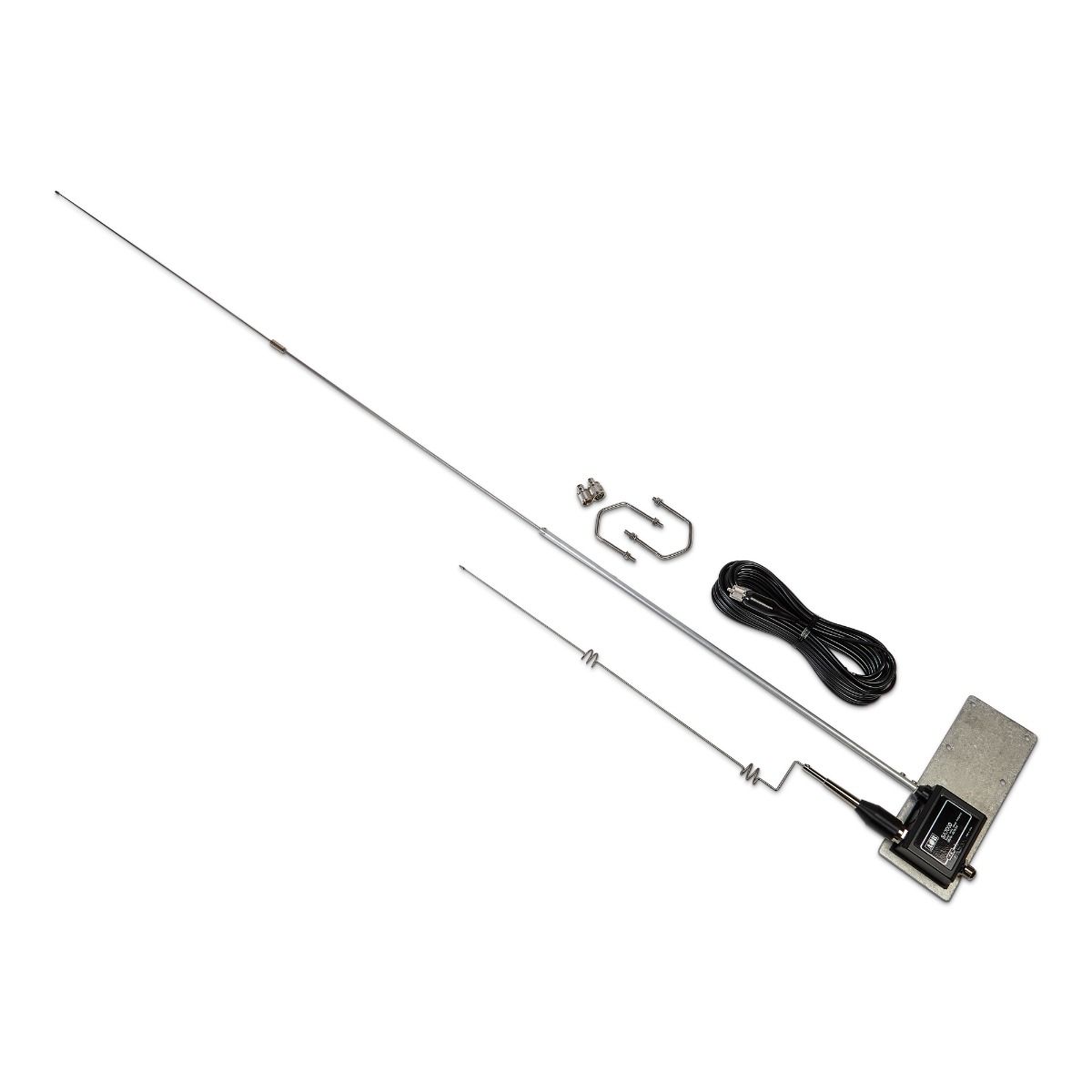

• Supplied with 15m RG58/U coax and BNC connector — ready to connect to your receiver

Technical Specifications

• Frequency Range: 30 kHz – 2 GHz
• Impedance: 50 Ω
• Total Length: 1.8 m
• Mast Diameter: 30–60 mm
• Wind Endurance: 50 m/s
• Supplied With: 15m RG58/U coax with BNC connector
