12.8m (42ft) Aluminium Telescopic Antenna Mast

Moonraker TMA-3 Aluminium Telescopic Mast

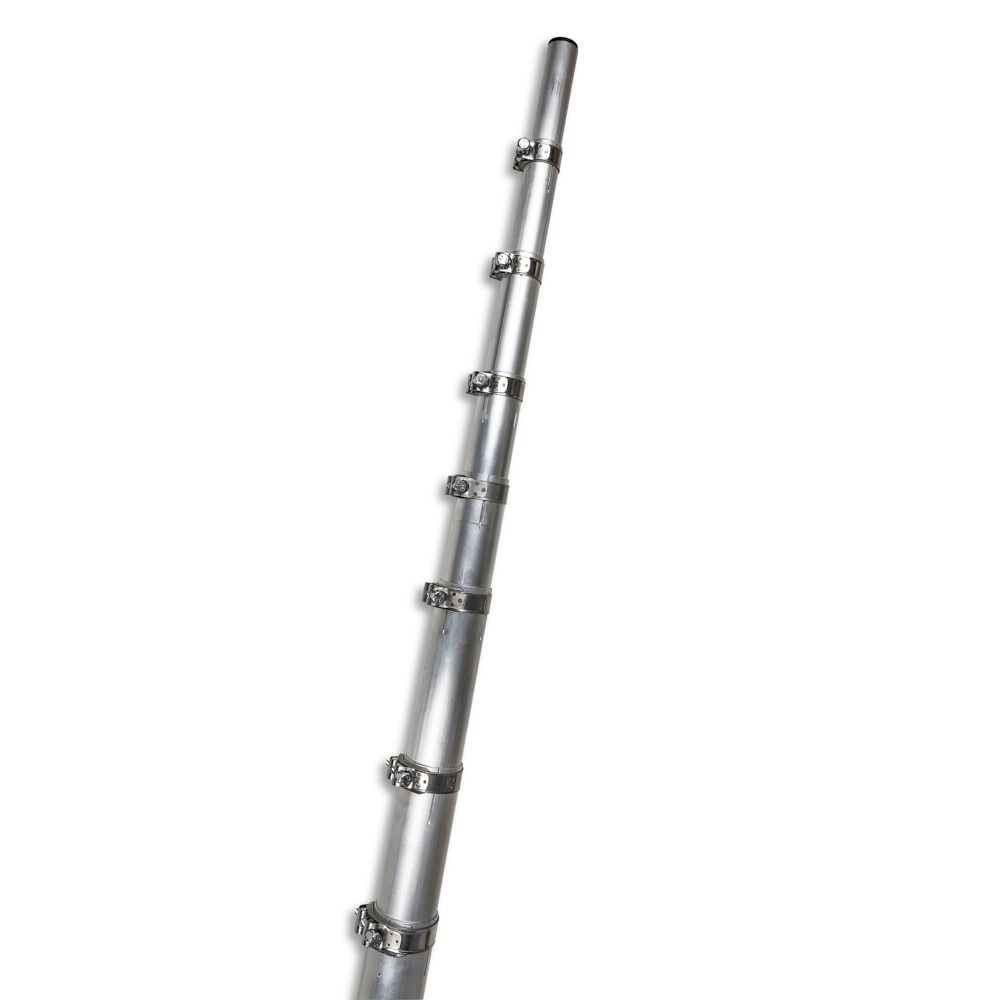

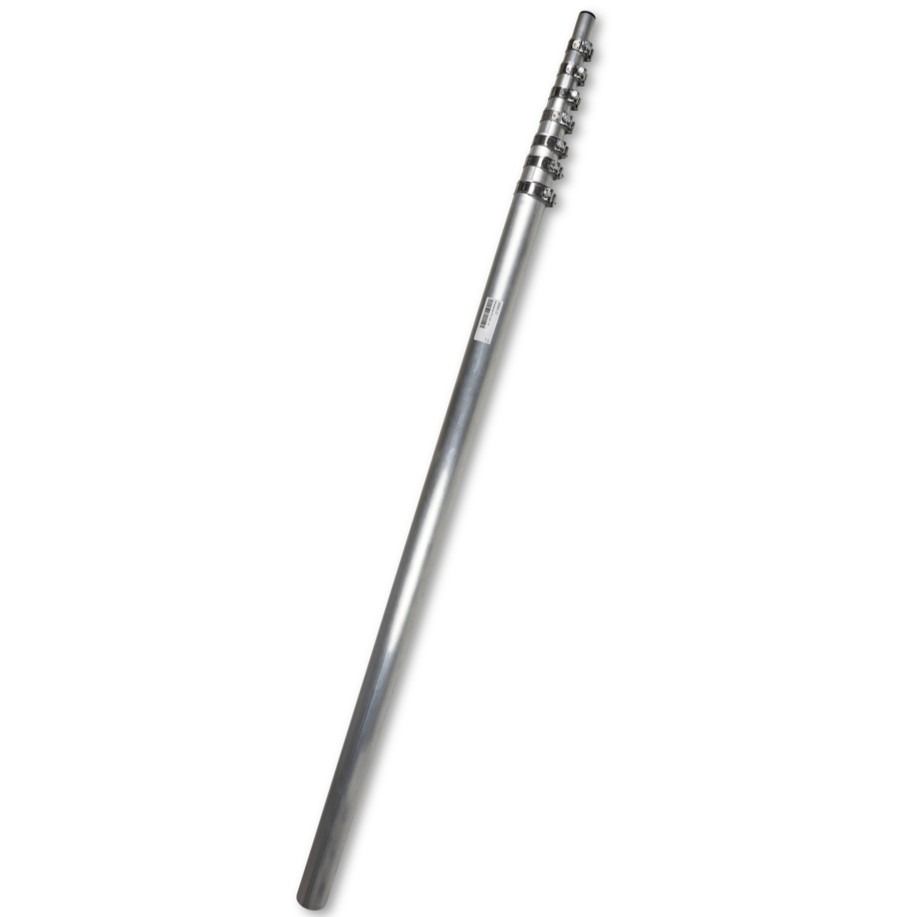

The Moonraker TMA-3 is a strong, lightweight eight-section aluminium mast designed for antenna installations, portable radio operation and temporary equipment mounting. It extends to 12.8m while retracting to 1.9m for transport and storage.

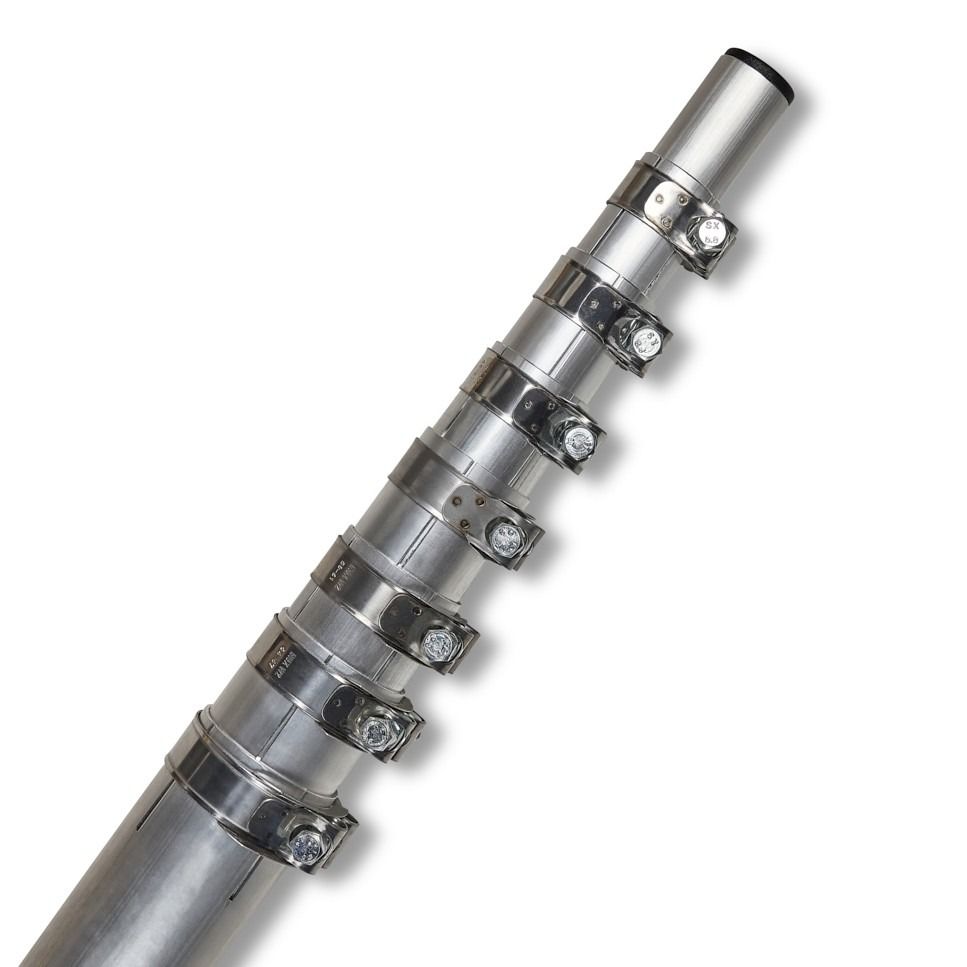

Secure locking clamps hold the telescopic sections at the required working height, making the mast suitable for field-day stations, temporary amateur-radio installations and other compatible lightweight equipment.

Key Features

• Maximum extended height of 12.8m
• Retracted length of 1.9m
• Eight telescopic aluminium sections
• Secure section-locking clamps
• Suitable for portable and temporary antenna installations
• Can support compatible lightweight weather-station, camera or monitoring equipment

Technical Specifications

• Model: TMA-3
• Extended length: 12.8m
• Closed length: 1.9m
• Number of sections: 8
• Bottom tube diameter: 70mm
• Top tube diameter: 35mm
• Material: Aluminium
• Weight: Approximately 13kg

Typical Applications

• Amateur-radio antenna mounting
• Portable and field-day stations
• Temporary mast installations
• Compatible weather stations and lightweight monitoring equipment

Installation note: Suitable bracing or guying is recommended for installations above 6m, depending on the mounting method, attached equipment and weather conditions.
